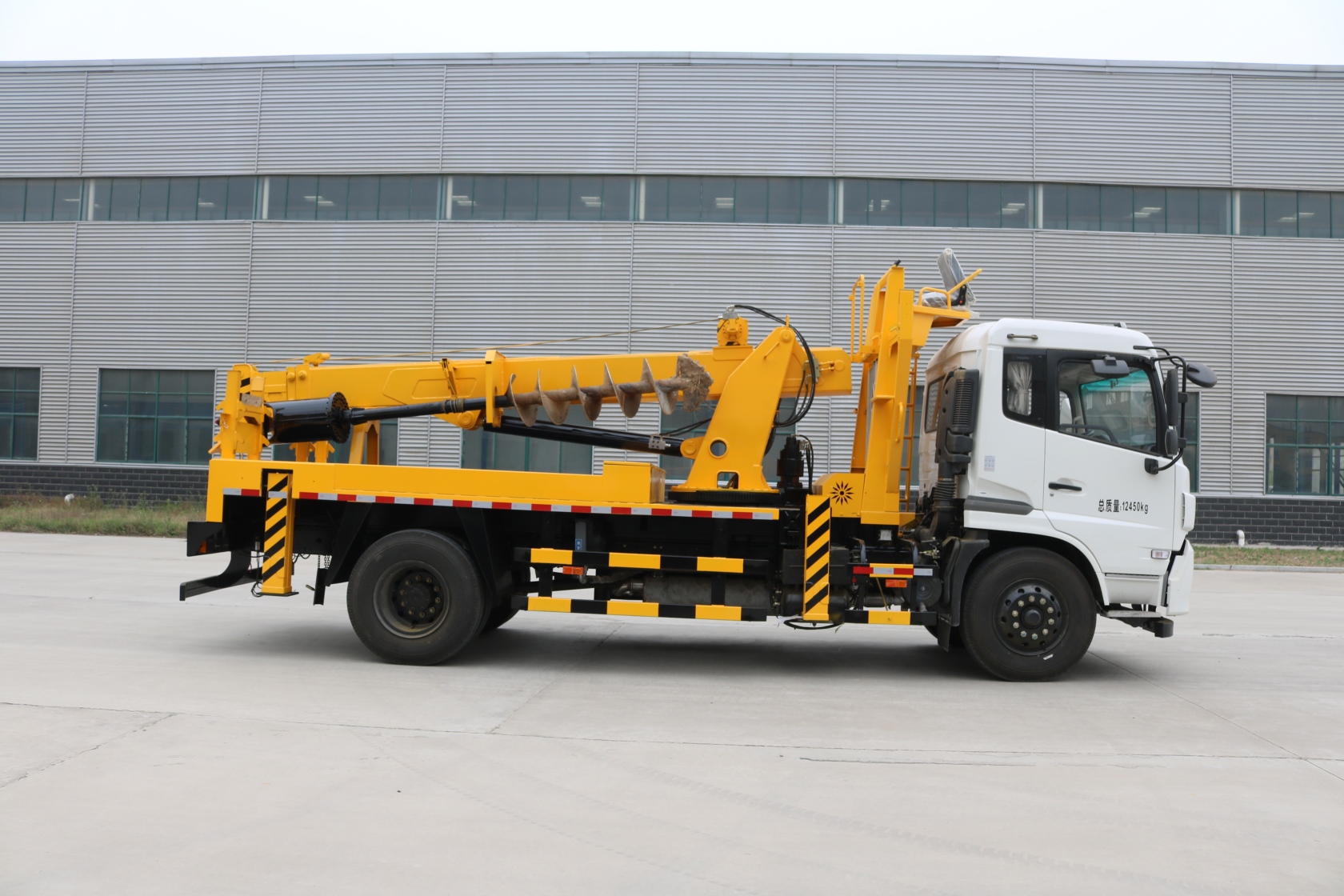

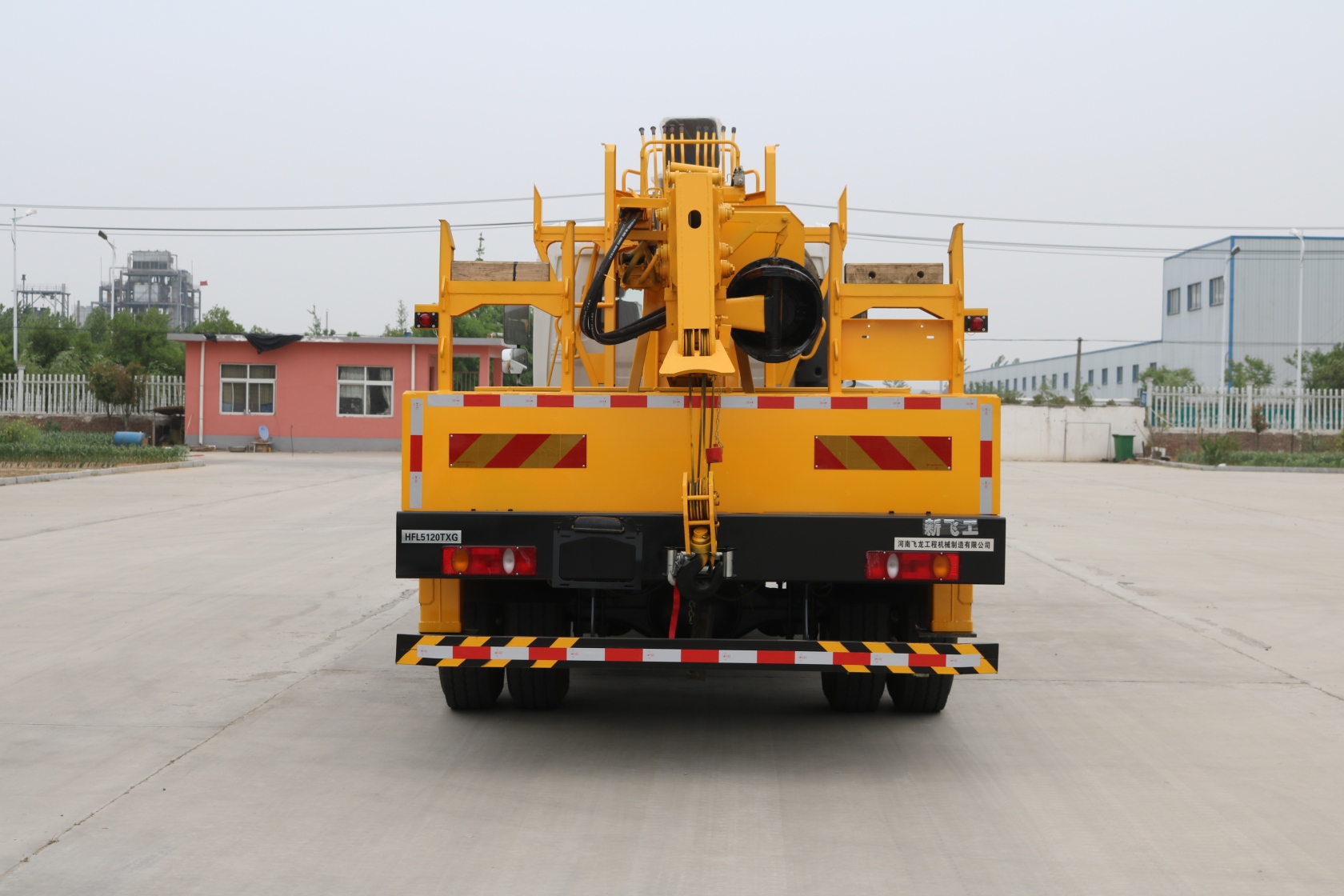

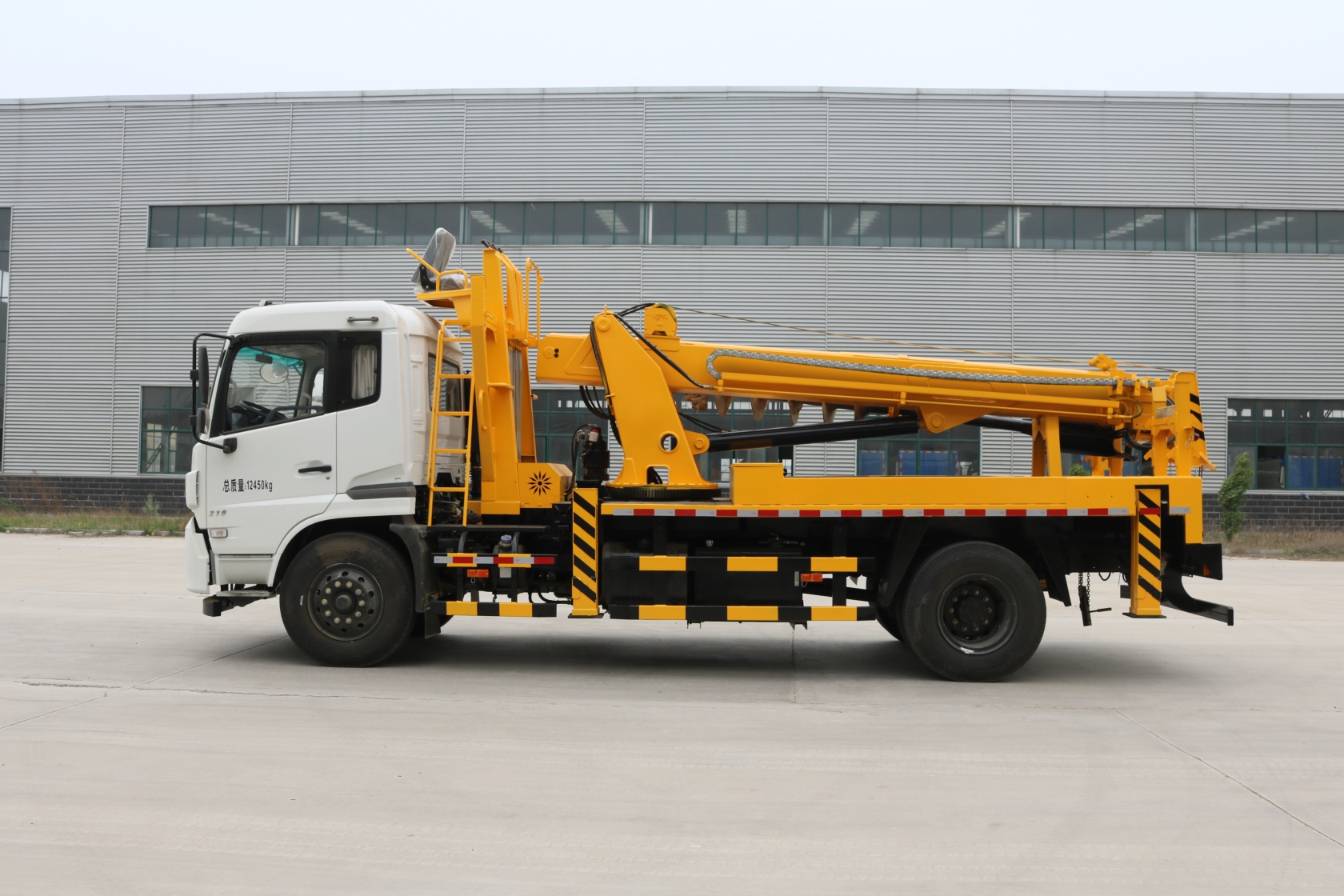

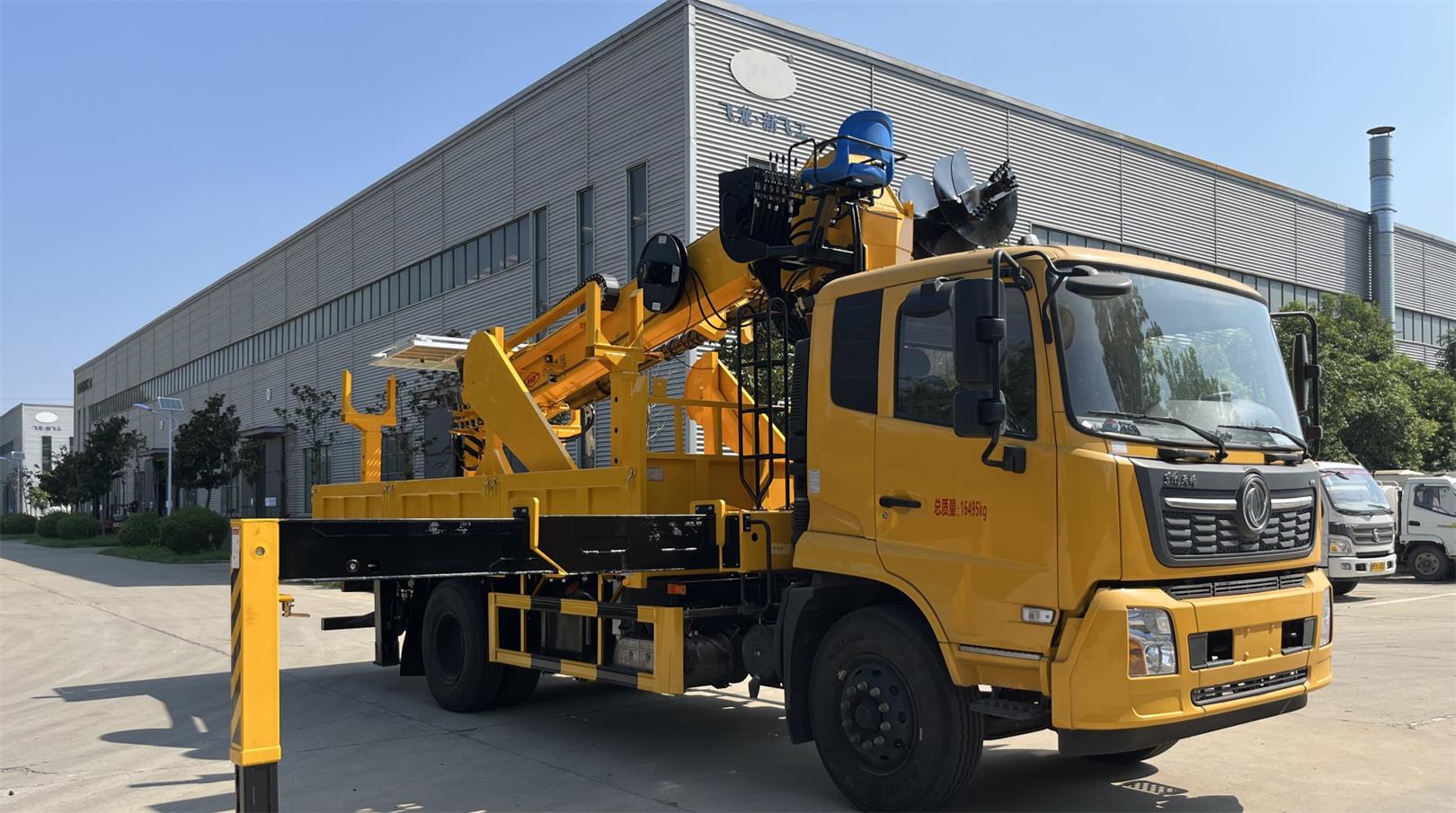

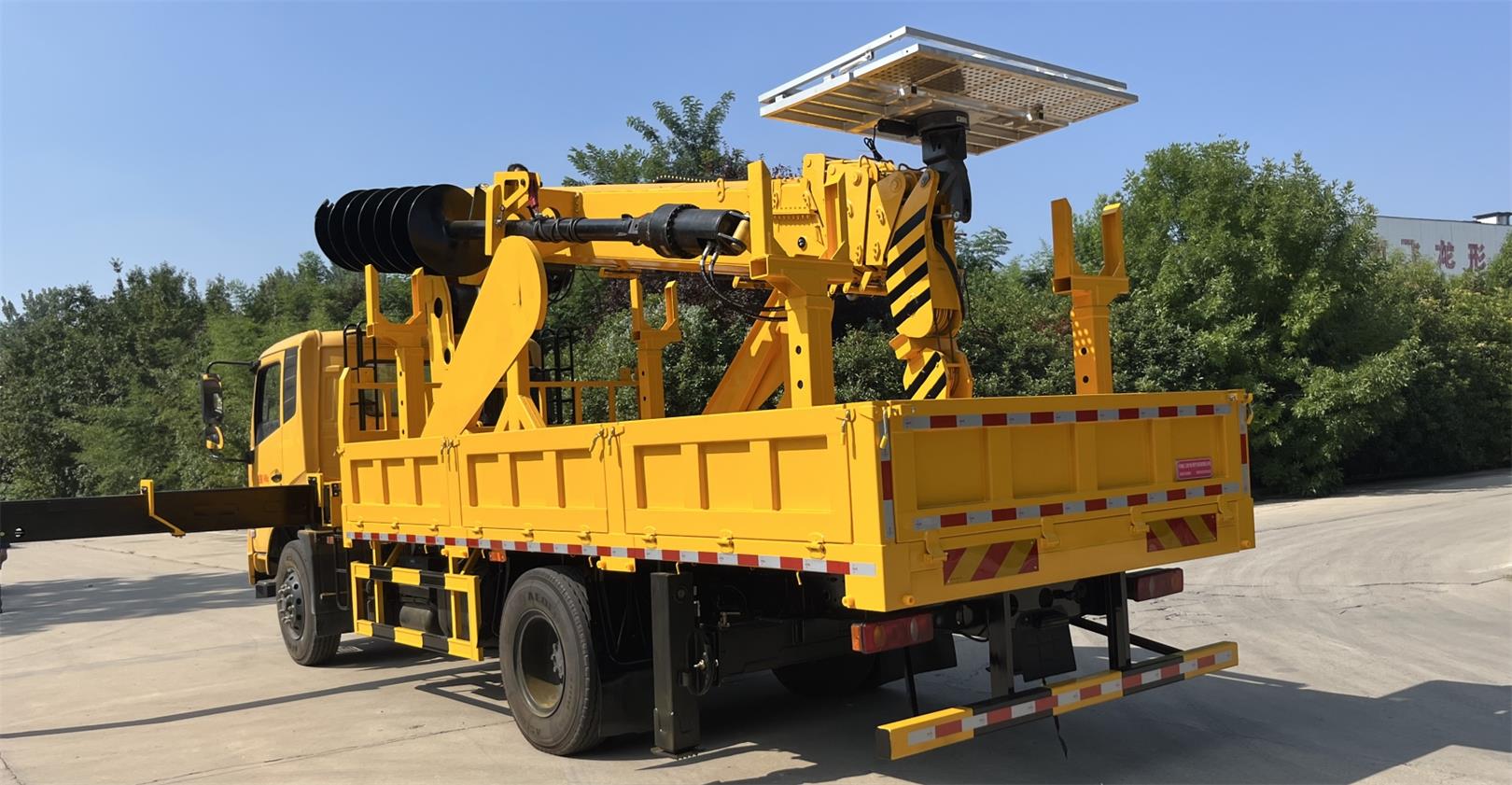

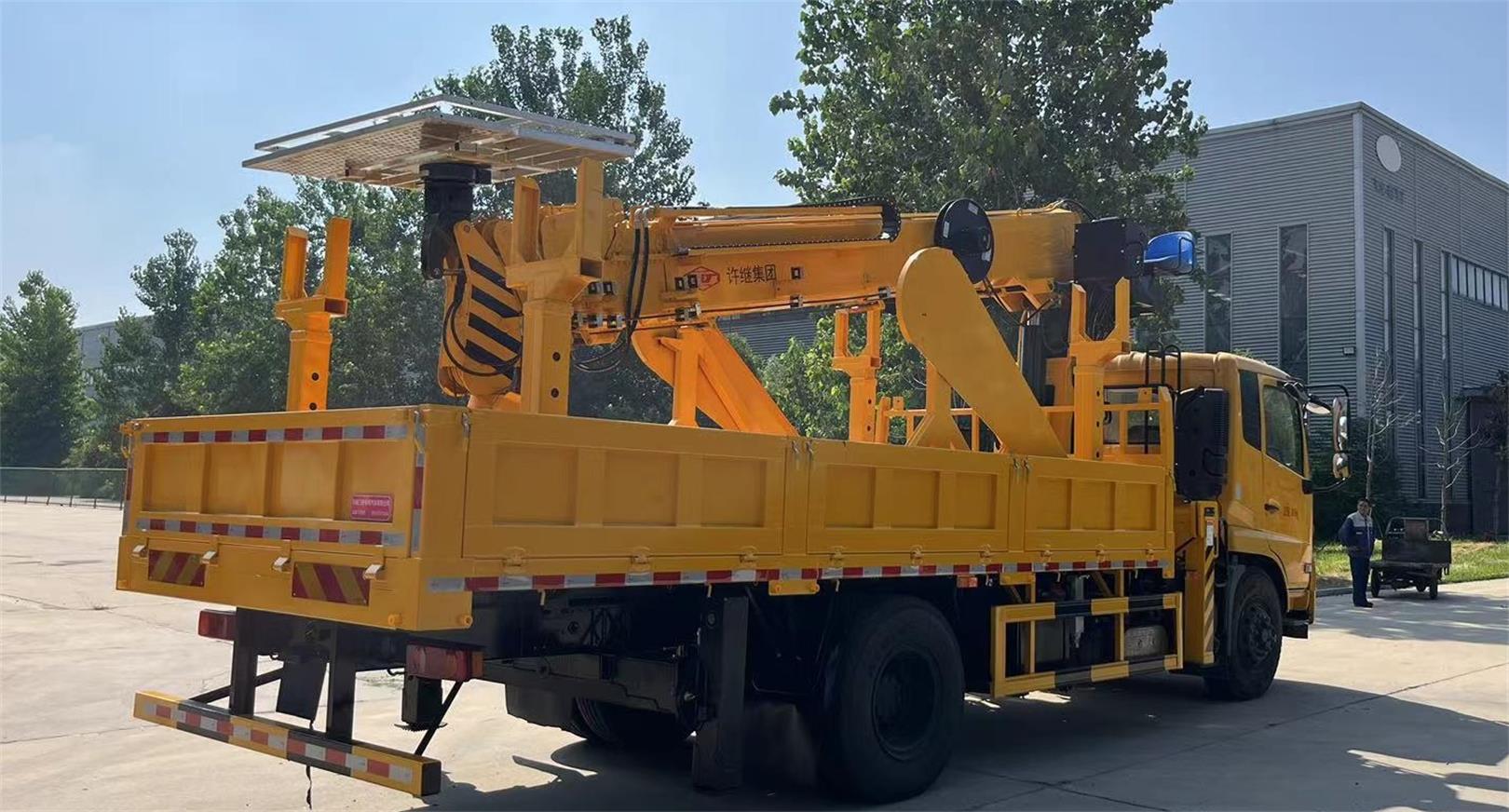

Auger drill for electricity construction Line rod integrated operation vehicle-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

Lifting capacity 4000Kg, boom length 13.4m, working height 15.8m.
Drilling and pole hoisting; support rod, lifting rod, auxiliary pull rod, transportation, lifting, and load expansion
suitable for the works' daily maintenance, emergency repair, and construction of oilfield lines, substations/stations, well sites, railway electrical facilities, power plants, petrochemical, and other large and medium-sized outdoor production areas.
Hoisting construction and power maintenance operations in a narrow space and rough terrain.

Multiple vehicle combined crane, auger drill, for efficient electricity construction works, efficient and save labor cost.
It has a function of lifting, drilling, and pulling with electric rods.

Used a laser cutting machine, advanced CNC processing equipment, an auto robot welding precision bending machine, and an automatic washing machine to ensure the quality and standards of each component.

Product model name		Line rod integrated operation vehicle
project		design value
Maximum rated lifting moment kN · m		186
Maximum rated lifting weight in kg		4000
Basic arm length is mm		5048

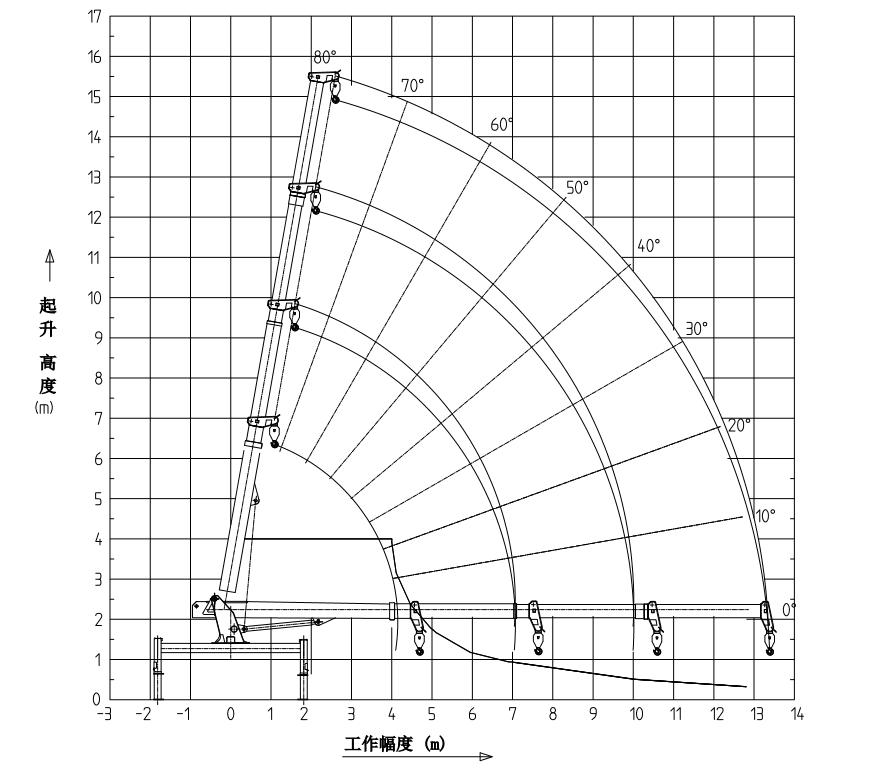

The longest main arm is mm long		13400
Maximum main arm maximum lifting height mm		15800
Max maximum elevation of (°)		80
Luffing cylinder elevation (°)		-10
Longitudinal span (left / right) mm		4160
Lateral span (front/back) mm		5600/3180

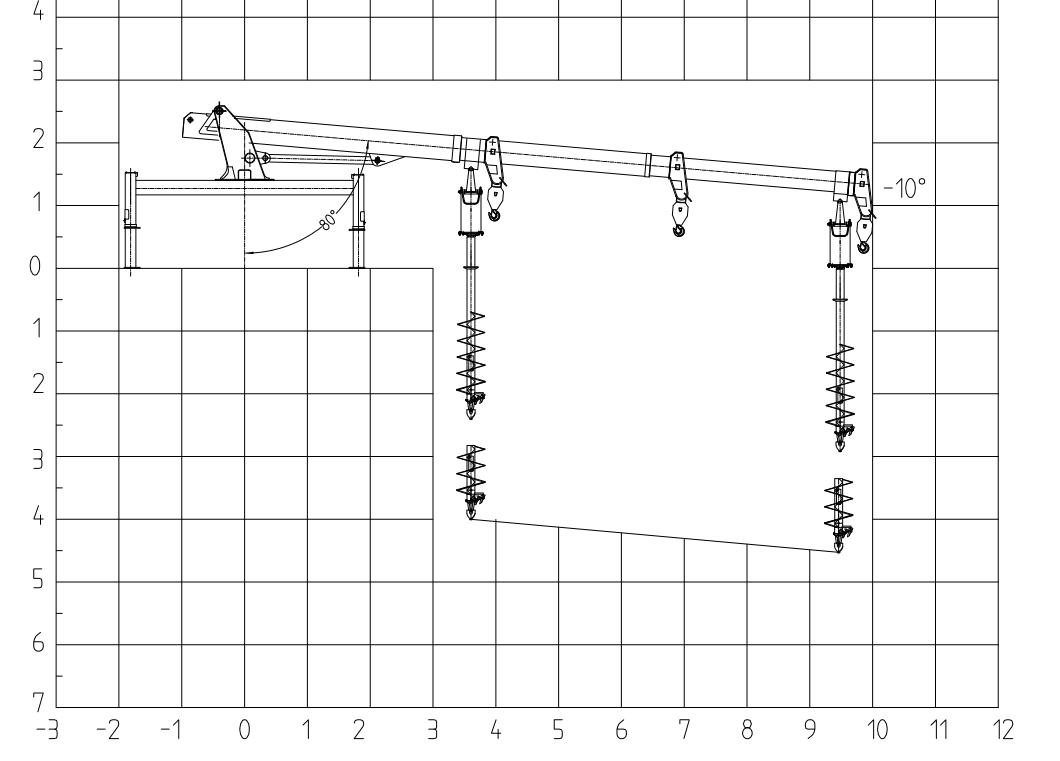

Standard drill pipe drilling depth m		3
Drilling depth range m		3.5-9.2
Borehole diameter mm		480-500
Maximum lifting speed of single rope m / min		65
The maximum descent speed of the single rope is m / min		60
Maximum rotation speed, r / min		2
Variable amplitude speed	The whole arm s	26
	Full fall arm s	23
Expansion speed	Full stretch s	34
	The whole arm s	14
Drill rated speed r / min		32.5
torsion		6000N.m
