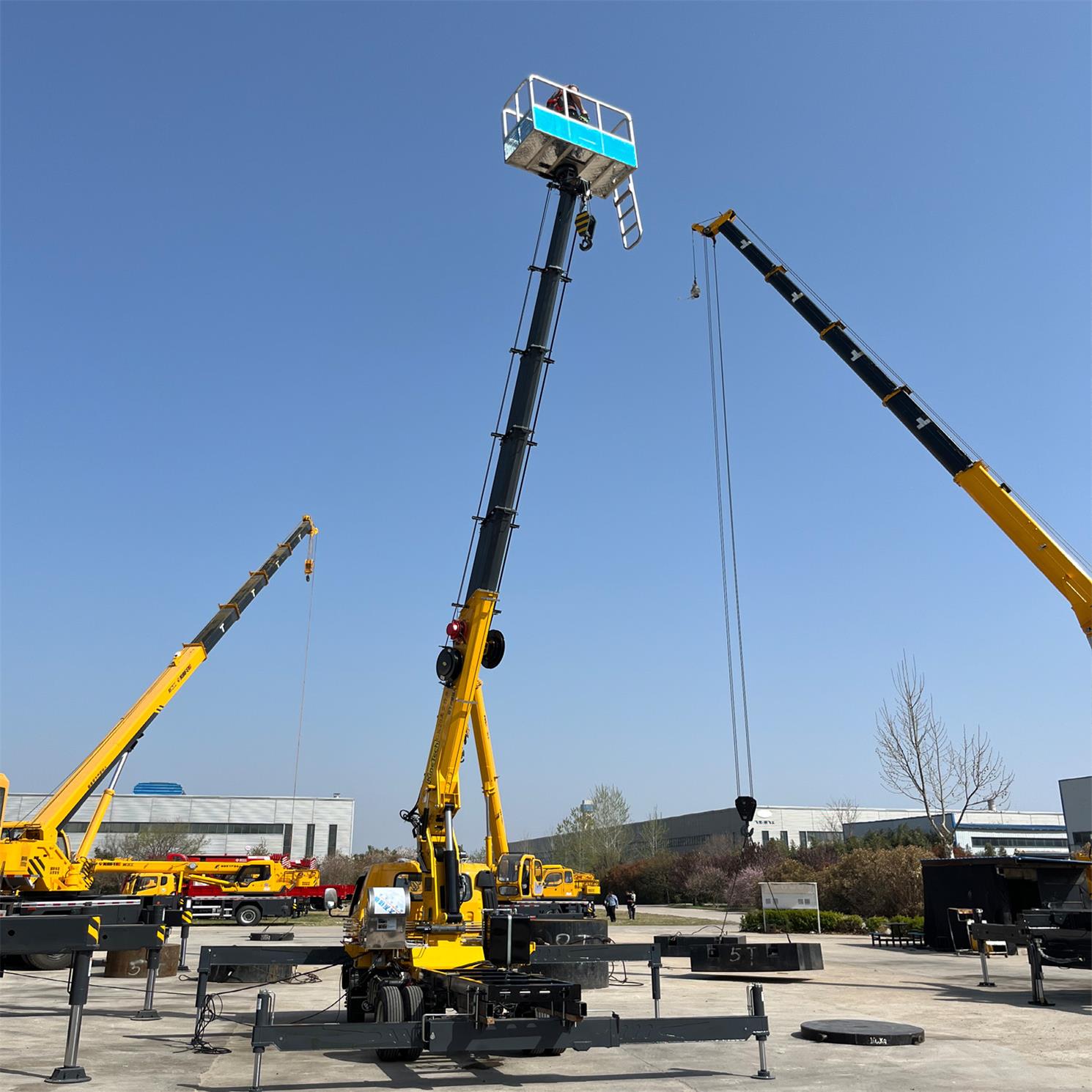

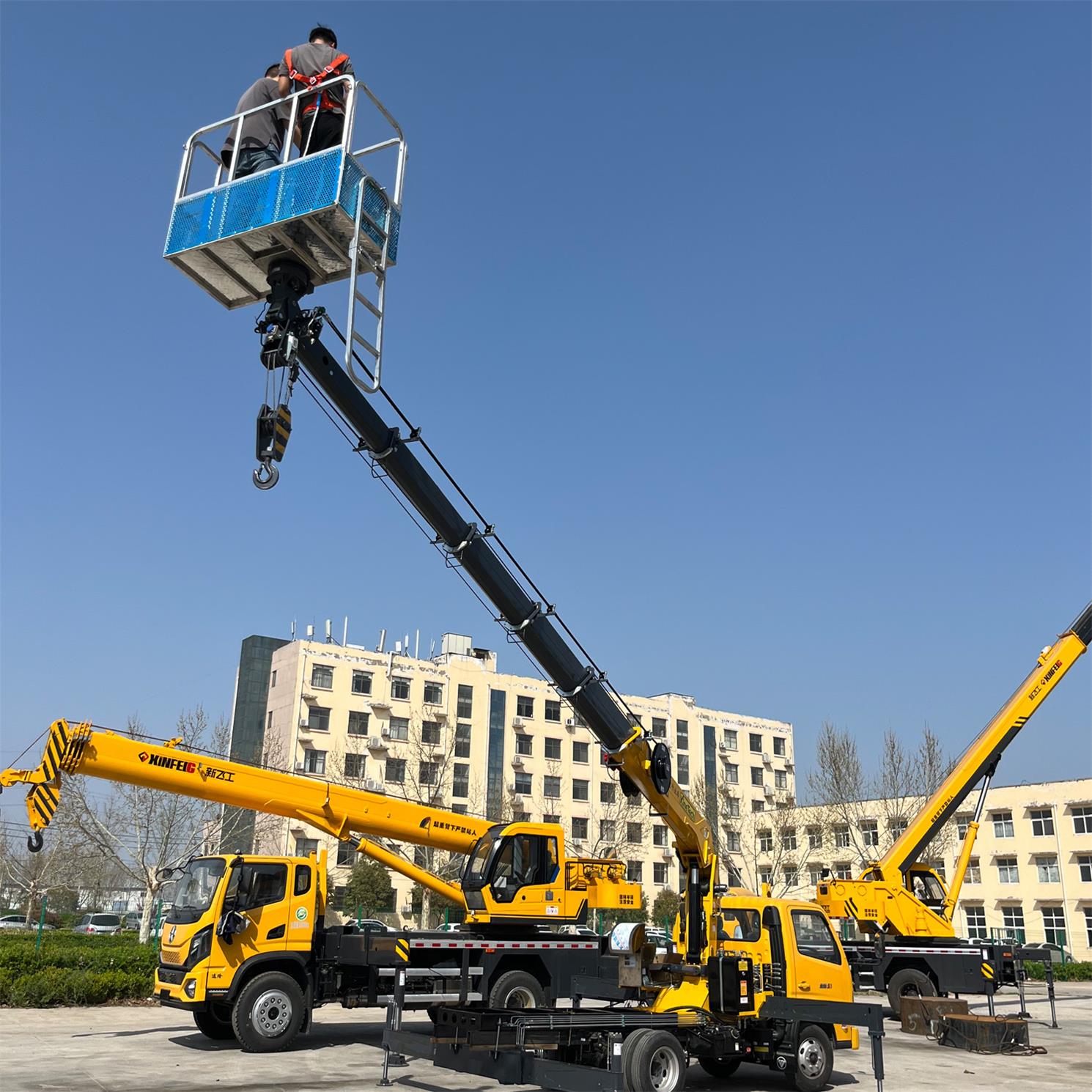

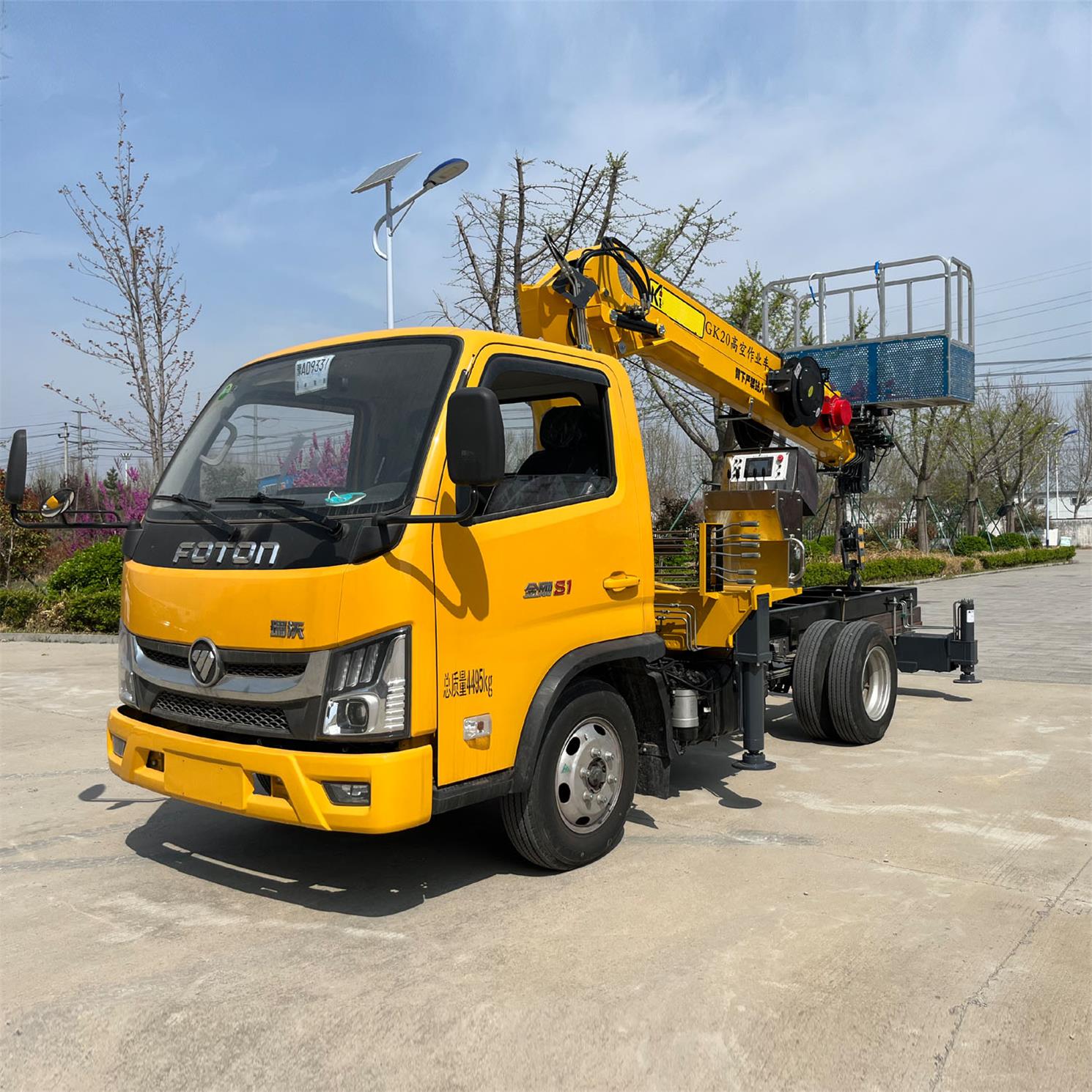

Multiple Aerial Working Platform

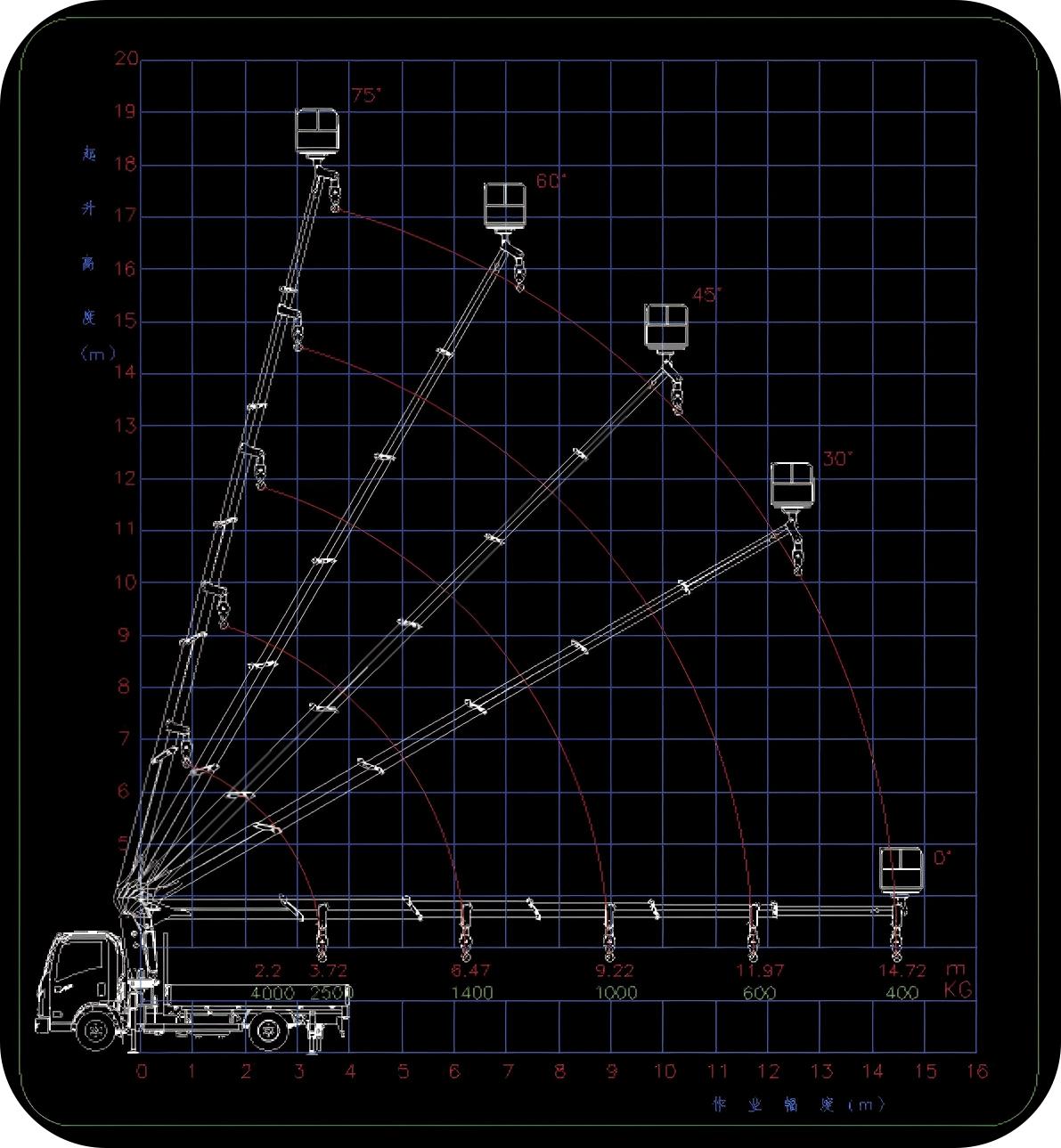

• Platform:  6-section working height 19m, hook lifting capacity is 4 tons, max. Working range 14.72 m.
• hexagonal shape Boom section, 1 cylinder, 5-rope connection, reliable and efficient.
• Operating System: a renowned domestic electronic control system with a wireless remote control.
• Safety Devices: Entry and Exit Interlock, Limit Protection, and a Two-Way Hydraulic Counterbalance Valve.

Product advantage

• Worm turbo slewing reducer, large torque, ensures slewing smoothly and strong working ability, gear pump provides a strong, powerful resource.
• Hydraulic System: An electro-hydraulic proportional valve with infinitely variable speed and an emergency power source.
• Hydraulic Outriggers: H-shaped outriggers with four individually adjustable telescopic outriggers for enhanced stability.
• The interlock between the superstructure and undercarriage can effectively avoid misoperation, which is safe and reliable.

Production Features

• Used a laser cutting machine, advanced CNC processing equipment, an auto robot welding precision bending machine, and an automatic washing machine to ensure the quality and standards of each component.
• lightweight design, optimized girder structure, enhanced bearing capacity, and torsional strength.
