Feature Introduction

Boom material BS960E, high tensile plate, ensures bearing capacity while reducing boom light. Six-section boom, 1 cylinder, 5 ropes, reliable working performance, and enhances working efficiency

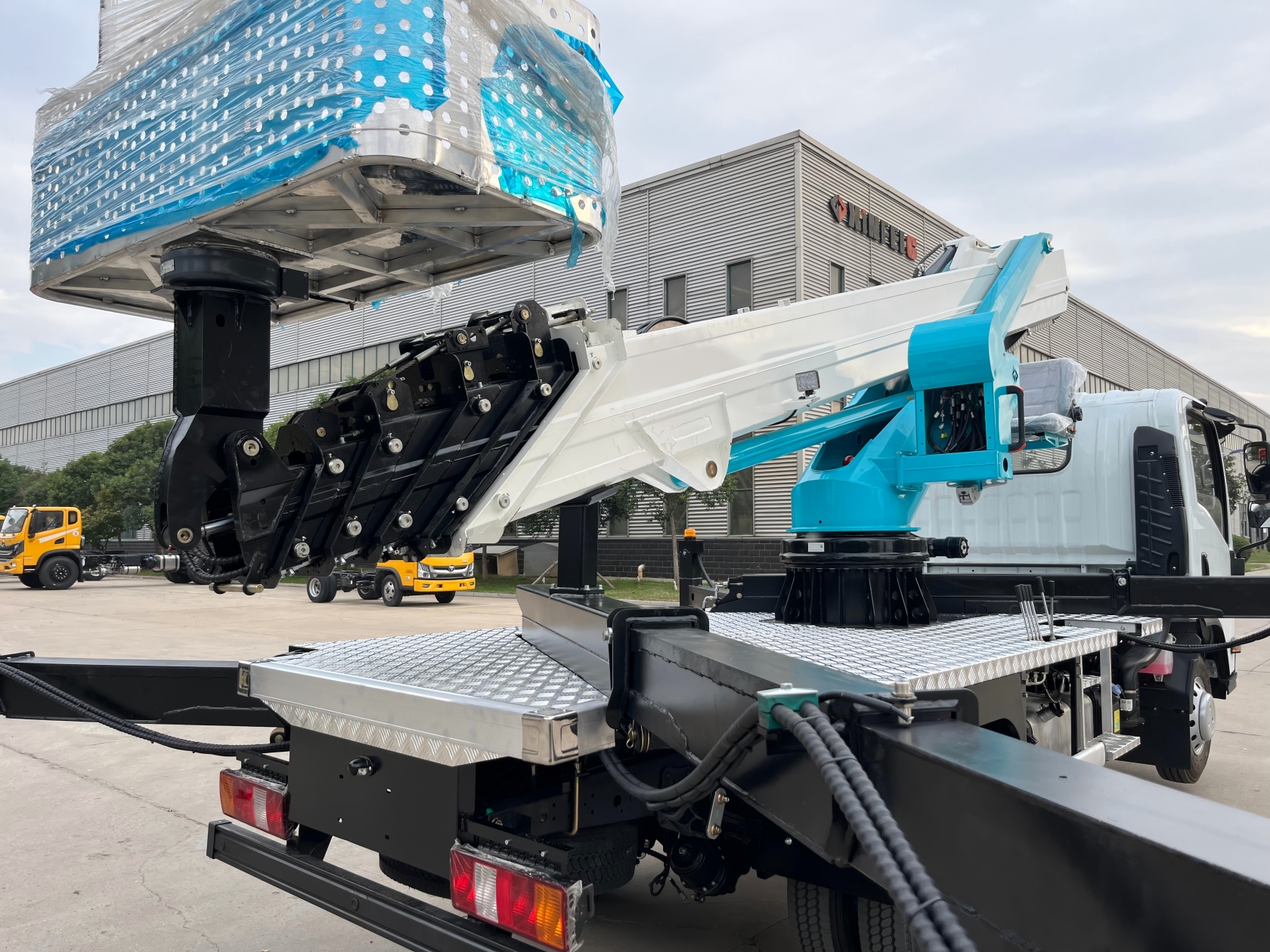

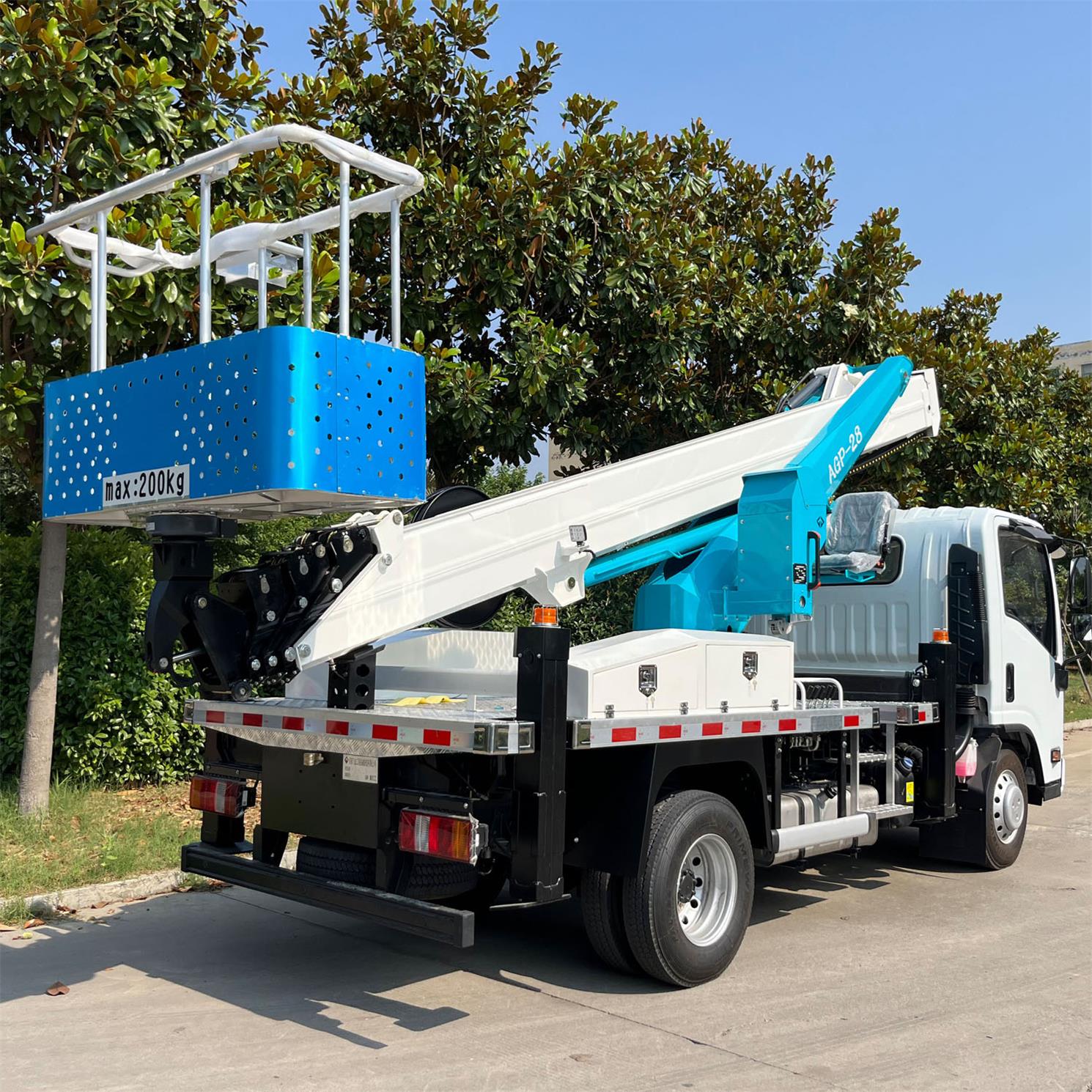

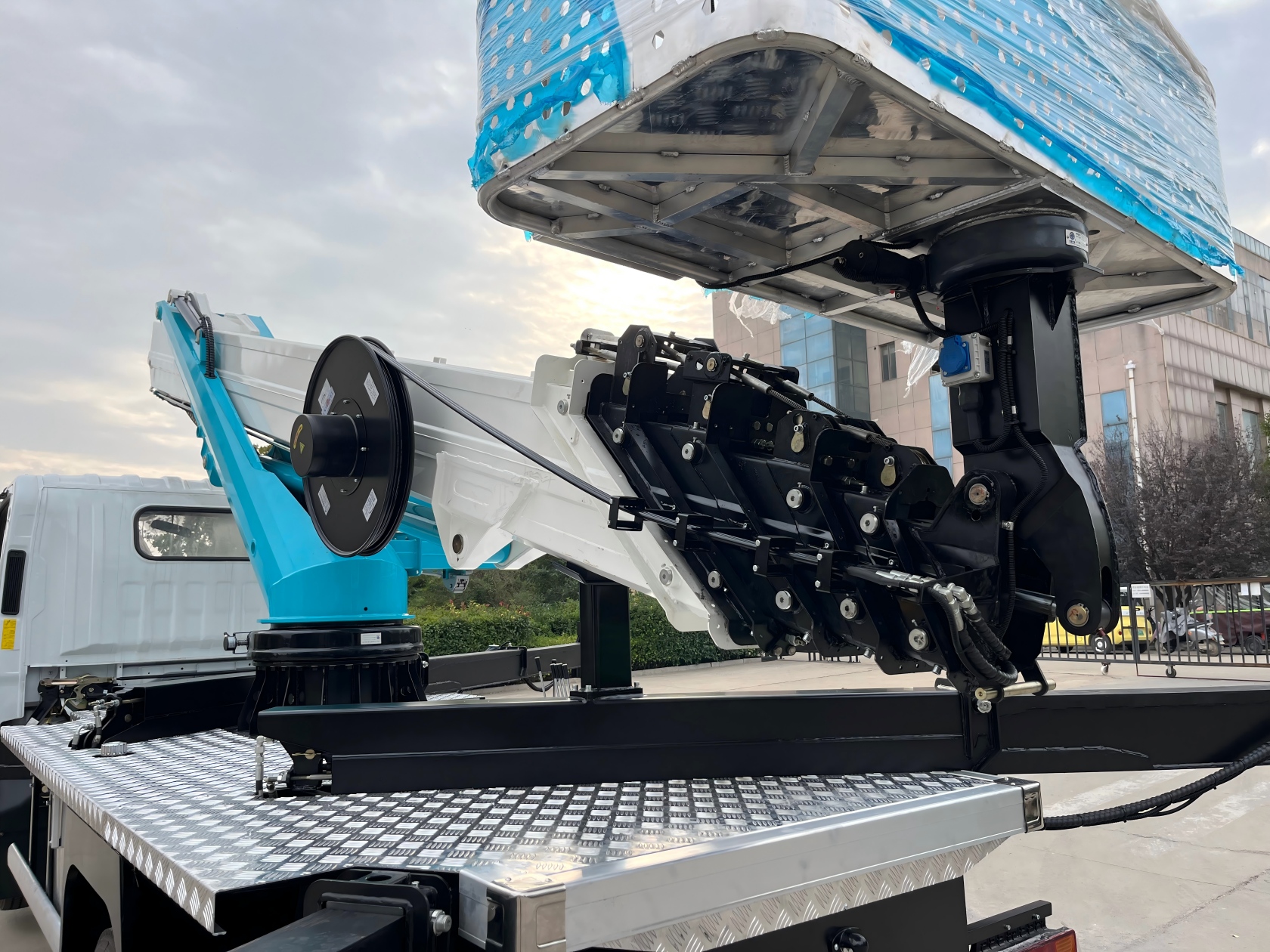

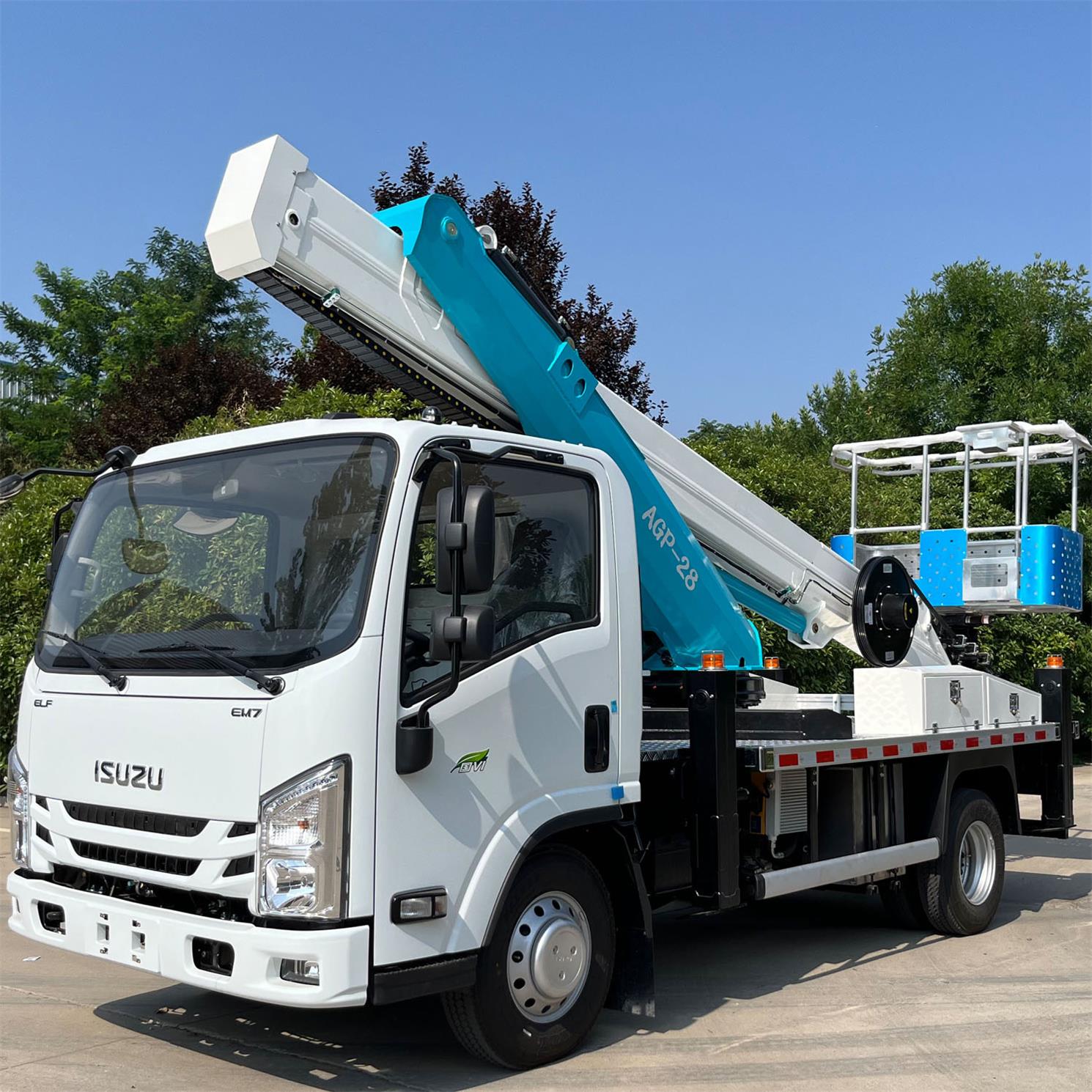

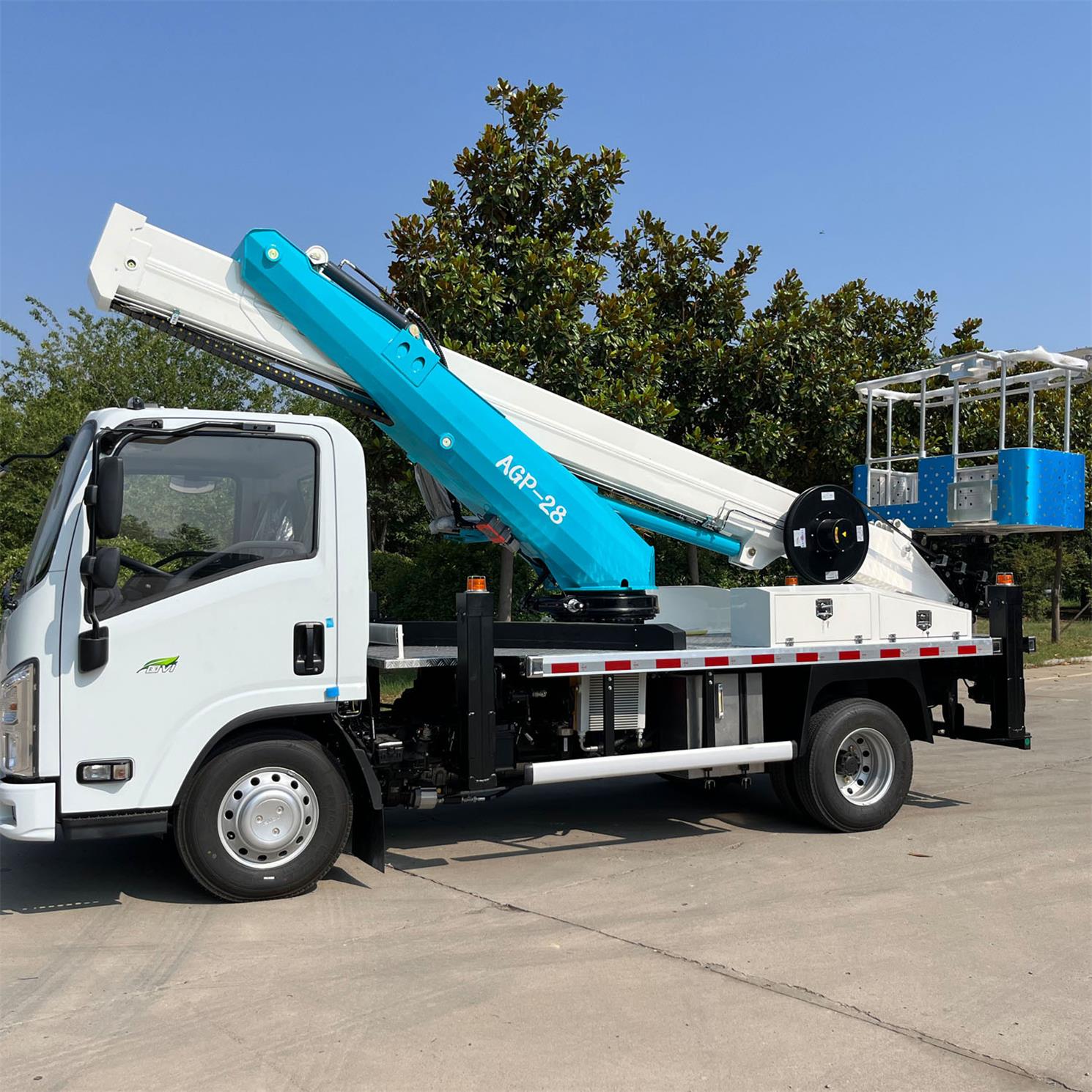

Truck-mounted aerial working platform, working height 32 meters, 6-section straight boom, Max working height 31.6m, max working radius 14.6m rear, 11m all round.
Economic design equipped both manual operation and remote control, convenience, and efficiency.
Equipped with an intelligent operating system: tilt alarm, over-limit self-locking, and emergency stop, ensuring the safety of workers and equipment.

Elector-hydraulic proportional control, step less speed regulation, and superior operation, and superior operational performance.
The interlock between the superstructure and undercarriage, and the soft outrigger protection function, ensure safe operation.
The PLC control has superior safety performance, such as automatic amplitude limit and danger alarm functions.
The interlock between the superstructure and undercarriage can effectively avoid misoperation, which is safe and reliable.
The emergency pump is available.

Optimized girder structure, enhanced bearing capacity, and torsional strength.

In all structural manufacturing, we treat CNC processing, ensure technical requirements, and adhere to standards

ITEM	Specification
1	Basic parameters	Rate working load(kg)		200
		Max.working height(m)		32
		Max. Working range(m)		14.6
		Operating range at maximum operating height (m)		4.1
2	Boom	Form		Lower octagon
		Working height at maximum working range (m)		27.2

3	Rotating system	Rotated form		Integral slewing bearing
		Rotated range(°)		360°
		Rotation rate（r/min）		0-2
4	Stable outrigger	Outrigger Span Longitudinal (mm)		Front 7110 Rear 6300
		Outrigger Span transverse (mm)		Left 6100 Right 6100
5	Hydraulic system	Hydraulic system		Gear pump
		Rated working pressure (Mpa)		21
		Rated working flow (L/min)		25
		Hydraulic main control valve		Proportional switching valve
		Hydraulic cylinder (unit)	1	Boom telescopic cylinder
			1	Boom lift cylinder
			2	Outrigger horizontal cylinder
			2	Outrigger vertical cylinder
6	Safety device	Holding valve
		Check valves
		Over-winding alarm
		Level gauge
		Light
		Pressure gauge
