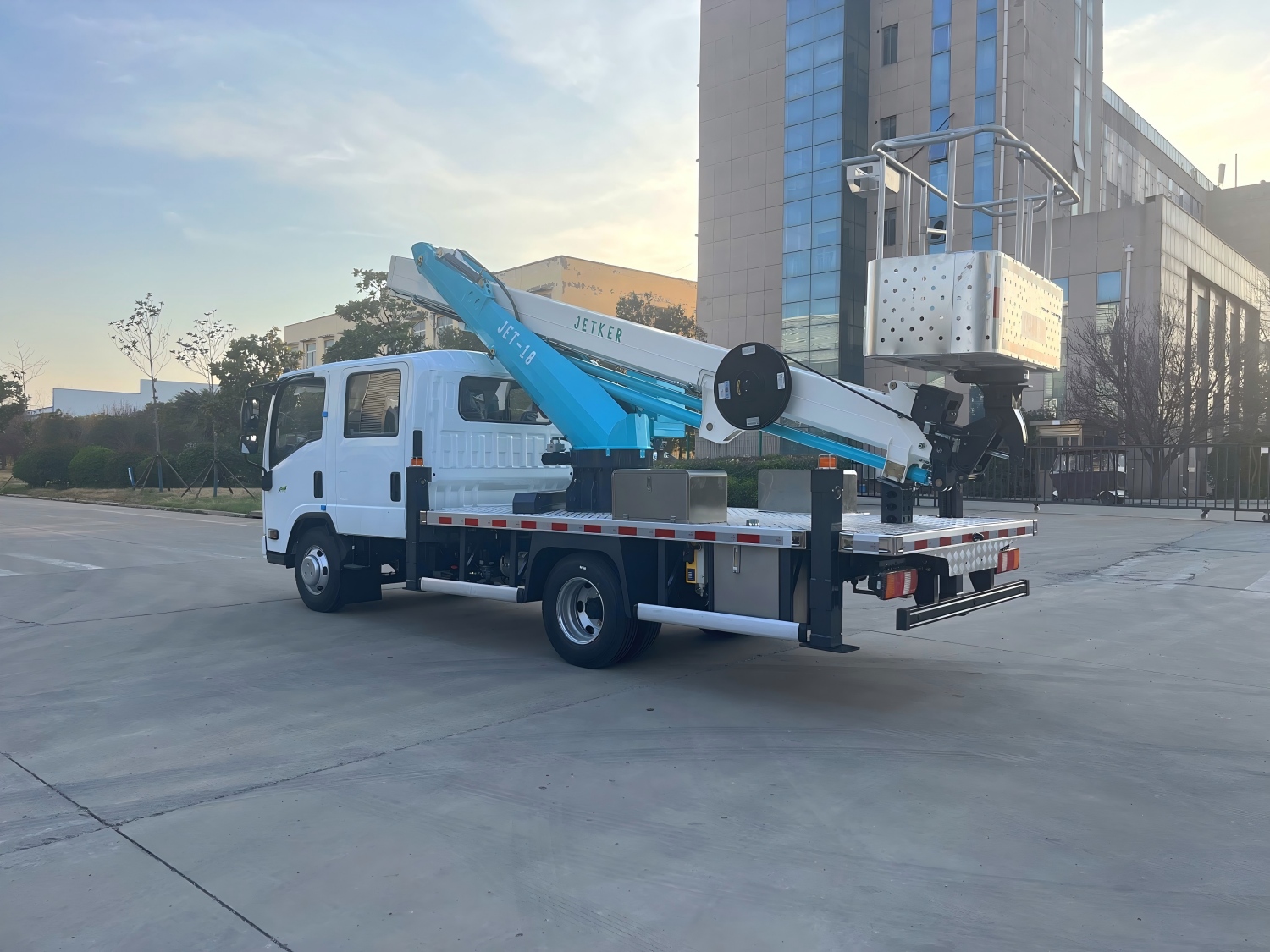

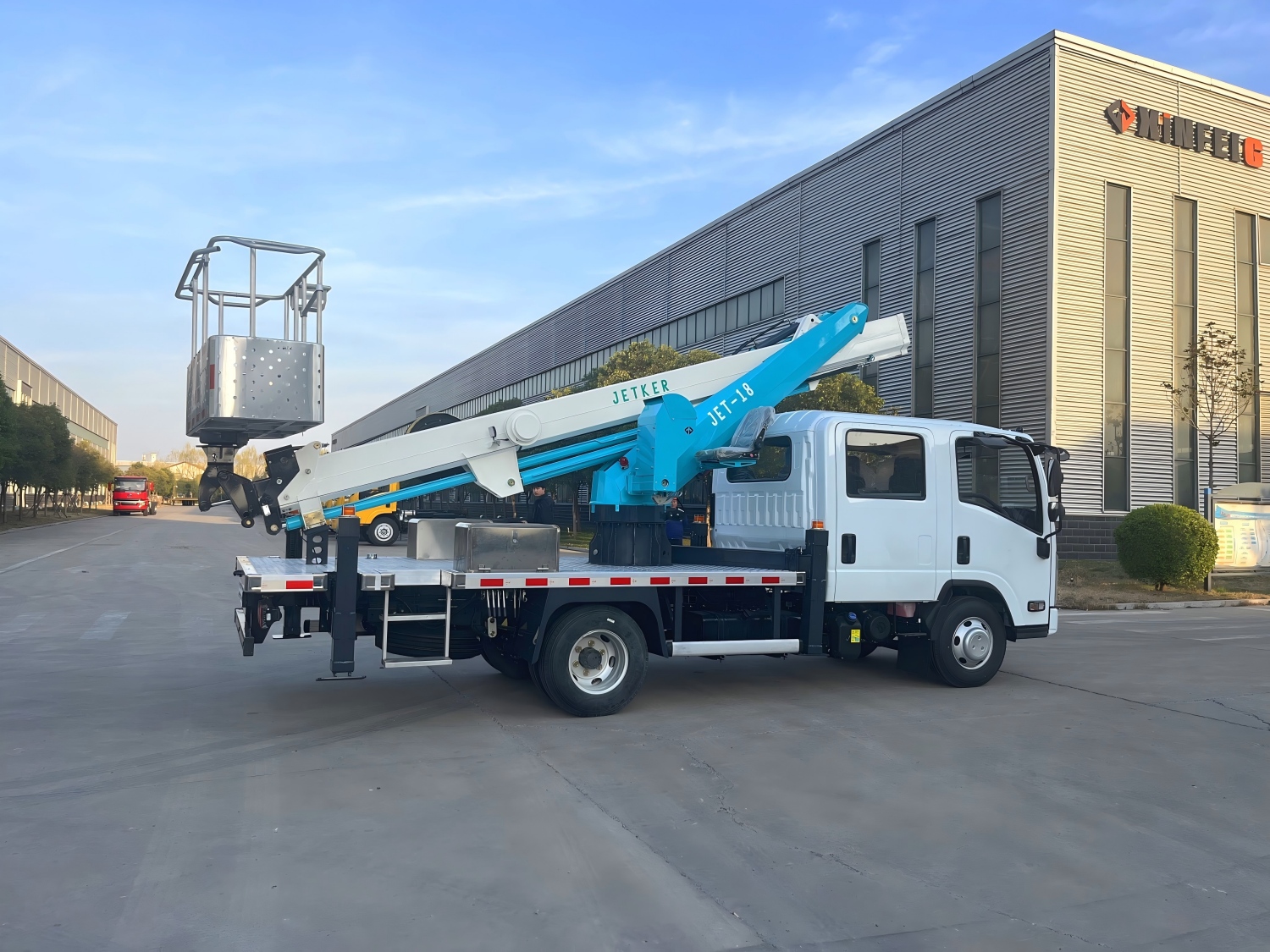

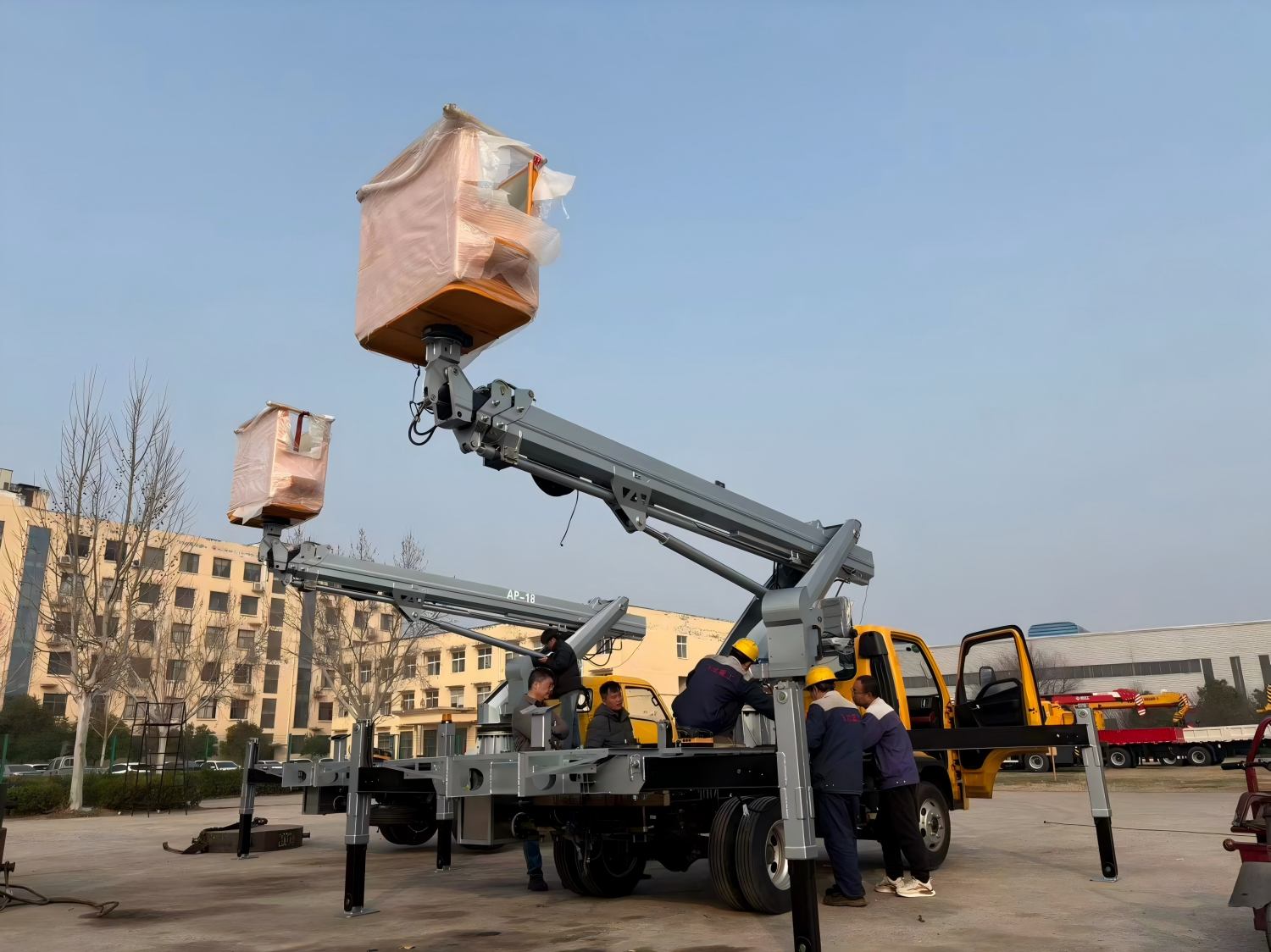

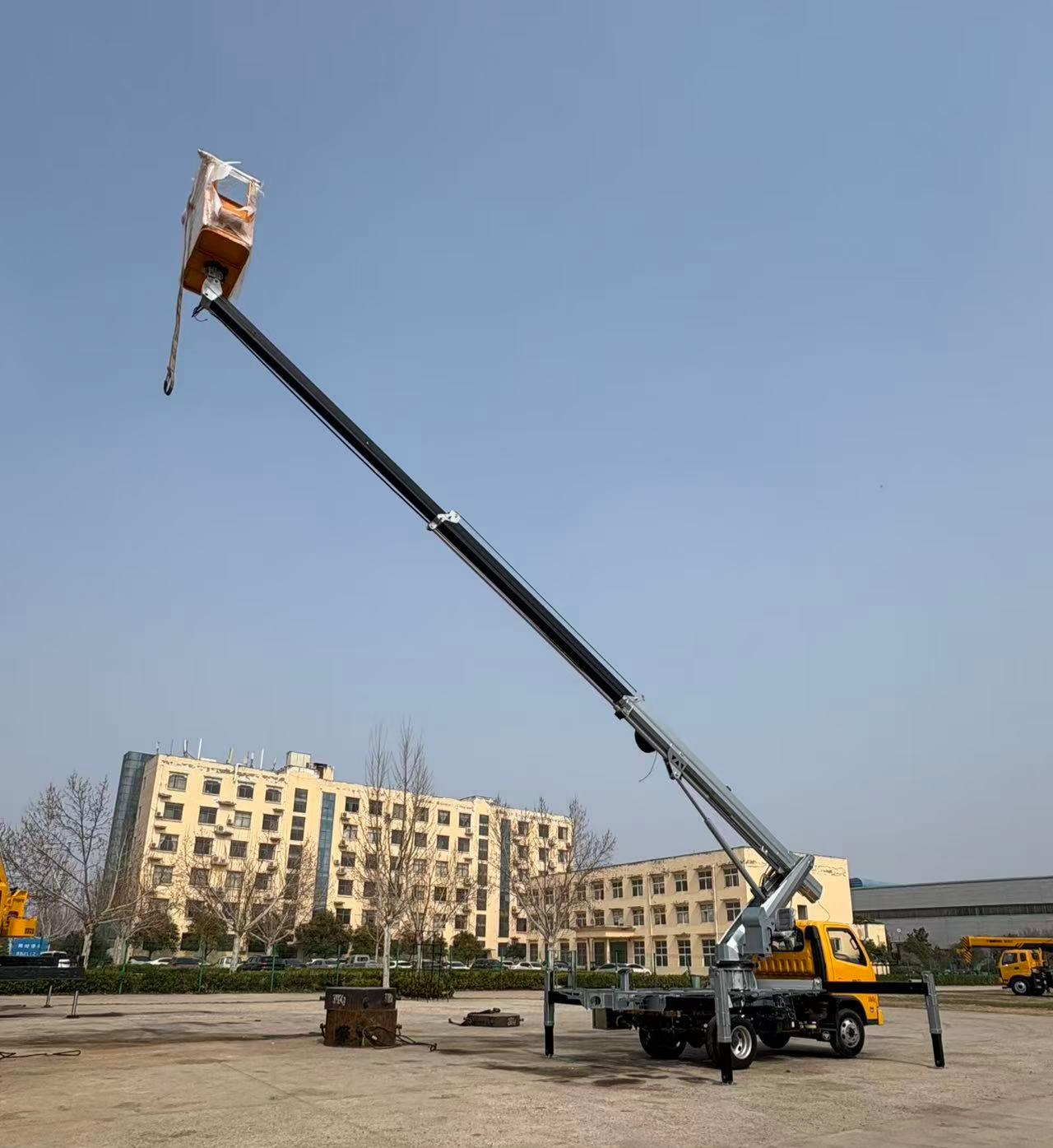

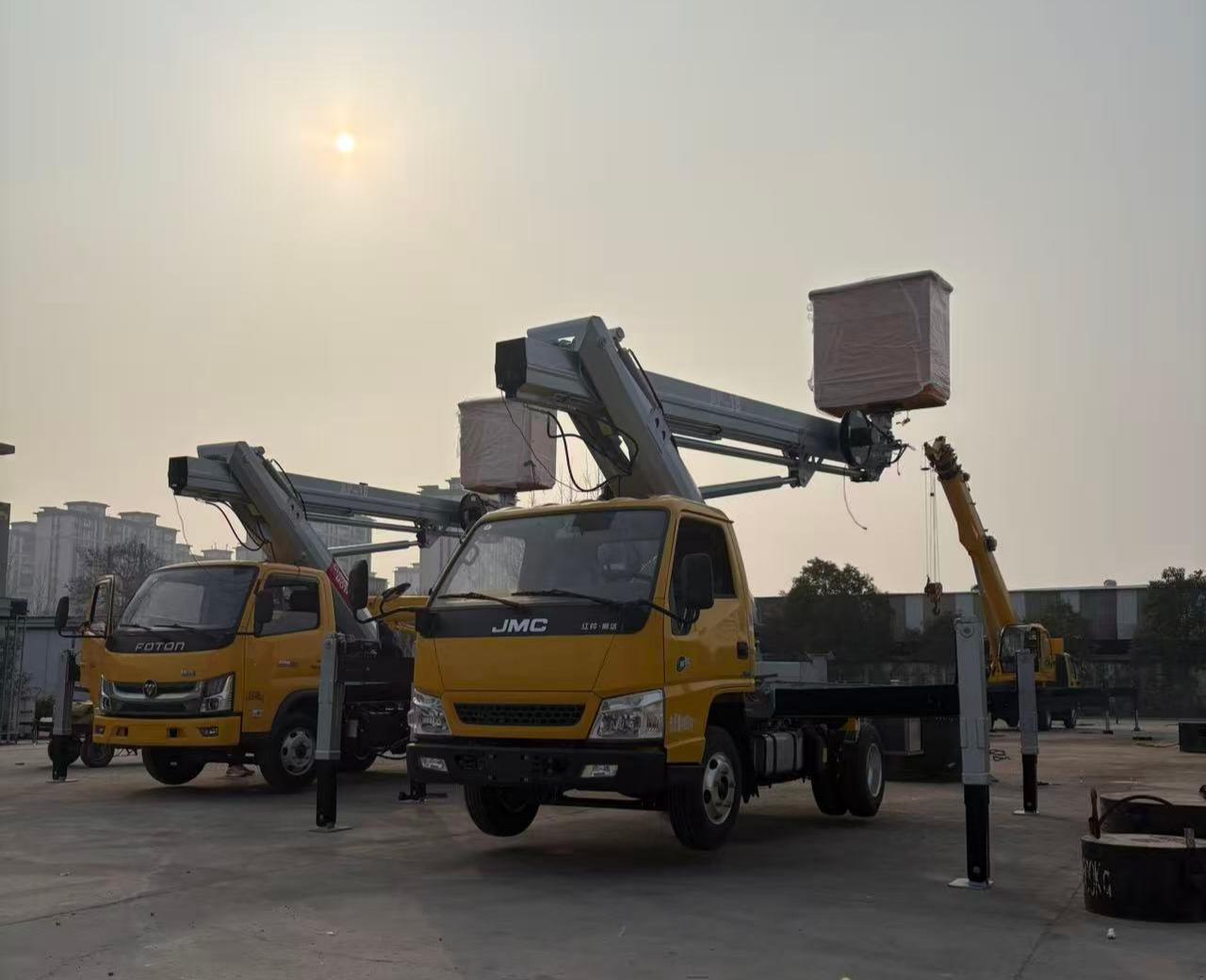

Aerial Working Platform

Rate working load(kg) :

200m

Max.working height(m):

18m

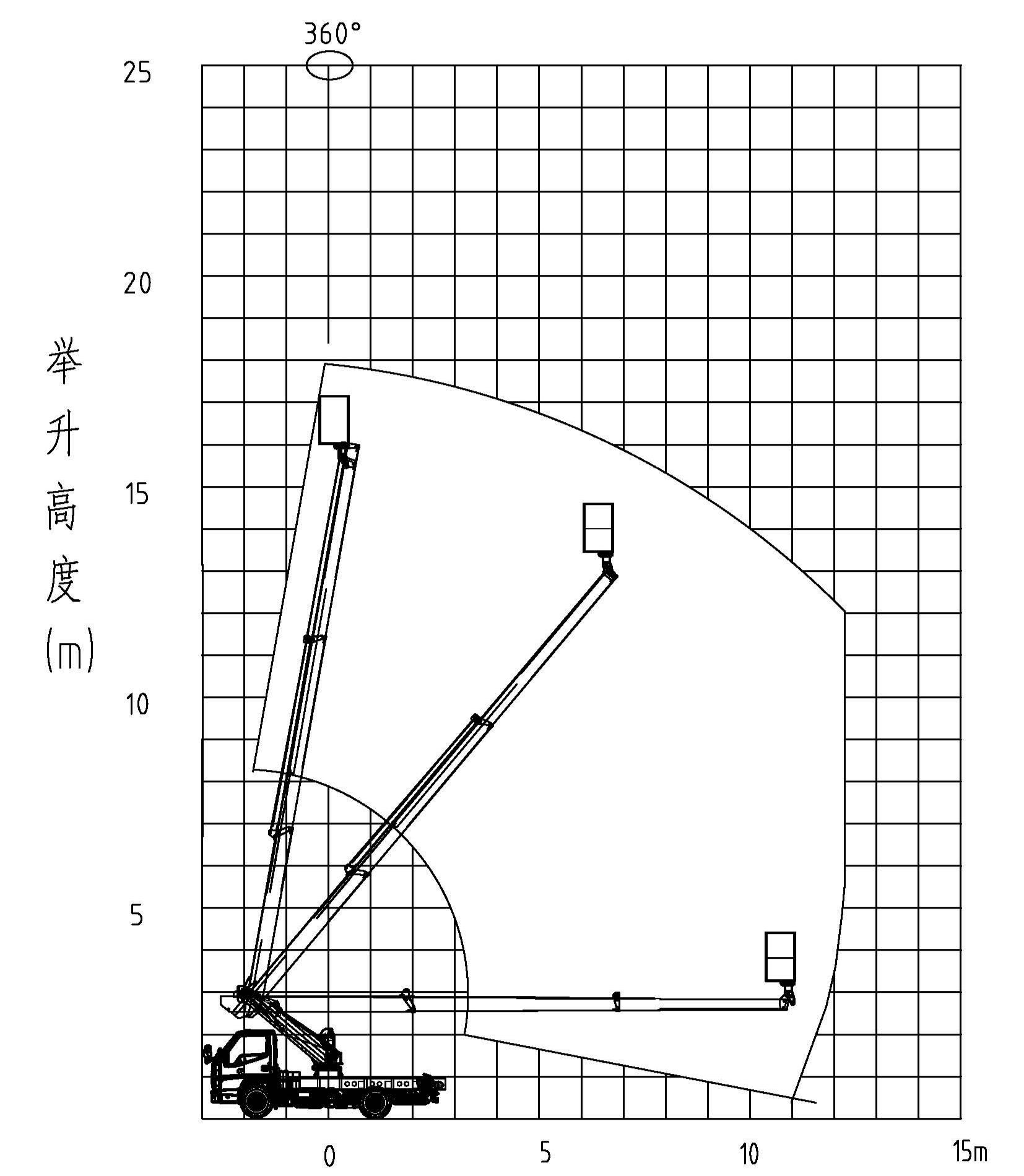

Max. Working range(m):

12m

Feature Introduction

The boom made by the high-tensile steel model HG785 adopts a first-line hydraulic part, and safety devices and sensors ensure working safety.
3-section boom, 1 cylinder, and 1 rope connection, synchronized telescopic and retract boom system, efficient and reliable.
Economic design equipped both manual operation and remote control, convenience, and efficiency.
Equipped with an intelligent operating system: tilt alarm, over-limit self-locking, and emergency stop, ensuring the safety of workers and equipment.

Elector-hydraulic proportional control, step less speed regulation, and superior operation, and superior operational performance.
The interlock between the superstructure and undercarriage, and the soft outrigger protection function, ensure safe operation.
The PLC control has superior safety performance, such as automatic amplitude limit and danger alarm functions.
The interlock between the superstructure and undercarriage can effectively avoid misoperation, which is safe and reliable.
The emergency pump is available.

Optimized girder structure, enhanced bearing capacity, and torsional strength.

In all structural manufacturing, we treat CNC processing, ensure technical requirements, and adhere to standards

ITEM	Specification
1	Basic parameters	Rate working load(kg)			200
		Max.working height(m)			18
		Max. Working range(m)			12
		Installation space (mm)			4060*2070
2	Boom	Form			Lower octagon
		Boom length	Systole(m)		5.36
			Elongation(m)		17.96
3	Rotating system	Rotated form			Integral slewing bearing
		Rotated range(°)			360°
		Rotation rate（r/min）			0-2
4	Stable outrigger	vertical span (m)			4.32
		front outrigger span (m)			4.45
		Rear outrigger span (m)			3.6
5	Hydraulic system	Hydraulic system			Gear pump
		Rated working pressure (Mpa)			21
		Rated working flow (L/min)			25
		Hydraulic main control valve			Proportional switching valve
		Hydraulic cylinder (unit)		1	Boom telescopic cylinder
				1	Boom lift cylinder
				2	Outrigger horizontal cylinder
				2	Outrigger vertical cylinder
		Hydraulic oil tank volume (L)			70
6	Safety device	Holding valve
		Check valves
		Over-winding alarm
		Level gauge
		Light
		Pressure gauge
