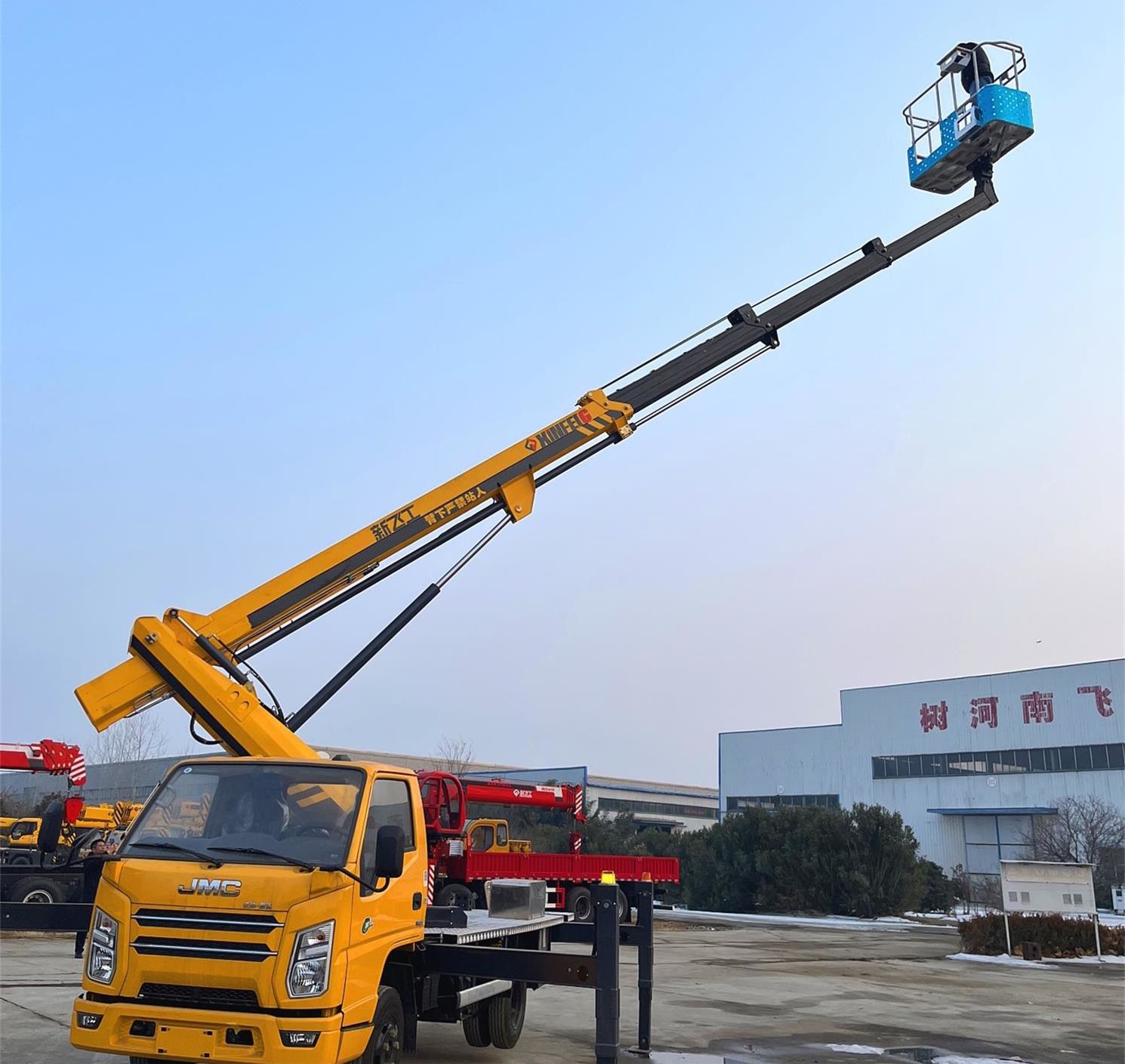

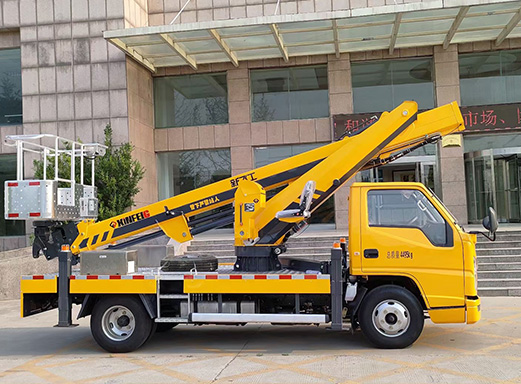

23m Aerial Working Platform

Rate working load(kg) :

200m

Max.working height(m):

23m

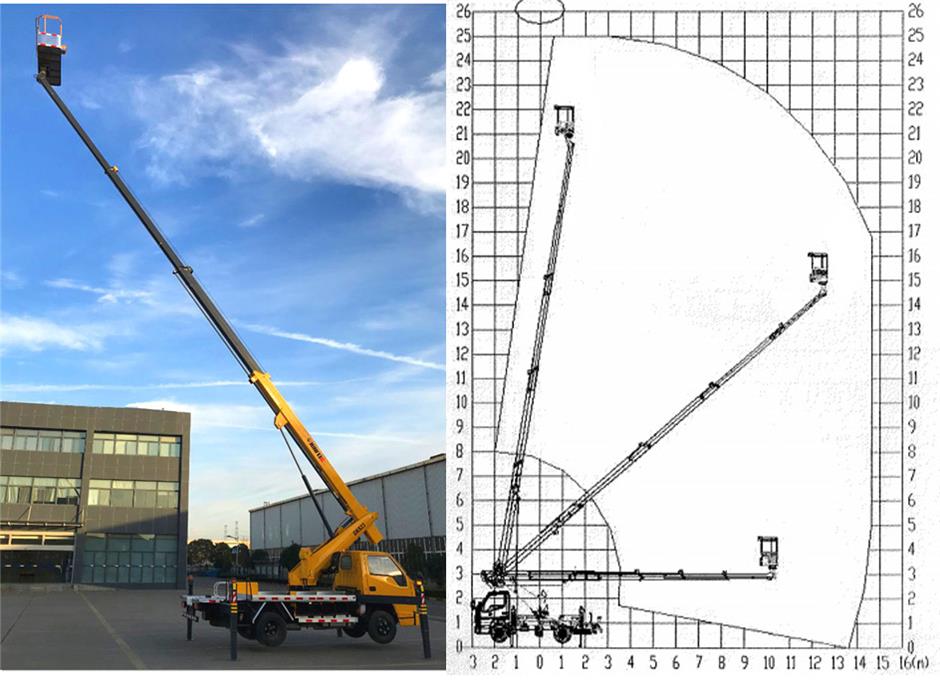

Max. Working range(m):

12m

Feature Introduction

XINFEIG GK23 four-section telescopic arm, rated load 200kg, maximum operating range 12m, maximum operating height 23m.
First-line brand hydraulic components have longer service life and more efficient and convenient operation.
Lightweight design of the whole vehicle, welded with high-strength steel, with a beautiful appearance
Boom material adopts BS960 high-tensile steel plate, reduces weight, and enhances bearing capacity at the same time.
The aerial work vehicle adopts automatic control by the controller, with a display screen, and sets a protection mode to limit amplitude, ensuring safe and reliable aerial work.
Equipped with an intelligent operating system: tilt alarm, over-limit self-locking, and emergency stop, to ensure the safety of workers and equipment.

Optimized girder structure, enhanced bearing capacity, and torsional strength.

In all structural manufacturing, we treat CNC processing, ensure technical requirements, and adhere to standards

ITEM	Specification
1	Basic parameters	Rate working load(kg)			200
		Max.working height(m)			23
		Max. Working range(m)			12
		Installation space (mm)			4060*2070
2	Boom	Form			Lower octagon
		Boom length	Systole(m)		5.36
			Elongation(m)		17.96
3	Rotating system	Rotated form			Integral slewing bearing
		Rotated range(°)			360°
		Rotation rate（r/min）			0-2
4	Stable outrigger	vertical span (m)			4.32
		front outrigger span (m)			4.45
		Rear outrigger span (m)			3.6
5	Hydraulic system	Hydraulic system			Gear pump
		Rated working pressure (Mpa)			21
		Rated working flow (L/min)			25
		Hydraulic main control valve			Proportional switching valve
		Hydraulic cylinder (unit)		1	Boom telescopic cylinder
				1	Boom lift cylinder
				2	Outrigger horizontal cylinder
				2	Outrigger vertical cylinder
		Hydraulic oil tank volume (L)			70
6	Safety device	Holding valve
		Check valves
		Over-winding alarm
		Level gauge
		Light
		Pressure gauge
