ISUZU
96
10550
220
20m
13m
Main function introduction

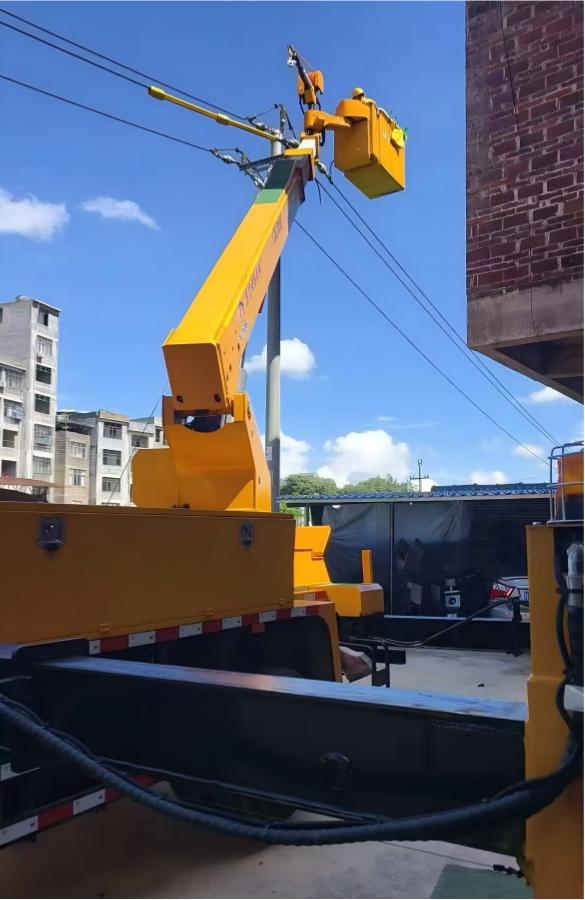

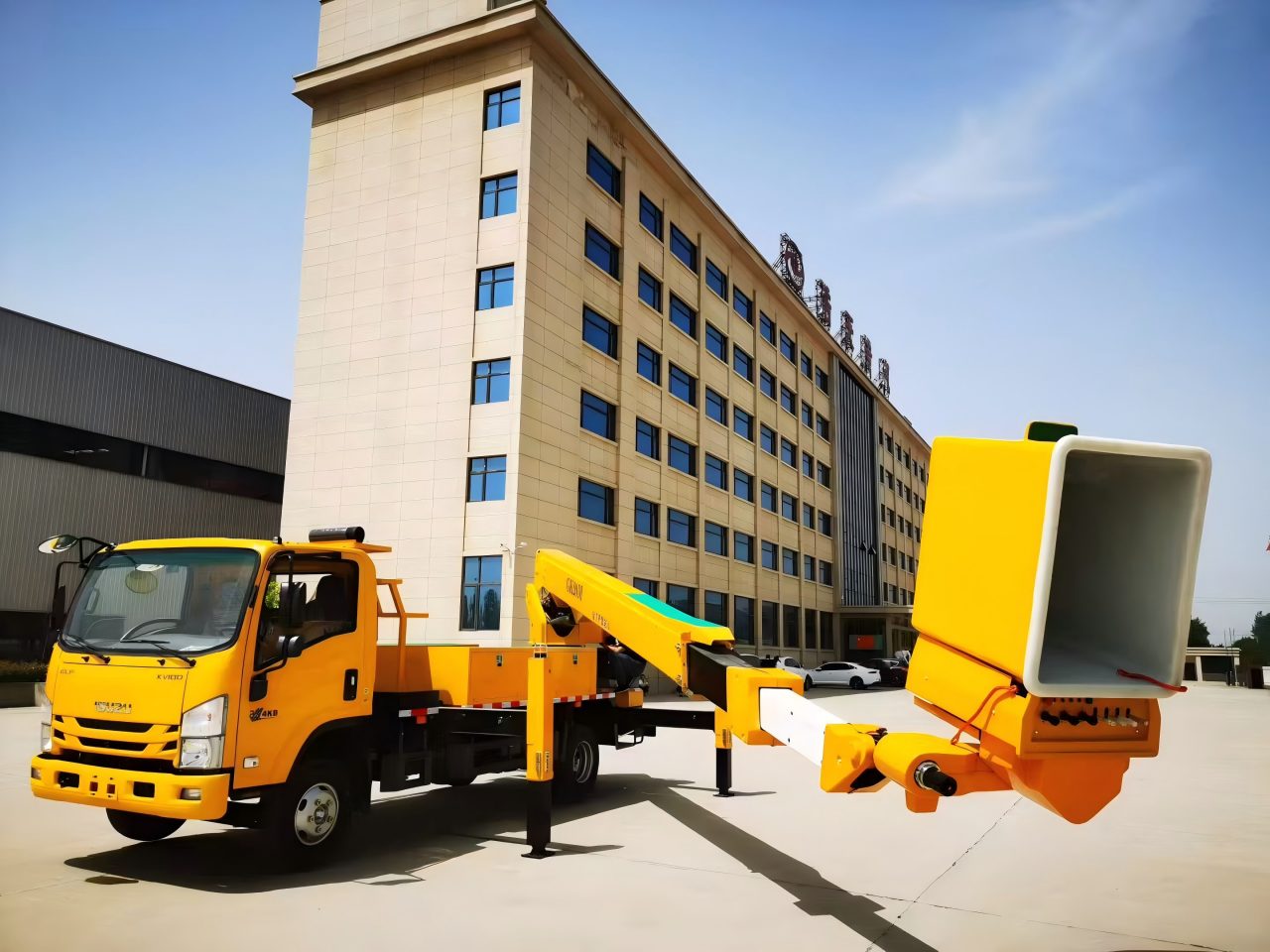

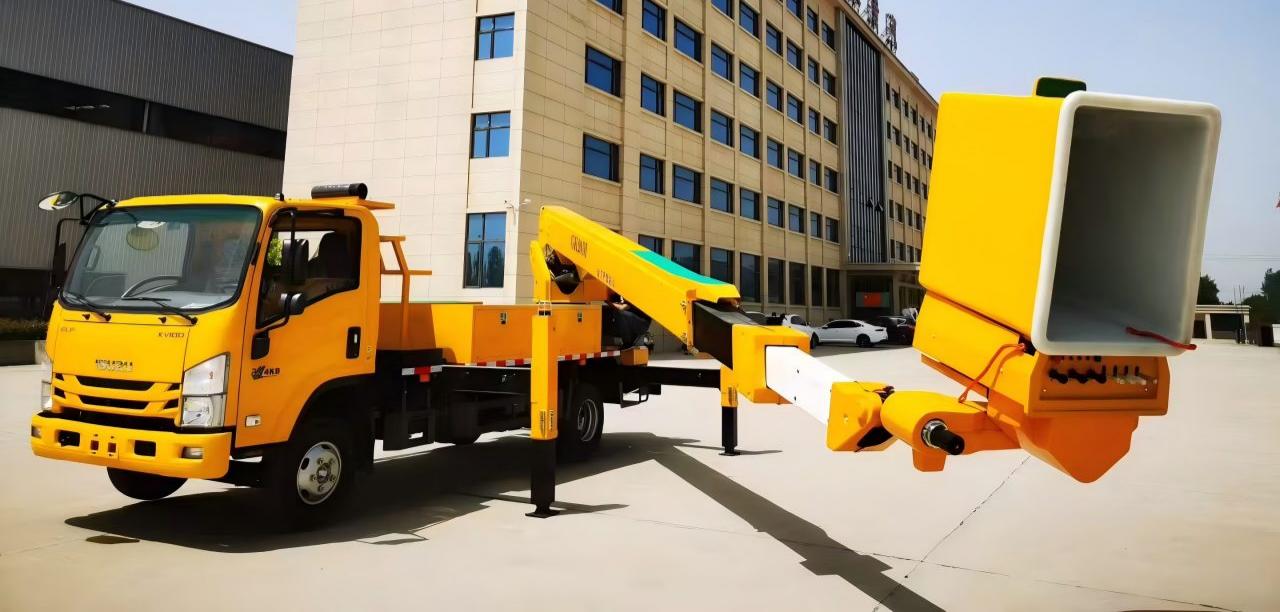

Insulated aerial work platform, ISUZU truck mounted platform, working height 18meters, insulated basket loading 220Kg, insulated voltage 10Kv.
Full range of live operation

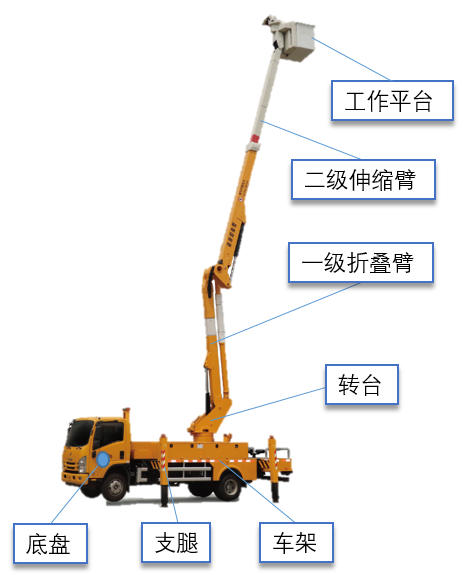

Insulated aerial work platform 2 section telescopic boom, the last section boom adopted insulated boom, with a length 2.5meters, to prevent operators from being unable to work due to insufficient insulation extension when they arrive at the work site, and to ensure the safety of live-line work. which cooperate with insulated inner and outer bucket, make live operation safer and more reliable, and can realize a full range of live operation.
High Quality Insulated Boom
With 2.5m effective insulation pre-extension section.
Equipped with a chassis insulation system to ensure the safety of the chassis and the ground.
Interlocked between Upper and Lower
The stabilizers can’t be operated when the Upper device has not retracted fully, the Upper can ’ t be operated when the stabilizers has not grounded fully.
Bucket balance automatically
Bucket is automatically leveled with a pull rod + balance cylinder, and bucket can swing 90° left and 90° right.
Control system
Electro-hydraulic proportional control system, enabling step less speed regulation, smooth and shockless action.

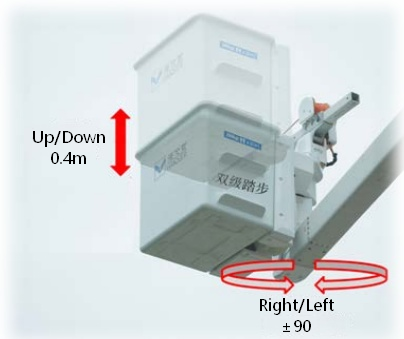

Bucket rotation is±90°and lifted up to 0.4meters, great ability to accross barries, bakset with tilt function.
 |
 |
Auxiliary device

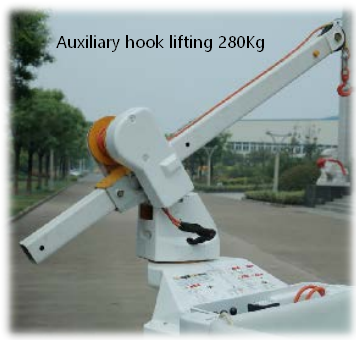

an option auxiliary hook lifting capacity 280Kg,
Power or hydraulic tool interface,

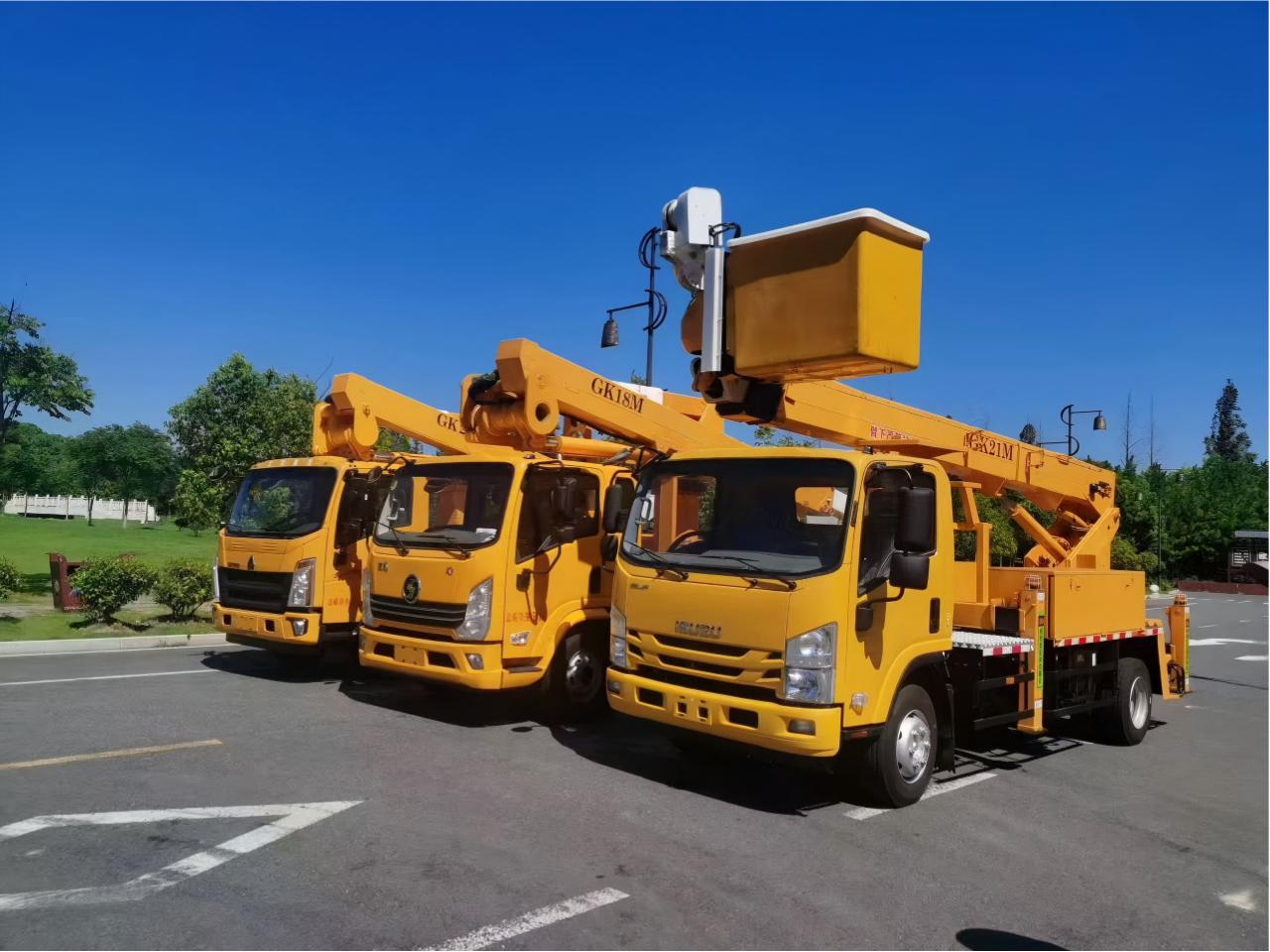

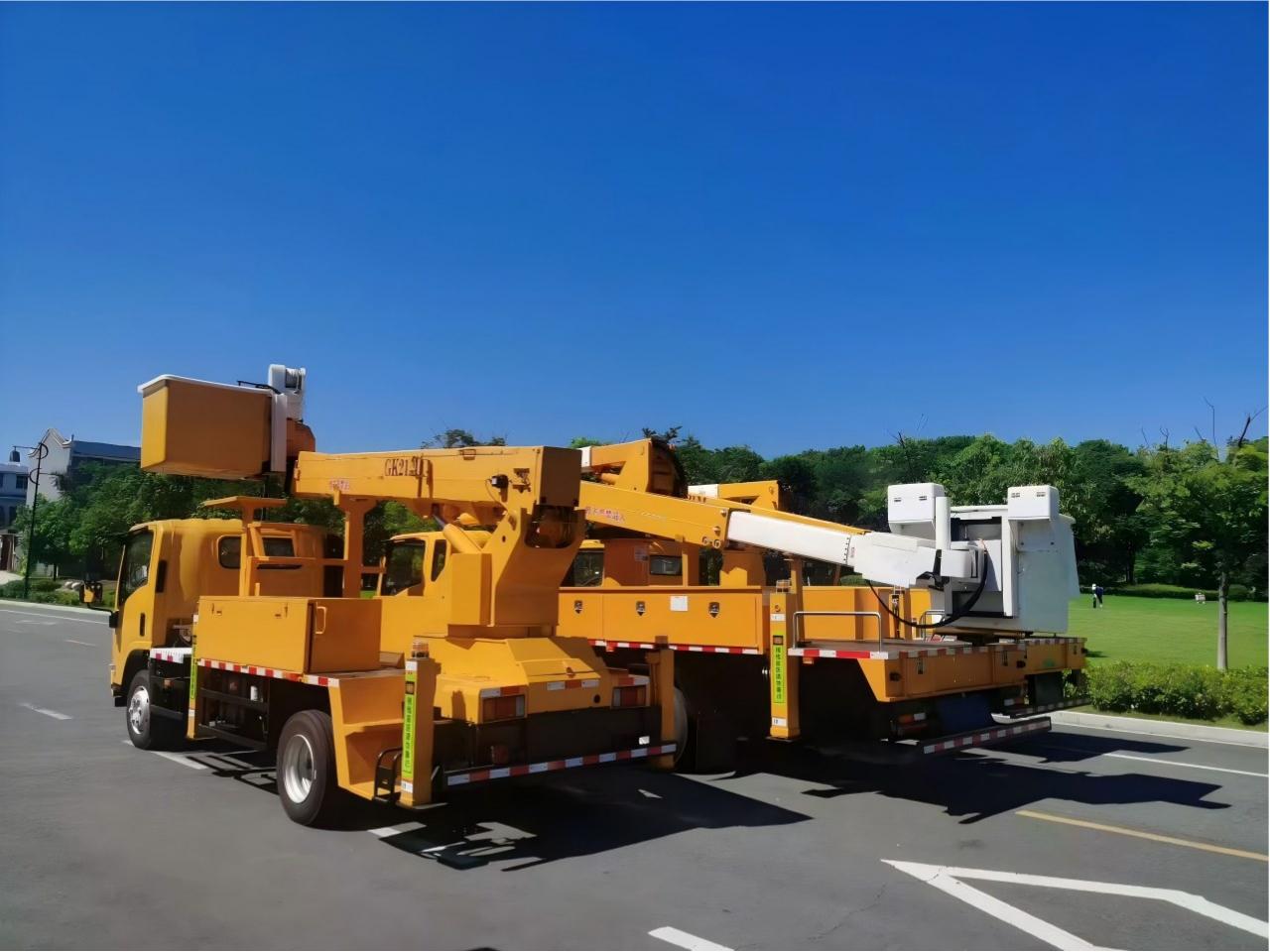

Insulated aerial working platform, ISUZU truck with aerial working platform, truck brand an option HOWO, SHACMAN etc.
Insulation work platform it has a series of emergency safety devices: engine start and turn off, emergency stop, emergency pump, etc. ensure safety operation.
Insulated basket can be rise up 40cm, equipped with a step board for easy access to the work platform.

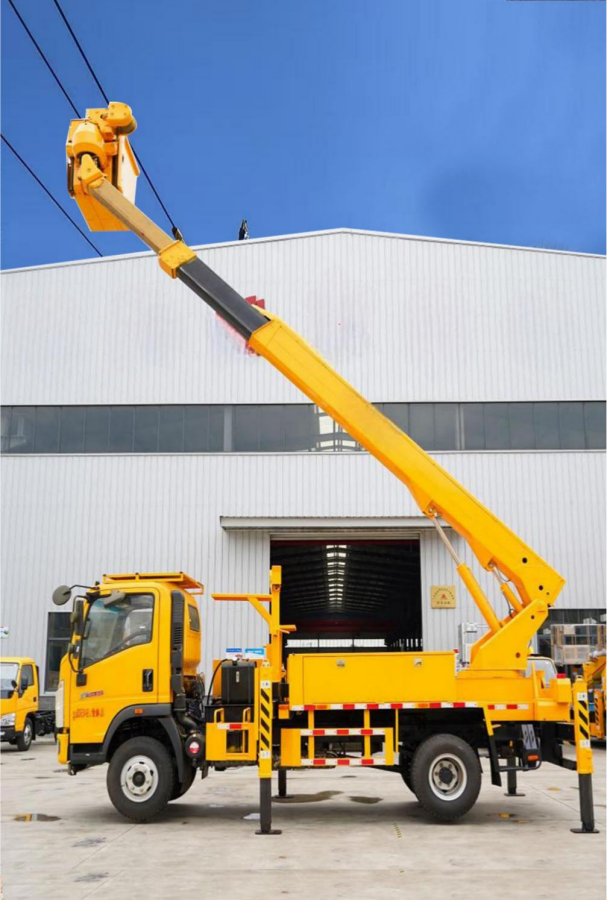

Truck mounted aerial working platform XINFEIG brand, we have customized service based on chassis model, general chassis or pickup truck, aerial working platform working ranges can be make based on project demand.

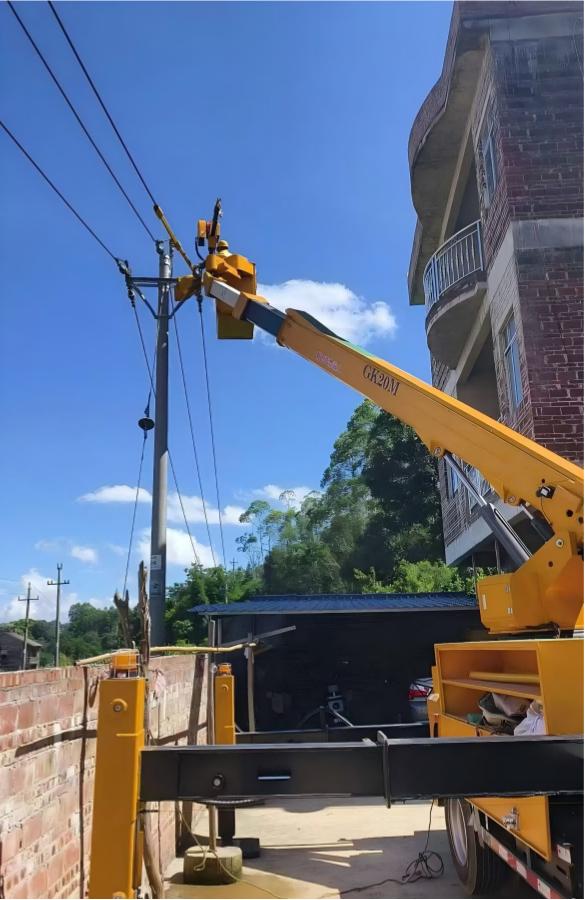

Insulated aerial work platform, ISUZU truck mounted aerial working platform for live electricity rescue, advertising and electricity construction.
Insulated aerial working platform 20meters
| Model | APG-20G2 |  |
| Platform working height (m) | 20 | |

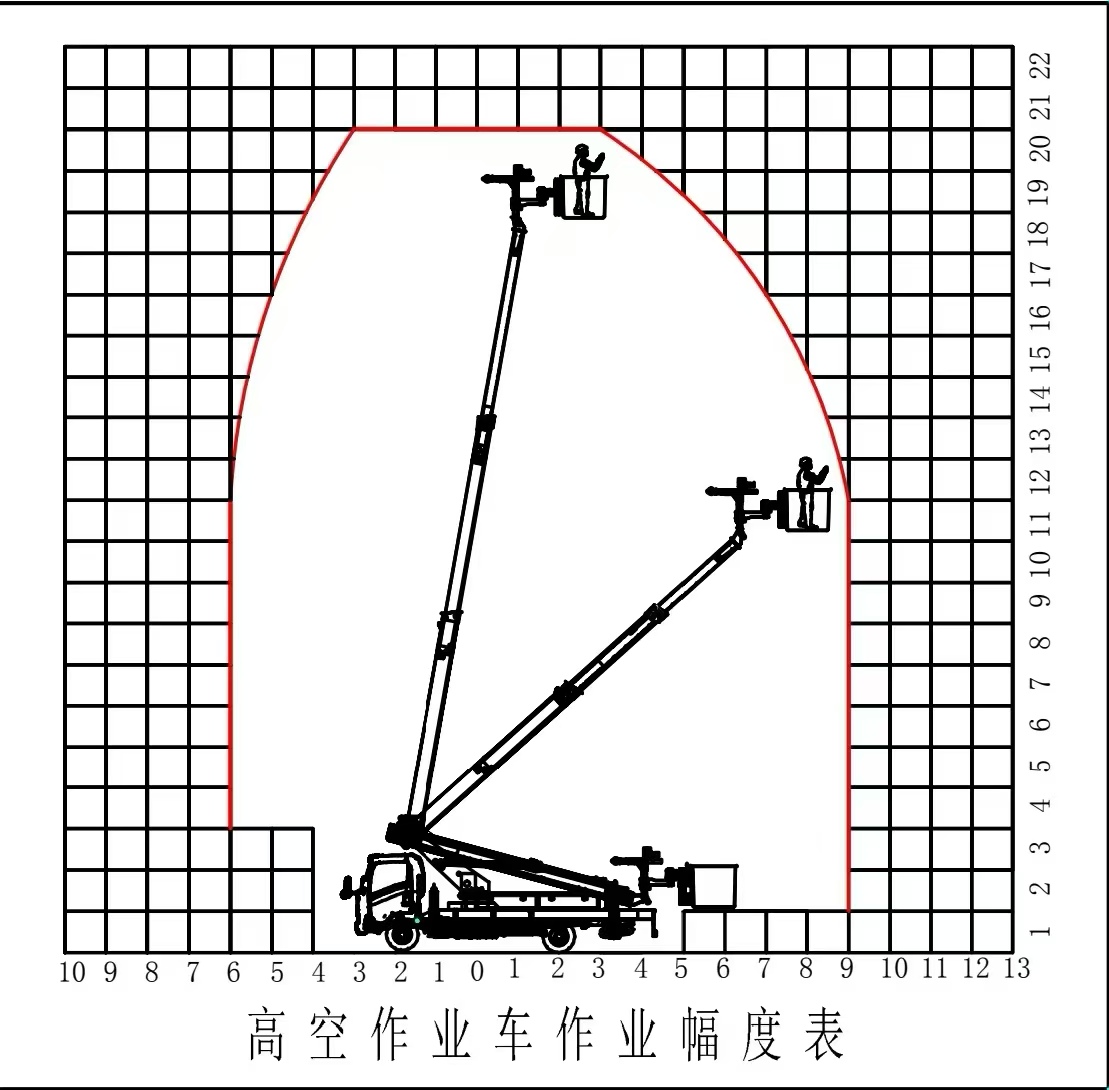

| Working range (m) | 13 | |
| Basket loading capacity (Kg) | 220 | |
| Basket dimension (mm) | 1050*750*1000 | |
| Basket swing angle (°) | Left 90°~ right 90° | |
| Insulation voltage (Kv) | 10 |
| Engine model | 4KB1-TCG60 |
| Engine power | 96Kw |
| Wheel base | 3360mm |
| Tire size | 7.00R16LT 14PR |
| Dimension | 7250*2080*3200mm |
| Total mass | 7300Kg |
