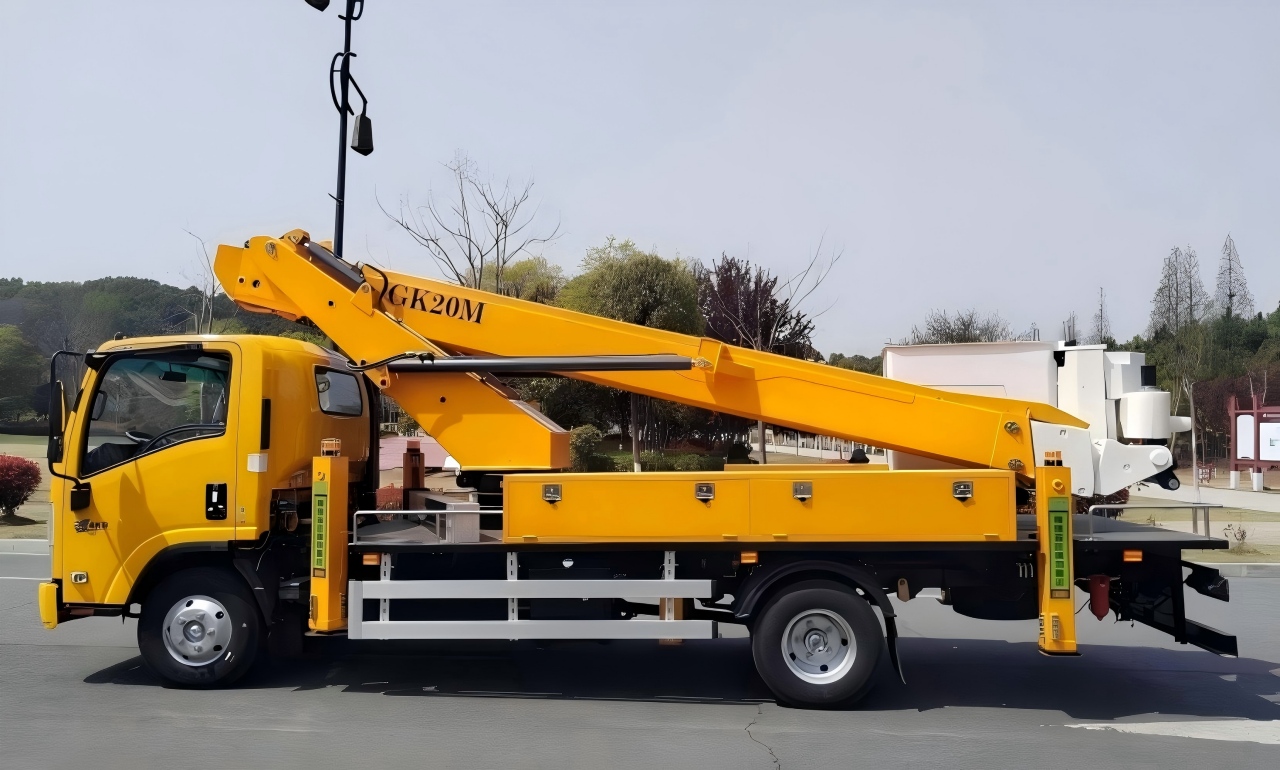

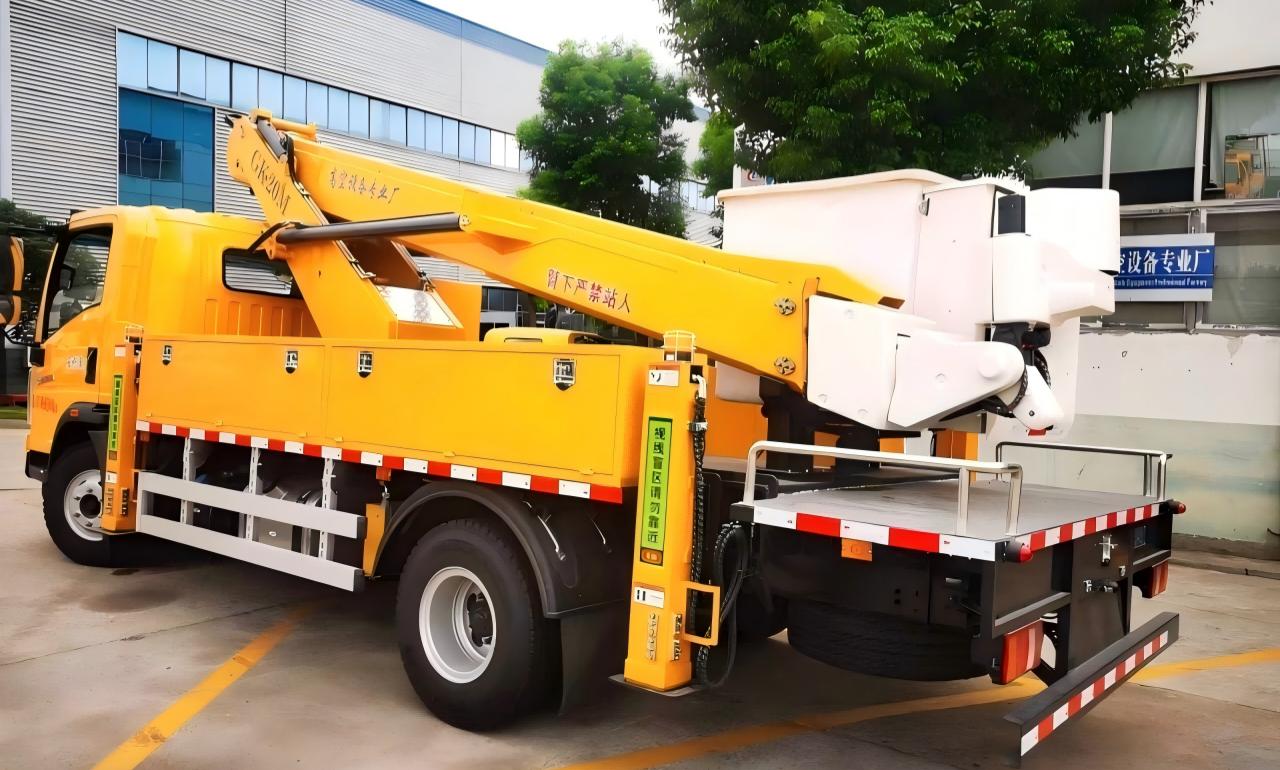

Insulated aerial working platform, 3-section telescopic arm, basket rated load 220kg, maximum operating range 12m, maximum operating height 20m.

ISUZU truck with aerial working platform, isuzu kv100, 130hp engine, vehicle size 7250*2080*3200mm, total mass 7300Kg.

Insulation work vehicle configuration: equipped with 2 sections of telescopic boom, the second section made of insulated boom (optional insulated hook), work platform equipped with 3 sets of operating systems, it can be relized control inside platform basket, onboard vehicle and ground operation for outrigger set up. CAN bus control system, truntable 360 degree rotation, working bucket rotates 90 degrees left and right, working bucket load limit of 220kg. enmergency electric pump.

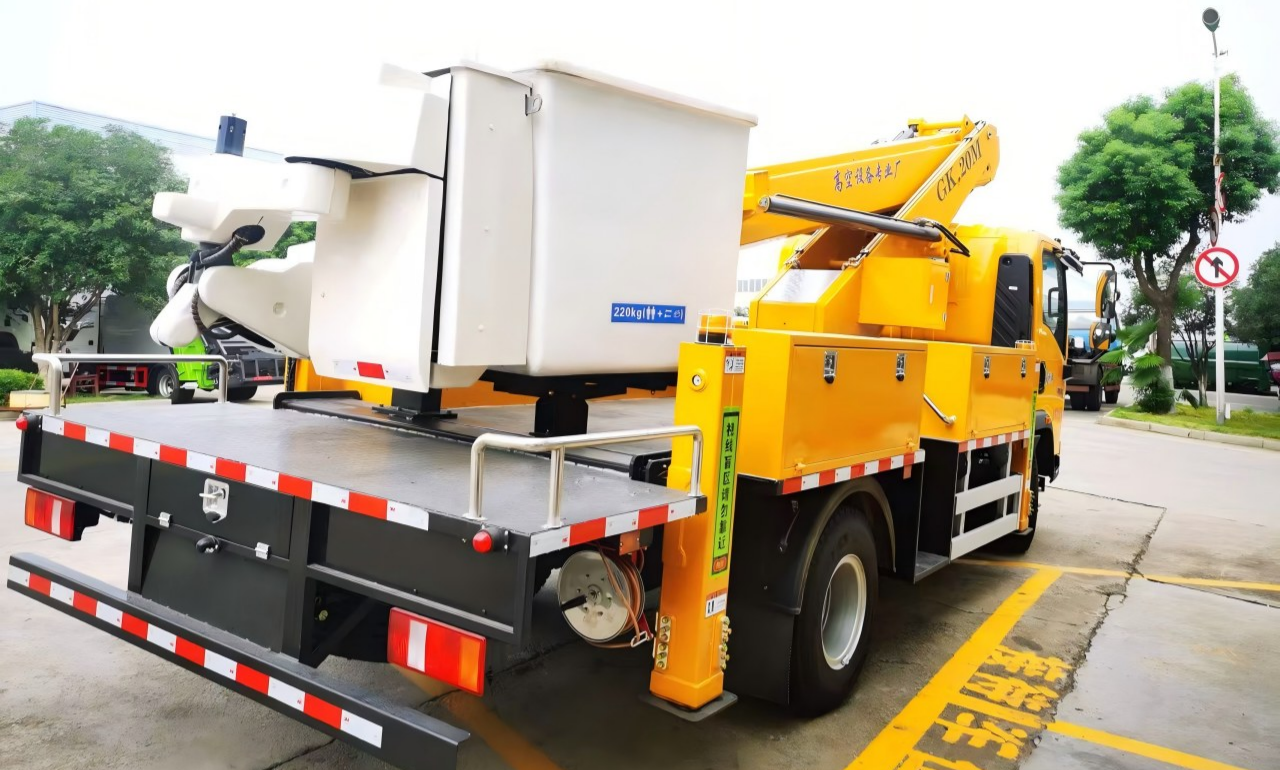

Insulated basket can be rise up 40cm, equipped with a step board for easy access to the work platform.

truck mounted aerial working platform

Boom material BS960E, high tensile plate, ensure bearing capacity while reduce boom light, four section boom 1 cylinder 3 rope reliable working performance and enhance working efficiency.
eqiupped with on borad manual and remote control.

Production advantages:

Optimized girder structure, enhancement bearing capacity,and torsional strength.
Boom system: by it characteristic stable reliable and efficiently performance, ensure working safety and excellent working performance, we obtain national patent,and leading in the same class.
Structure manufacturing we treatment CNC processing, ensure technical requirements, and assemble standards.

Truck mounted manlift XINFEIG brand, we have customized service based on chassis model general chassis or pickup to customzied the suitalbe frame, aerial working platform working ranges can be make based on project demand.

truck mounted aerial working platform for advertising and electricity construction.

Application

Technical sheet

Insulated aerial working platform 20meters

Model	APG-20G
Platform working height (m)	20
Working range (m)	13
Basket loading capacity (Kg)	220
Basket dimension (mm)	10507501000
Basket swing angle (°)	Left 90°~ right 90°
Insulation voltage (Kv)	10

ISUZU chassis configuration

Engine model	4KB1-TCG60
Engine power	96Kw
Wheel base	3360mm
Tire size	7.00R16LT 14PR
Dimension	725020803200mm
Total mass	7300Kg

Working range diagram
