Aerial Working Platform, truck mounted aerial working platform, working heigh 28meters, platform loading 200Kg-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

XINFEIG GK28 five-section telescopic arm, basket rated load 200kg, maximum operating range 12m, maximum operating height 28m.

First-line brand hydraulic components have longer service life and more efficient and convenient operation.

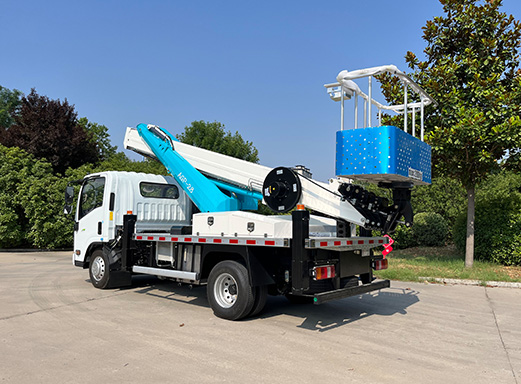

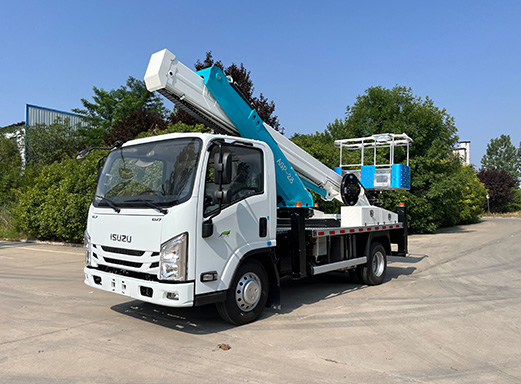

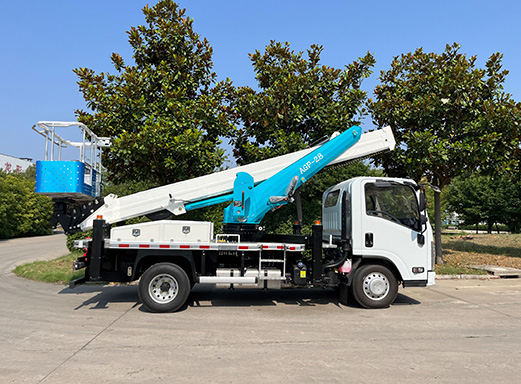

truck mounted aerial working platform

Boom material BS960E, high tensile plate, ensure bearing capacity while reduce boom light, four section boom 1 cylinder 3 rope reliable working performance and enhance working efficiency.
eqiupped with on borad manual and remote control.

Production advantages:

Optimized girder structure, enhancement bearing capacity,and torsional strength.
Boom system: by it characteristic stable reliable and efficiently performance, ensure working safety and excellent working performance, we obtain national patent,and leading in the same class.
Structure manufacturing we treatment CNC processing, ensure technical requirements, and assemble standards.

Truck mounted manlift XINFEIG brand, we have customized service based on chassis model general chassis or pickup to customzied the suitalbe frame, aerial working platform working ranges can be make based on project demand.

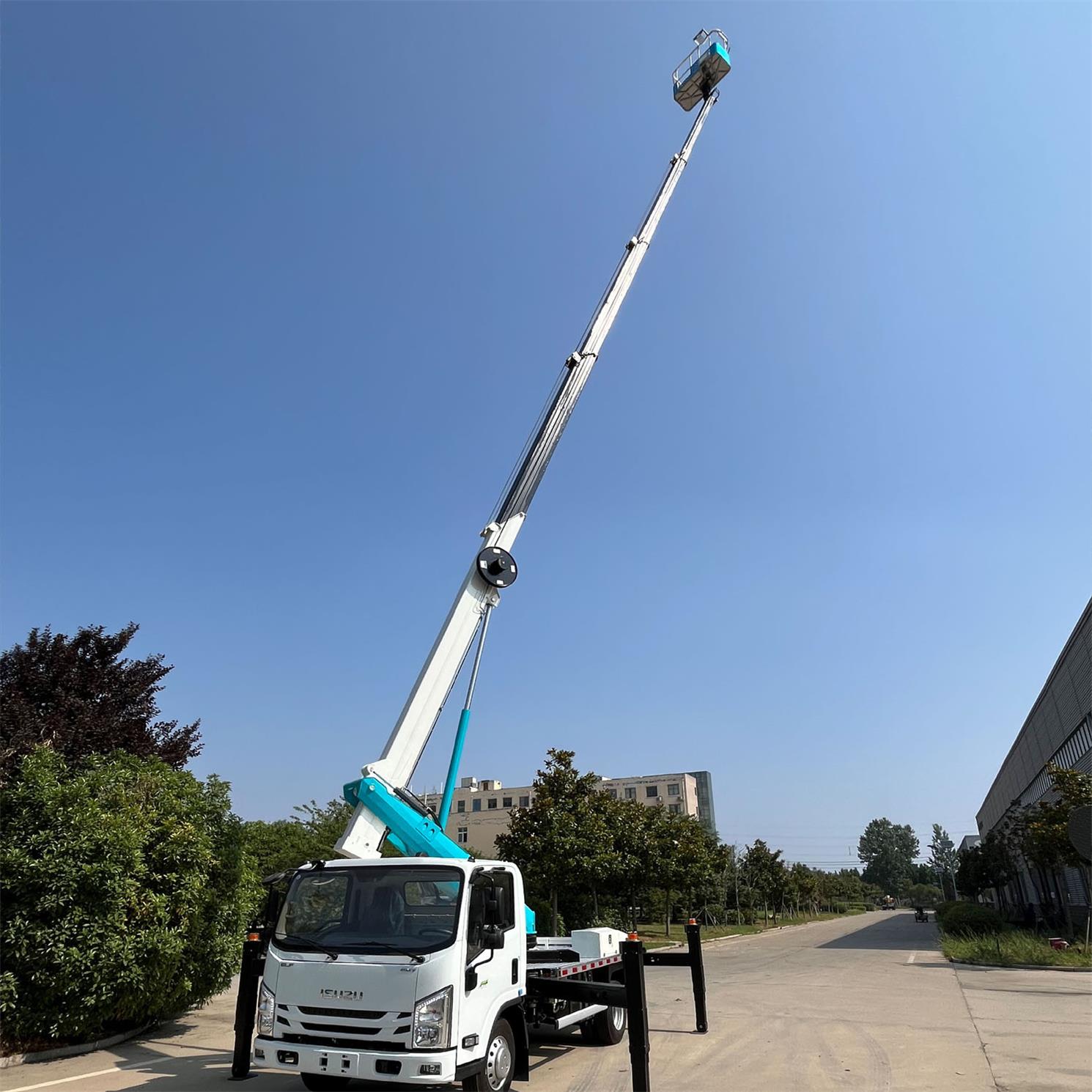

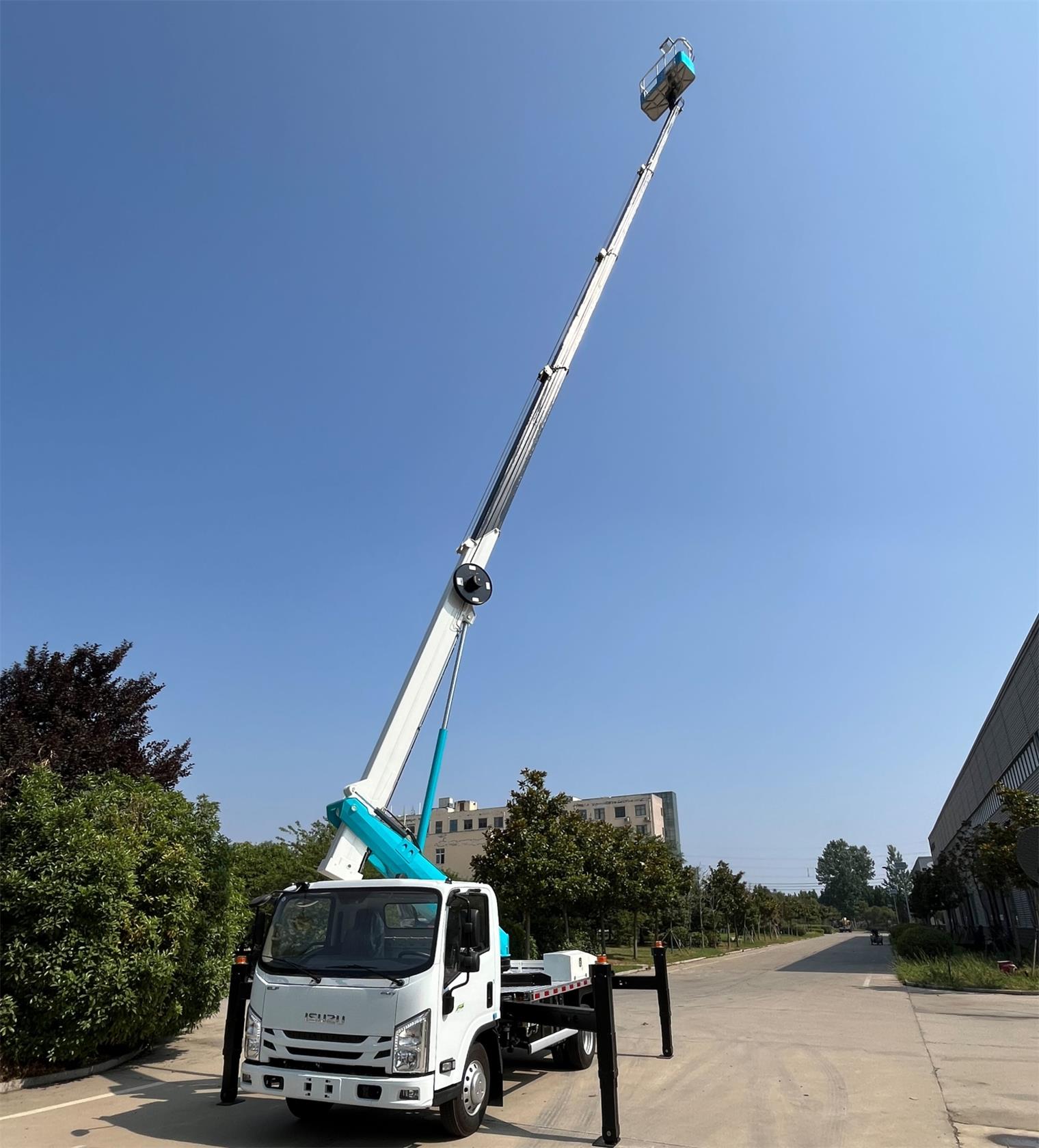

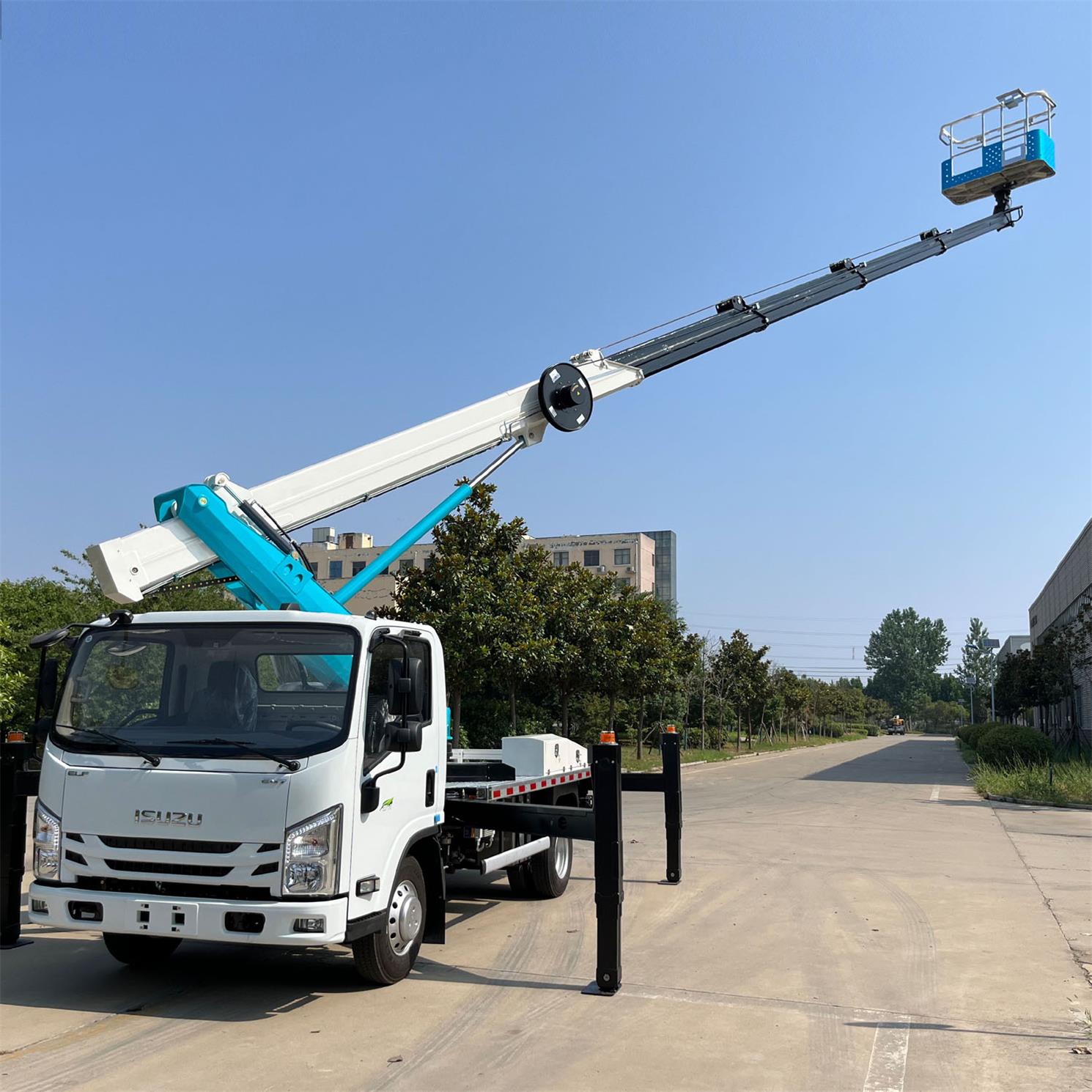

truck mounted aerial working platform for advertising and electricity construction.

Application

Parameter

ITEM	HFL5040JGKS01
1	Basic parameters	Rate working load(kg)			200
		Max.working height(m)			28
		Max. Working range(m)			12
		Installation space (mm)			4060*2070
2	Boom	Form			Lower octagon
		Boom length	Systole(m)		5.37
			Elongation(m)		22.9
3	Rotating system	Rotated form			Integral slewing bearing
		Rotated range(°)			360°
		Rotation rate（r/min）			0-2
4	Stable outrigger	vertical span (m)			4.32
		front outrigger span (m)			4.45
		Rear outrigger span (m)			3.6
5	Hydraulic system	Hydraulic system			Gear pump
		Rated working pressure (Mpa)			21
		Rated working flow (L/min)			25
		Hydraulic main control valve			Proportional switching valve
		Hydraulic cylinder (unit)		1	Boom telescopic cylinder
				1	Boom lift cylinder
				2	Outrigger horizontal cylinder
				2	Outrigger vertical cylinder
		Hydraulic oil tank volume (L)			70
6	Safety device	Holding valve
		Check valves
		Over-winding alarm
		Level gauge
		Light
		Pressure gauge

Dimension
