Aerial platform vehicle, truk mounted aerial working platform, working height 45meters. basket loading capacity 300Kg, max working range 25meters, FOTON truck with aerial work platform-Henan Runli Automobile Service Co., Ltd.

Introduction
Parameter
Project Case

Feature Introduction

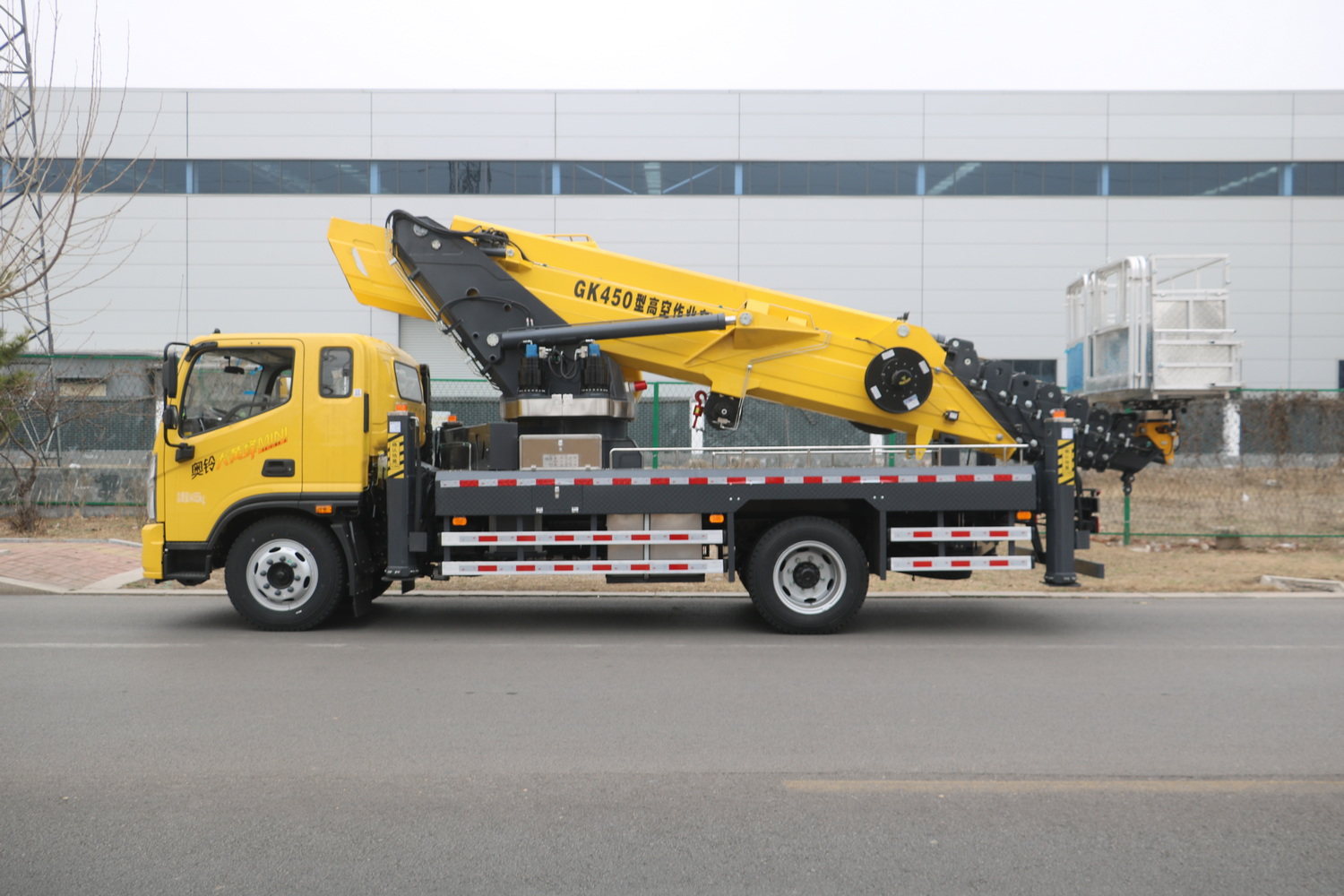

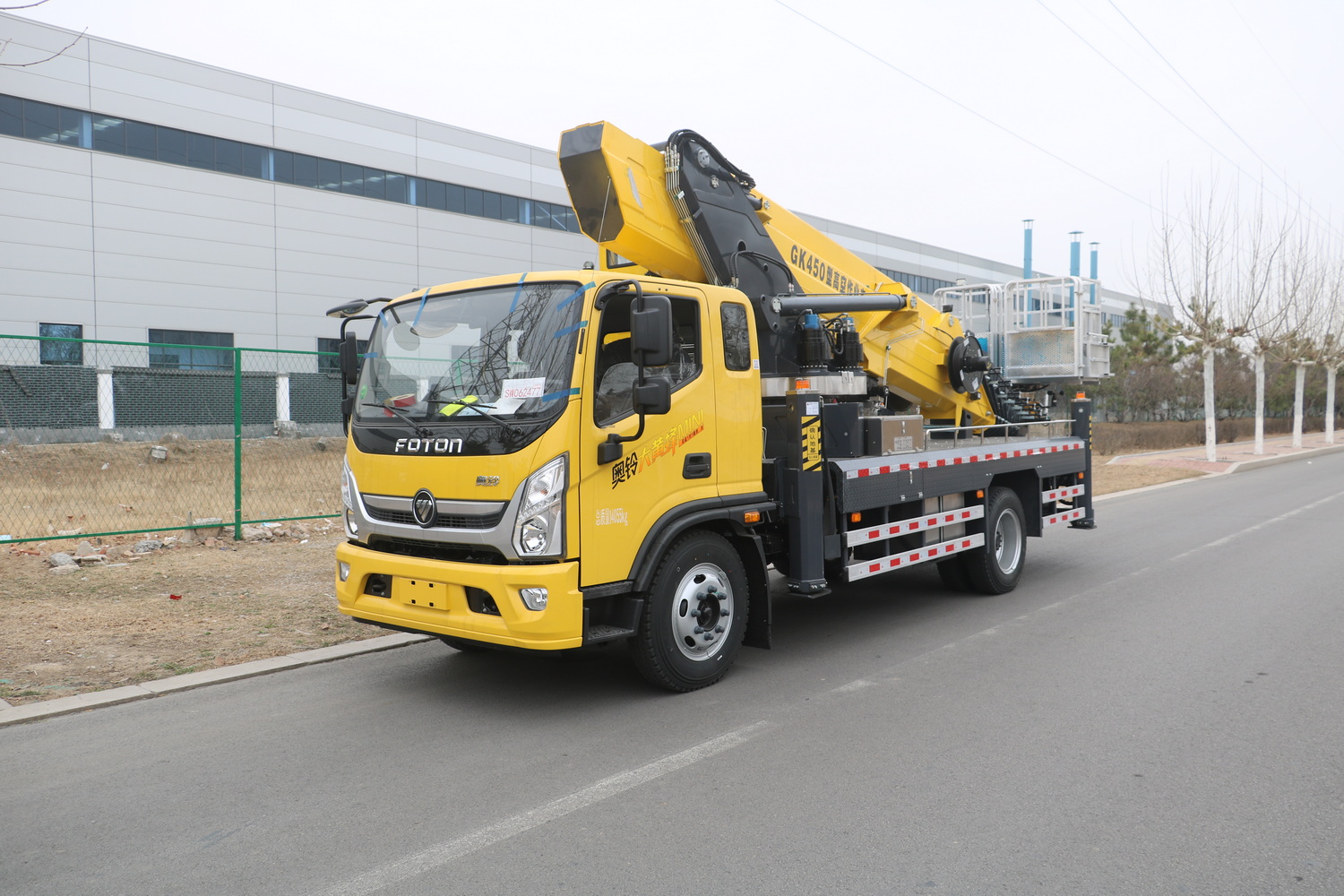

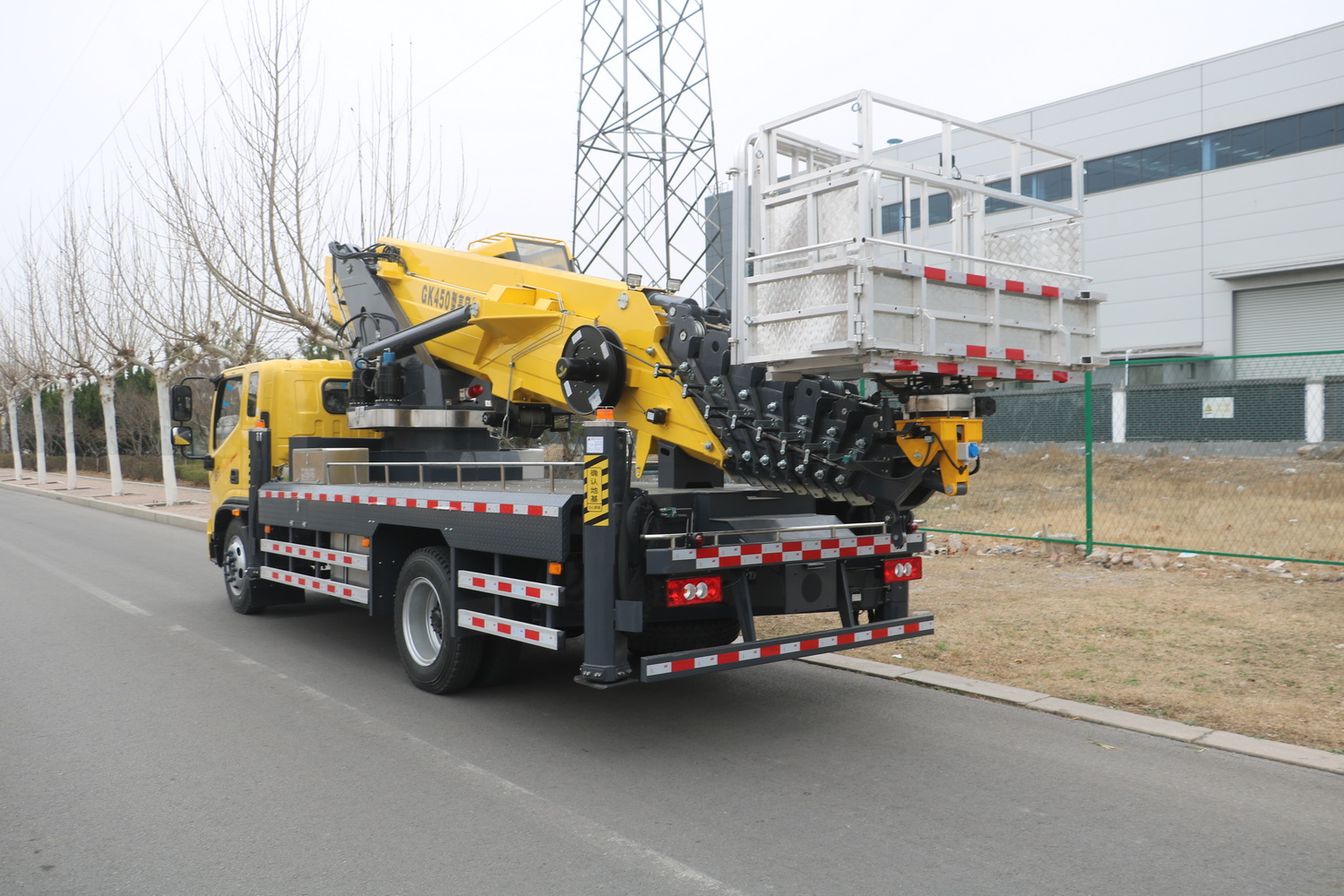

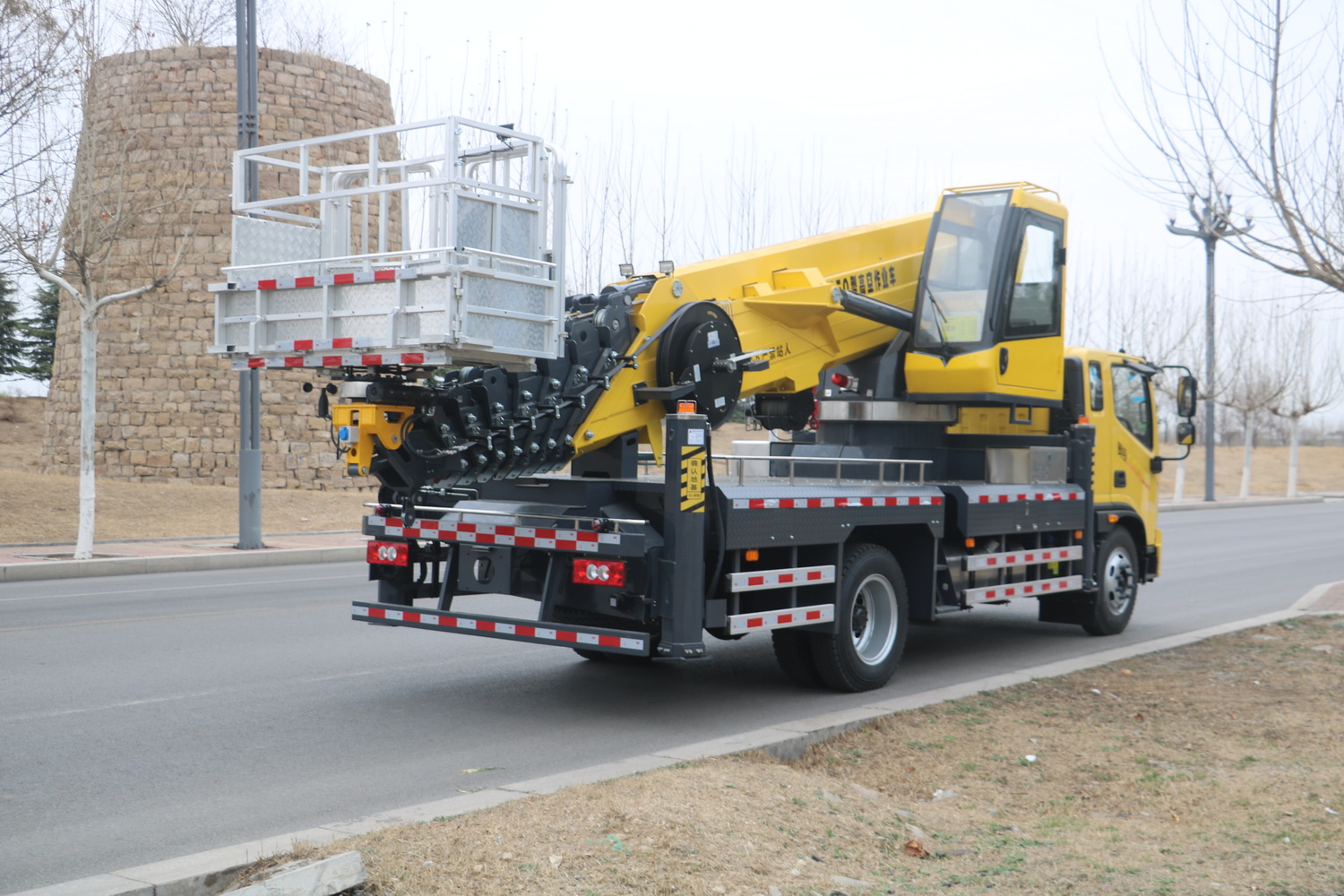

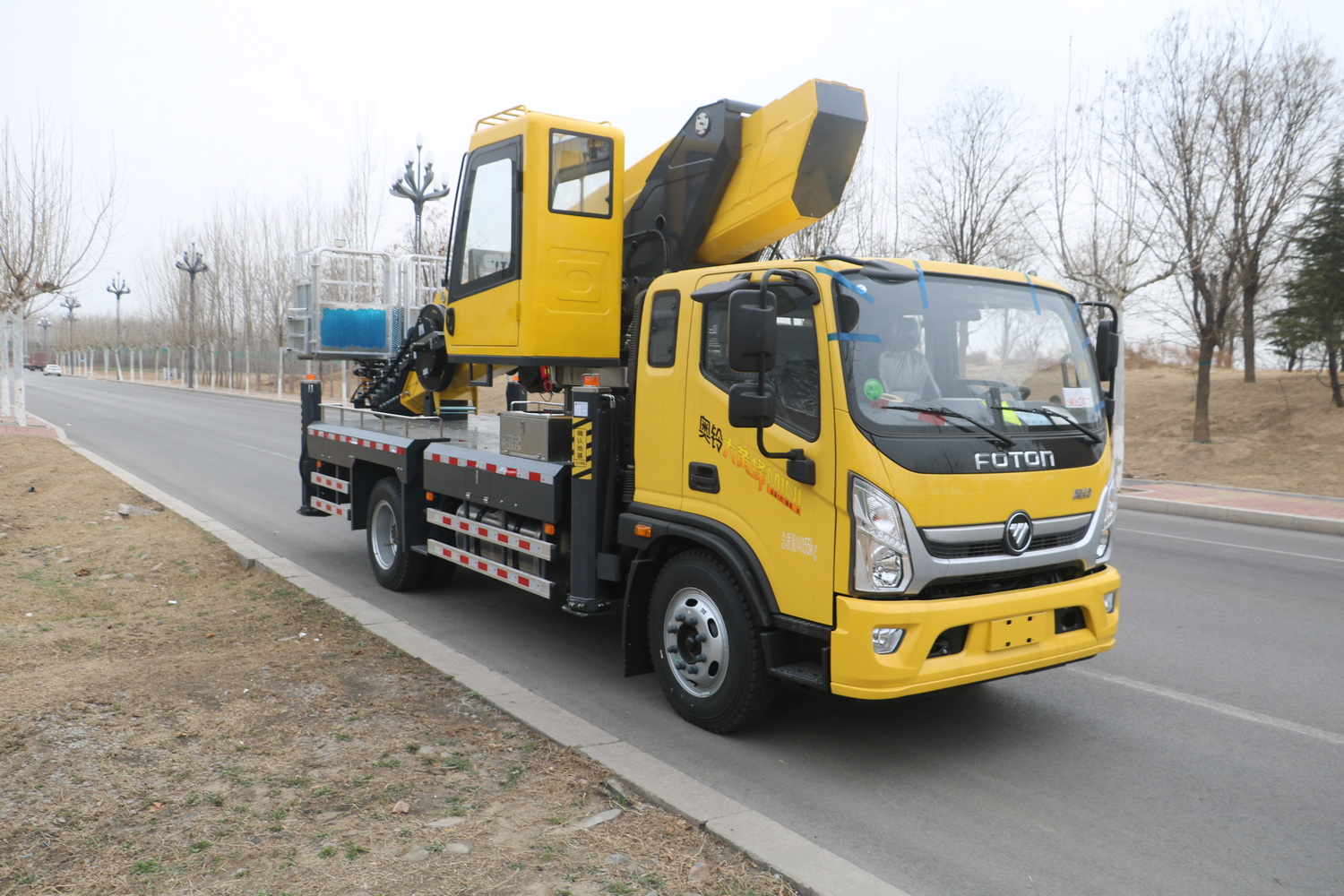

Aerial platform vehicle

FOTON Chassis, engine emission standard V standard.
Chassis model: BJ1148VKPEG-AD1, Left hand drive,with the CUMMINS engine F3.8NS6B190, 140kw, 190HpDiesel engine, 3800ml displacement, 4200mm wheelbase, Tire type 25 R20LT 16PR, total mass 14055kg.
Aerial working platform 9-section telescopic boom, Max working height 45m, max working radius 25m, double luffing cylinder.
Boom material BS960E, high tensile plate, ensure bearing capacity while reduce boom light.
Slewing bearing diameter 800mm, with double slewing reducer.
The basket platform adopteda 9-inch slewing support, which is more stable and reduces platform sway, basket loading capacity 300Kg.
Multiple safety protection devices have been added, including weight detection protection and wind speed sensor protection, equipped with emergency power source.

Production advantages:

Optimized girder structure, enhanced bearing capacity, and torsional strength.
Boom system: with its characteristic stable, reliable, and efficient, ensures working safety and excellent working performance, we obtained a national patent, and is leading in the same class.
Structure manufacturing, we treat CNC processing, ensure technical requirements, and assemble standards.

Truck-mounted manlift, aerial platform vehicle, we have customized service based on chassis model, general chassis, or pickup, to customize a suitable frame. Aerial working platform working ranges can be made based on project demand.

FOTON truck with an aerial work platform, used for high-altitude operations, billboard installation, street lighting, and municipal engineering. compact body design, suitable for narrow space working, good passing ability.

Application

Parameter

On board platform	Model	HFL5041JGKBJ6
	Max. Working height	45m
	Max. Working radius	25m
	Slewing angle(continuous)	360°
	Boom raising angle	78°
	Numbers of the boom	9
	Outrigger span	7700/7300mm
	Operation method	On turret cabin and remote control
	Basket load capacity	300Kg
	Basket size	320010001100mm
On board platform equipped intelligence operating system: wireless remote control Hydraulic system: Electro-hydraulic proportional valve, stepless speed regulation, equipped with emergency power source Safety devices: Interlocking control of operating platform and outriggers, limit protection, soft leg protection, tilt alarm, emergency power source, two-way hydraulic balance valve, weight detection protection, wind speed sensor protection, outrigger length protection.

FOTON chassis parameters

FOTON Chassis	Engine brand	CUMMINS
	Engine model	F3.8NS6B190
	Displacement(ml/kw)	3800/140
	Engine power	190hp
	Transmission	FAST brand 8 gear
	Wheelbase/No. of axles	4200mm / 2
	Tire Specification	8.25R20
	Tire Number	6 tires and 1 spare tire
	Total mass(kg)	14055Kg
	Max Speed	110Km
	Breaks system	Pneumatic brakes with ABS
Vehicle Dimension	(LengthWidthheight)	894024803550mm
	Cab Passengers	3 person
	Fuel tank capacity	120L
Chassis configuration: air conditioning, power steering, power windows, central locking, and remote key.

Working range diagram
