Aerial platform vehicle, truk mounted aerial working platform, working height 37.8meters. basket loading capacity 200Kg, max working range 22meters-Henan Runli Automobile Service Co., Ltd.

Introduction
Parameter
Project Case

Feature Introduction

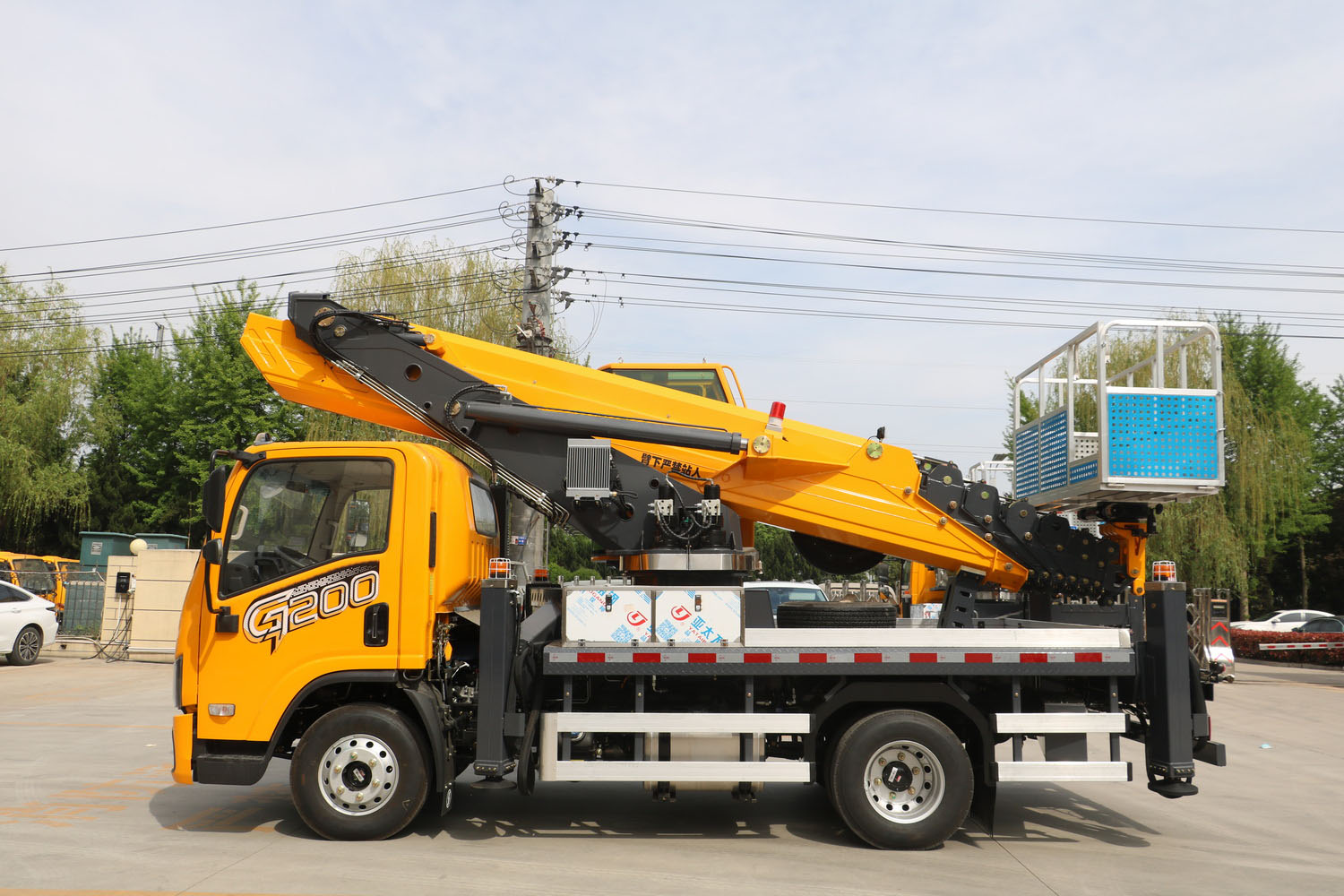

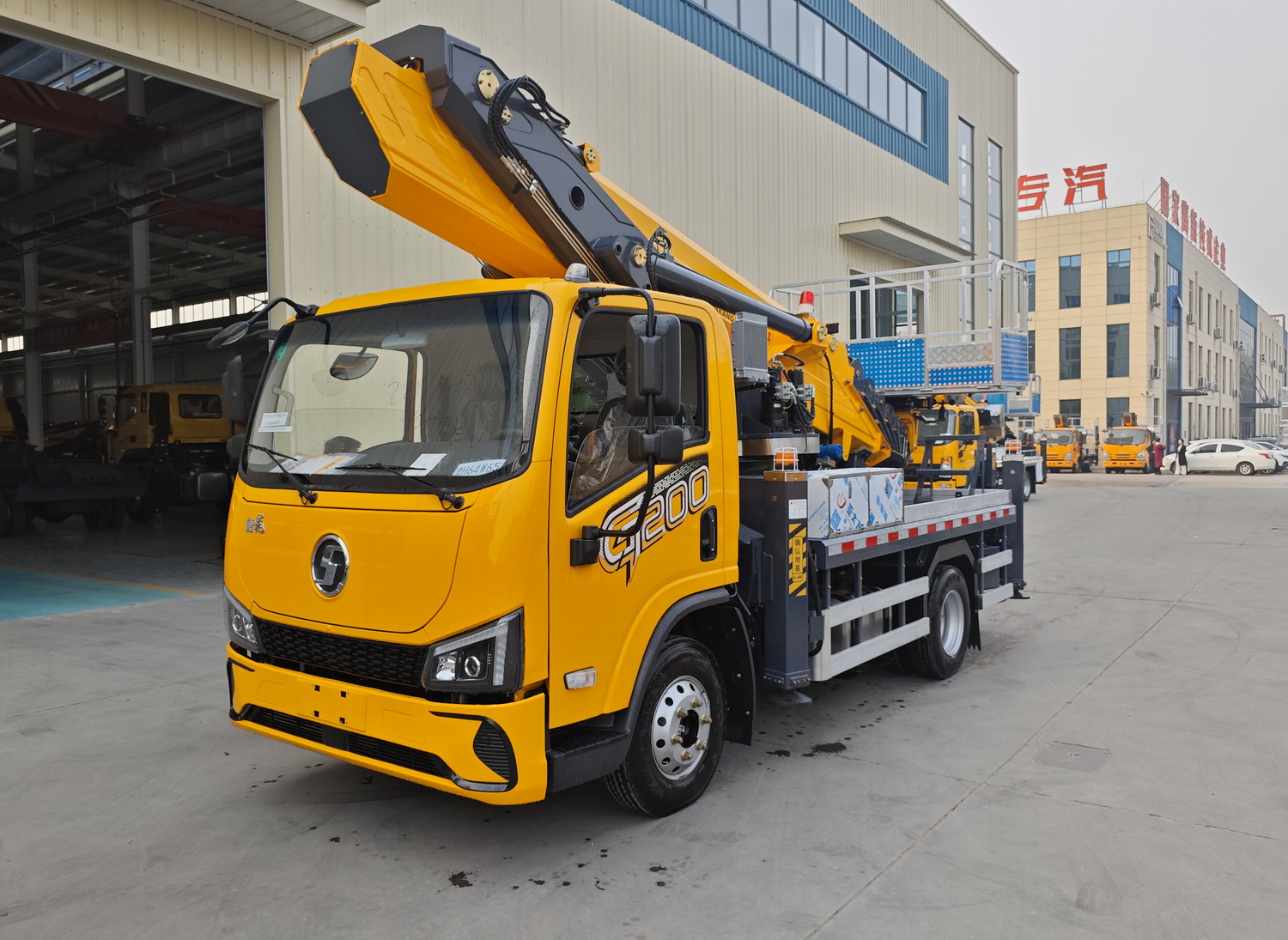

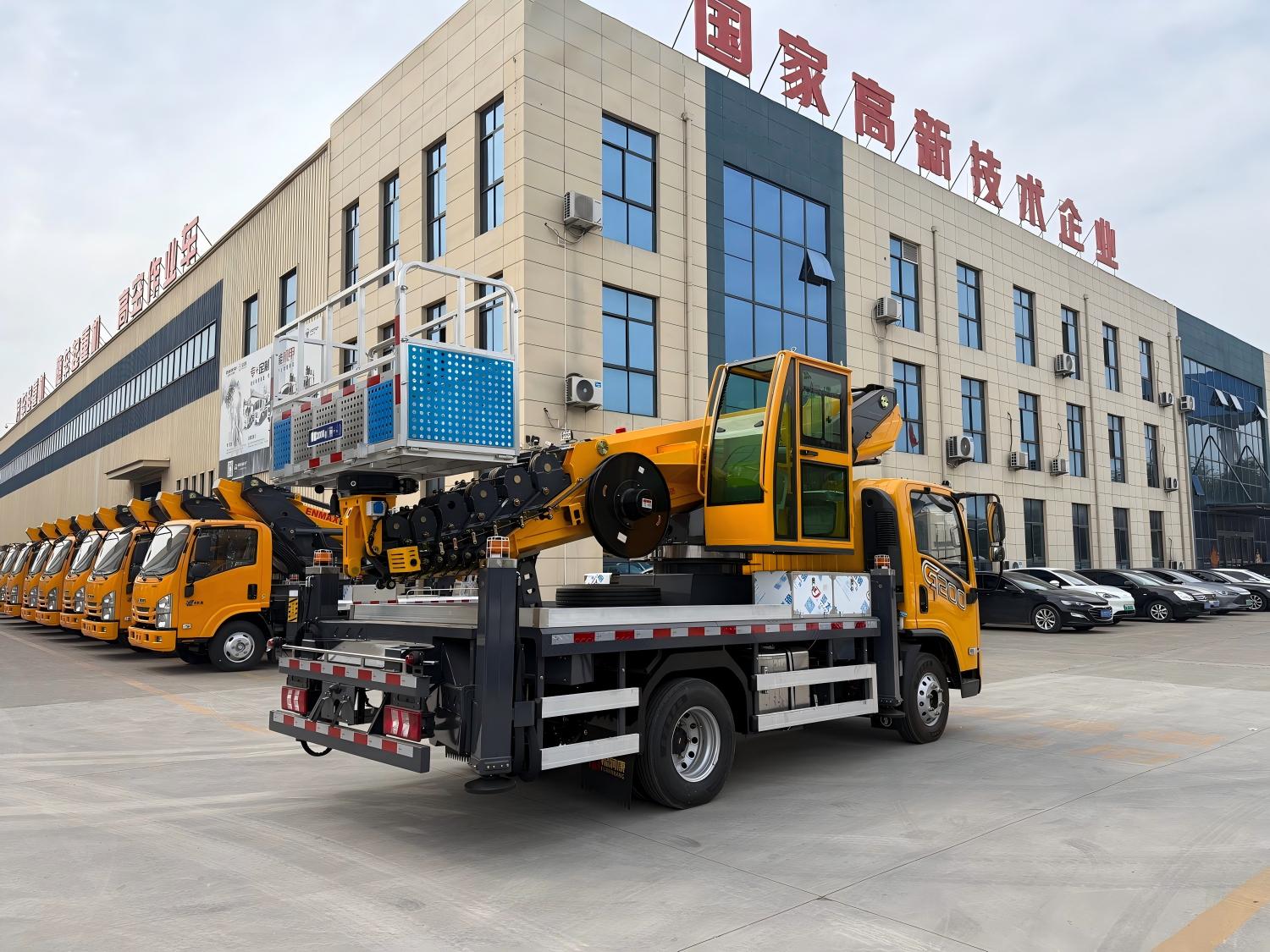

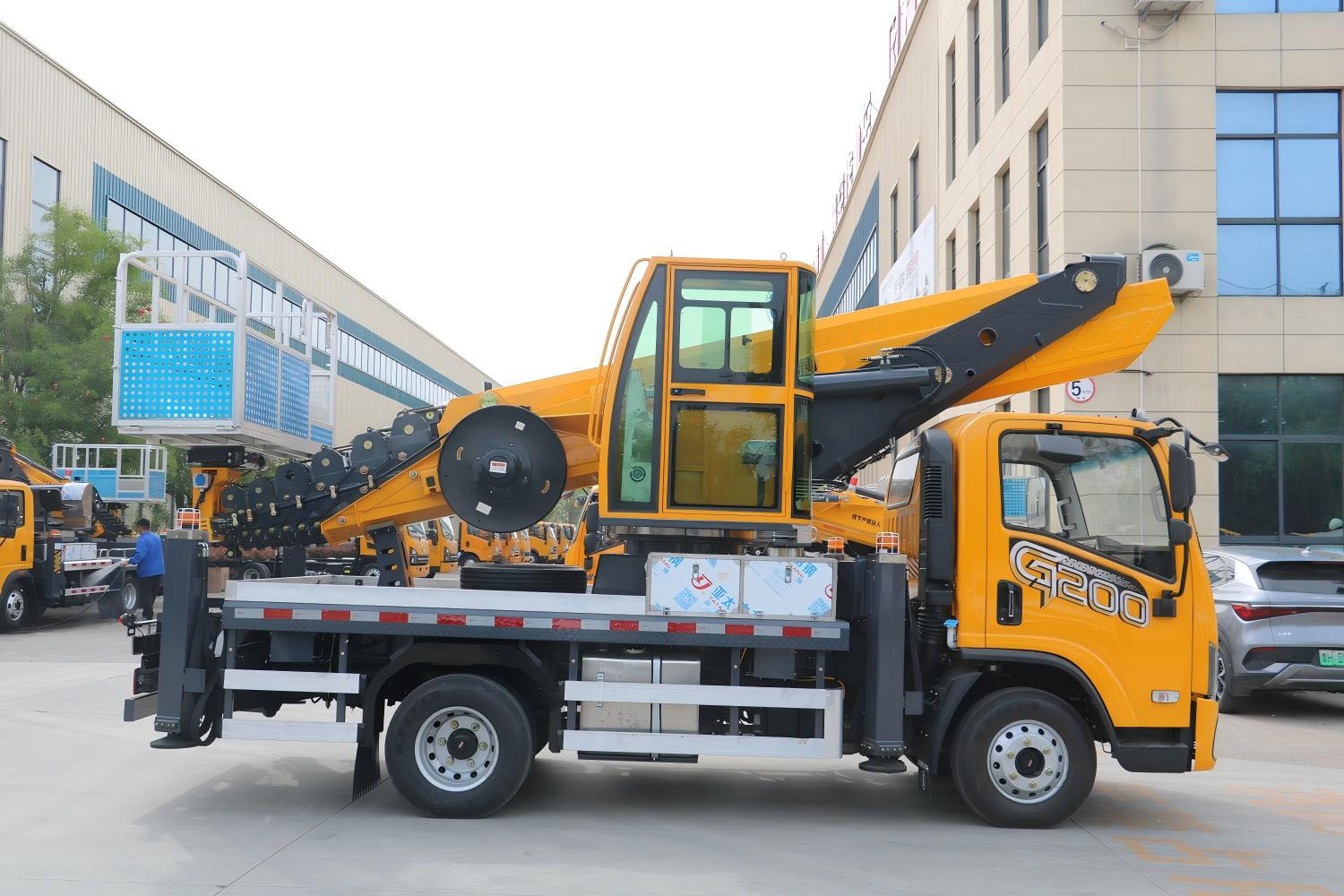

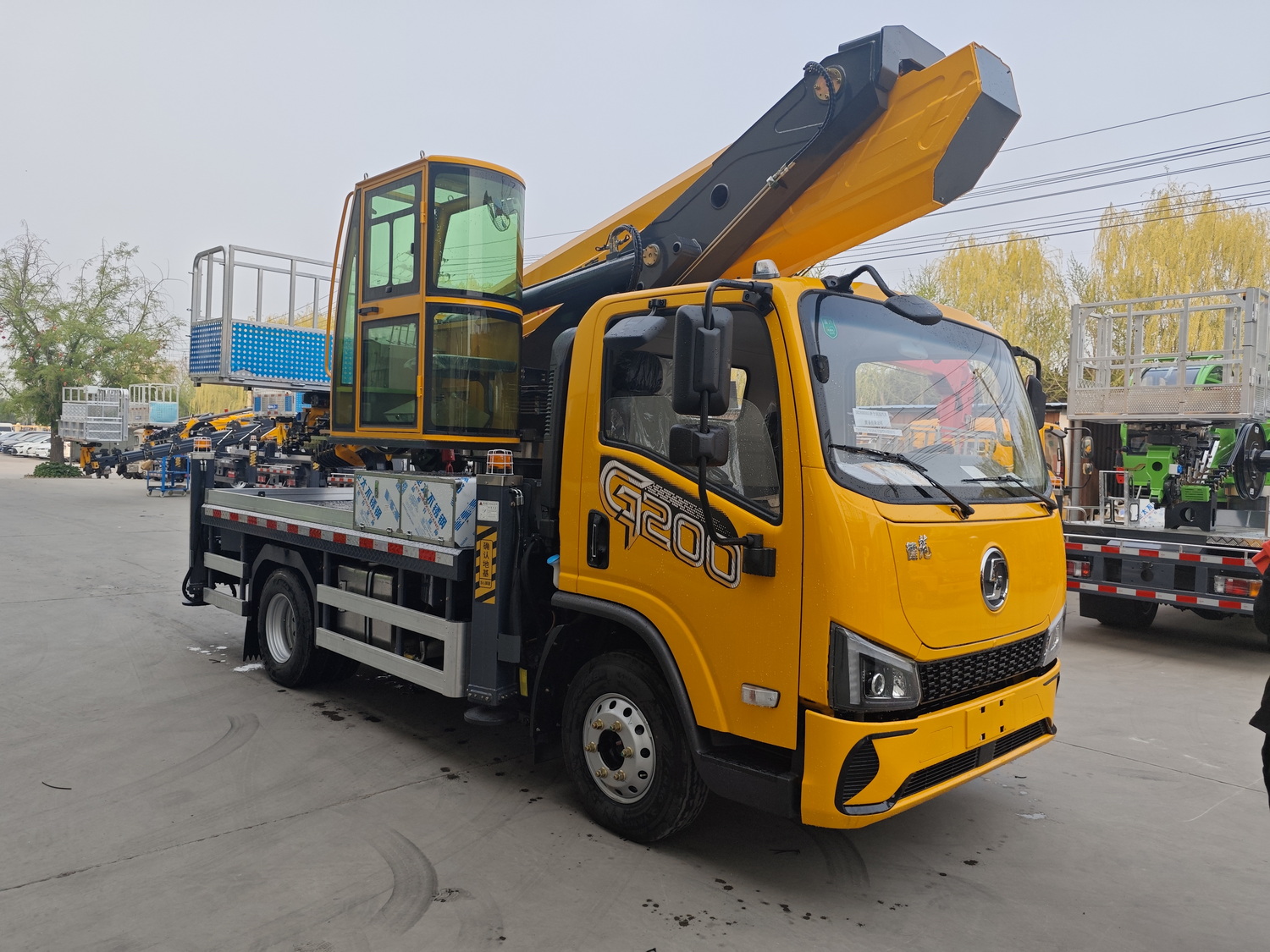

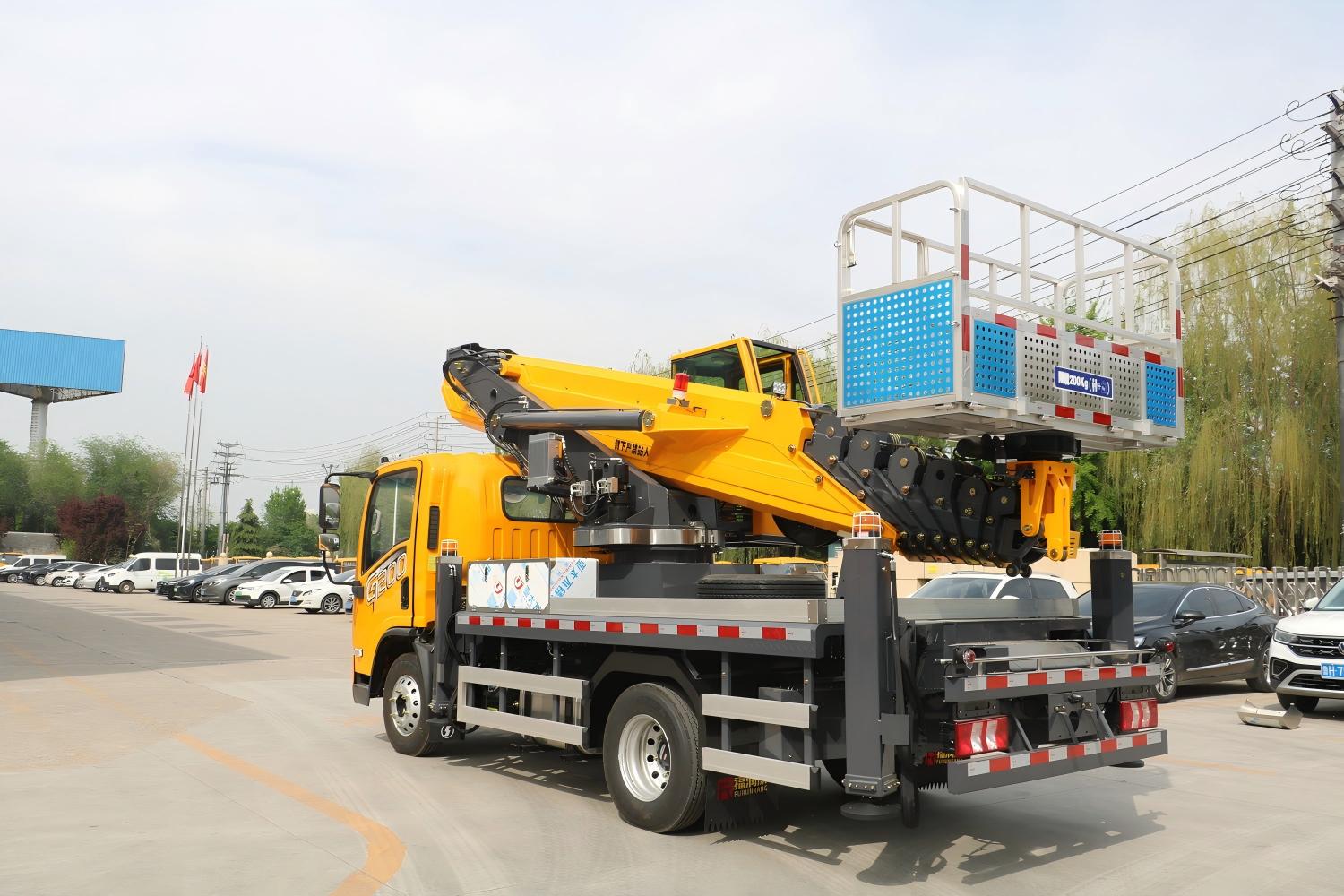

Aerial platform vehicle

SHACMAN Chassis, engine emission standard V standard.
Chassis model: SX1041NP6331, Left-hand drive, with the YUNNEI engine YN25PLUS160A, 114kw, 155HpDiesel engine, 2499ml displacement, 3000mm wheelbase, Tire type 700 R16LT 8PR, total mass 4495kg.
Aerial working platform 8-section telescopic boom, Max working height 37.5m, max working radius 22m, double luffing cylinder.
Boom material BS960E, high tensile plate, ensures bearing capacity while reducing boom light.
Slewing bearing diameter 800mm, with a double slewing reducer.
The basket platform adopted a 9-inch slewing support, which is more stable and reduces platform sway.
Multiple safety protection devices have been added, including weight detection protection and wind speed sensor protection.

Production advantages:

Optimized girder structure, enhanced bearing capacity, and torsional strength.
Boom system: with its characteristic stable, reliable, and efficient, ensures working safety and excellent working performance, we obtained a national patent, and is leading in the same class.
Structure manufacturing, we treat CNC processing, ensure technical requirements, and assemble standards.

Truck-mounted manlift, aerial platform vehicle, we have customized service based on chassis model, general chassis, or pickup, to customize a suitable frame. Aerial working platform working ranges can be made based on project demand.

SHACMAN truck with an aerial work platform, used for high-altitude operations, billboard installation, street lighting, and municipal engineering. compact body design, suitable for narrow space working, good passing ability.

Application

Parameter

On board platform	Model	HFL5040JGKSX6
	Max. Working height	37.5m
	Max. Working radius	22m
	Slewing angle(continuous)	360°
	Platform working range	212°
	Boom raising angle	78°
	Numbers of the boom	8
	Outrigger span	6850/5100mm
	Operation method	On turret cabin and remote control
	Basket load capacity	200Kg
	Basket size	20007001100mm
On board platform equipped intelligence operating system: tilt alarm, over-limit self-locking, and emergency stop, to ensure the safety of workers and equipment.

SHACMAN chassis parameters

SHACMAN Chassis	Engine brand	Yunnei
	Engine model	YN25PLUS160A
	Displacement(ml/kw)	2499/114
	Engine power	155hp
	Transmission	FAST brand 8 gear
	Wheelbase/No. of axles	3000mm / 2
	Tire Specification	7.00R16
	Tire Number	6 tires and 1 spare tire
	Total mass(kg)	4495Kg
	Max Speed	105Km
	Breaks system	Pneumatic brakes with ABS
Vehicle Dimension	(LengthWidthheight)	599522003285mm
	Cab Passengers	3 person
	Fuel tank capacity	120L
Chassis configuration: Multi-function steering wheel, air conditioning, power steering, power windows, central locking, remote key; driving cabin width 2020 mm.

Working range diagram
