Customer: Southeast Asia
Delivery Date: July 2026
Equipment: 12t Truck Crane
Main specification
| Item | Specification |
| Chassis | FAW brand chassis, 190HP, 4X2 drive, Tires 9.00 R20, wheelbase 4200mm, overall dimension 9960*2400*3360mm, traveling speed 88Km/h, max gradability 30%, GVW: 15000Kg |
| Crane | Max. lifting capacity 12 Ton, Max. lifting height 33.2meters, crane girder frame: box type, ensure strong bearing capacity and anti torrsion strong, boom material BS700, rear outrigger support, full round operation ability more stable, equipped with LMI (Load moment indicator), ensures opeator and equippment safety, removeable fly counterweight, enhance working ability, customized color, it enhances brand recognition and aesthetic appeal. |

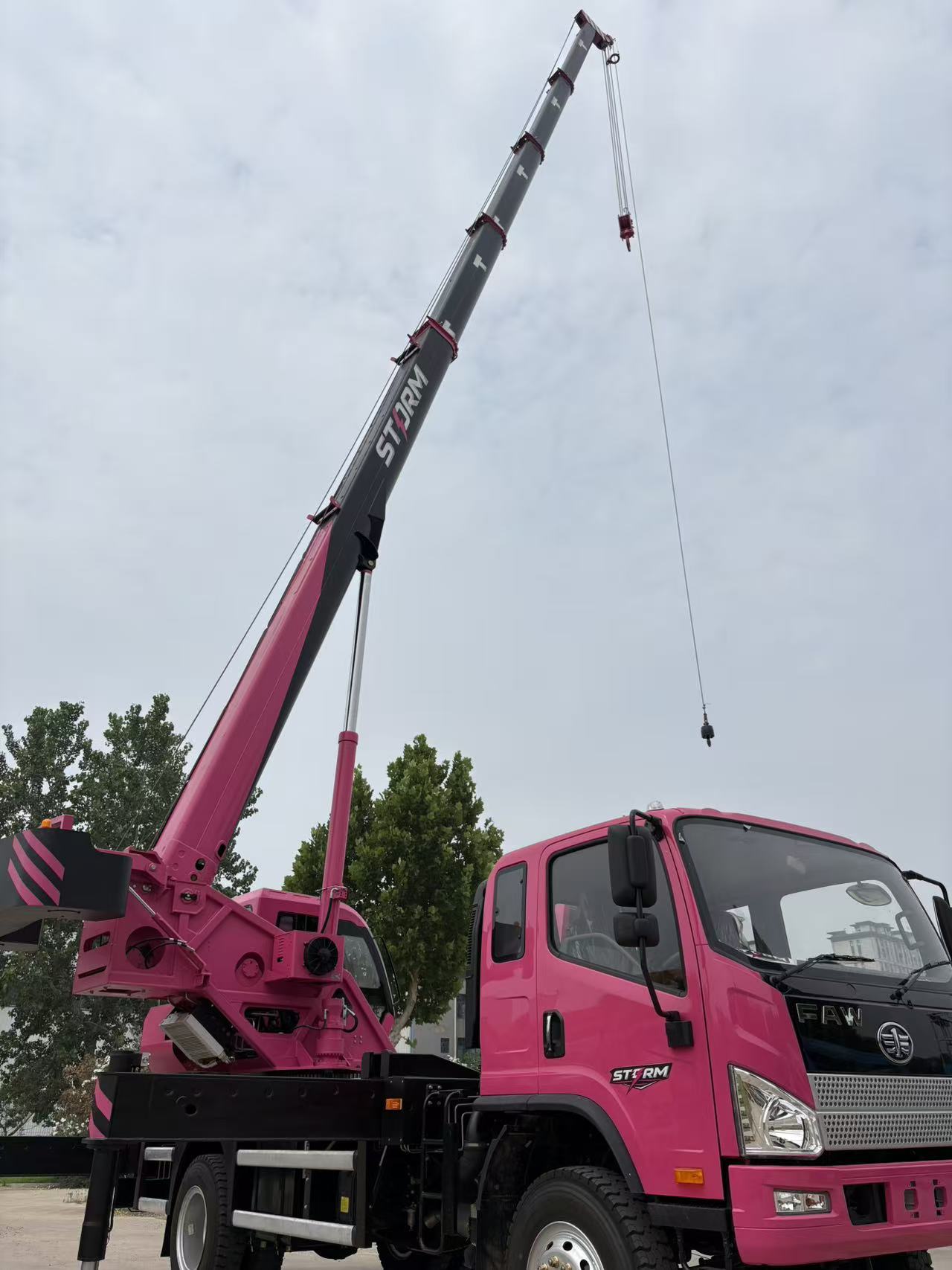

FAW Brand chassis, Yuchai engine 190 hp, 6 wheels truck mounted crane, Max rated lifting capacity 12000Kg, maximum boom length33.2meters.

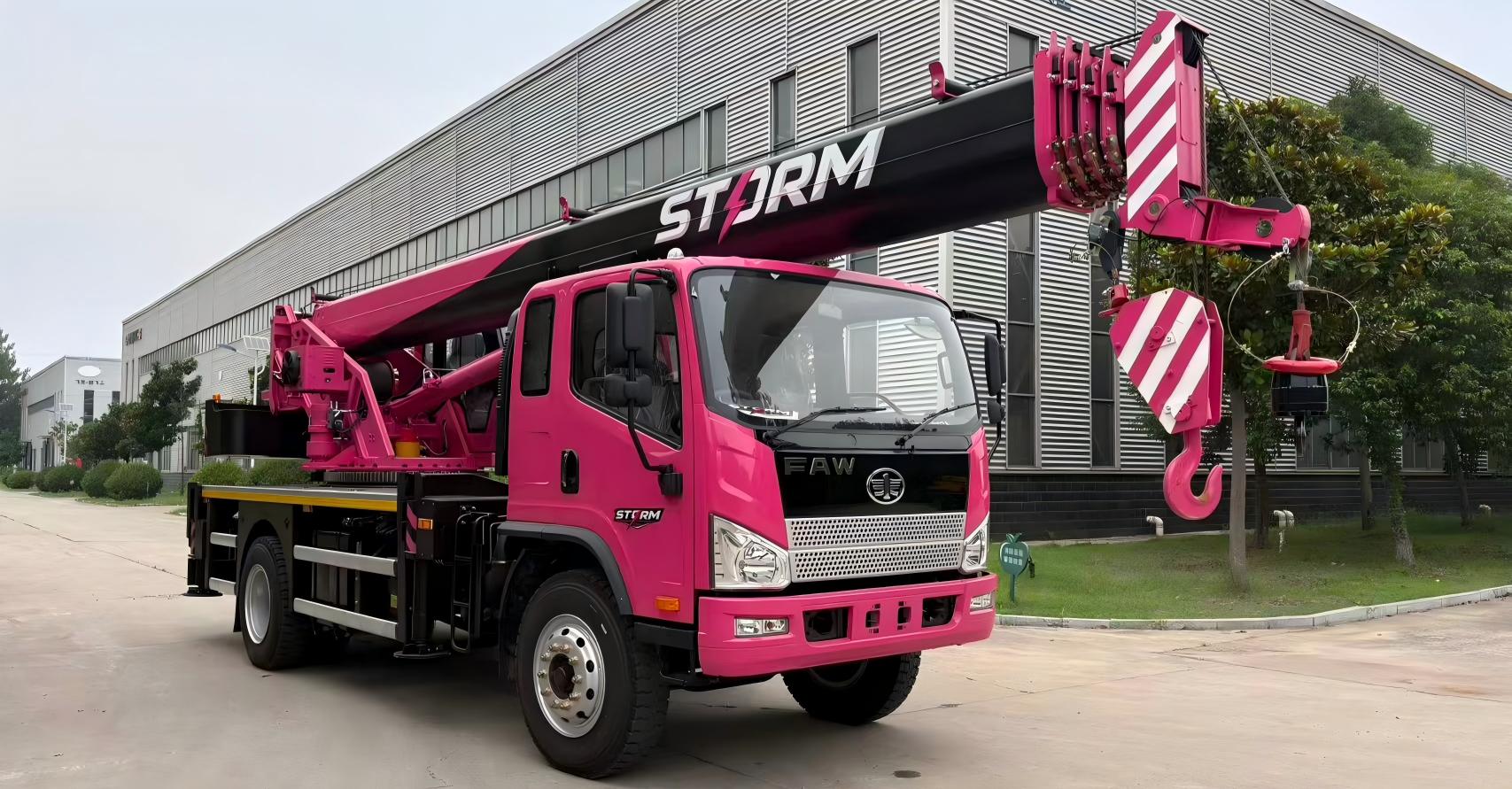

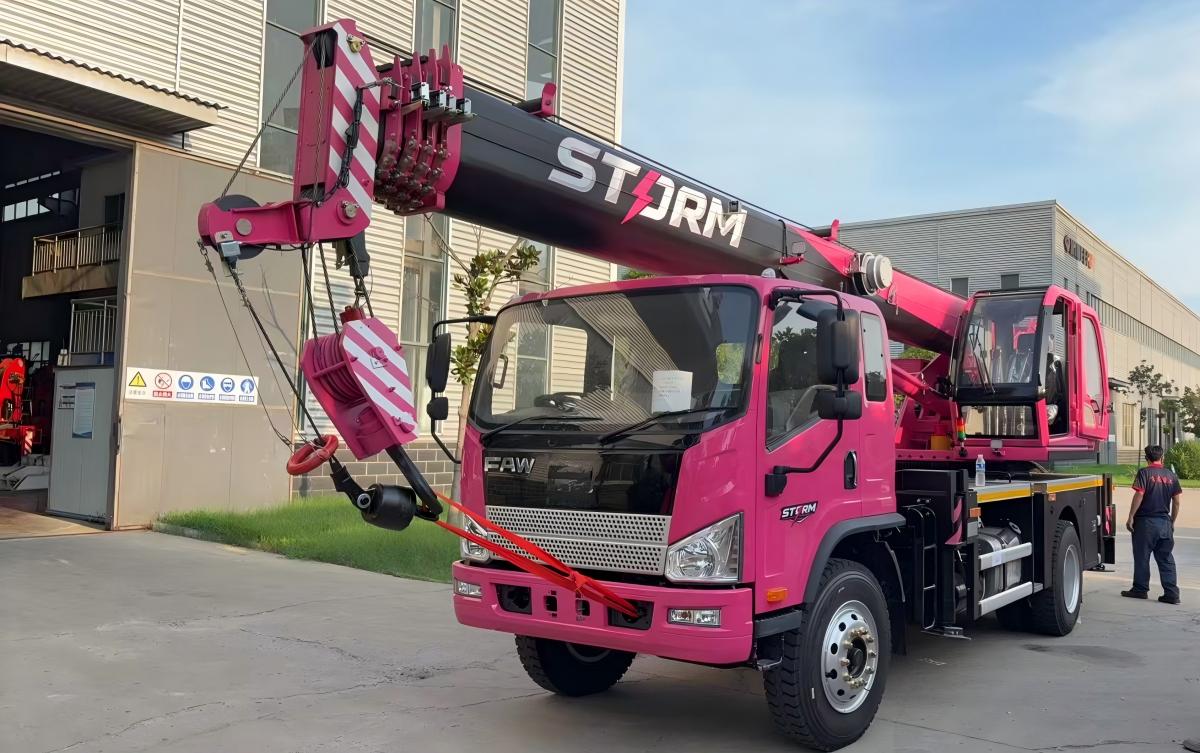

12Ton truck crane with FAW truck
Features
LeadingPerformance in small size truck crane
High Tonnage Lifting Capacity, Extra-Long Boom Coverage
Lifting capacity 12 tons, full boom extension length of 33.2m, maximum lifting height 34.95m, it is among the leading products in its class. The extra-long boom configuration allows the equipment to cover a wider range of operating radii and height requirements, easily handling tasks such as high-rise building construction, large equipment installation, and site hoisting operations.

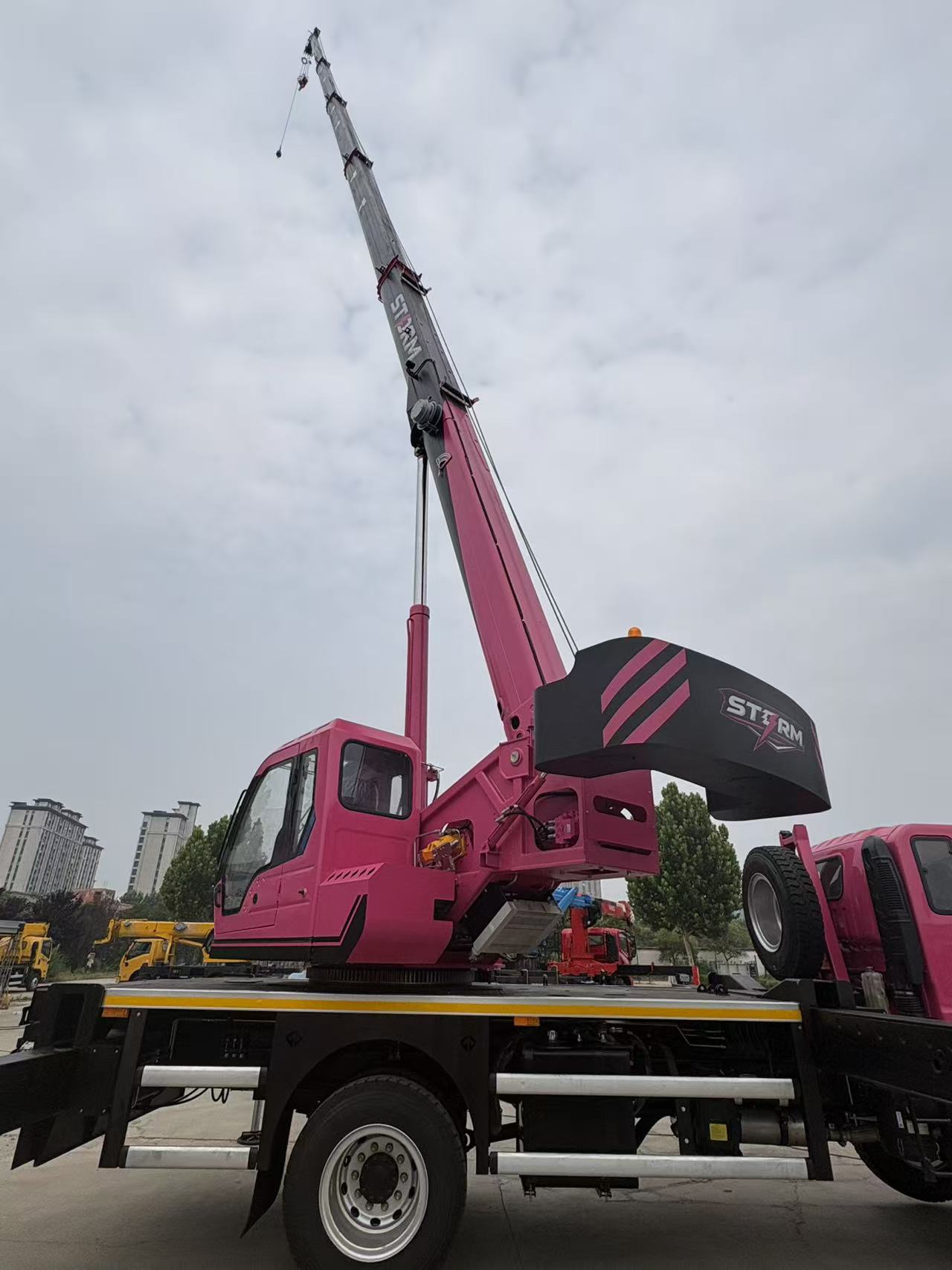

Mobile Counterweight, FLY-COUNTER Model Enhances Working Range
Equipped with a mobile counterweight device, the counterweight blocks can be moved along the guide device via hydraulic cylinders, changing the position of the counterweight relative to the turntable, thereby dynamically adjusting the crane’s center of gravity. This design effectively improves the crane’s counterweight performance and overall stability without increasing the total counterweight, making its lifting range far exceed that of similar products, especially under large-amplitude, heavy-load conditions.
 |
 |
Intelligent Safety Control System
LMI Torque Limiter System: Comprehensive Safety Protection
Equipped with an advanced LMI (Load Moment Indicator) torque limiter system, this core safety device for the truck crane monitors the crane’s load status in real time. Various sensors display information such as height, amplitude, weight, and overload on the monitor. This system effectively prevents overloading and tipping accidents, allowing operators to fully utilize the equipment’s performance within safe limits and ensuring safe and reliable lifting operations every time.
Comfortable and Efficient Operating Experience

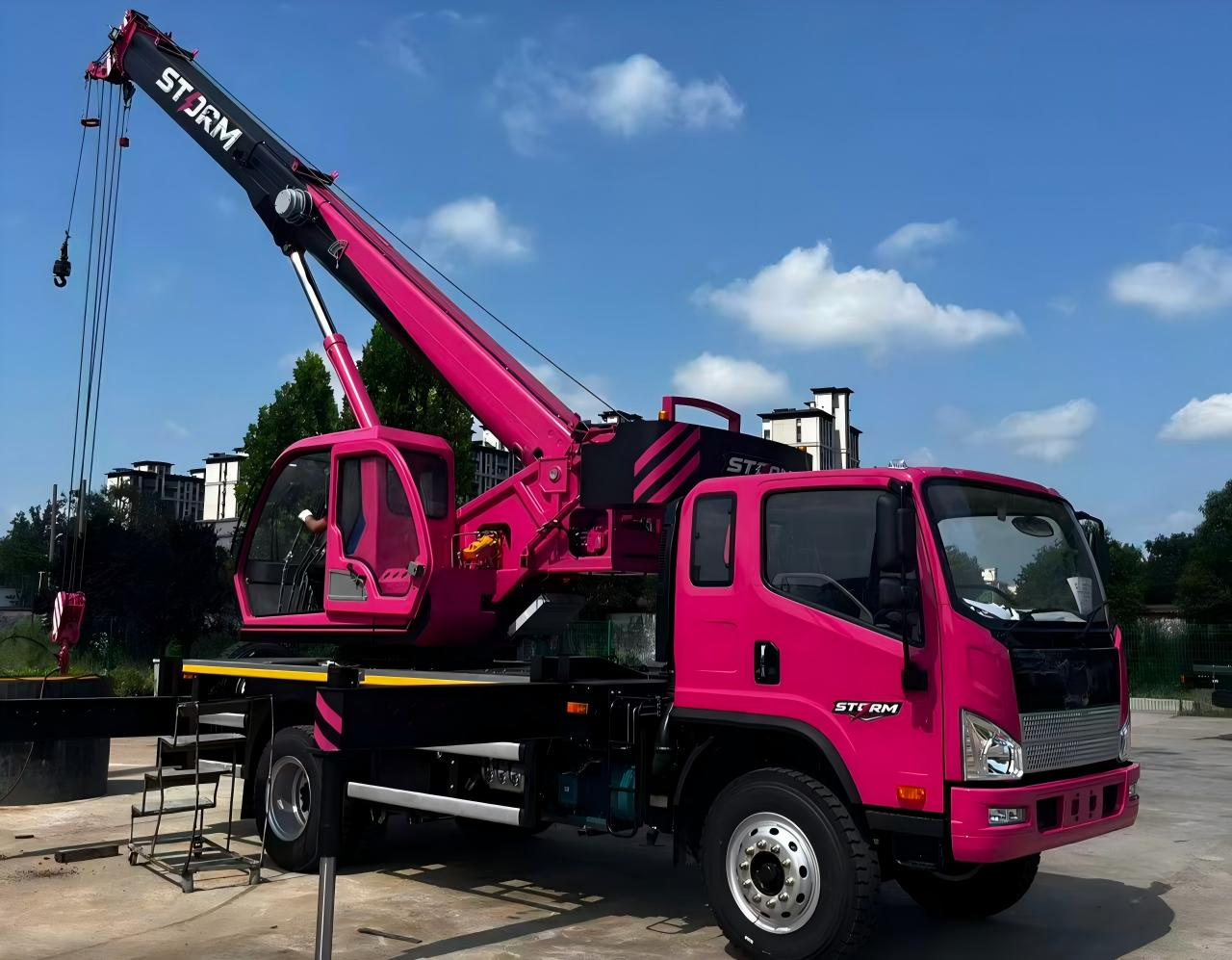

Spacious Operating Room with Humanized Design
The operating room features a luxurious design with a spacious interior and unobstructed view. It is equipped with an adjustable seat, providing a comfortable and convenient operating environment. The spacious operating area effectively reduces operator fatigue and improves comfort and work efficiency during long-term operations.
Hydraulic Air Conditioning System for Comfortable Summer Operation
Equipped with a hydraulic air conditioning system, independently driven by a hydraulic pump, the operating cabin can maintain a suitable temperature, ensuring operators remain in optimal working condition under various climatic conditions and significantly improving all-weather operation capabilities.
Optimized for Tropical Climates
Hydraulic Oil Cooler for High-Temperature Environments
Equipped with a high-efficiency hydraulic oil cooler to meet the operational needs of tropical and high-temperature regions, ensuring stable and efficient operation of the hydraulic system under continuous high-temperature conditions, significantly extending the service life of hydraulic components.
Convenient and Safe Structural Design
Aluminum Alloy Protective Barriers: Lightweight and Aesthetically Pleasing
The exterior of the vehicle body uses aluminum alloy profile protective barriers, installed via bolt connections. Aluminum alloy is lightweight, corrosion-resistant, and aesthetically pleasing, effectively protecting the vehicle body and critical components while reducing overall vehicle weight and improving fuel economy.
Convenient access via side ladder: Equipped with a dedicated side ladder, it facilitates operators’ access to and from the crane for daily inspections, maintenance, and operations. The ladder’s design fully considers ergonomics, making the boarding process easier, less strenuous, and safer.

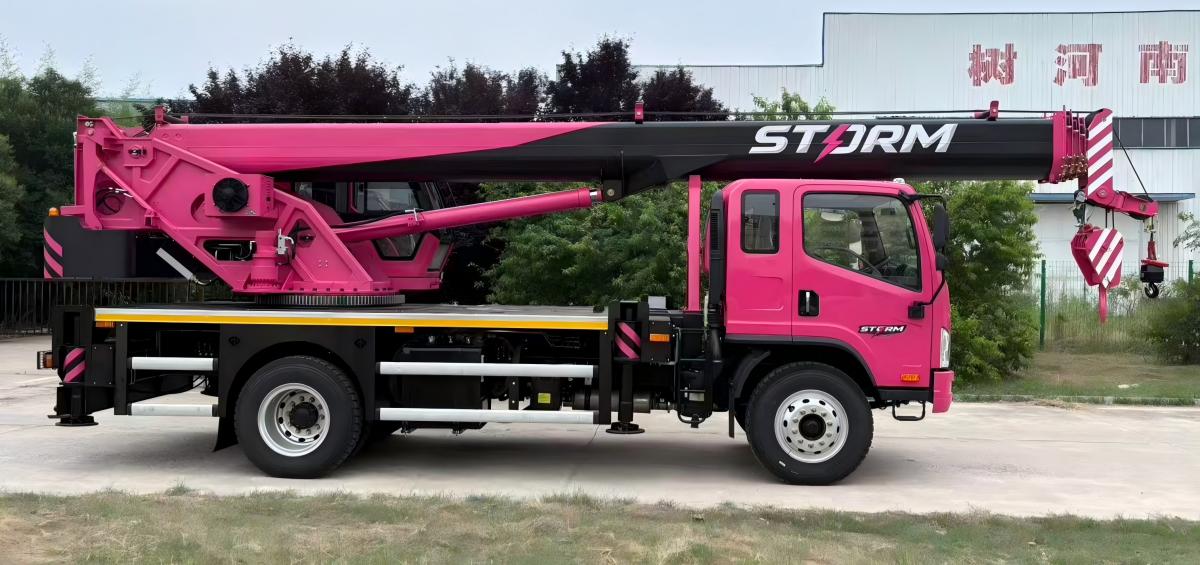

12t truck crane with FAW chassis, small lifting truck for narrow space working condition, 33.2m lifting height, Its compact size allows it to navigate urban and rural roads, improving relocation efficiency and saving operating costs. 12T mobile crane equipped rear outriggers, and LMI system, air conditioner, optioned electric motor to save daily operation cost.
