Model:
SQZ84
Suitable Chassis (Wheels):
6
Chassis GVW (Tons):
4-12

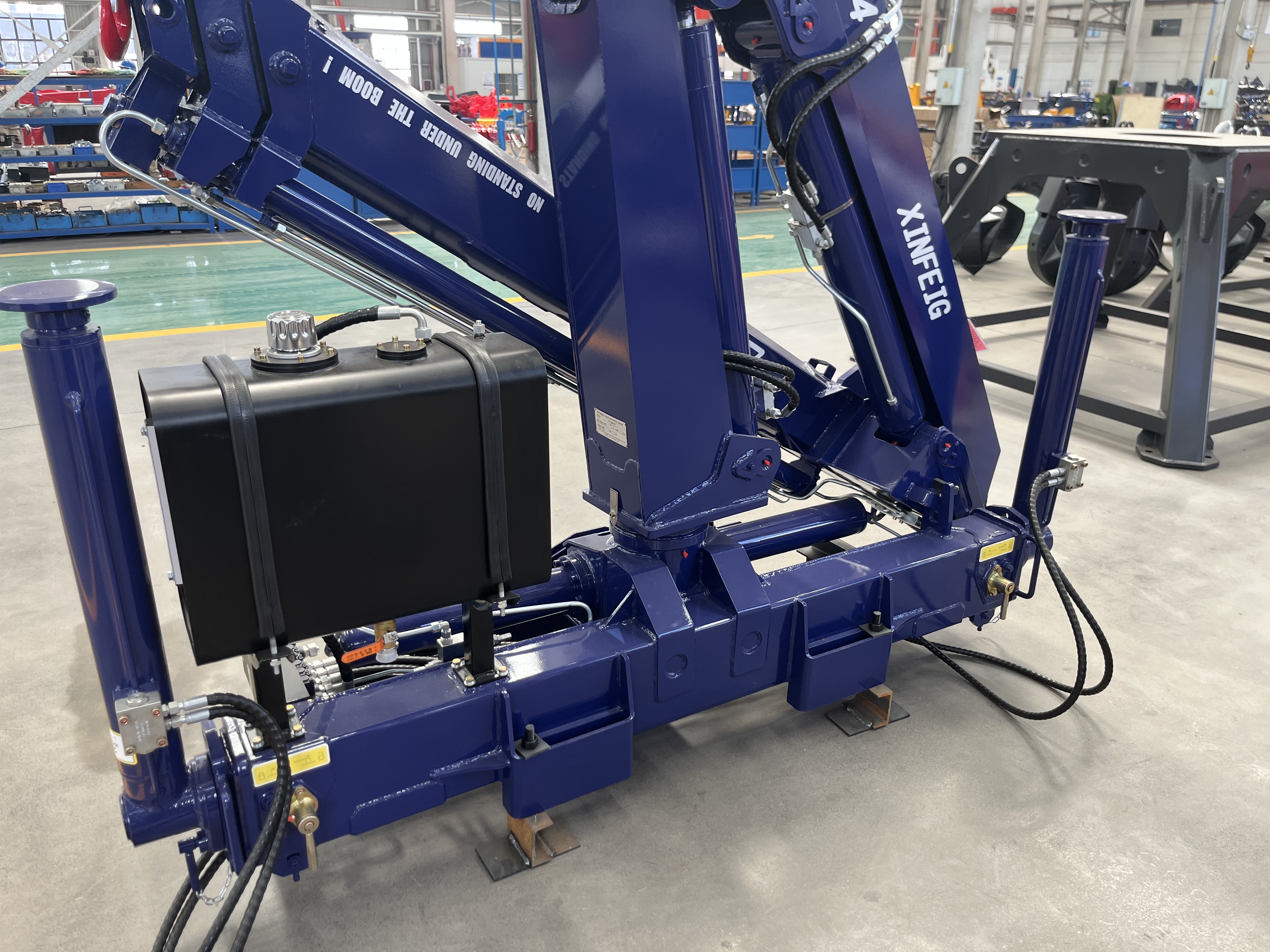

Knuckle Boom Crane

Model:

SQZ84

Rated flow (L/min):

25(L/min)

Crane deadweight (Kg):

1350(Kg):

Whatsapp
+86-15713887786
Email
sales@i-cranes.com

Send Email Inquiry Now

Introduction
Parameter
Project Case

Feature Introduction

The section of the new hexagonal arm body has a greater lifting capacity under the same amplitude, and the section has strong bending and torsion resistance.
The rack cylinder is used to drive the rotation, which is stable and powerful, easy to maintain, and the rotation angle can reach 370°.
Wide temperature hydraulic oil is the standard configuration, which can be used in winter and summer.

Advantages

a.can be customized boom section, an option 2-5;

b.crane color can be customized;

c. attachment can be added;

Application

Technical Parameter

Item	Unit	SQZ84
Max lifting torque	kN•m	84
Max lifting capacity	kg	4000
Boom length	m	11.48
Lifting height	m	13.1
Slewing angle	°	370
Outrigger span	mm	3554
Dead weight	Kg	1350

Hydraulic Parameters

Item	Unit	Value
Rated hydraulic flow	L/min	25
Rated working pressure	Mpa	26
Recommend power	Kw	15
Hydraulic oil temperature	°	-25^OC-+40^OC
Oil tank capacity	L	60

Lifting curve and Dimension
