SQZ105
6
4-12
SQZ105
25(L/min)
2045(Kg):
The section of the new hexagonal arm body has a greater lifting capacity under the same amplitude, and the section has strong bending and torsion resistance.
The rack cylinder is used to drive the rotation, which is stable and powerful, easy to maintain, and the rotation angle can reach 420°.
Wide temperature hydraulic oil is the standard configuration, which can be used in winter and summer.
a.can be customized boom section, an option 2-5;
b.crane color can be customized;
c. attachment can be added;

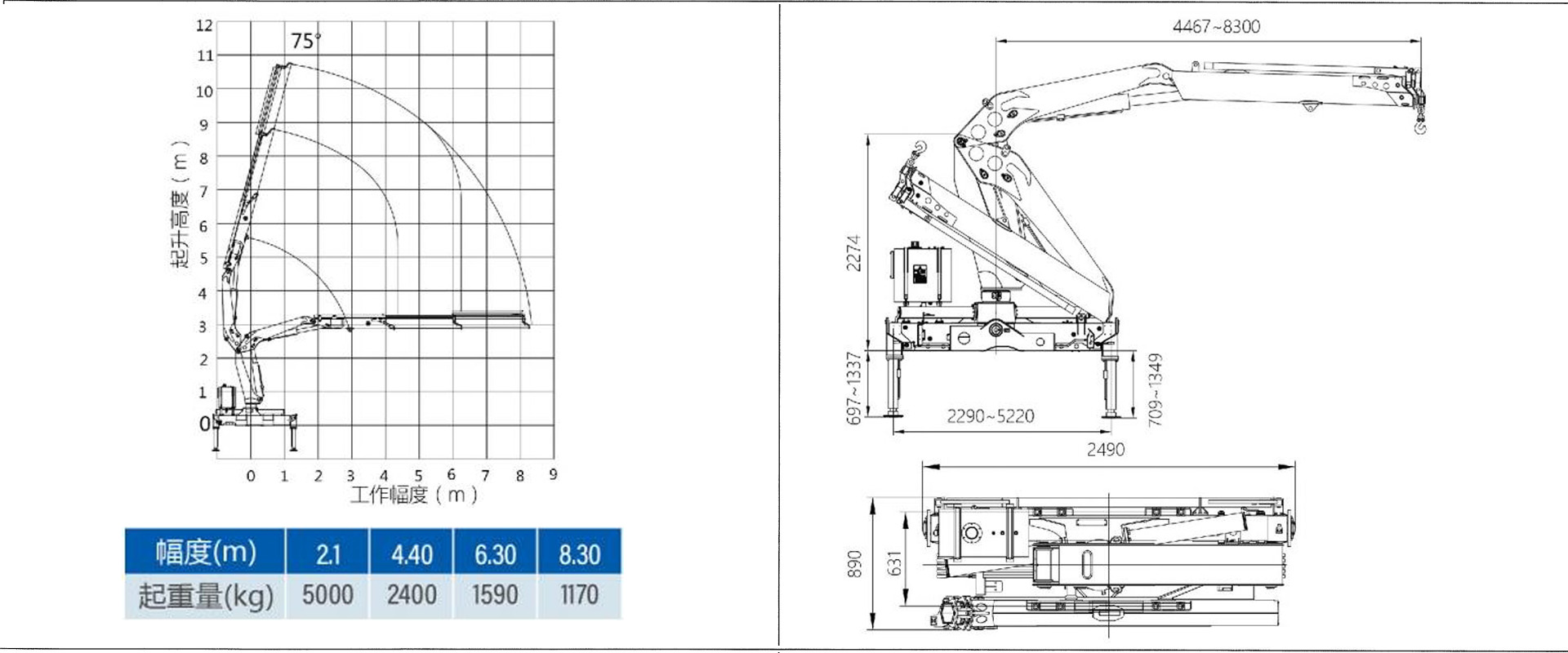

| Item | Unit | SQZ105 |
| Max lifting torque | kN•m | 105 |
| Max lifting capacity | kg | 5000 |
| Boom length | m | 12.2 |
| Lifting height | m | 15.3 |
| Slewing angle | ° | 420 |
| Outrigger span | mm | 2290-5607 |
| Dead weight | Kg | 2045 |
| Item | Unit | Value |
| Rated hydraulic flow | L/min | 25 |
| Rated working pressure | Mpa | 28 |
| Recommend power | Kw | 18 |
| Hydraulic oil temperature | ° | -25 OC-+40 OC |
| Oil tank capacity | L | 100 |
