SQZ132
6
10-18

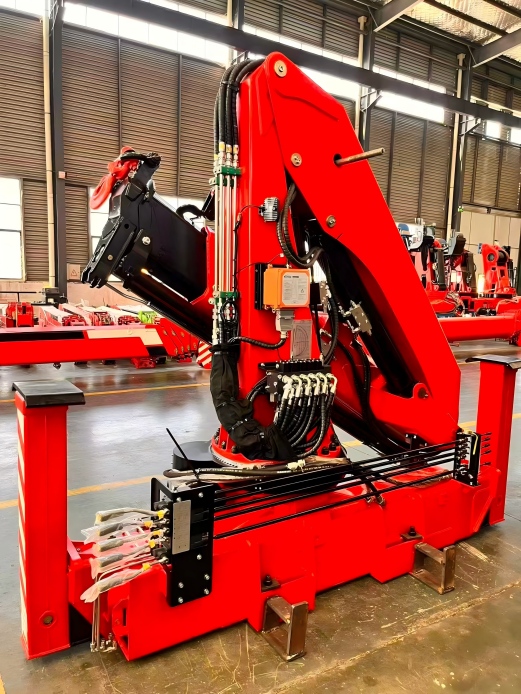

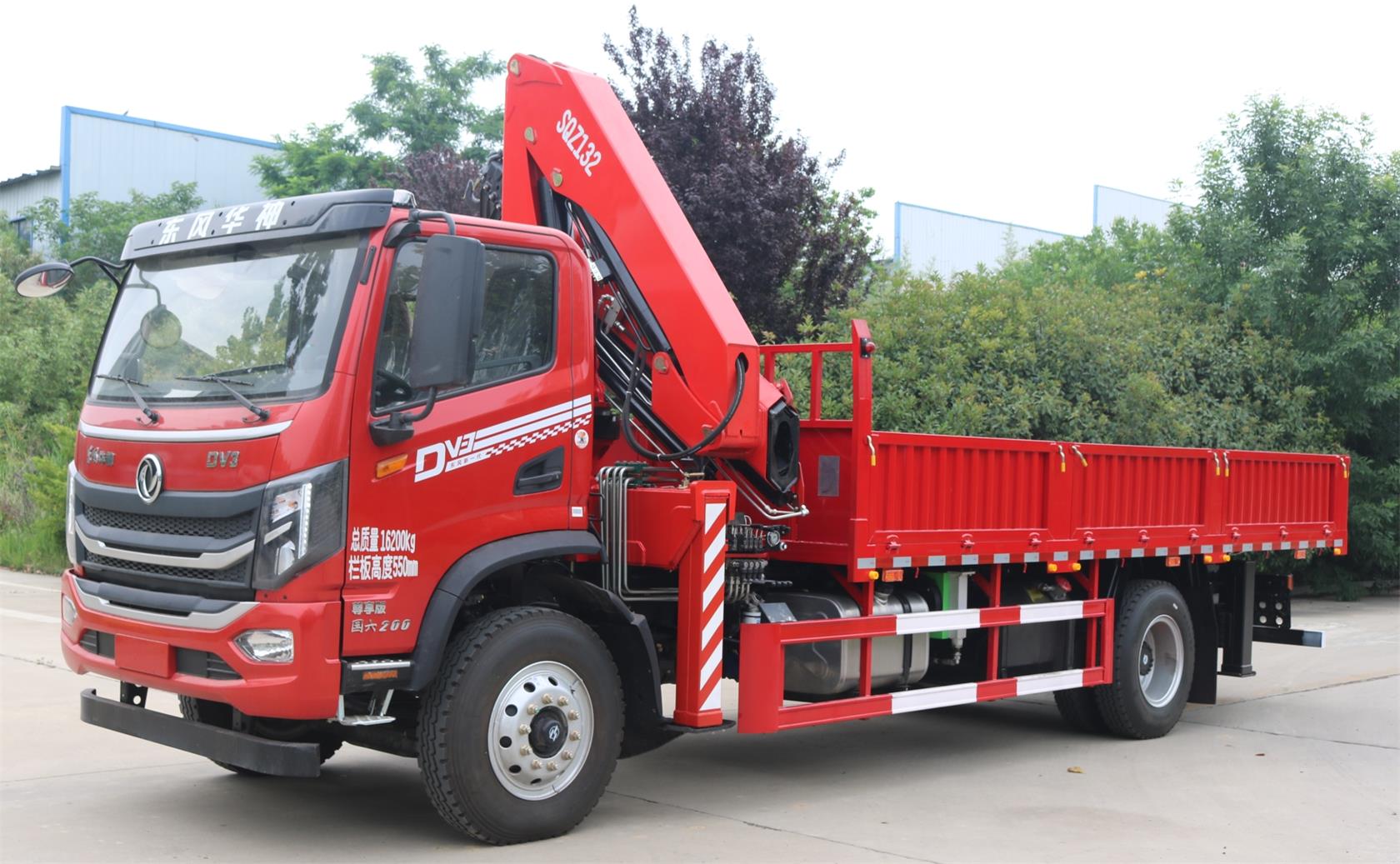

SQZ132
12.3(m)
2550(Kg):
The machine structure is optimized and designed, compact and beautiful.
Lightweight design, light weight and small installation space.
Wide temperature hydraulic oil is the standard configuration, which can be used in winter and summer.
a.can be customized boom section, an option 2-5;
b.crane color can be customized;
c. attachment can be added;
| Item | Unit | SQZ132 |
| Max lifting torque | kN•m | 132 |
| Max lifting capacity | kg | 6300 |
| Boom length | m | 12.3 |
| Lifting height | m | 15.3 |
| Slewing angle | ° | 360 |
| Outrigger span | mm | 2330-5950 |
| Dead weight | Kg | 2550 |
| Item | Unit | Value |
| Rated hydraulic flow | L/min | 50 |
| Rated working pressure | Mpa | 28 |
| Recommend power | Kw | 18 |
| Hydraulic oil temperature | ° | -25 OC-+40 OC |
| Oil tank capacity | L | 100 |
