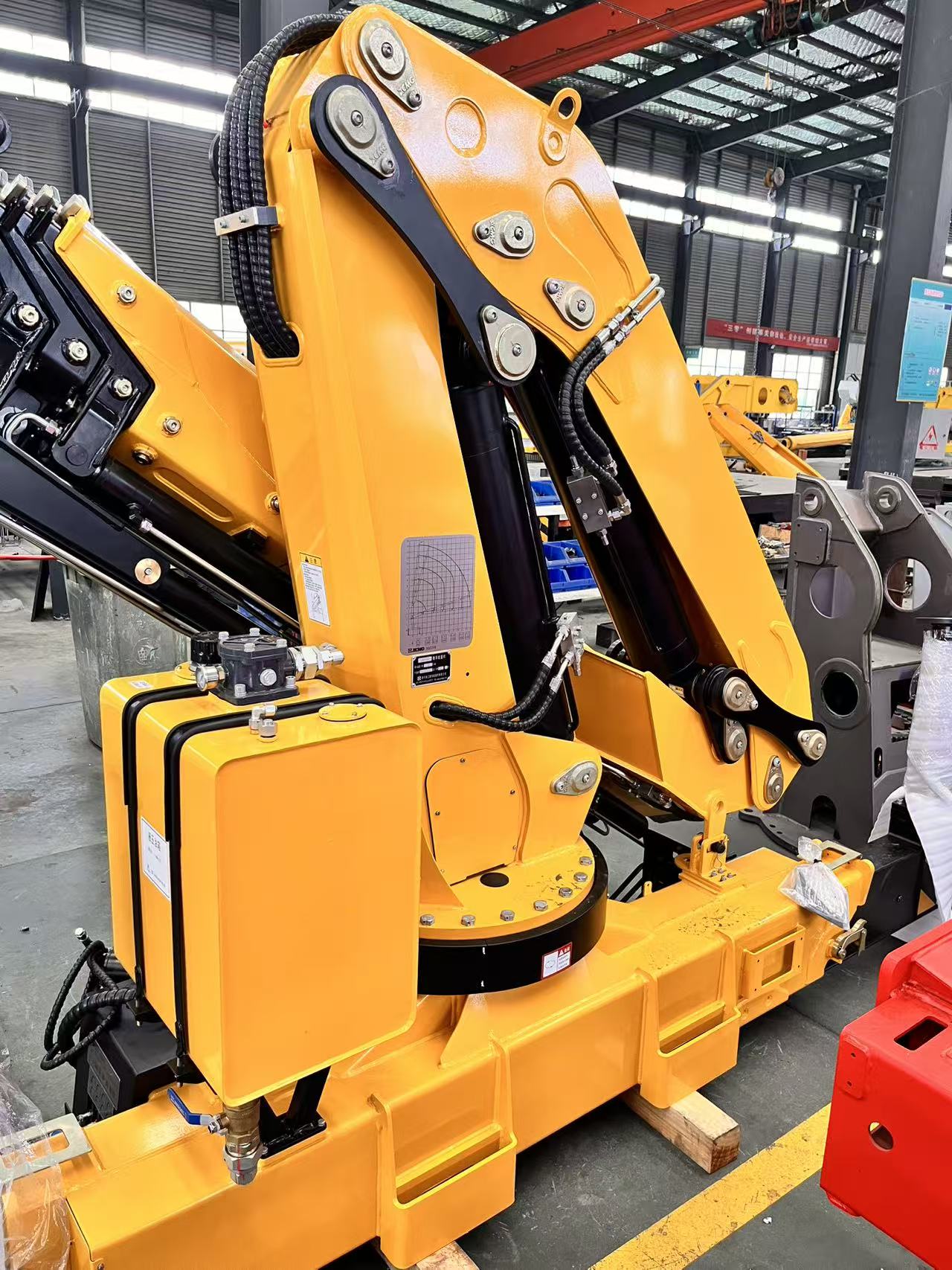

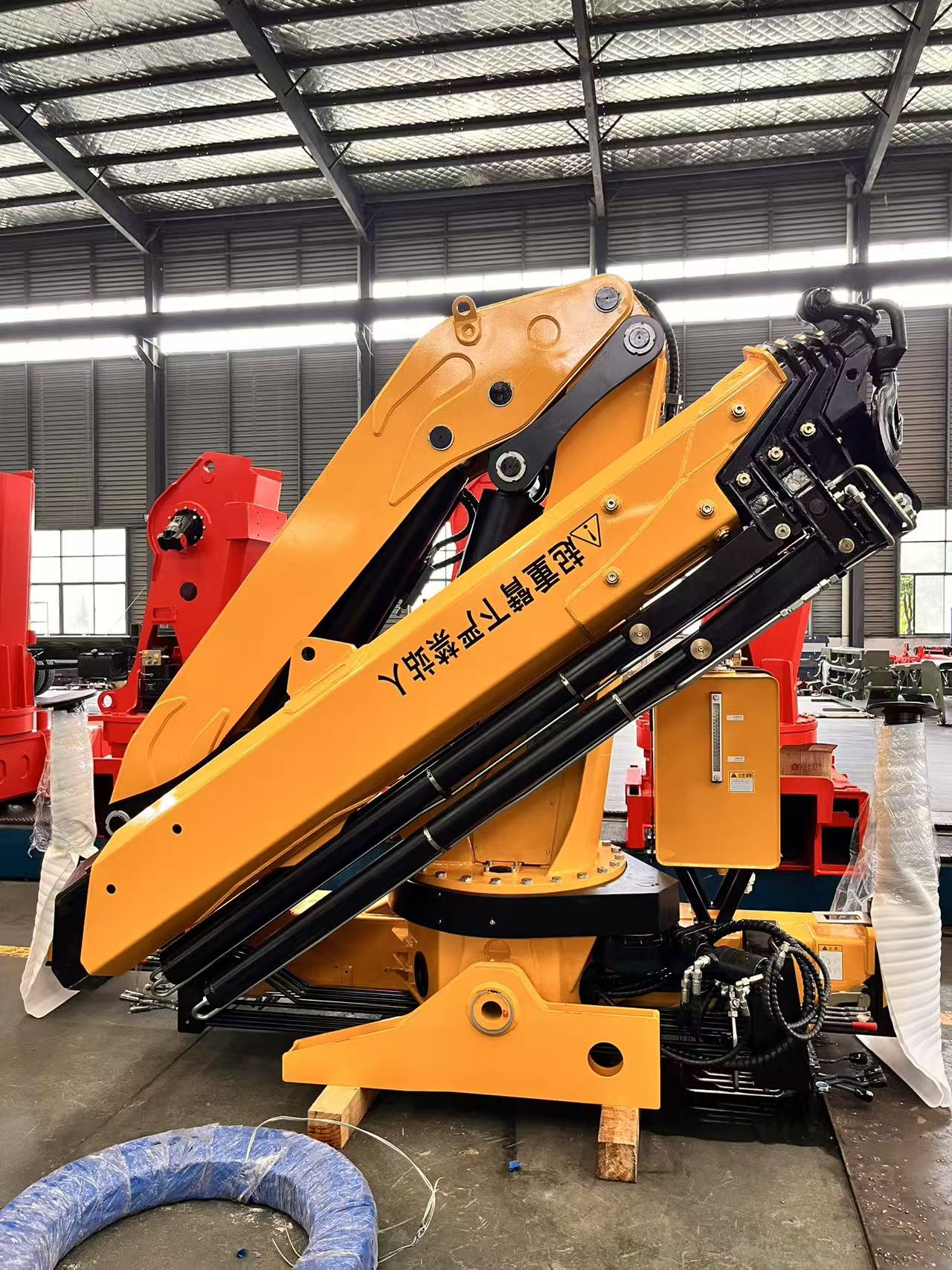

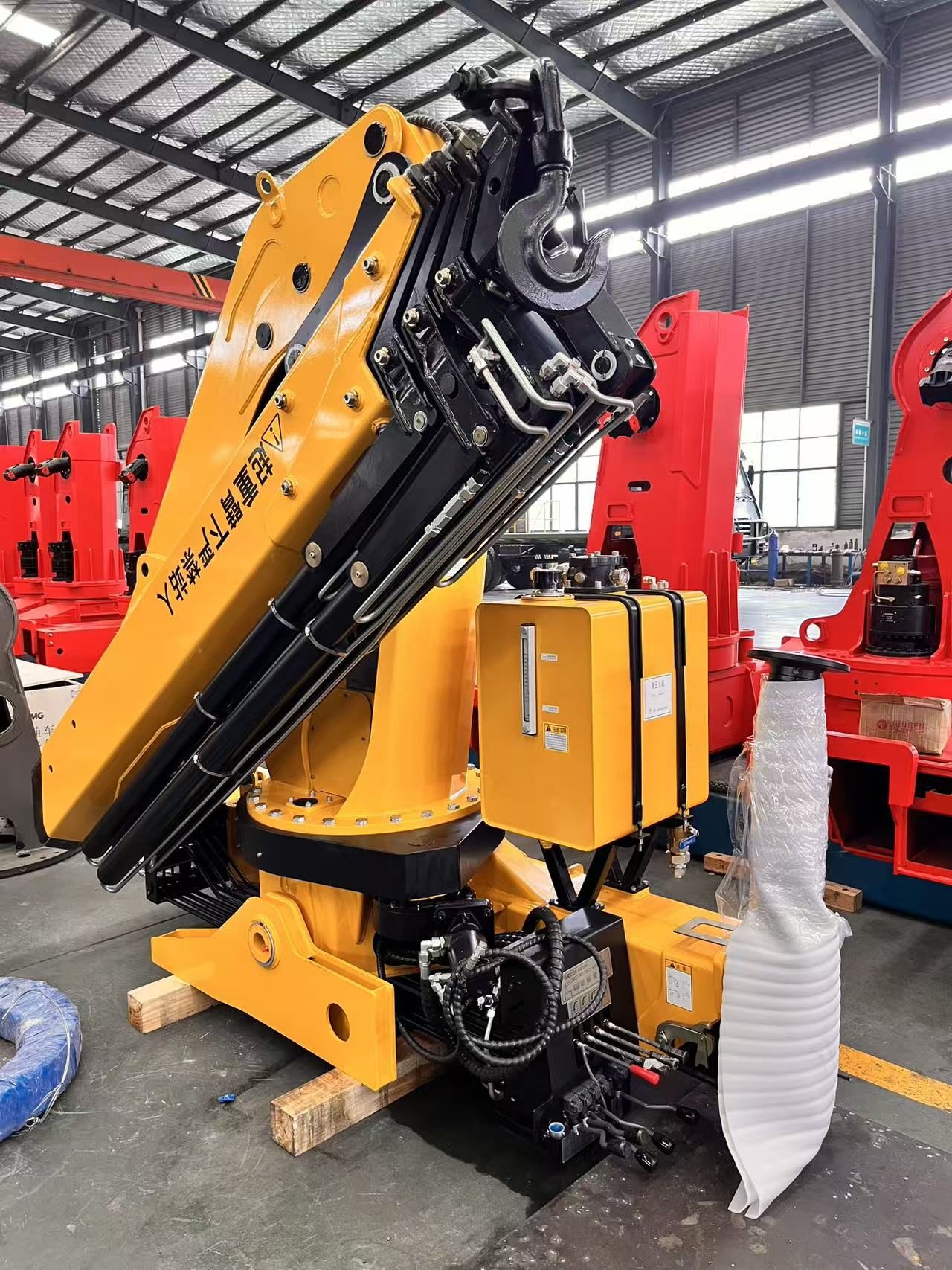

SQZ300
10
25-31
SQZ300
11.41(m)
4490(Kg):
The luffing mechanism adopts a linkage design, which is compact and improves the lifting torque.
Finite element analysis is used for product structure optimization, resulting in a lighter overall machine weight.
a.can be customized boom section, an option 2-5;
b.crane color can be customized;
c. attachment can be added;

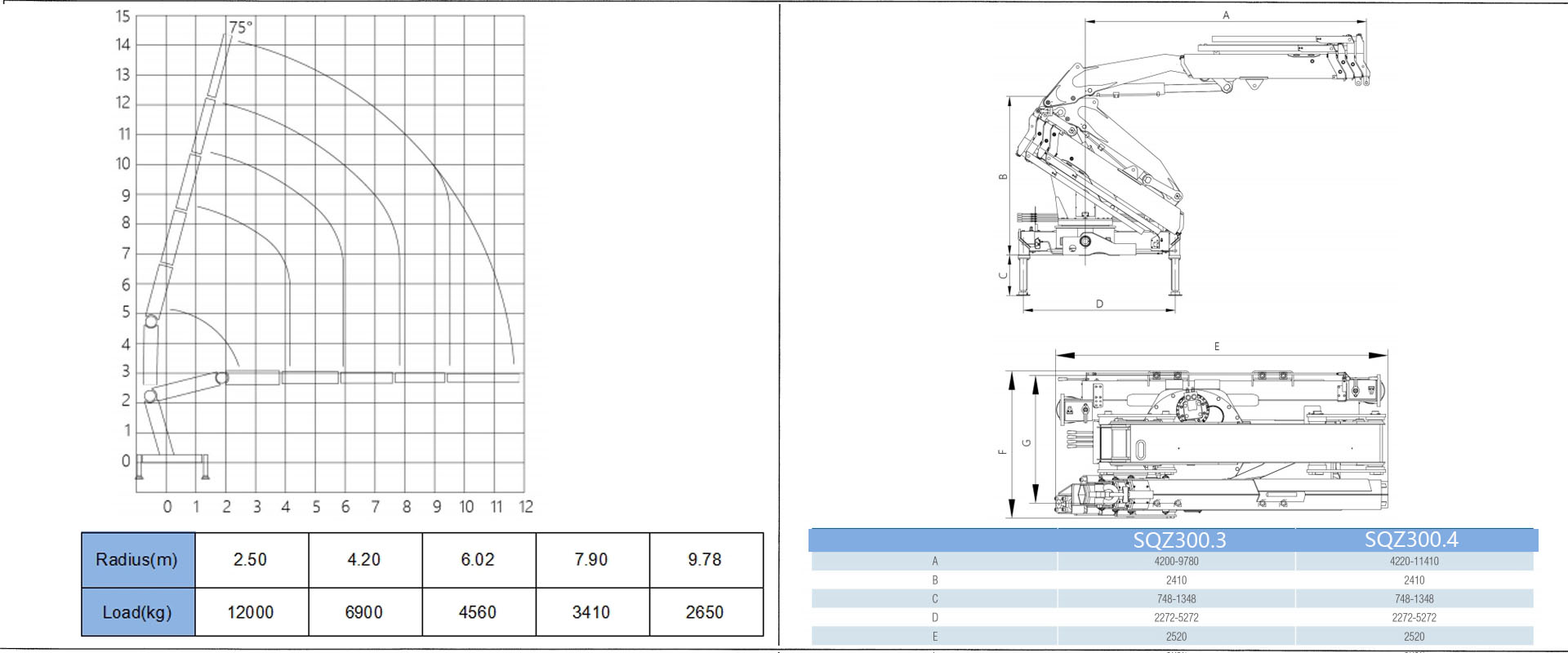

| Item | Unit | SQZ300 |
| Max lifting torque | kN•m | 300 |
| Max lifting capacity | kg | 12000 |
| Boom length | m | 11.4 |
| Lifting height | m | 13.5 |
| Slewing angle | ° | 360 |
| Outrigger span | mm | 5272 |
| Dead weight | Kg | 4490 |
| Item | Unit | Value |
| Rated hydraulic flow | L/min | 55 |
| Rated working pressure | Mpa | 31 |
| Recommend power | Kw | 32 |
| Hydraulic oil temperature | ° | -25 OC-+40 OC |
| Oil tank capacity | L | 220 |
