Crane model: GSQZ660.8 XCMG brand knuckle boom crane, Max. lifting capacity 33000Kg, 8 telescopic boom working radius 20.67 meters. 360 degree rotation.
XCMG crane 33Ton knuckle boom crane, suitable for chassis tractor head, trailer truck
1. New hexagonal boom cross-section: Greater lifting capacity with the same boom radius, and stronger resistance to bending and torsion.
2. Regenerative control and a new sequential telescopic control system reduce boom extension pressure loss, improving load-bearing extension capacity and overall machine efficiency.
3. Rotatable and automatically tilting dual-stage, dual-cylinder outriggers: Improves chassis adaptability, provides a larger span, and enhances overall machine stability.
4. Multiple control options: upper and lower vehicle operation, and high-position turntable seat operation, meeting diverse customer needs.
5. Dual-reducer drive for slewing: Slewing motion is smoother and more powerful, with better braking performance.
6. Upper vehicle hydraulic proportional valve: Excellent micro-motion performance and capable of compound actions, providing high operating comfort.
7. Standard high-power radiator: Ensures the crane's oil temperature does not overheat during long-term heavy-load operation.
a.can be customized boom section, an option 4-8;
b.crane color can be customized;
c. attachment can be added;
based on standard product, we have customized service can be add attachment Jaw for bicker, auger drill, clamps to multiple for you purpose, contact us for more details.

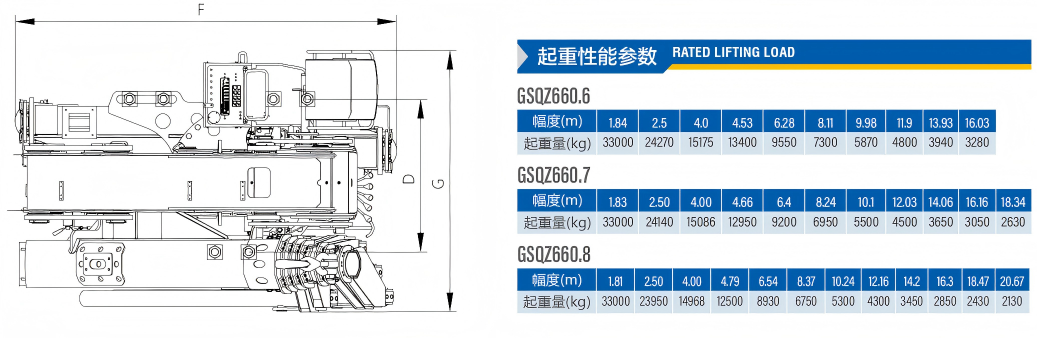

| Item | Unit | GSQZ660.8 |
| Max lifting torque | kN•m | 599 |
| Max lifting capacity | kg | 33000 |

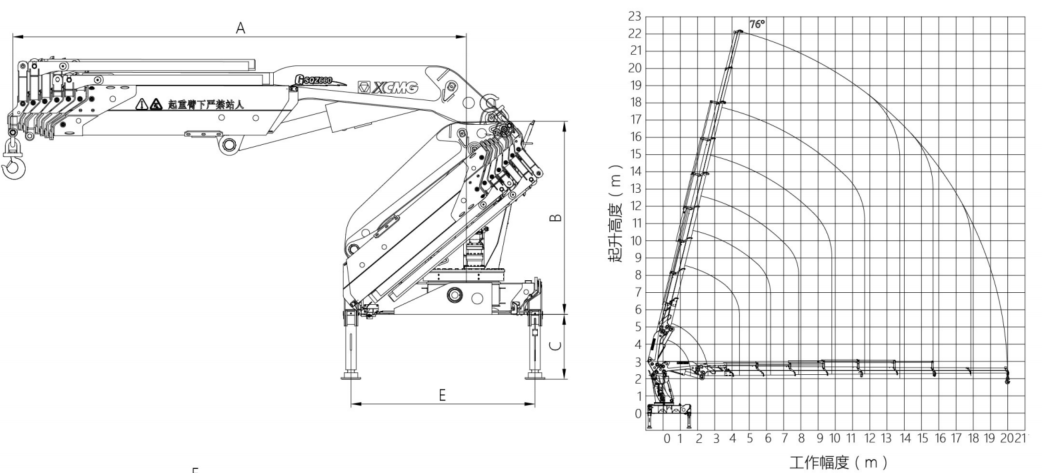

| Boom length | m | 20.76 |
| Lifting height | m | 22 |
| Slewing angle | ° | 360 |
| Outrigger span | mm | 8000/8216 |
| Dead weight | Kg | 7500 |
| Item | Unit | Value |
| Rated hydraulic flow | L/min | 80 |
| Rated working pressure | Mpa | 33 |
| Recommend power | Kw | 48 |
| Hydraulic oil temperature | ° | -25 OC-+40 OC |
| Oil tank capacity | L | 300 |
