Knuckle Boom Crane

Crane overall Introduction

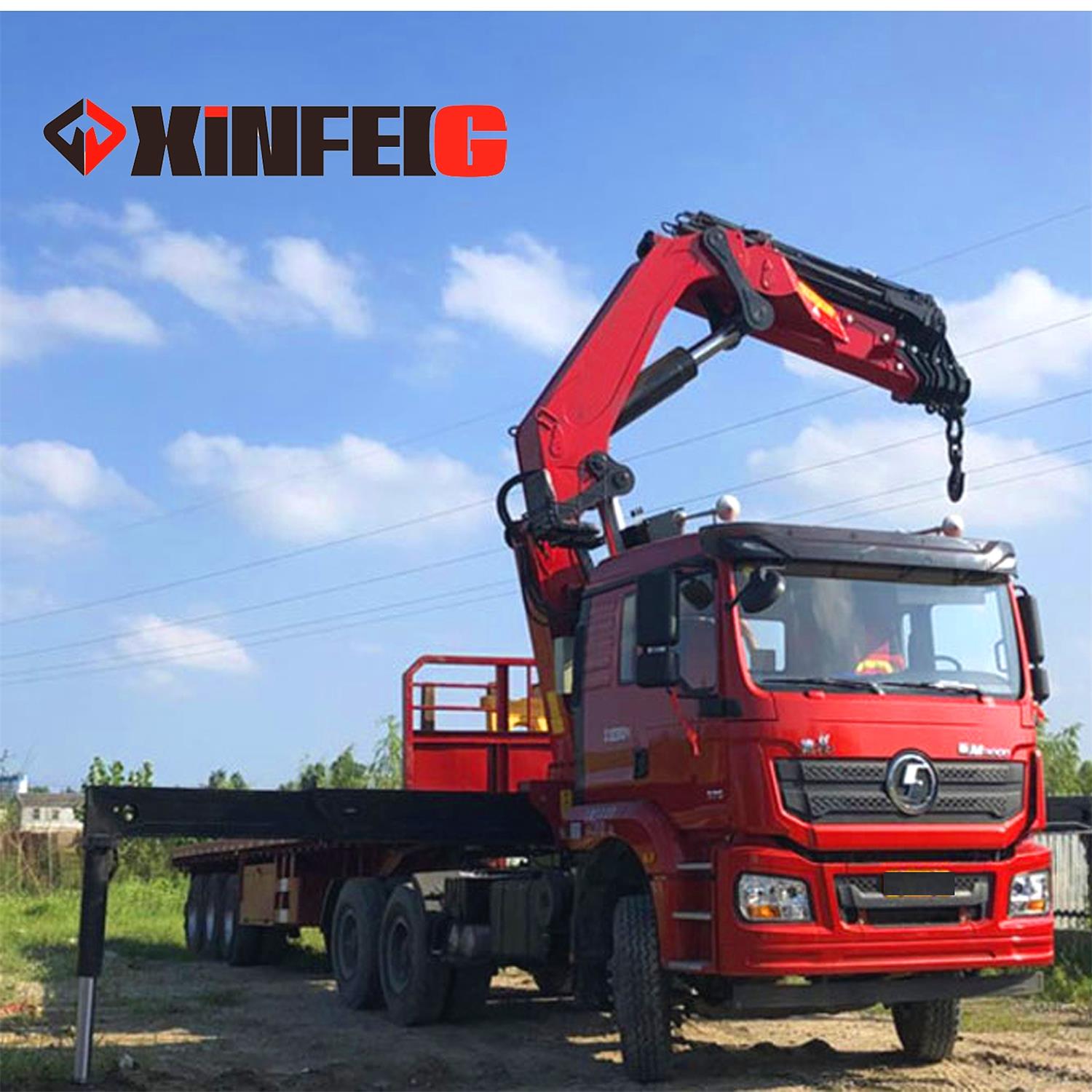

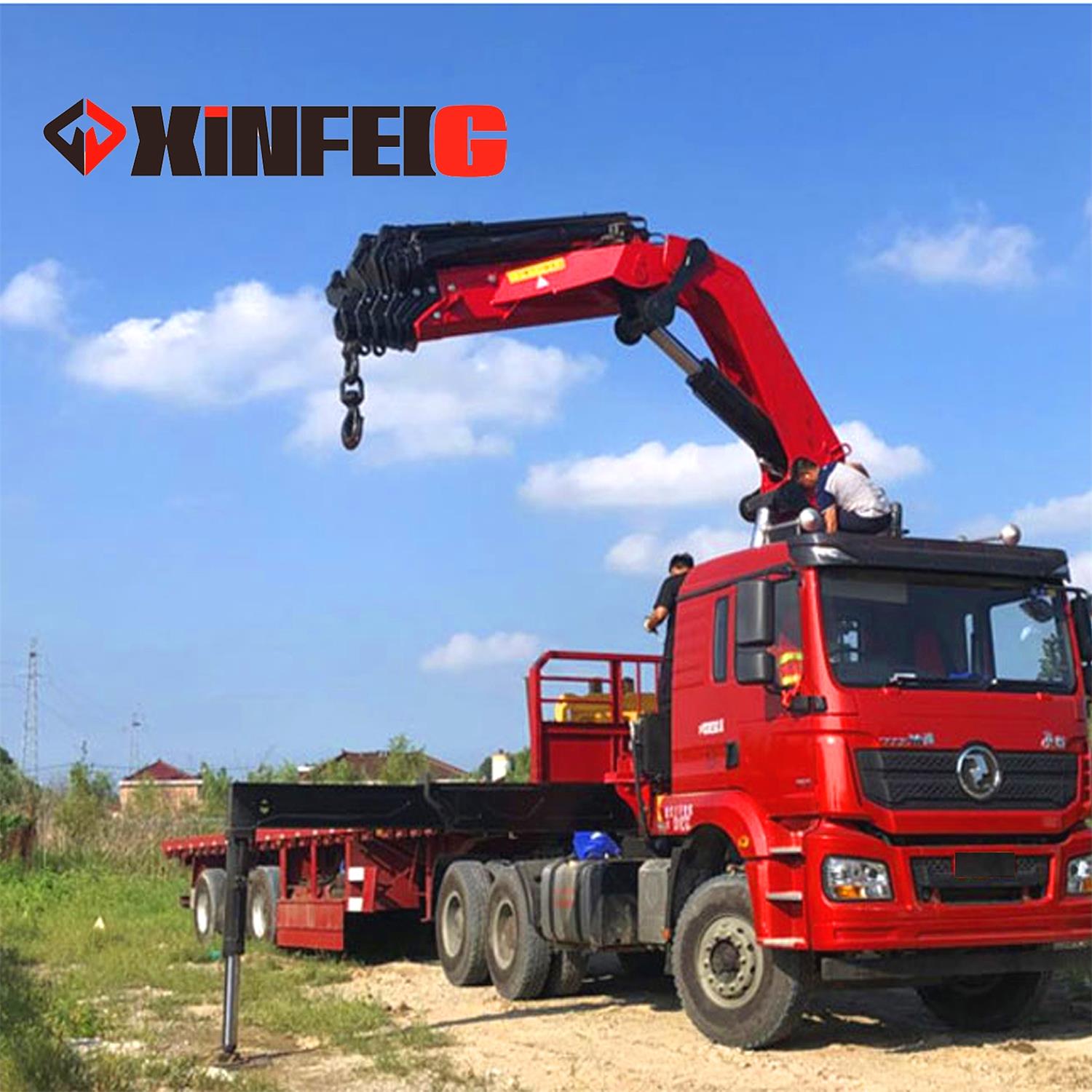

Crane model: GSQZ560.8 XCMG brand knuckle boom crane, Max. lifting capacity 28000Kg, 8 telescopic boom working radius 20.8 meters. 360 degree rotation.

Lorry crane XCMG hydraulic crane truck mounted crane 28Ton lifting capacity, suitable for chassis 12 wheels truck, tow truck, trailer tractor.

XCMG Crane Feature

1. New hexagonal boom cross-section: Greater lifting capacity with the same boom radius, and stronger resistance to bending and torsion.

2. Regenerative control and a new sequential telescopic control system reduce boom extension pressure loss, improving load-bearing extension capacity and overall machine efficiency.

3. Rotatable and automatically tilting dual-stage, dual-cylinder outriggers: Improves chassis adaptability, provides a larger span, and enhances overall machine stability.

4. Multiple control options: upper and lower vehicle operation, and high-position turntable seat operation, meeting diverse customer needs.

5. Dual-reducer drive for slewing: Slewing motion is smoother and more powerful, with better braking performance.

6. Upper vehicle hydraulic proportional valve: Excellent micro-motion performance and capable of compound actions, providing high operating comfort.

7. Standard high-power radiator: Ensures the crane's oil temperature does not overheat during long-term heavy-load operation.
