Model:
SQSZ158
Rated flow (L/min):
40
Crane deadweight (Kg):
3100

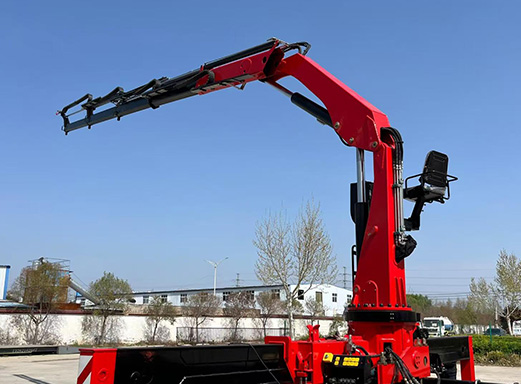

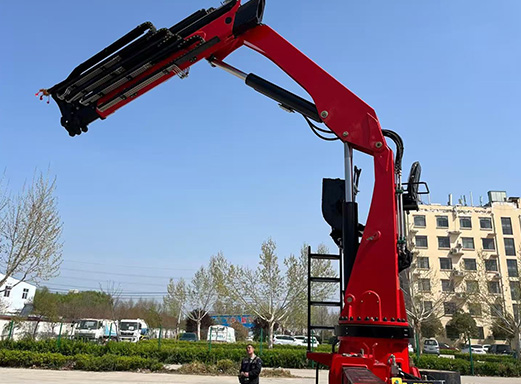

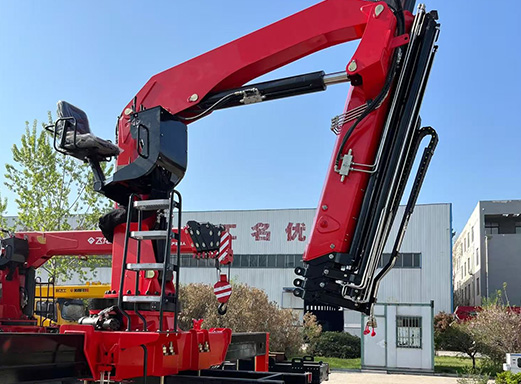

Knuckle Boom Crane

Model:

SQSZ158

Rated flow (L/min):

40(L/min)

Crane deadweight (Kg):

3100(Kg):

Whatsapp
+86-15713887786
Email
sales@i-cranes.com

Send Email Inquiry Now

Introduction
Parameter
Project Case

Feature Introduction

The hexagonal boom section provides greater lifting capacity for the same radius and stronger resistance to bending and torsion.
High-tensile-strength steel reduces crane dead weight and enhances bearing capacity.
4- section telescopic boom, 12.2m working radius, lifting height 15.3m.
360-degree continuous rotation.

Advantages

a.can be customized boom section, an option 2-5, an option top seat operation;

b.crane color can be customized;

c. attachment can be added;

Technical Parameter

Item	Unit	SQZ158
Max lifting torque	kN•m	158
Max lifting capacity	kg	8000
Boom length	m	12.2
Lifting height	m	15.3
Slewing angle	°	360
Outrigger span	mm	5608
Dead weight	Kg	3200

Hydraulic Parameters

Item	Unit	Value
Rated hydraulic flow	L/min	40
Rated working pressure	Mpa	28
Recommend power	Kw	18
Hydraulic oil temperature	°	-25^OC-+40^OC
Oil tank capacity	L	120

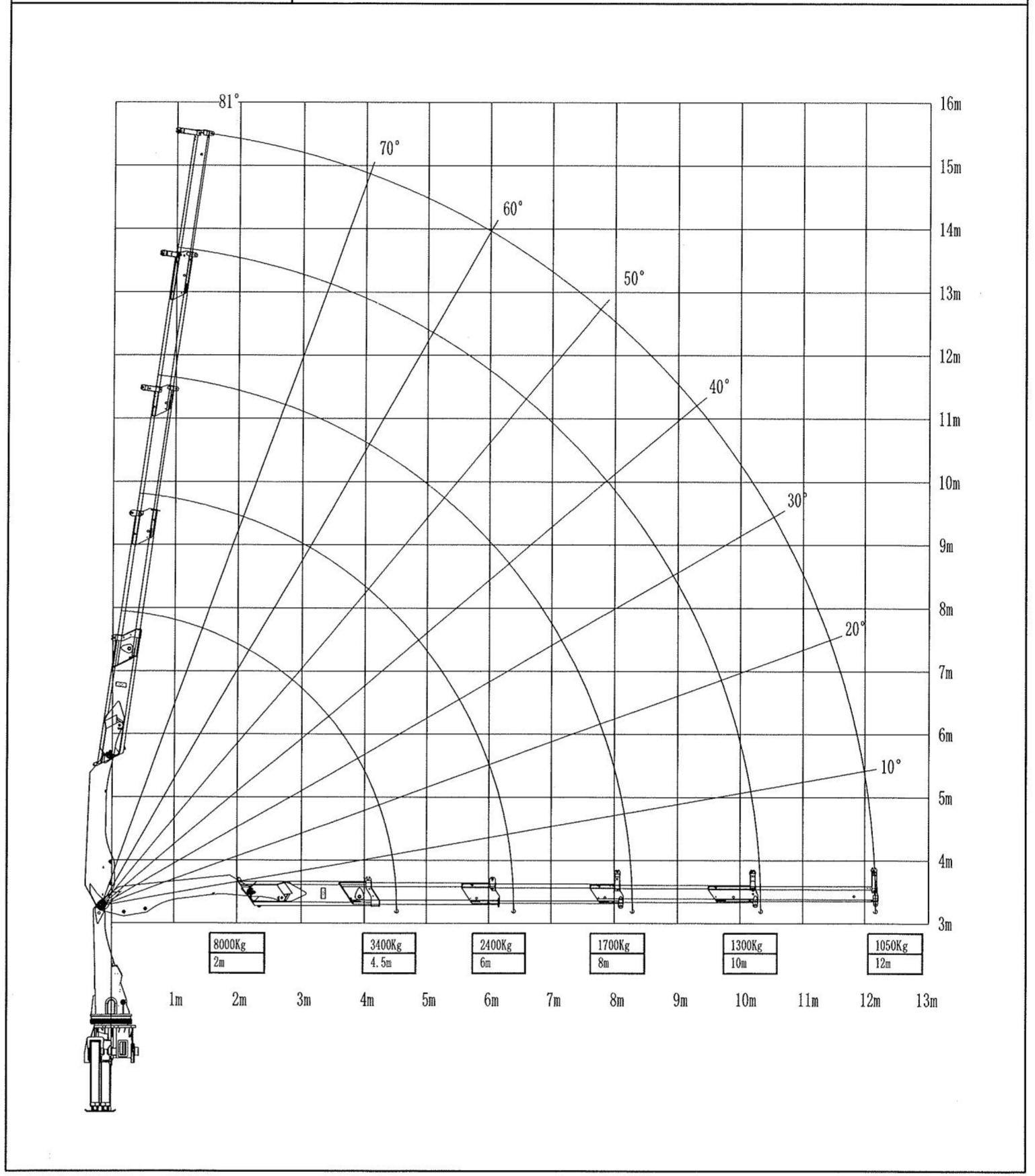

Crane lifting curve diagram

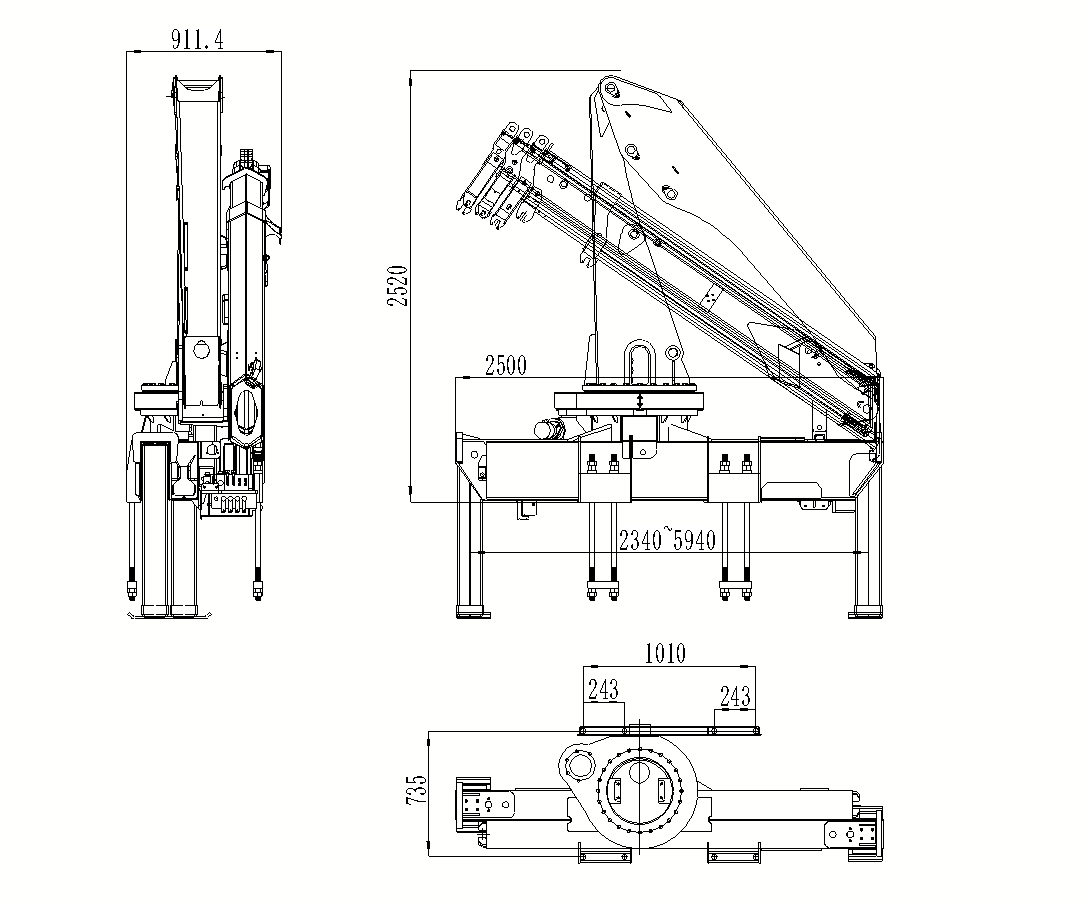

Crane dimension
