Versatile Insulated Aerial Work Platforms for Live-Line Maintenance: 10kV to 46kV, Working Heights of 19–21 Meters

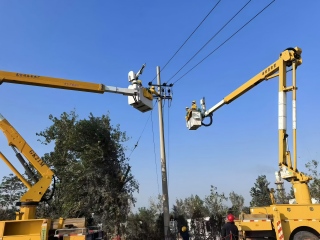

As power grids expand and demand for uninterrupted electricity supply grows, live-line maintenance has become essential. Insulated aerial work platforms is engineered specifically for safe, efficient live working on distribution and sub-transmission networks. Covering nominal voltage ranges of 10kV, 35kV, and 46kV, these platform provide an optimal balance between reach, insulation integrity, and operational flexibility.
Two Boom Configurations: Straight or Articulated to Suit Your Job Site
The platform is available in two proven boom designs:

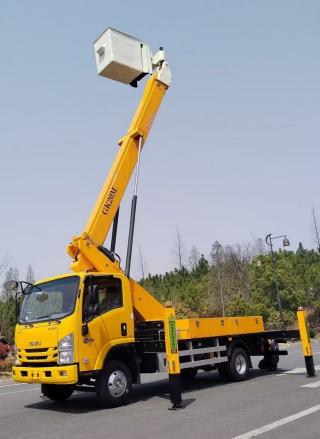

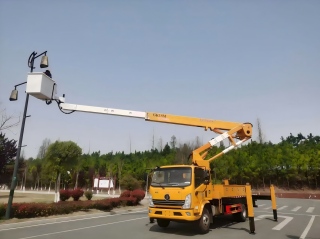

Straight (telescopic) boom: Offers faster vertical positioning and greater horizontal outreach at height, ideal for direct overhead line access.

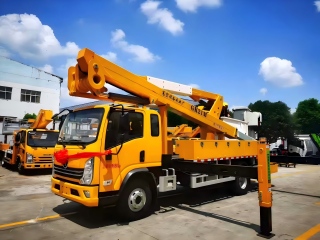

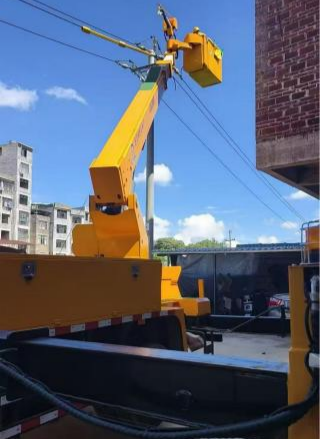

Articulated (knuckle) boom: Provides excellent maneuverability around obstacles, tighter stowage, and the ability to work around energized components with complex geometries.

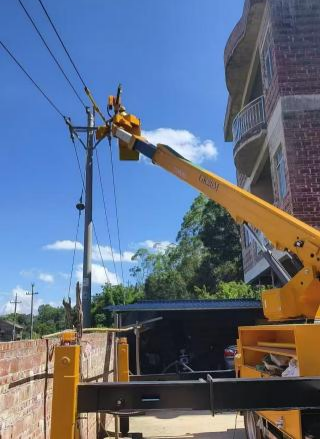

Working range achieve a maximum working height of 19 to 21 meters, allowing crews to safely access medium-voltage lines, transformers, switches, and insulators.
To meet diverse worksite requirements and regional preferences, the insulated aerial platform vehicle can be mounted on your choice of world-class chassis: ISUZU, HOWO, SHACMAN and do on.
All chassis come with left-hand/right-hand drive options and can be tailored to local registration standards.
The upper boom is constructed with high-strength fiberglass-reinforced plastic (FRP) and fitted with a fully insulated liner. A dedicated intermediate insulating section meets international dielectric standards, ensuring safe phase-to-ground and phase-to-phase voltage protection. The work platform itself is non-conductive and platform insulated with chassis part.
The platform has a load capacity of 220 kg.
The insulated bucket can rotate ±180°.
The bucket can be lifted 0.4 m, increasing the working area and improving work efficiency.
The platform has steps for easy access for workers.
It is equipped with a rain cover to effectively protect the platform.
Insulated telescopic arm floating roller support
Idler roller guide support
Low friction between arms, less damage to the insulated arm, which helps protect the surface of the insulated arm and makes the working arm more durable.
| Item | Data |
| Working height | 18-21 meters |
| Max outreach | 7.5-13m |
| Platform loading capacity | 220Kg |
| Basket rotation angle |
striaght boom type 360 degree knuckle boom type 90 Left/Right |
| Outrigger | H-type |
| Auxiliary hook lifting capacity | 280Kg |
| Insulated bucket raising and down range | 0.4m |
