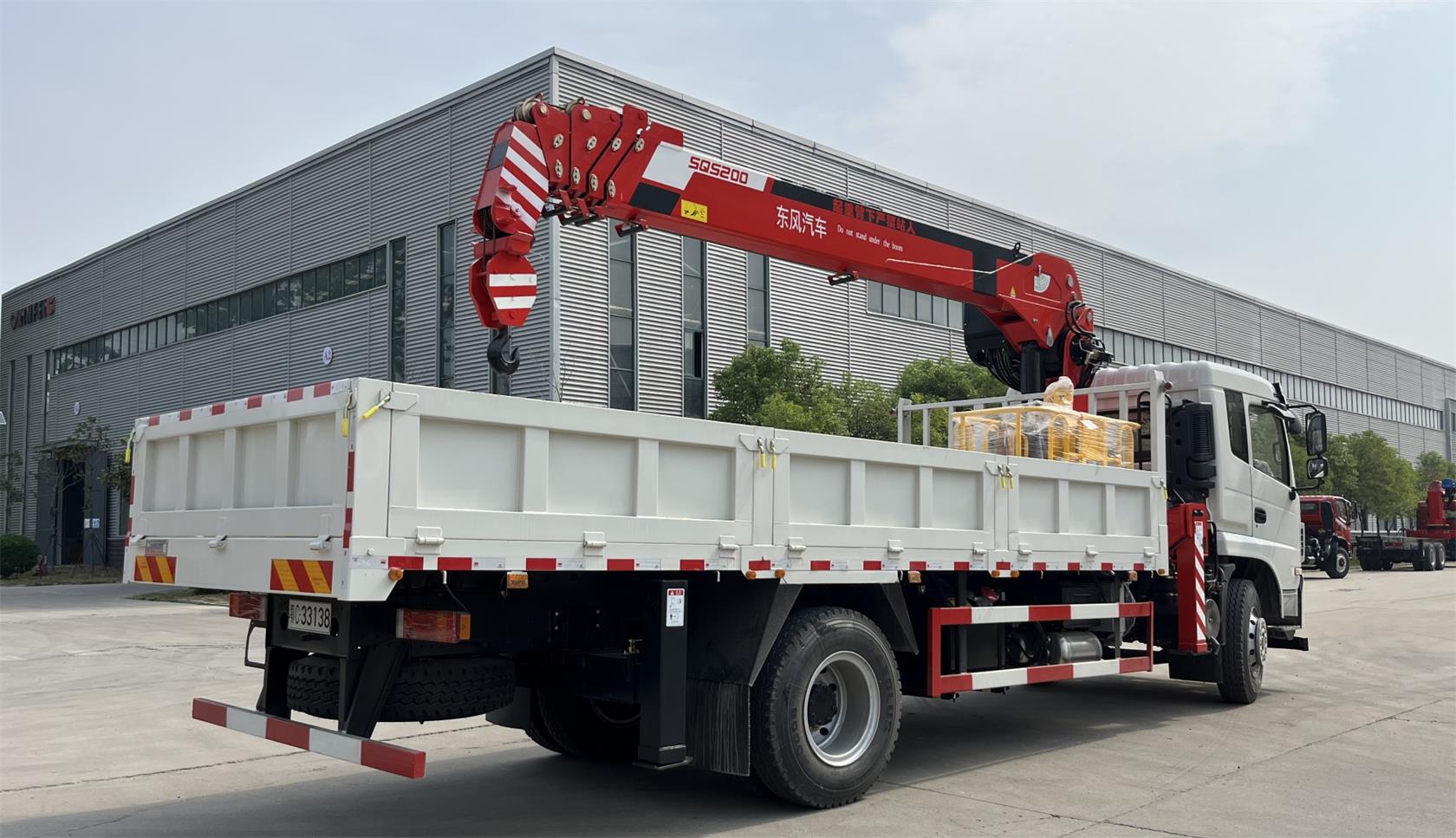

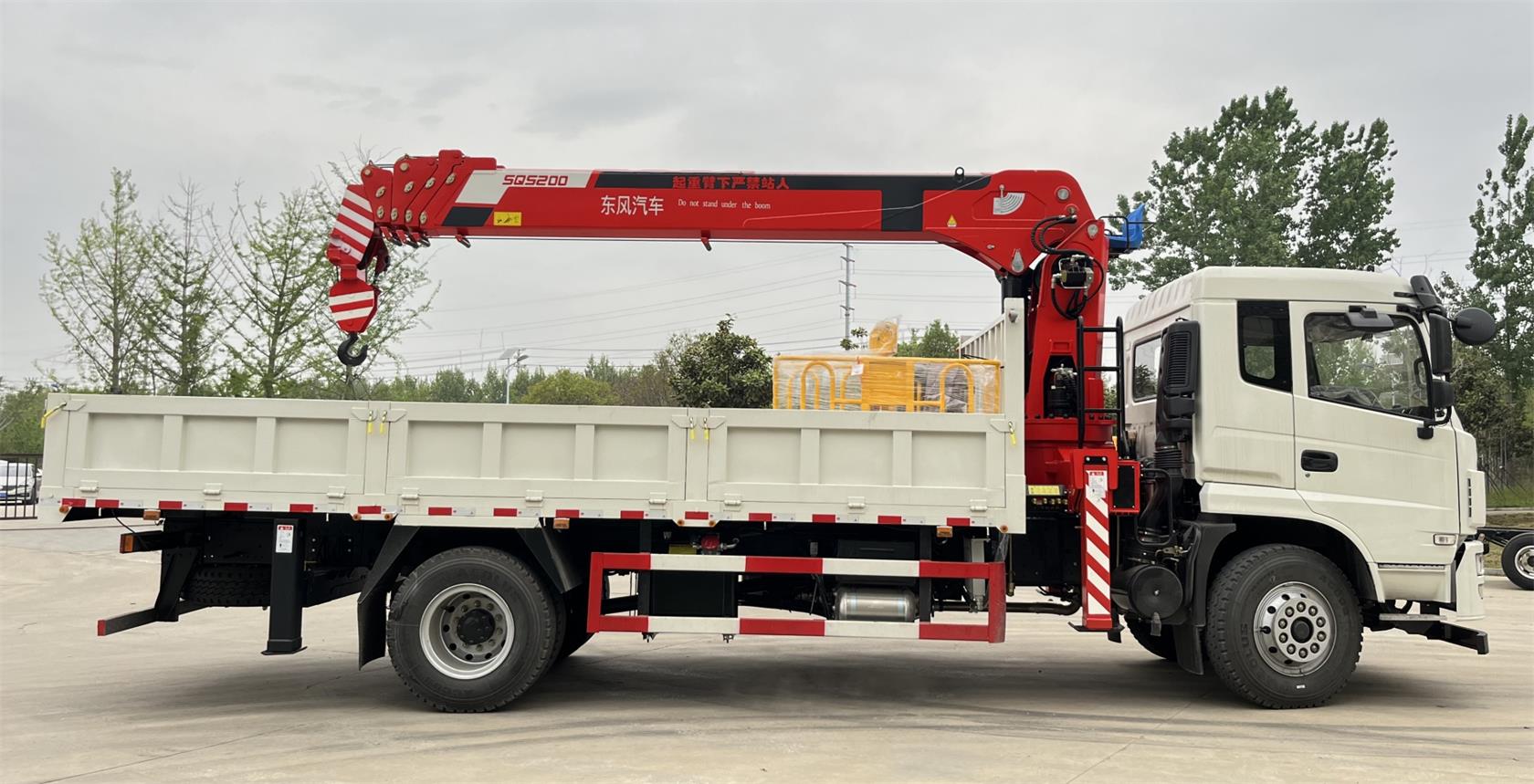

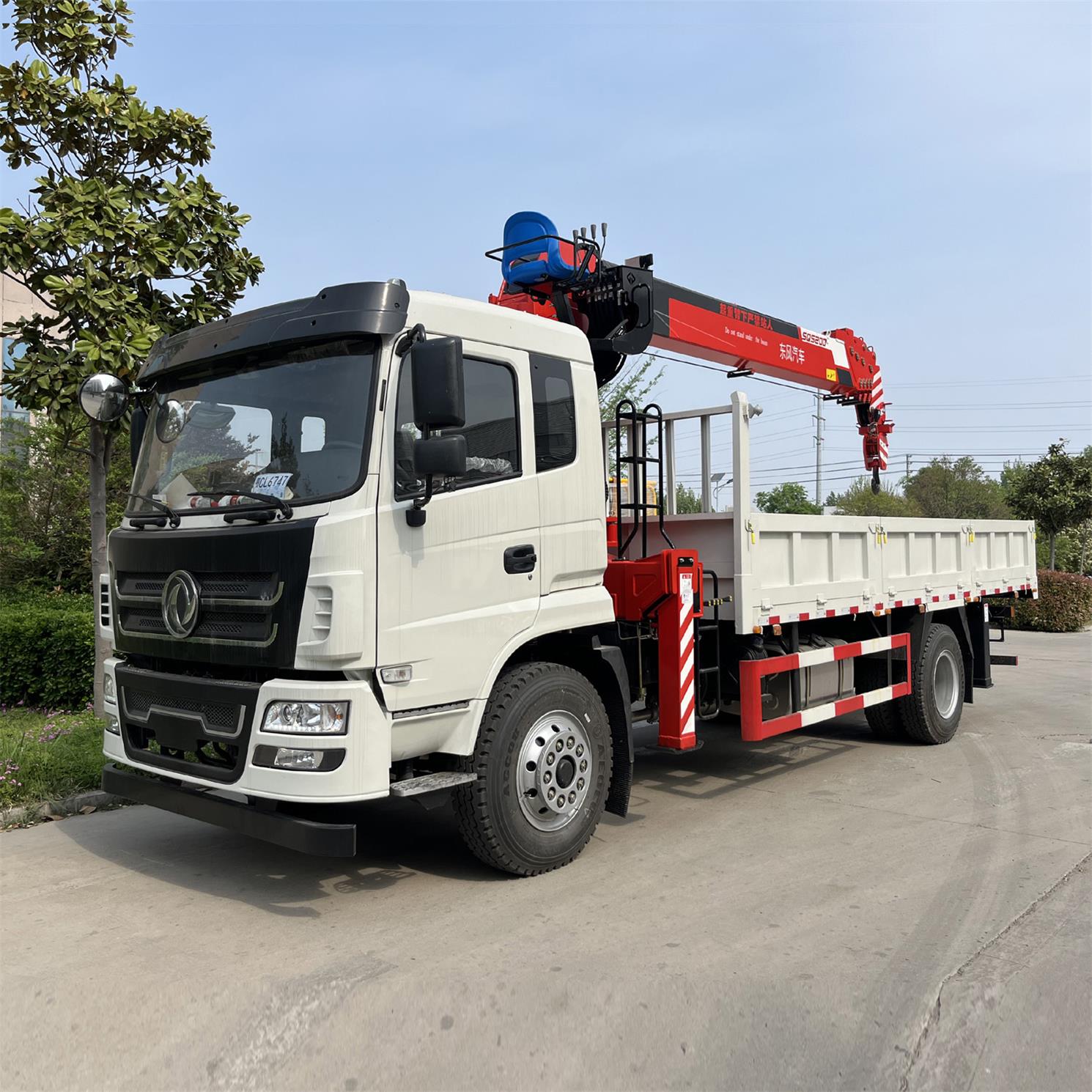

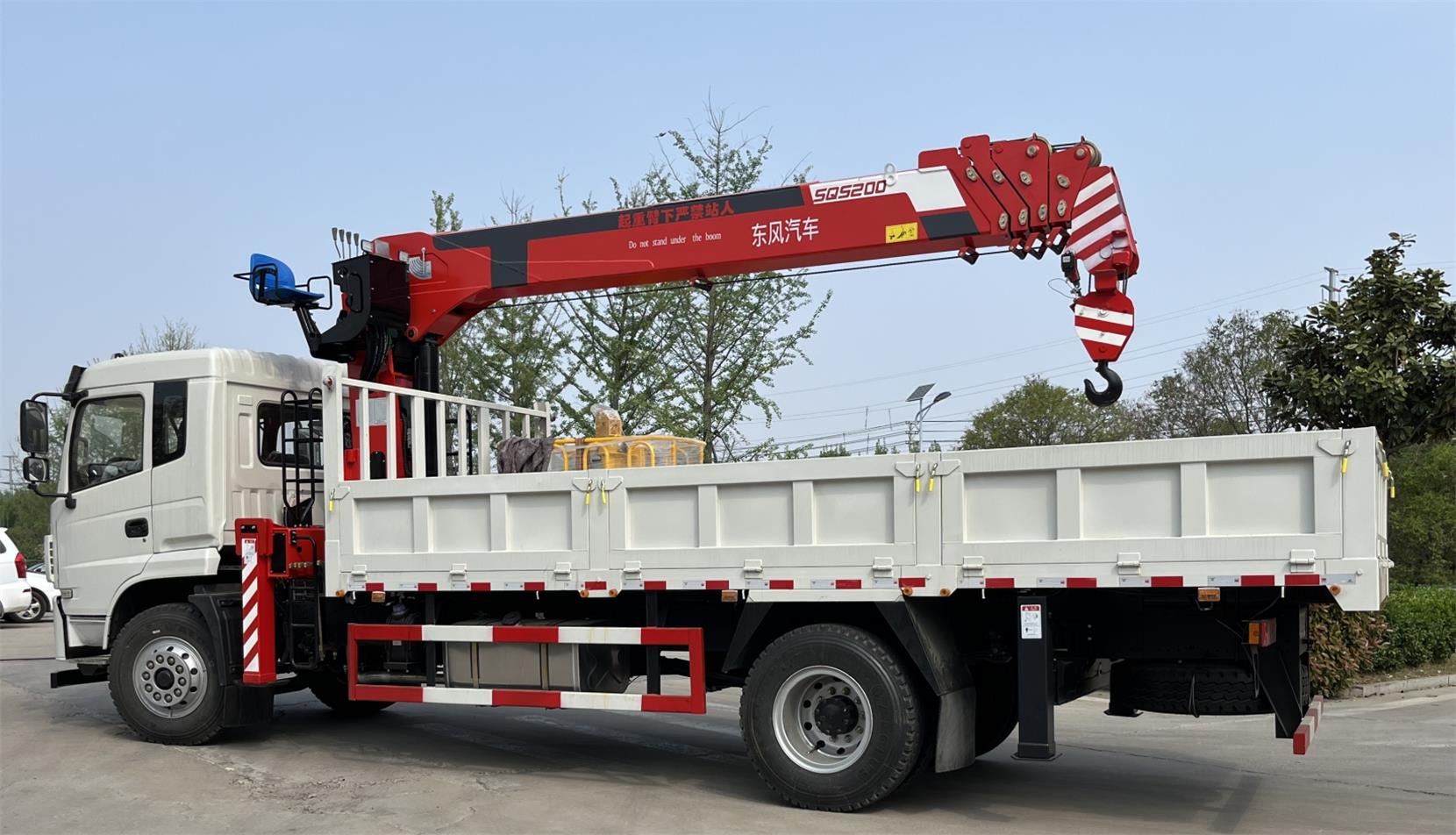

Straight boom crane SQS200

Straight boom crane SQS200

Call for price

Crane Features

5- section boom, boom length 18.6meters

The planetary reducer, and plunger hydraulic motor, supply strong power, reliable and durable

Double pump confluence, supplies strong power to ensure stability and is easy to control.

Advanced production equipment Laser cutting machine, CNC processing equipment, Auto robot welding precision bending machine, and automatic washing machine to ensure the quality and standards of each component.

Flexible hoisting every owner has more steadfast economical and unhindered experience

分类：

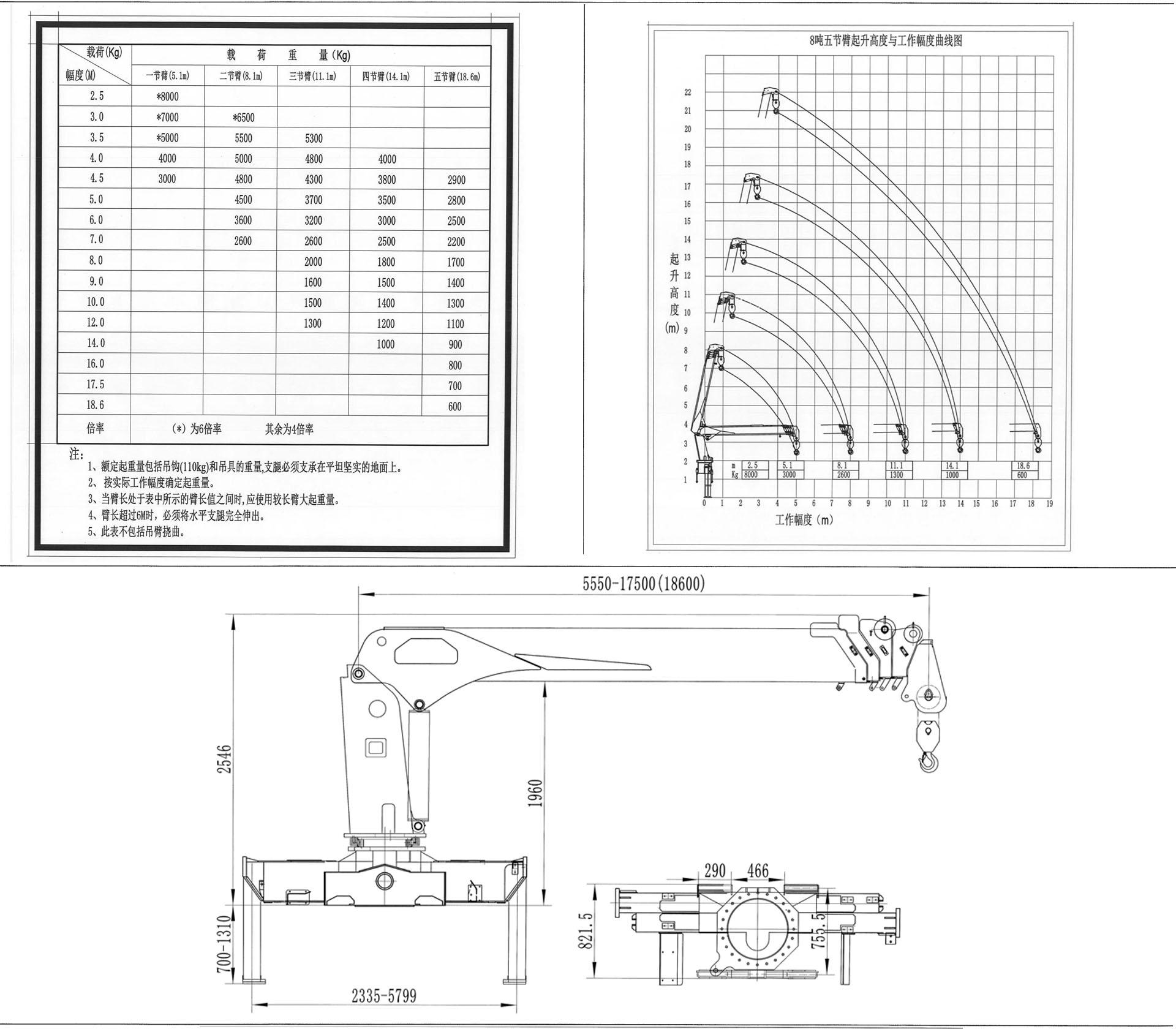

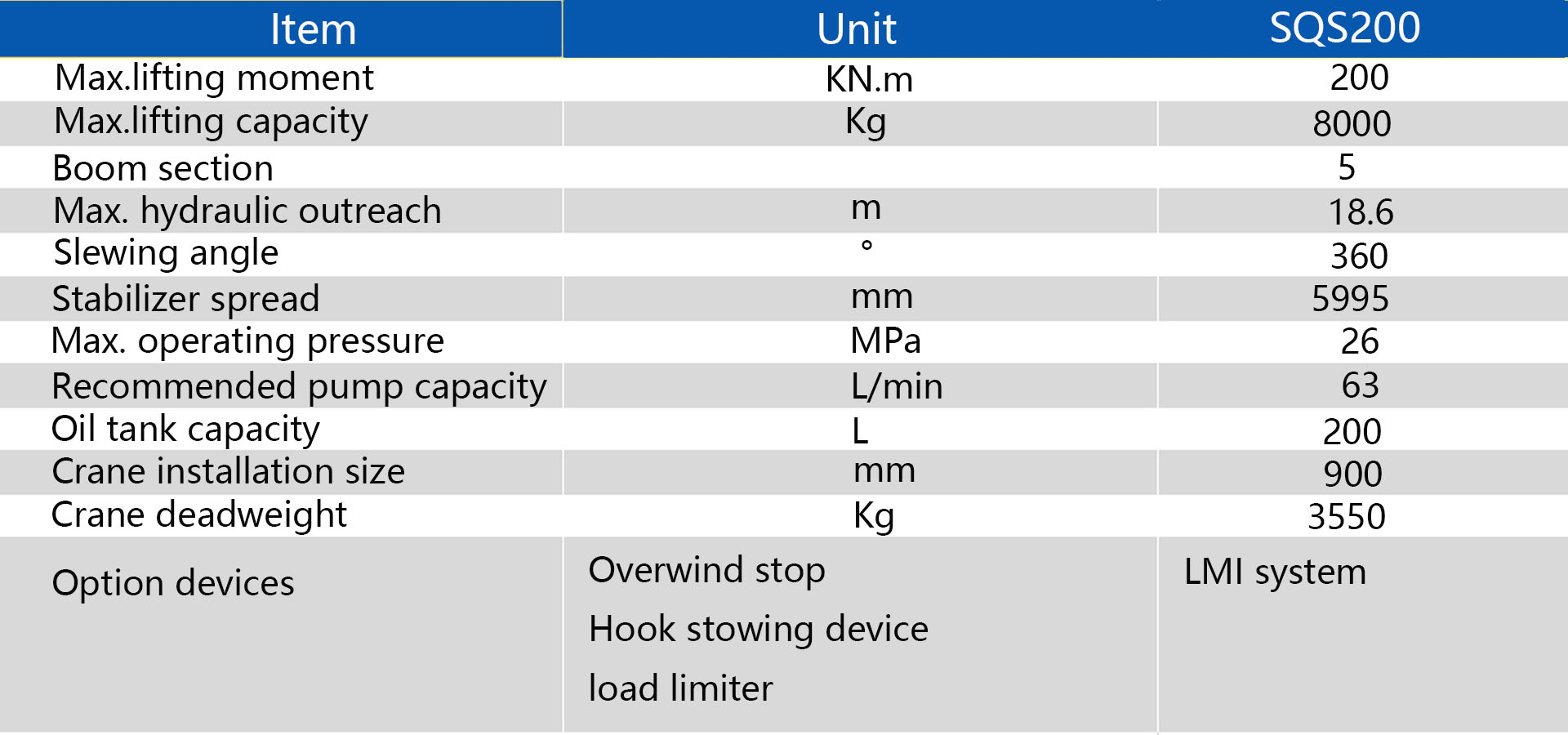

Parameters

Crane Description

crane model: SQS200

Rated lifting capacity 8000Kg, with a 5-section boom, hexagonal cross-section, and U-shaped boom shape an option. boom length 18.6m, lifting height 21m,

large outrigger span longitudinal span, plunger hydraulic motor, and planetary reducer ensure excellent working performance.

crane boom shapes an option U shape, the outrigger beam an option double beam outrigger span of 7.2m. and ground control.
