Straight boom crane SQS250

Straight boom crane SQS250

Call for price

Crane Features

U-shape boom section, enhanced boom bearing area

Double Pump confluence, strong powerful, stable, and reliable working performance.

Hydraulic systems adopt famous brands of hydraulic parts, comfortable and smooth operation, and long service life.

Strict inspection process to ensure each component works smoothly and has good performance and excellent workmanship adopt hexagonal boom to ensure the boom system is stable and working efficiently.



分类：

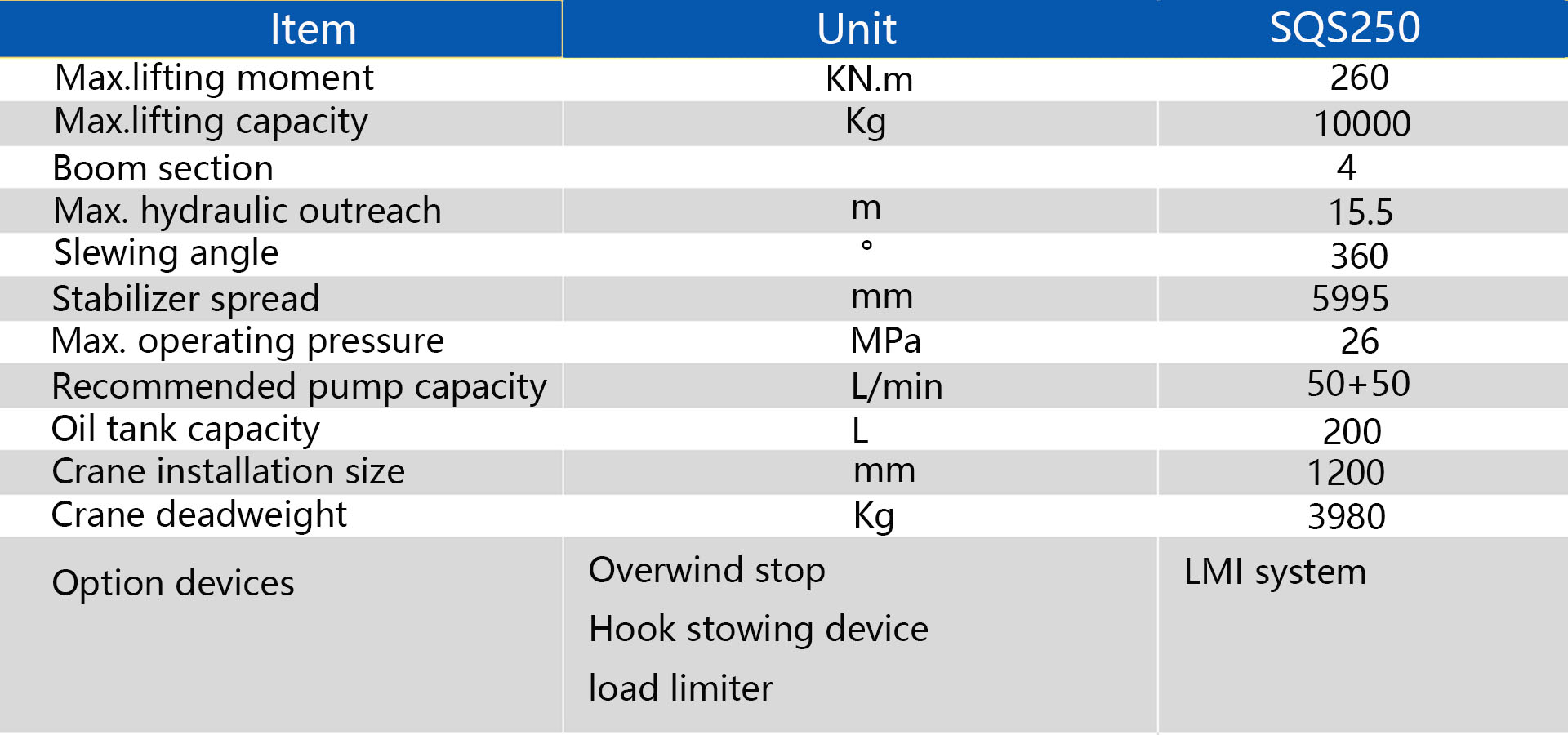

Parameters

Crane Description

Crane model: SQS250

The straight boom crane lifting capacity is 10000Kg, 4-section boom, U shape, increased cross-sectional area, boom outreach of 15.5 meters,  planetary reducer, plunger hydraulic motor, reliability, and durability.

Crane option 5- section boom, boom length 18.6 meters.
