Straight boom crane SQS300

Straight boom crane SQS300

Call for price

Crane Features

  • – Double cylinder for boom system, super performance for heavy loading, and enhanced working efficiency.

– Equipped with load-holding valves for safe crane operations

– High-speed boom extension and retraction with return oil utilization

– Optimized lifting performance with the use of high tensile steel and hexagonal boom design

  • Crane option cabin for the operator, It brings a  more safety and comfortable environment
分类：

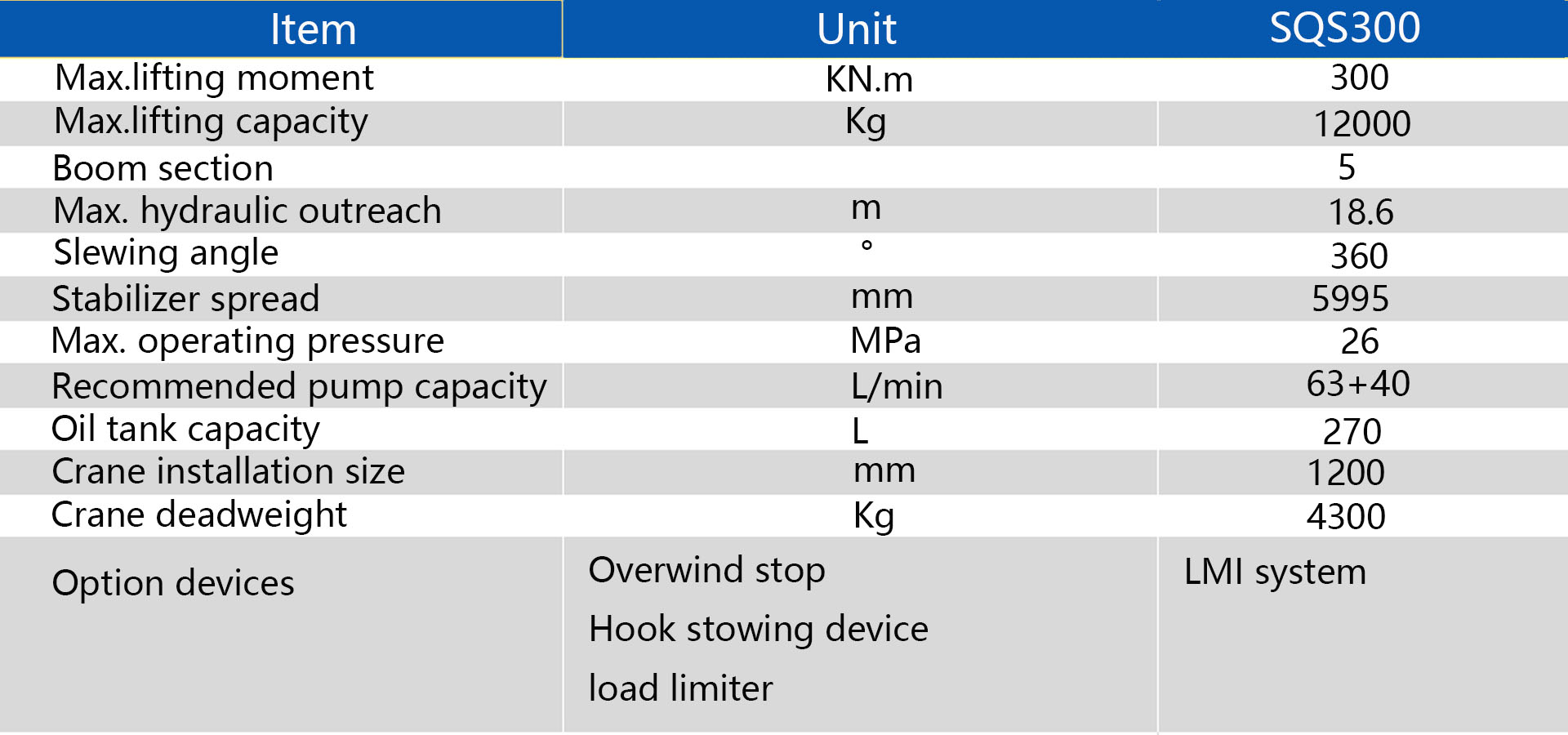

Parameters

Crane Description

Crane Model: SQS300

Self-loader crane straight boom crane, Rated lifting capacity 12Ton, 5-section boom, 2 cylinders 2 ropes connection, more flexible, can handle heavy load easily, boom length 17.5m/18.7m an option. hydraulic lifting cabin is an option, the ergonomic design for the operator can prevent sunburn and block cold, and it is safer and more practiced.
