Tow Truck RL15T

Tow Truck RL15T

Call for price

Tow truck with crane

20Ton wrecker flatbed dimension 8500*2500mm, equipped with 15ton winch for towing function, rear lift arm 20ton.

crane lifting capacity 1200Kg, boom length 18.6meters, lifting height 21m.

standard configuration with remote control, stable performance, and easy to use.

The chassis brand SHACMAN 6×4 Left-hand drive/right-hand drive can be customized.

分类：

Production description

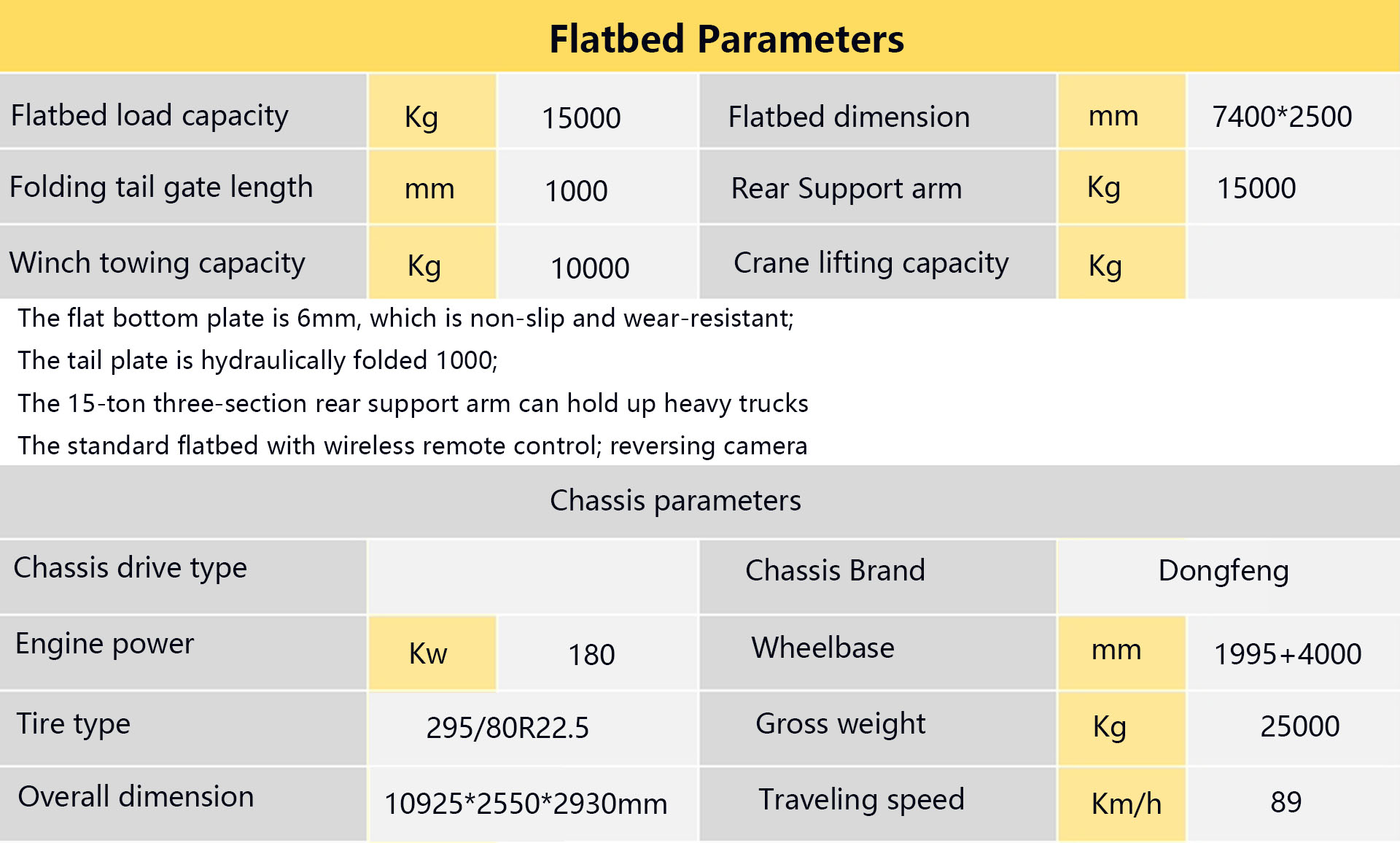

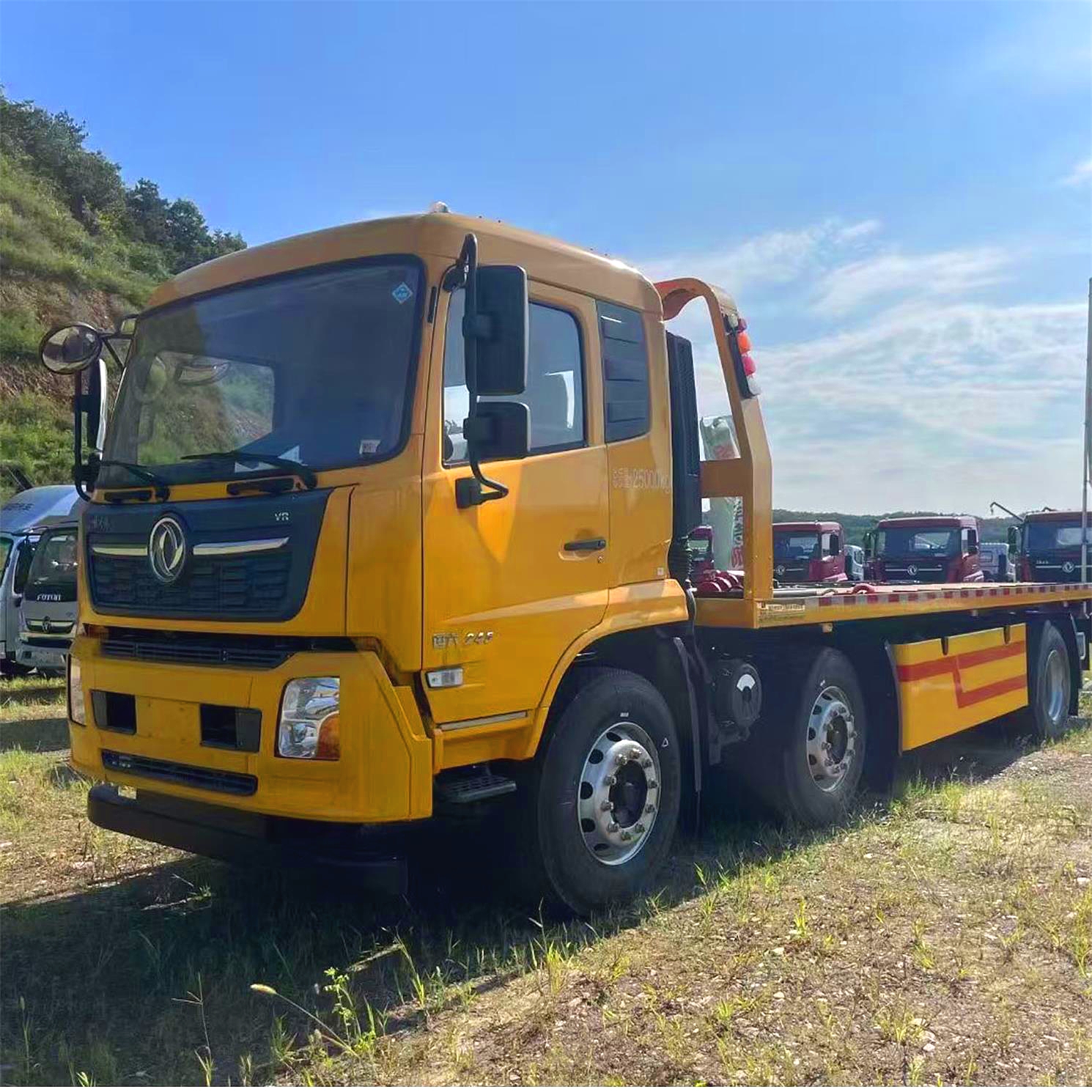

Tow truck with crane, Dongfeng brand chassis, total mass 25000kg, flatbed dimension 7400x2500mm, folding tail gate 1m, loading capacity 15 tons.



Chassis details

  • Dongfeng brand chassis, Special chassis for engineering machinery, Left hand drive, with cummins engine B6.2NS6B245, 6 cylinders, 6200ml displacement, engine power 180kw, wheelbase 1995+4000mm, tire 295/80R22.5, DC7J100TA 10-speed gearbox, 280L fuel tank, with power take-off, remote throttle, original air conditioner, air bag seat.

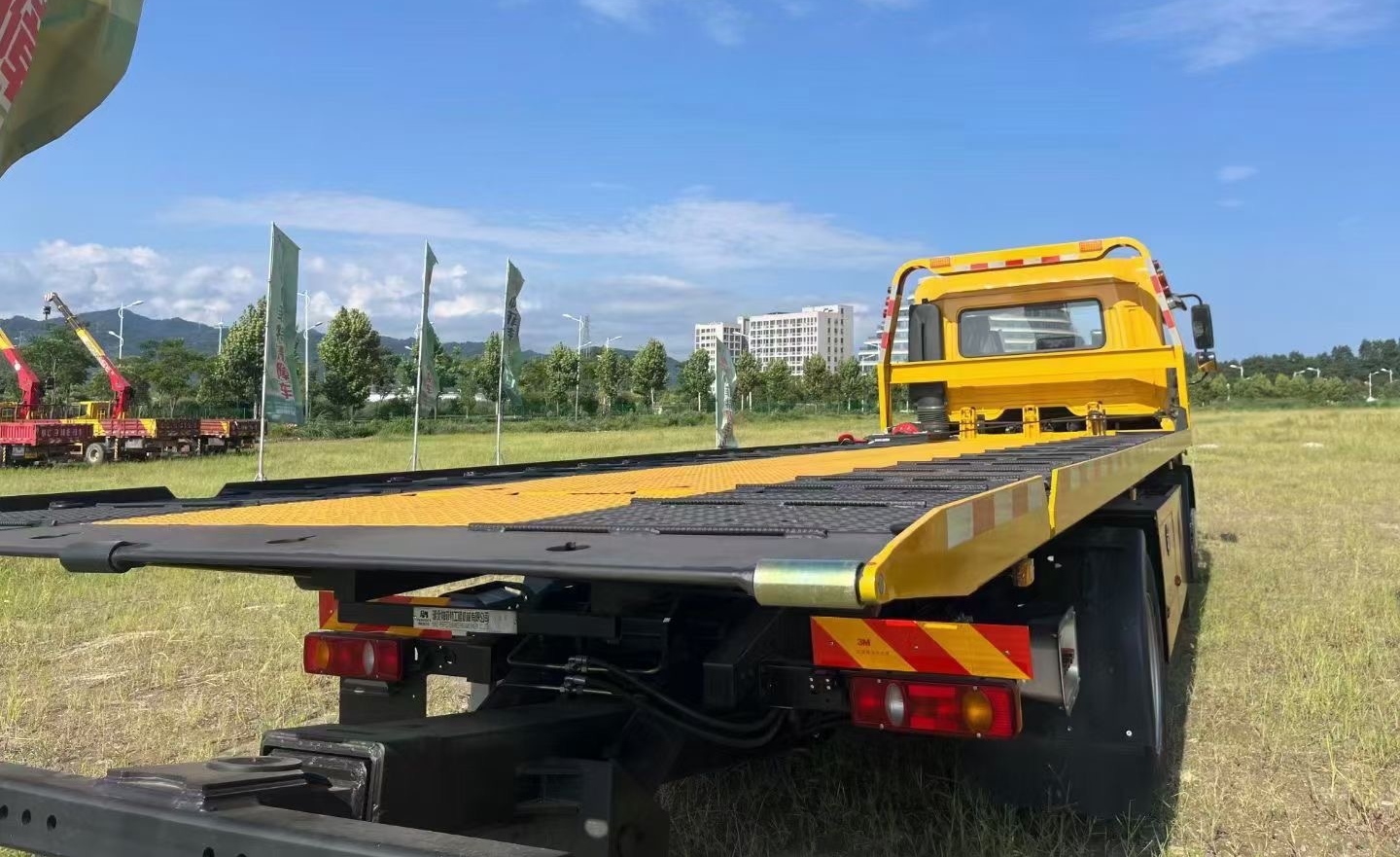

  • Flatbed description

  • 15-ton flatbed top loading: flatbed length 7400mm, flatbed inner width limit 2500mm, 6mm patterned plate, plate surface perforation, anti-slip and wear-resistant; tailgate hydraulic folding 1000mm; no lowering of the center of gravity; 15-ton three-section rear support arm magnification beam, equipped with a hydraulic flip tailgate, 10-ton worm winch; standard flatbed wireless remote control.
