Tow Truck with crane RL 13T
Tow Truck with crane RL 13T - 图片 2

Tow Truck with crane RL 13T

Call for price

Tow truck with crane

20Ton wrecker flatbed dimension 8500*2500mm, equipped with 15ton winch for towing function, rear lift arm 20ton.

crane lifting capacity 1200Kg, boom length 18.6meters, lifting height 21m.

standard configuration with remote control, stable performance, and easy to use.

The chassis brand SHACMAN 6×4 Left-hand drive/right-hand drive can be customized.

分类：

Production description

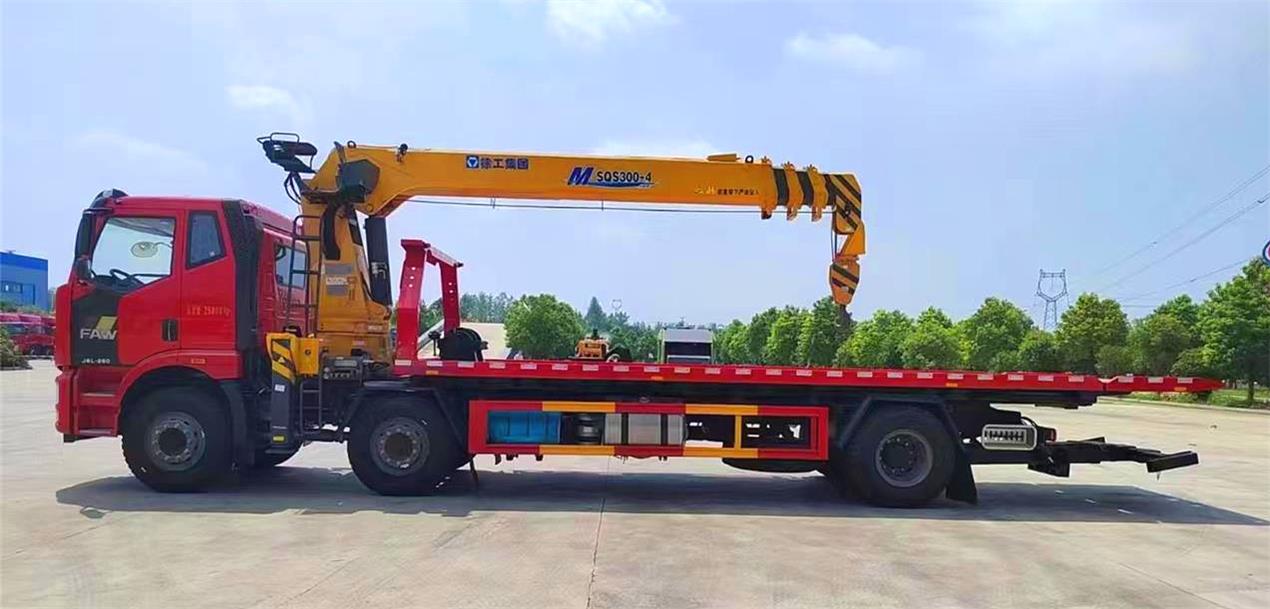

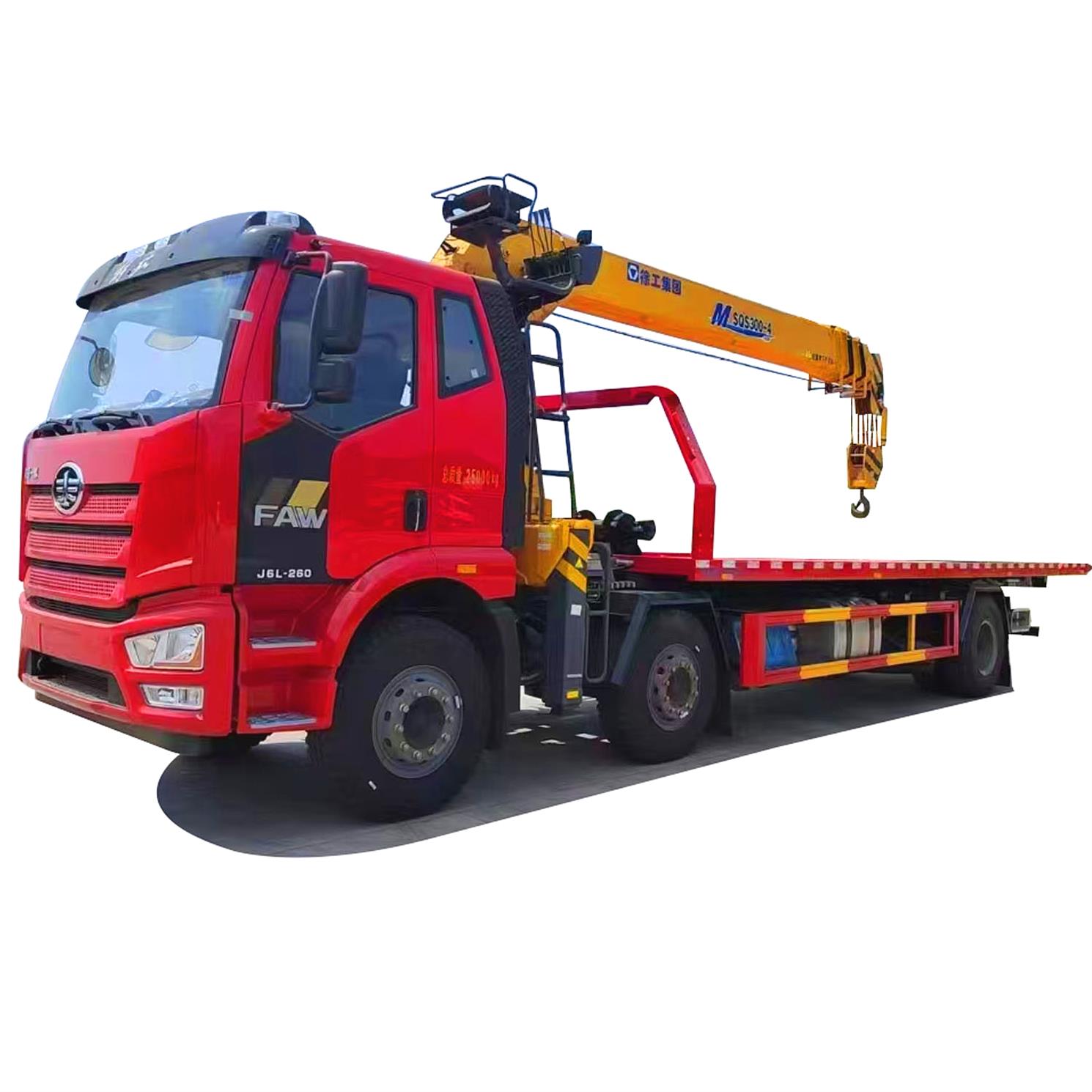

Tow truck with crane, FAW brand chassis, total mass 25000kg, flatbed dimension 8000x2500mm, loading capacity 13 tons,  crane lifting capacity 8Ton.

Chassis details

  • FAW brand chassis, Special chassis for engineering machinery, Left hand drive, with Dachai engine CA6DK1-26E6, 6 cylinders, 7146ml displacement, engine power 195kw, wheelbase 2200+5100mm, tire 11.00R20 18PR, FAST 8-speed gearbox, 300L fuel tank, with power take-off, remote throttle, original air conditioner, air bag seat.

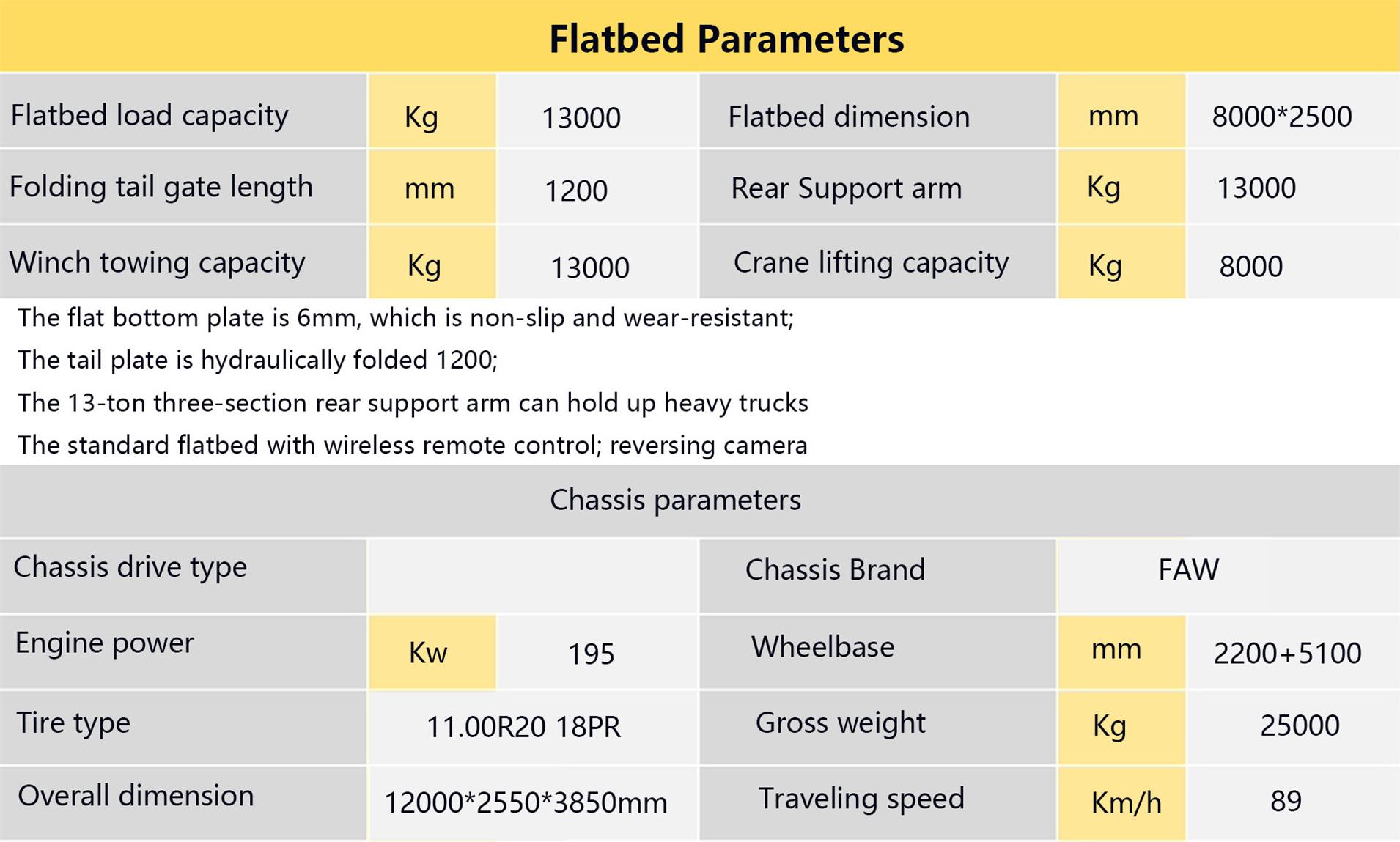

  • Flatbed description

  • 13-ton flatbed top loading: flatbed length 8000mm, flatbed inner width limit 2500mm, 6mm patterned plate, plate surface perforation, anti-slip and wear-resistant; tailgate hydraulic folding 1200mm; no lowering of the center of gravity; 13-ton three-section rear support arm magnification beam, equipped with a hydraulic flip tailgate, 10-ton worm winch; standard flatbed wireless remote control.

  • Crane Description

  • Straight boom crane, 4-section straight boom crane, the crane rated lifting capacity is 8Ton, max boom outreach is 15.9m, max crane lifting height is 17.8m.
  •
