Tow Truck with crane RL 20T

Tow Truck with crane RL 20T

Call for price

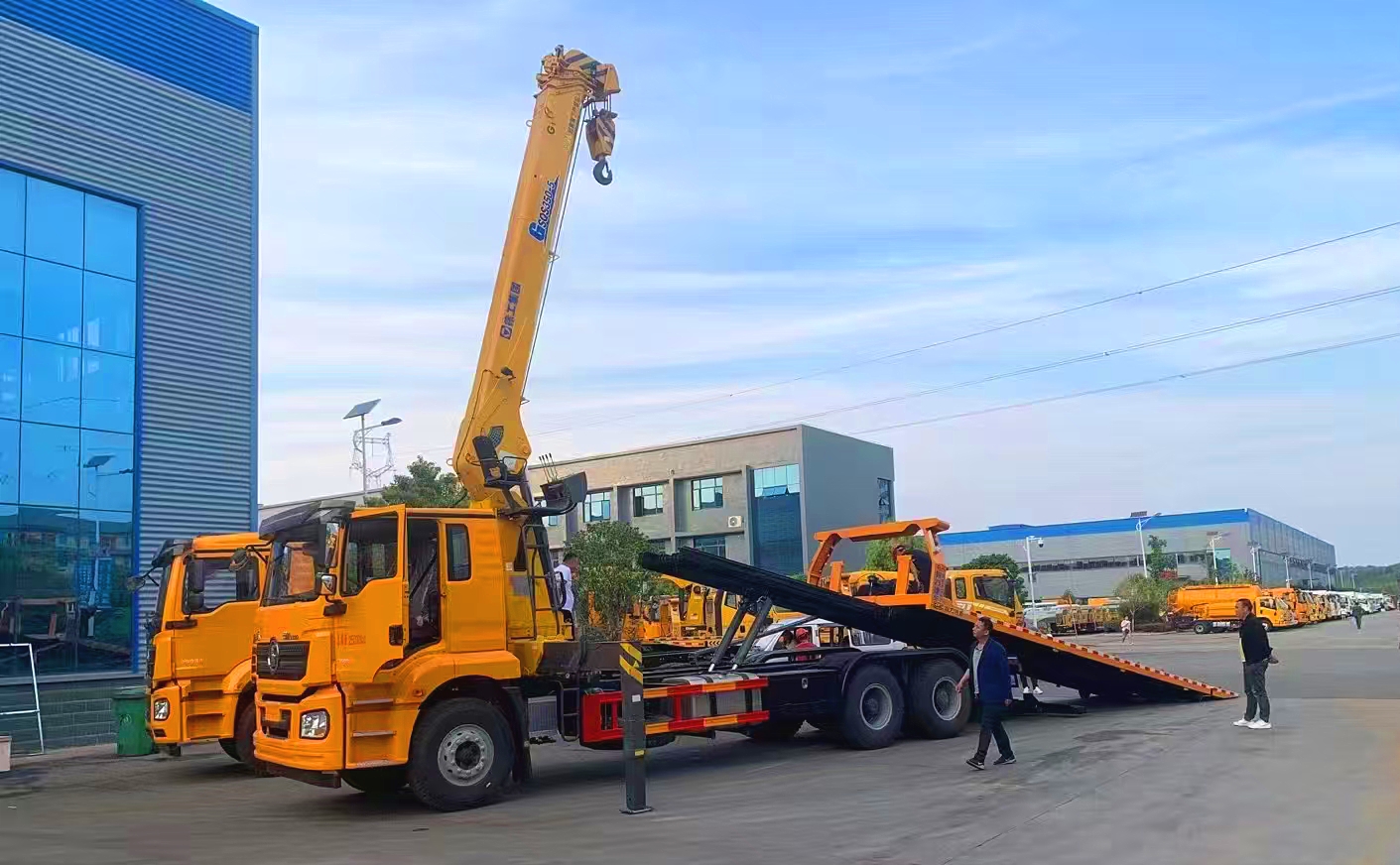

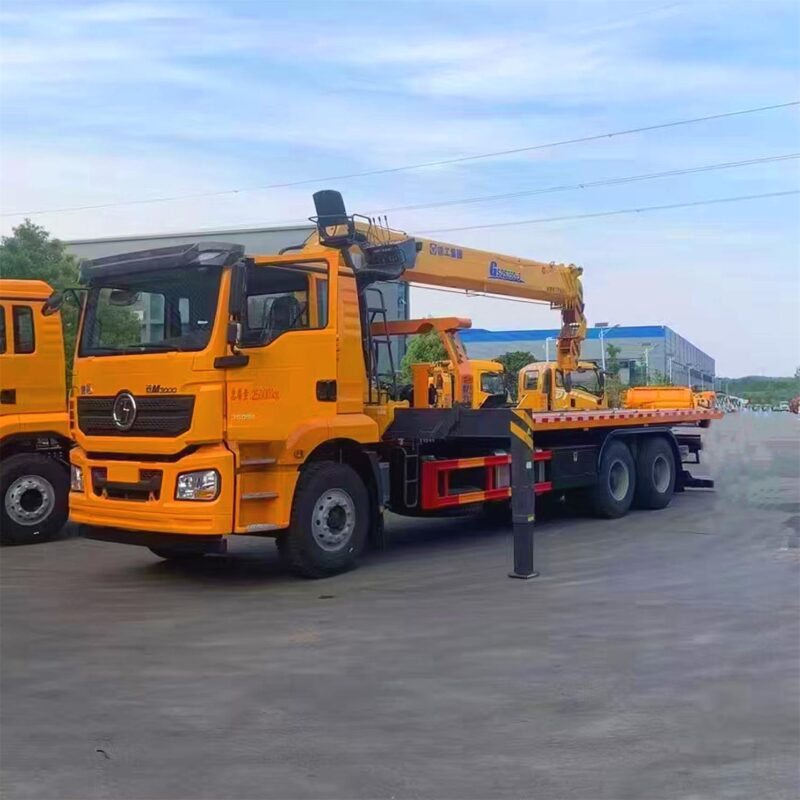

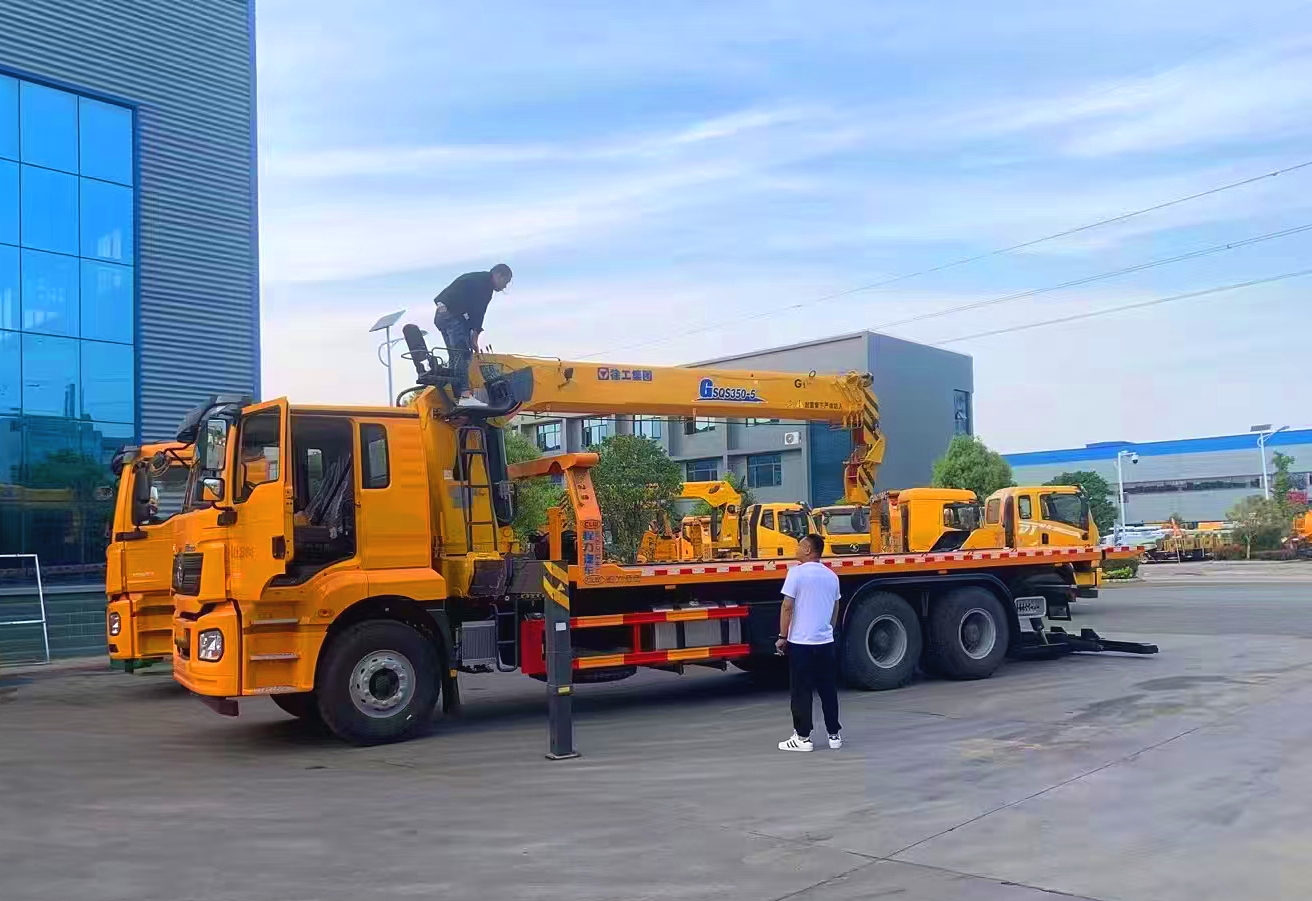

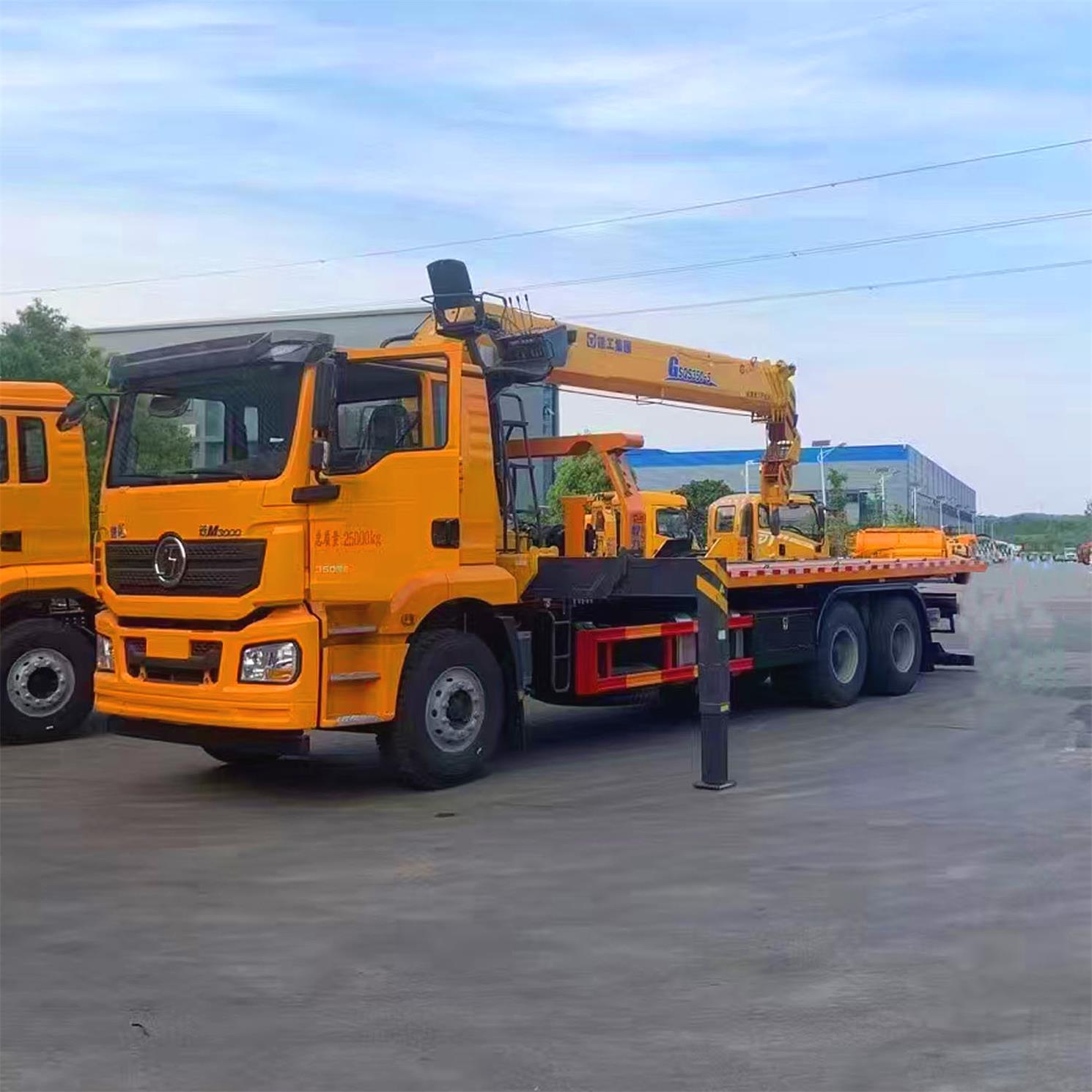

Tow truck with crane

20Ton wrecker flatbed dimension 8500*2500mm, equipped with 15ton winch for towing function, rear lift arm 20ton.

crane lifting capacity 1200Kg, boom length 18.6meters, lifting height 21m.

standard configuration with remote control, stable performance, and easy to use.

The chassis brand SHACMAN 6×4 Left-hand drive/right-hand drive can be customized.

分类：

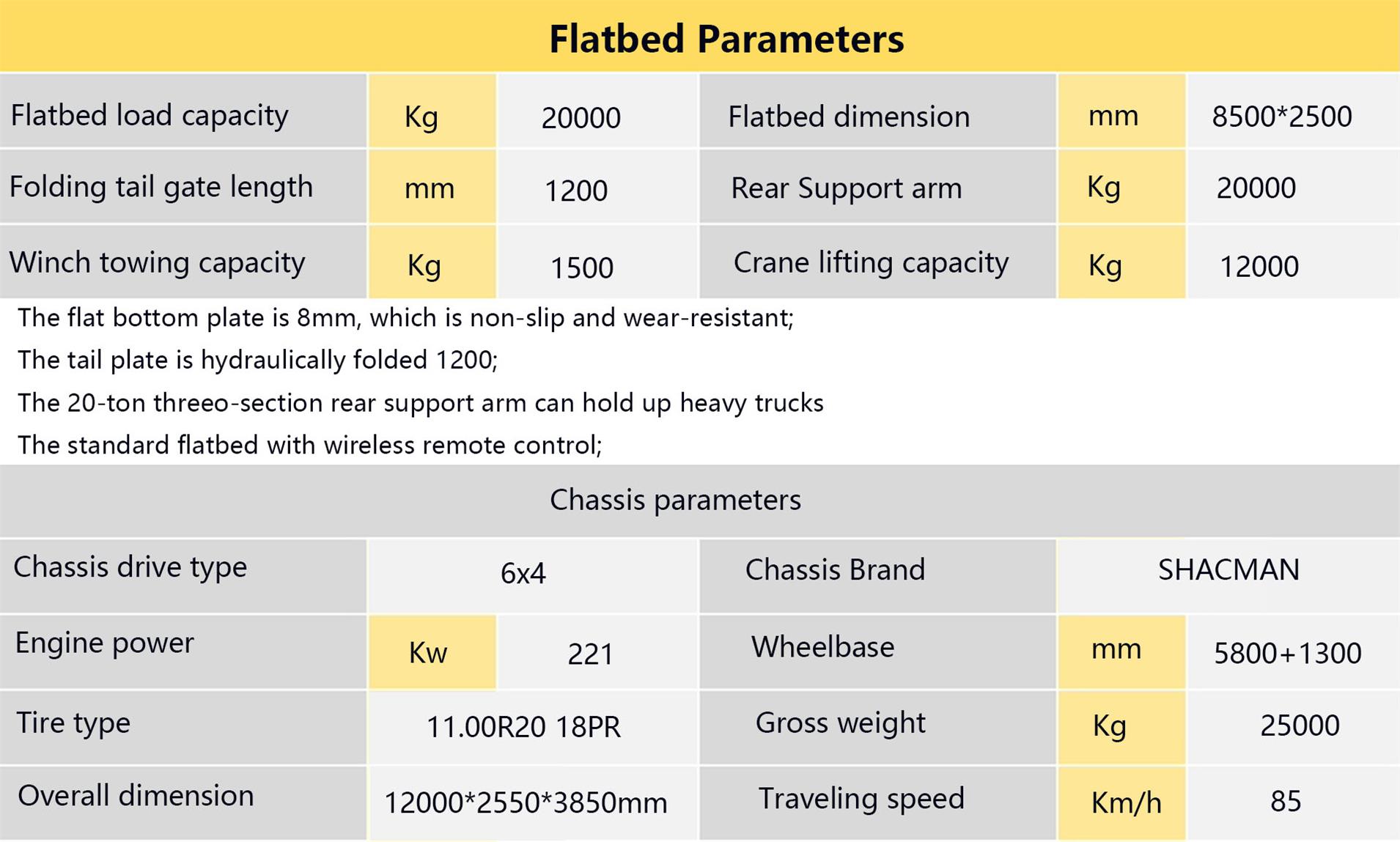

Production description

Tow truck with crane, adopt special chassis SHACMAN 6X4 drive type, total mass 25000kg, flatbed dimension 8500x2500mm, loading capacity 20 ton,  crane lifting capacity 12Ton.

Chassis details

  • SHACMAN brand chassis, 6X4 Special chassis for engineering machinery, Left-hand drive, with Yuchai engine YCS06270-60, 6 cylinders, 6234ml displacement, engine power 199kw, 5800+1300mm wheelbase, front tire 11.00R20 18PR, FAST 9-speed gearbox, 300L fuel tank, with power take-off, remote throttle, original air conditioner, airbag seat.

  • Flatbed description

  • 20-ton flatbed top loading: flatbed length 8500mm, flatbed inner width limit 2500mm, 8mm patterned plate, plate surface perforation, anti-slip and wear-resistant; tailgate hydraulic folding 1200mm; no lowering of the center of gravity; 20-ton three-section rear support arm magnification beam, equipped with a hydraulic flip tailgate, 15-ton worm winch; standard flatbed wireless remote control.

  • Crane Description

  • Straight boom crane, 5-section straight boom crane, the crane rated lifting capacity is 12Ton, max boom outreach is 18.6m, max crane lifting height is 21m.
  •
