Tow Truck with crane RL 8T

Tow Truck with crane RL 8T

Call for price

Tow truck with crane

8Ton wrecker flatbed dimension 7200*2500mm, equipped with 8ton winch for towing function, rear lift arm 10ton.

crane lifting capacity 8000Kg, boom length 18.6meters, lifting height 21m.

standard configuration with remote control, stable performance, and easy to use.

Chassis brand Dongfeng 4×2 Left-hand drive/right-hand drive can be customized.

分类：

Production description

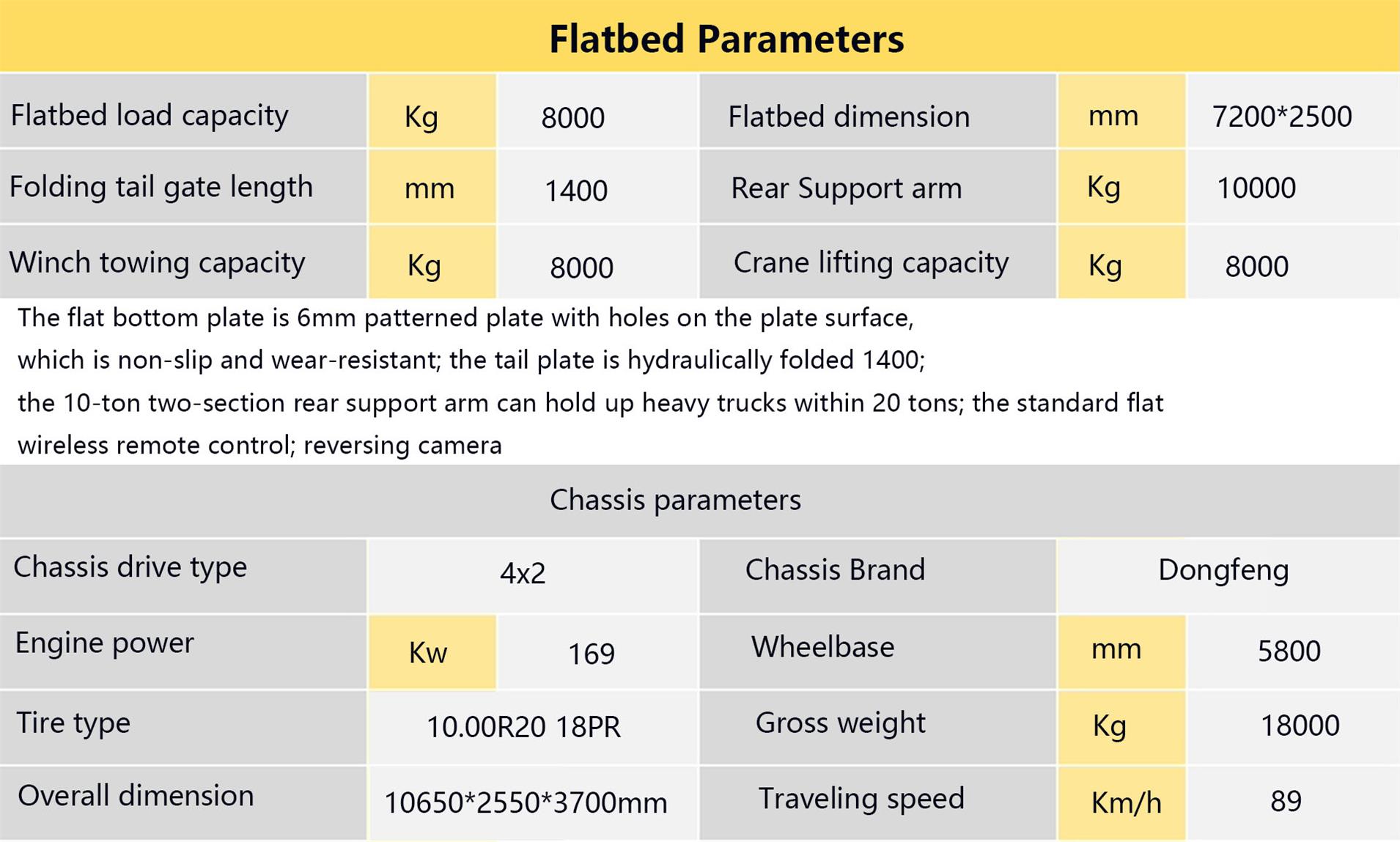

Tow truck with crane, adopt special chassis Dongfeng 4×2 drive type, total mass 18000kg, flatbed dimension 7200x2500mm, loading capacity 8Ton,  crane lifting capacity 8Ton.

Chassis details

  • Dongfeng brand chassis, 4X2 Special chassis for engineering machinery, Left-hand drive, with Cummins engine 2NS6B230, 6 cylinders, 6200ml displacement, engine power 169kw, 5000mm wheelbase, front tire 10.00R20 18PR and rear 10.00R20 18PR, FAST 8-speed gearbox, 280L fuel tank, with power take-off, remote throttle, original air conditioner, airbag seat.

  • Flatbed description

  • 8-ton flatbed top loading: flatbed length 7200mm, flatbed inner width limit 2500mm, 6mm patterned plate, plate surface perforation, anti-slip and wear-resistant; tailgate hydraulic folding 1400mm; no lowering of the center of gravity; 10-ton two-section rear support arm magnification beam, equipped with a hydraulic flip tailgate that can lift heavy trucks within 20 tons; 5-ton worm winch; standard flatbed wireless remote control; standard reversing camera.

  • Crane Description

  • Straight boom crane, 5-section straight boom crane, the crane rated lifting capacity is 8Ton, max boom outreach is 18.6m, max crane lifting height is 21m.
