Wood graber 6500

Wood graber 6500

Call for price

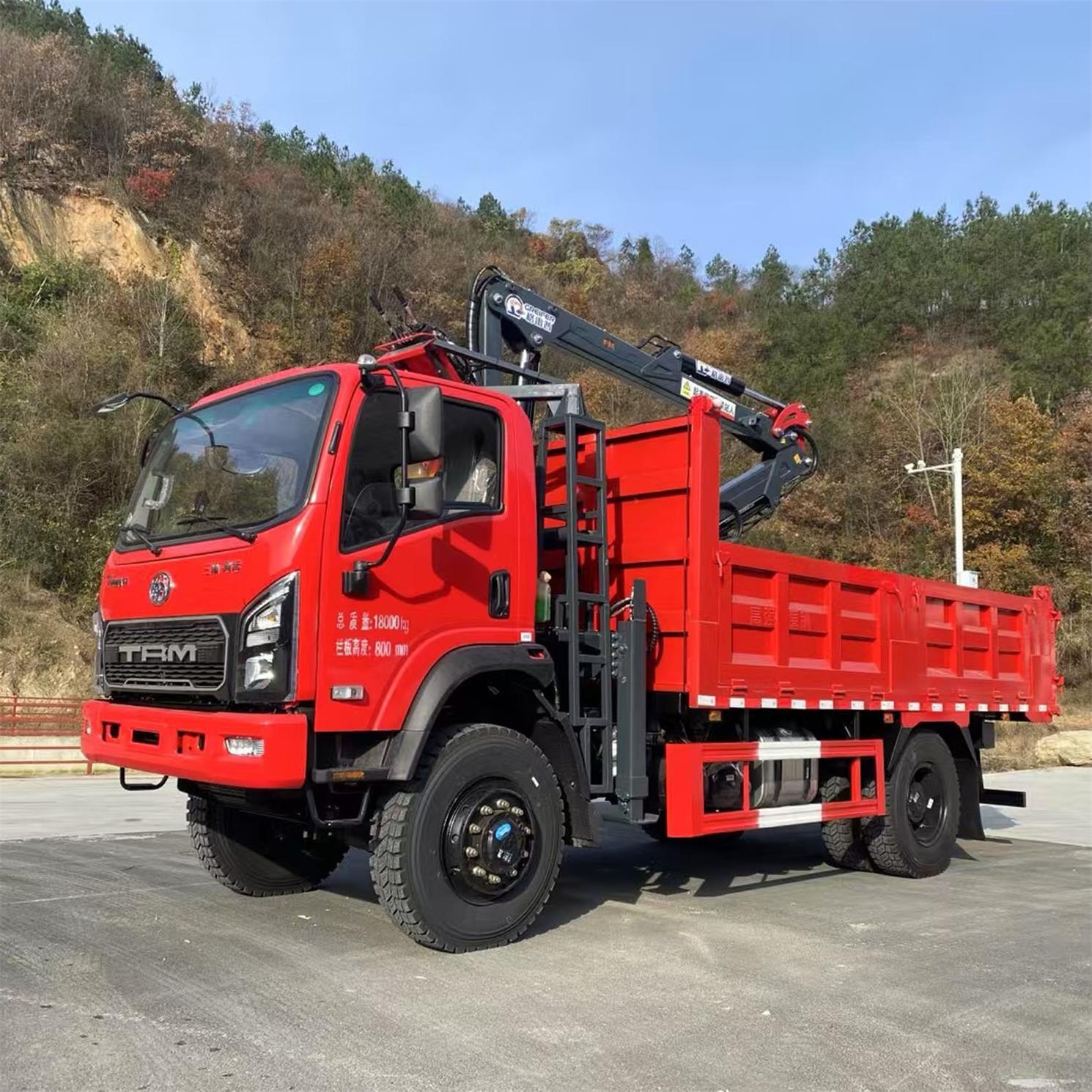

Trailer Mounted Timber crane

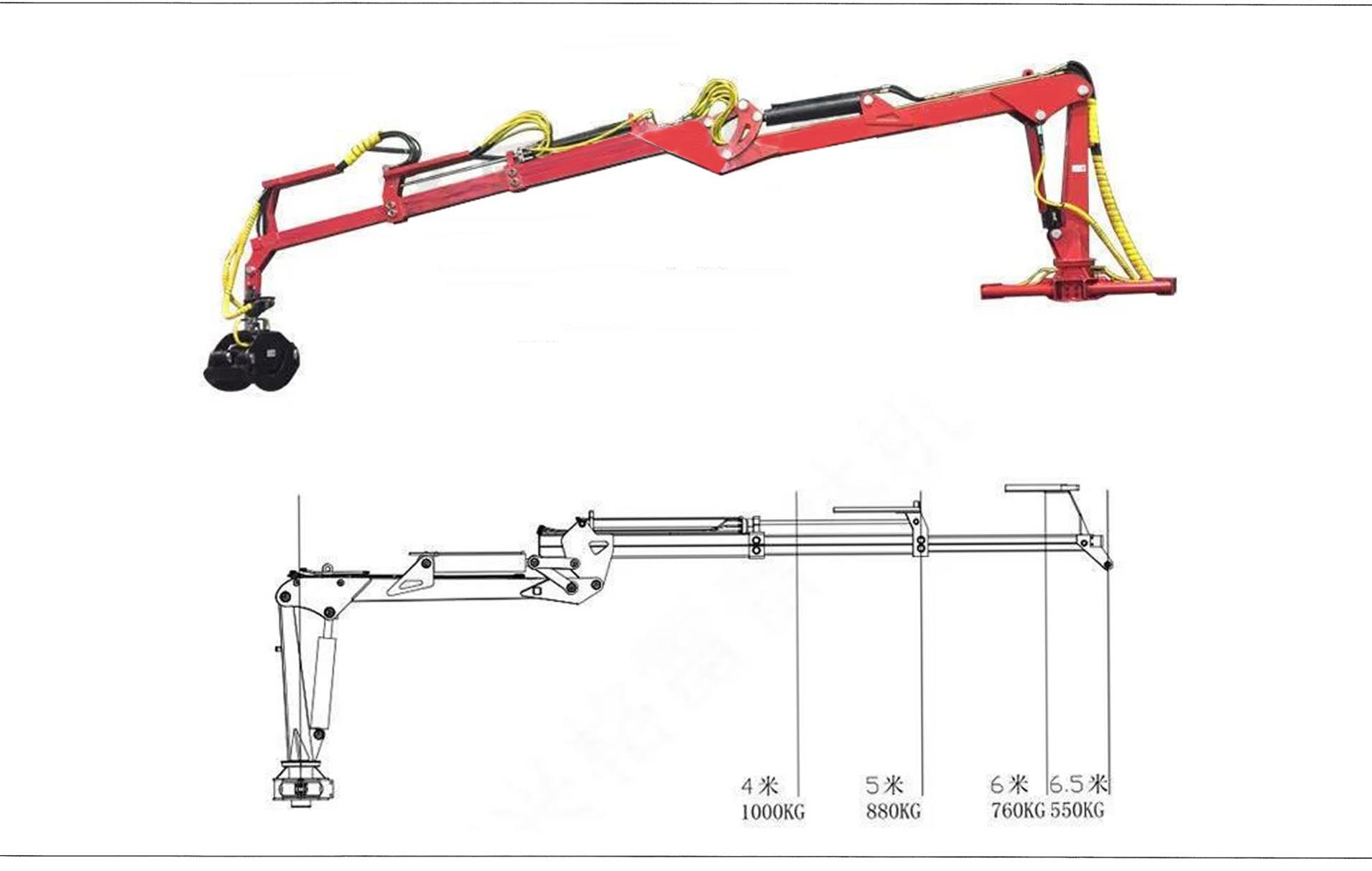

Working range 6500mm, grab weight 550Kg, Two folding arms with Two telescopic boom. rotation angle left 180 degrees, right 180 degrees.

The hydraulic crane Graber, It is used extensively in forestry, sawmills, and material handling operations to safely and efficiently grab, lift, and transport heavy wooden loads. Available in various sizes and configurations, the wood grabber offers exceptional performance in both industrial and construction applications.

分类：

Production Description

The Wood Grabber is a specialized attachment designed for handling logs, timber, and other large wooden materials with ease and precision.

Features

Crane Material

Wood grabbers are constructed from high-strength steel Bs700, with heat-treated components for added durability and wear resistance.

Hydraulic system

The hydraulic system for opening and closing the jaws is integrated, with cylinders, hoses, and valves designed for smooth operation under heavy loads.

Rotating mechanical

High torque hydraulic rotary motor, stable and powerful rotation, 180 degrees rotation left and right.

Grab tool (jaw)

Connection method two option one is flexible another connection with fixed connection with crane, grab weight from 1ton to 12ton, adopted based on the crane model

Quick Coupler: For easy attachment and detachment from the crane.

Various installation methods match a wide range of truck models.

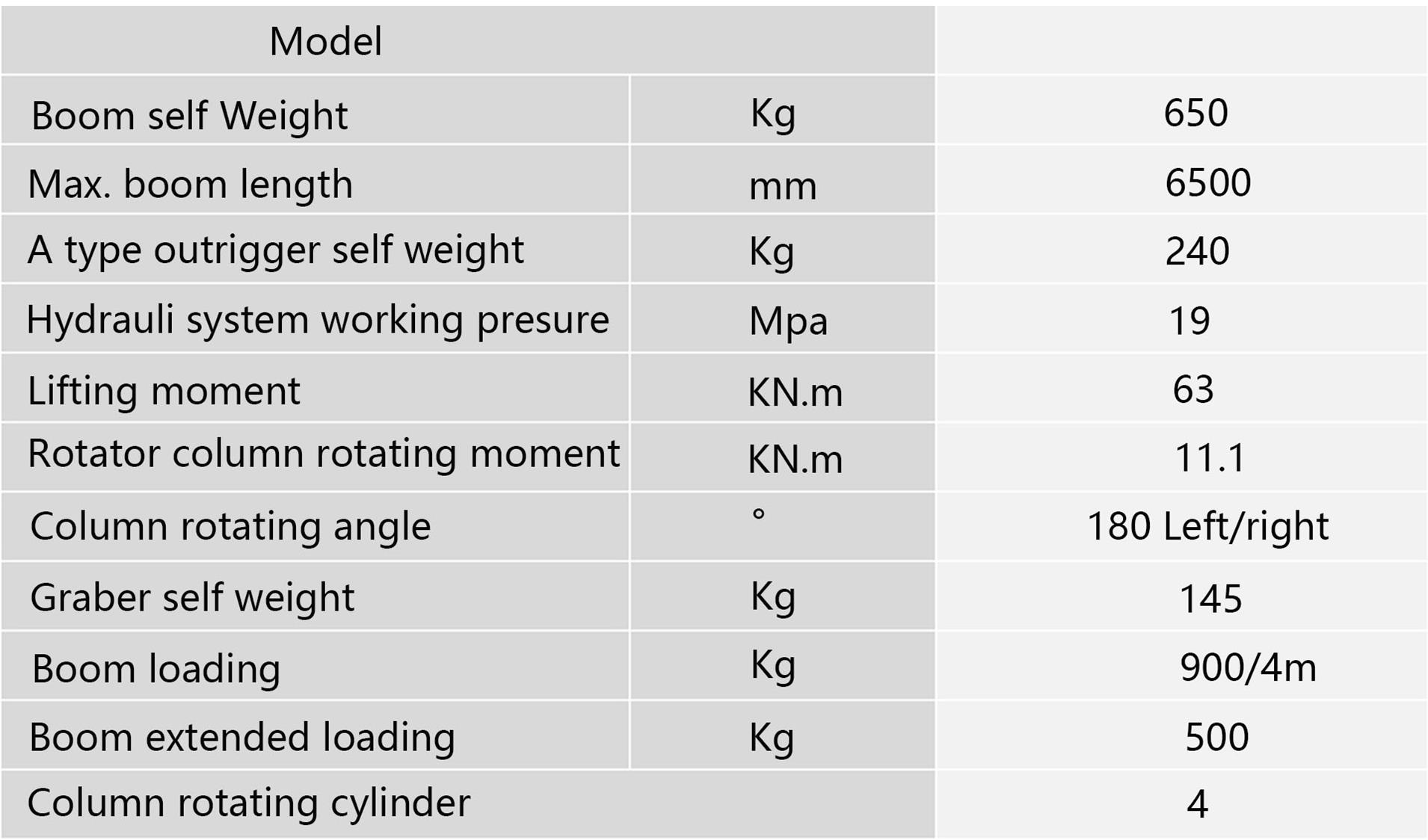

Technical parameters
