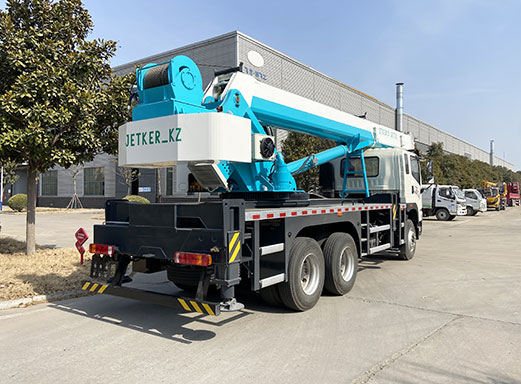

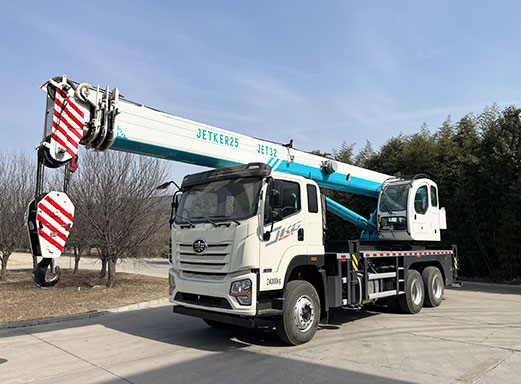

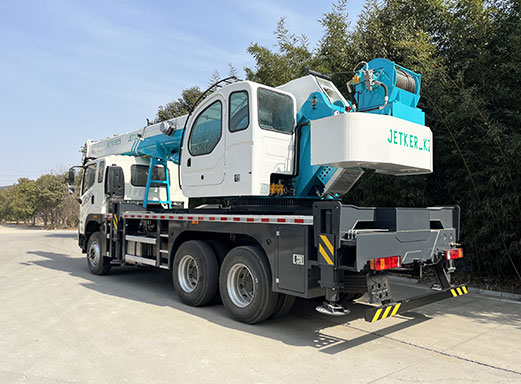

FTC252
25000kg
30m
FTC252
25000kg
30m
U-shaped boom section, 4-section boom 31 meters the boom material is made of high-strength plates
6x4 drive, powerful off-road performance, vehicle weight 22.5 tons
Strong environmental adaptability to temperature able to cope with extremely cold weather
Famous hydraulic part, exceptional quality, ensure safe and reliable operation, long service life.
Ergonomic design cab for driver and operator are specious for flexible and convenient operations.
| ITEM | ||
| Crane | Brand | XINFEIG |
| Crane model | FTC252 | |
| Manufacture year | 2025 | |
| Rated lifting capacity | 25000kg | |
| Load moment t.m | 860 | |
| Max. Boom outreach | 30m | |
| Max outreach lifting capacity | 500kg @24m | |
| Slewing angle(continuous) | 360° continuous | |
| Boom raising angle | -2~80° | |
| Max.lifting height (the measurement from the ground after the outriggers fully extended) |
32m | |
| Max. Lifting height with jib | 40m | |
| Length of the basic boom | 10m | |
| Numbers of the boom | 4 section | |
| Outrigger span (fully extended) | Transverse 6000m | |
| Longitudinal 5250mm | ||
| Recommend oil displacement | 63 L/min | |
| Working speed | Main/auxiliary hook max lifting speed (single rope) | 120 m/min |
| Full telescopic boom time | 65s | |
| Maximum rotation speed | 0-2 r/min | |
| Full lifting/lowering time of boom | 41/26s | |
| Main hoisting rope capacity | 170m | |
| Option device |
Load limiter | Equipped |
| Fixed counterweight | 1Ton | |
| Jib length | 9m | |
| Crane operation configurations:Panoramic safety glass, searchlight, 2 windshield wipers (on the front and top glass), opening doors and side window, sun visor, engine-independent diesel heater, air conditioning, computer and joysticks (or levers) for controlling the crane. Availability of metal protection of the front and upper parts of the cab. | ||
| Chassis parameters |
Chassis drive type | 6x4 |
| Engine horse power | 2700hp | |
| Displacement(ml/kw) | 6234/199 | |
| Transmission | Fast 9 speed gear box,manual 9 forward and 1 reserve | |
| Wheelbase/No. of axle | 3600+1300mm / 3 | |
| Frame (mm) | 300×80 ( 8+4) | |
| Front axis | 7T | |
| Rear axis / Speed ratio | 10T /Double 4.89 | |
| Tire Specification | 1100/R20 18PR | |
| Tire Number | 6 tires and 1 spare tire | |
| Steel ring | All steel wheelmesh ( 6+ 1) | |
| Axle load (kg) | 7000/10000/10000 | |
| Total mass(kg) | 25000 | |
| Tool box | 1 SET | |
| Fuel Tank | 350L alloy | |
| Max Speed | 60 km/h | |
| Paint | Metallic paint | |
| Breaks system | Air breaks with ABS | |
| Dimension | (Length*Width*height) | 11900x2500x3950 |
| Hook | Main hook | Heavy duty, 2pcs front /rear |
