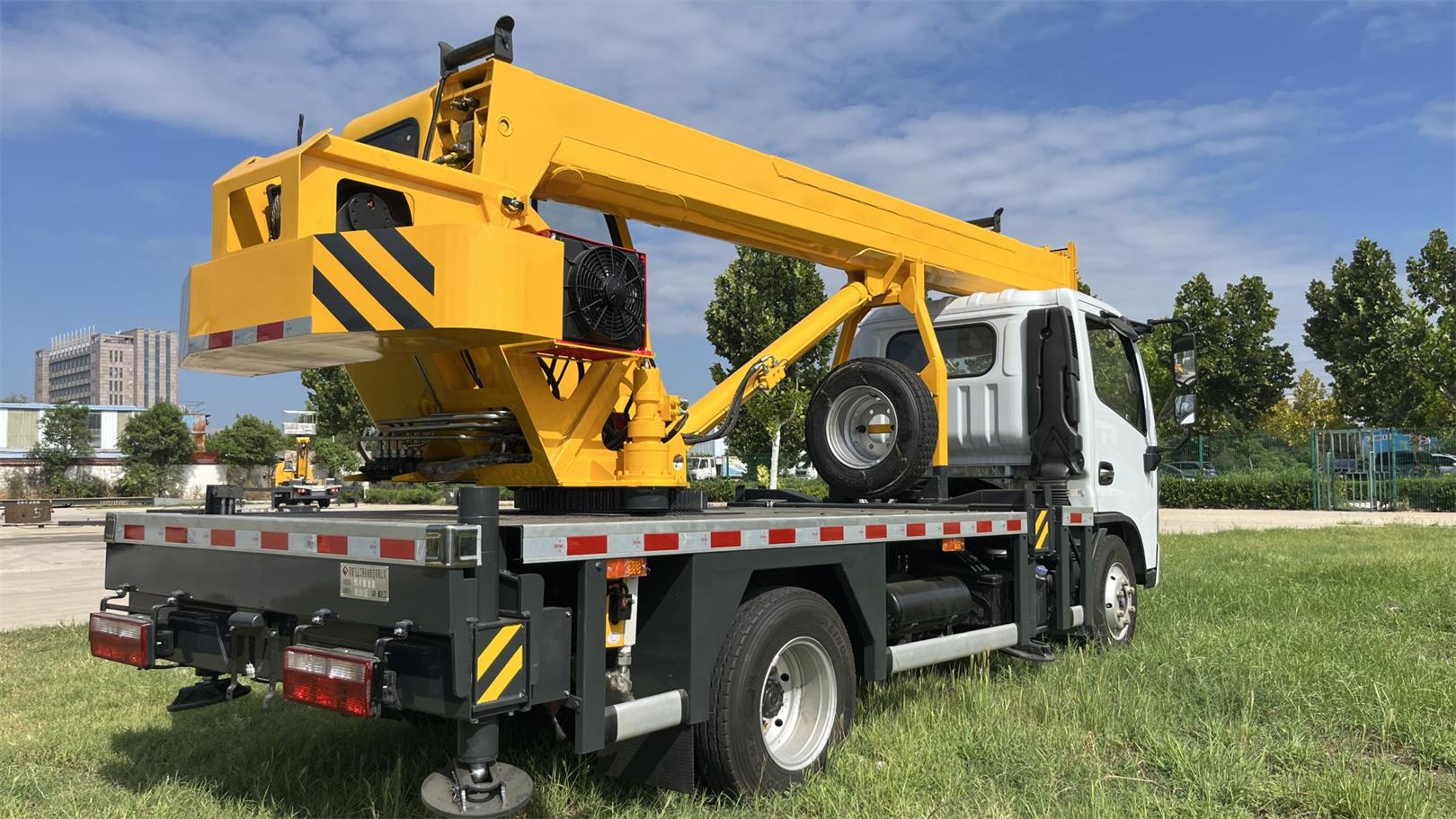

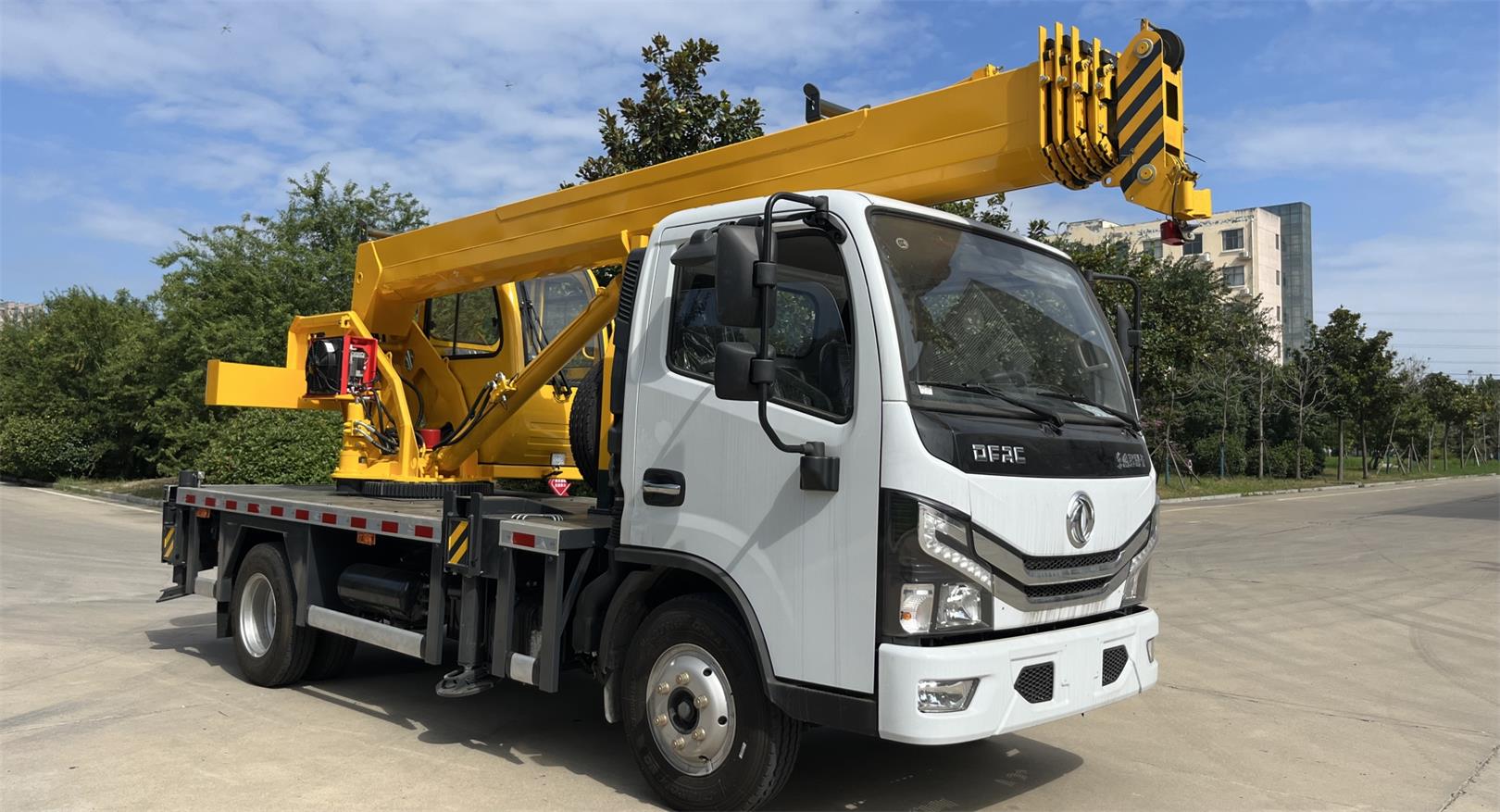

Truck Crane HFL5040JQZ mobile crane 5Ton with Dongfeng chassis-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

Dongfeng brand chassis, an option left hand drive and right hand drive, mounted crane lifting capacity 5Ton, crane dimension 5995*1950*2980mm.
Left hand drive, Quanchai engine, 132Hp Diesel engine, 2300ml displacement, 2850mm wheelbase,tire type 700R16, Total mass 4495kg

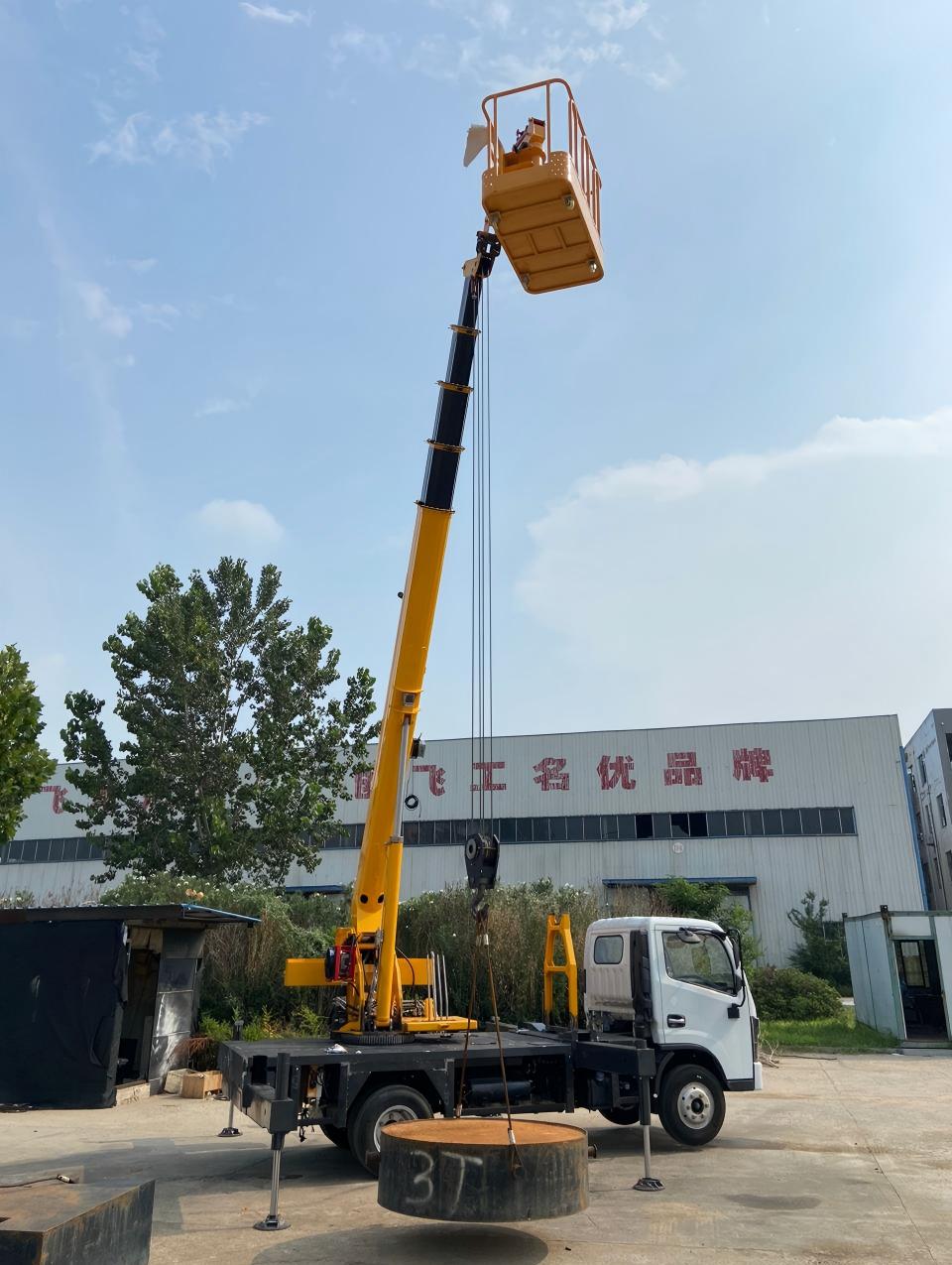

XINFEIG crane 5Ton 5-section boom, boom length 19m, lifting height 21m. one main hook, an option aerial working basket.
Boom material high tensile plate BS700MMKC, high tensile plate, ensure bearing capacity while reduce boom light, 5 section boom 1 cylinder 3 rope reliable working performance and enhance working efficiency.

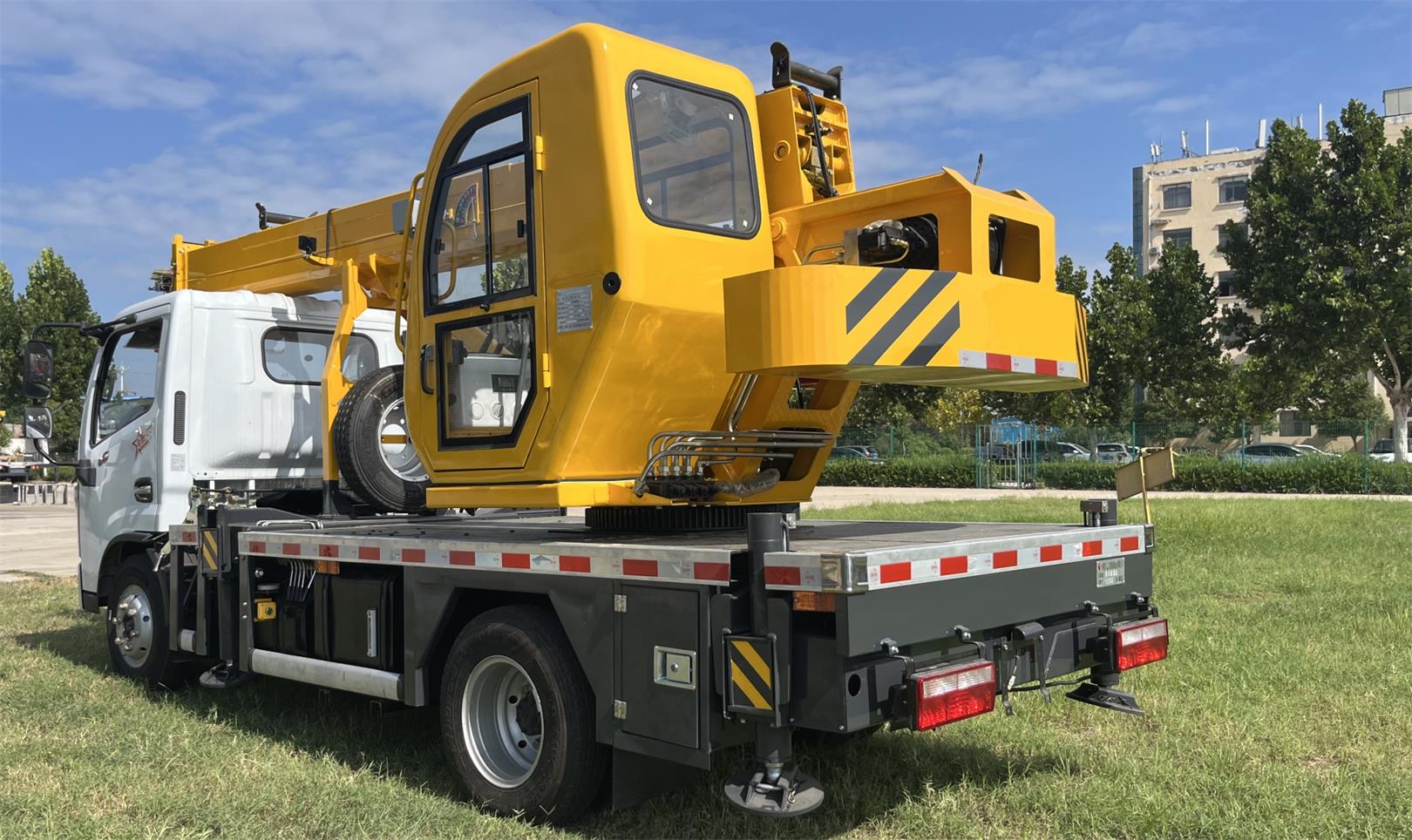

Ergonomic design cab for driver and operator are specious for flexible and convenient operations.

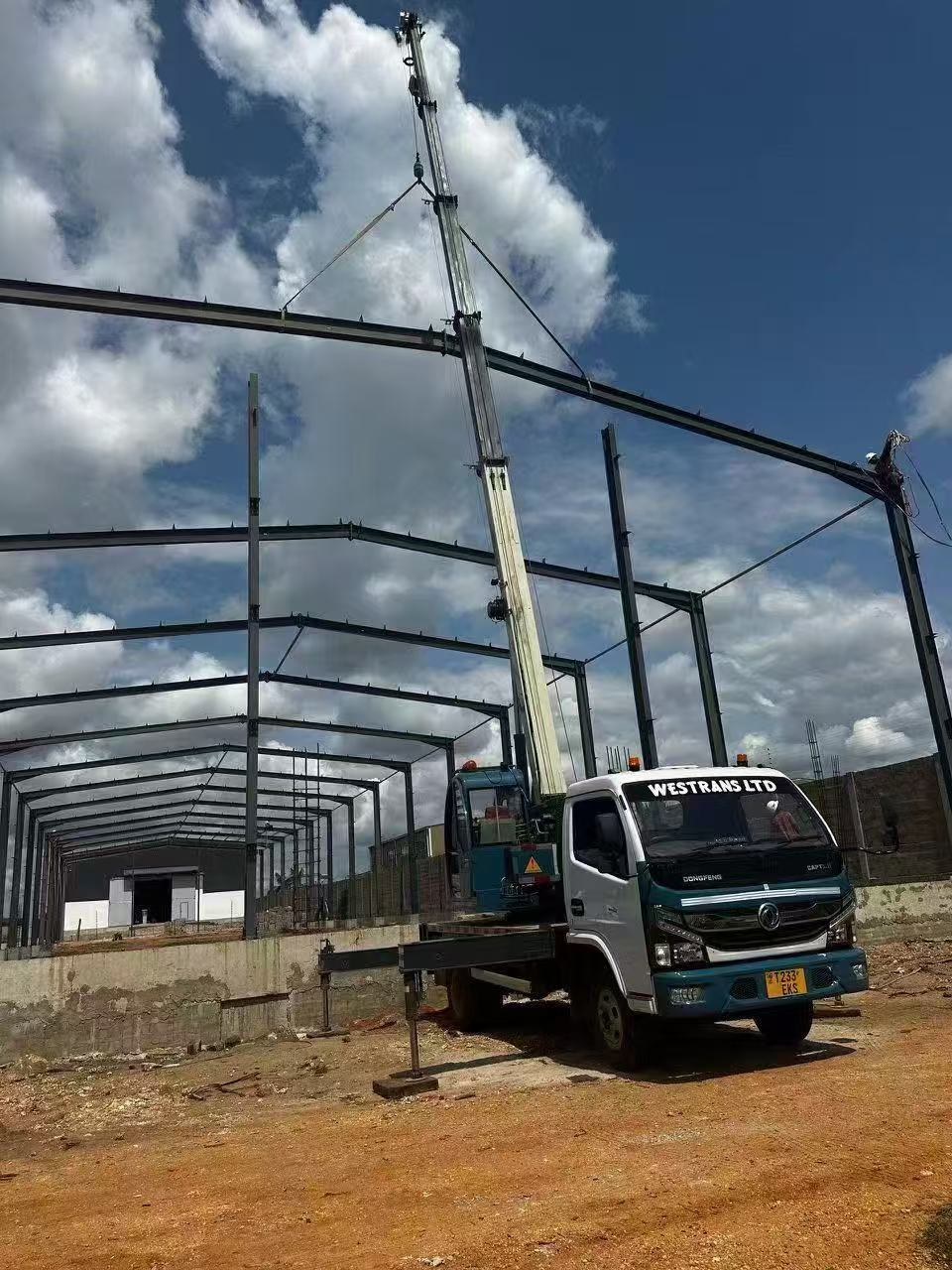

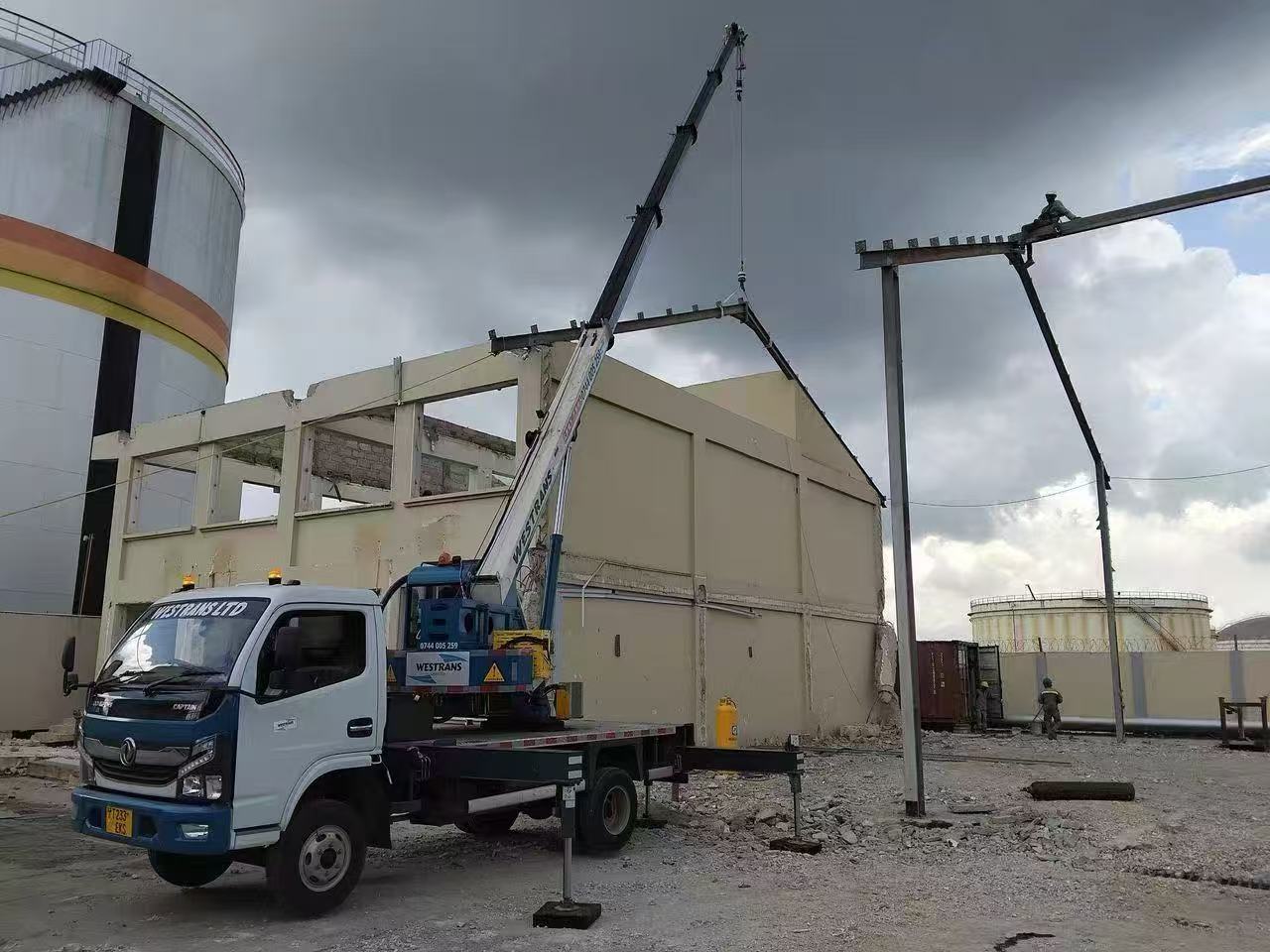

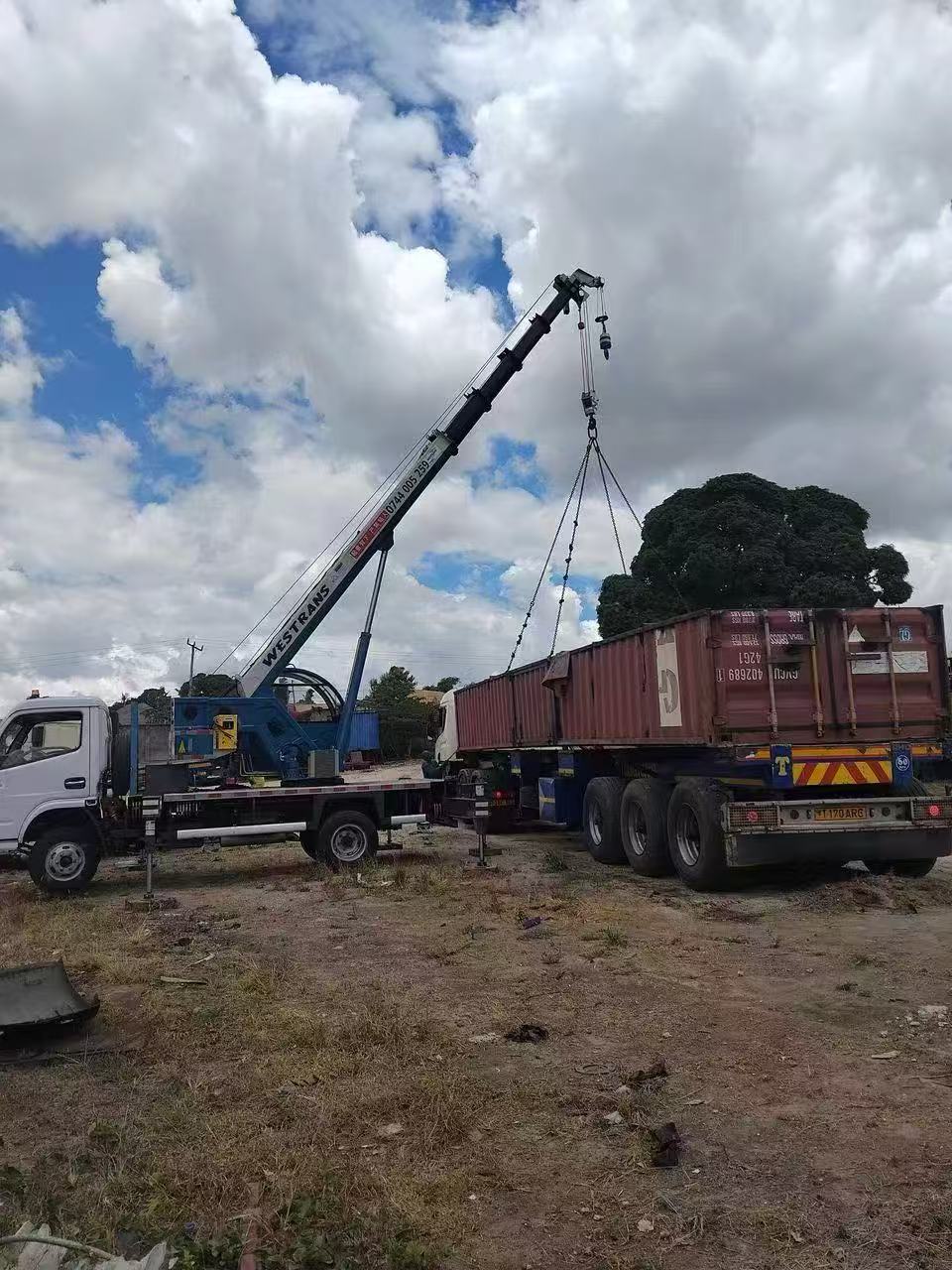

Application

Crane specification

Crane	Brand	XINFEIG
	Crane model	HFL5040JQZ
	Rated lifting capacity	5000kg
	Max. Boom outreach	19m
	Max outreach lifting capacity	500kg @13.5m
	Slewing angle(continuous)	360° continuous
	Boom raising angle	0~78°
	Max.lifting height (the measurement from the ground after the outriggers fully extended)	21m
	Length of the basic boom	4.6m
	Numbers of the boom	5 section
	Outrigger span (fully extended)	3.95m
	Winches speed	80m/min
	Operating position	Hydraulic lifting cabin
	Recommend oil displacement	32 L/min
An option devices	Operation cabin an option devices 1. Load limiter 2. Air conditioner 3. Camera

Chassis Parameters

Dongfeng Chassis	Engine brand	Quanchai
	Engine emission standard	Euro V
	Displacement(ml/kw)	2300/100
	Horse power (hp)	132
	Transmission	6 speed gear box,manual 6 forward and 1 reserve
	Wheelbase/No. of axle	2850mm / 2
	Frame(mm)	220
	Front axis	1.617T
	Rear axis / Speed ratio	2.878T
	Tire Specification	Front700R16Rear700R16
	Tire Number	6 tires and 1 spare tire
	Steel ring	All steel wheelmesh ( 6+ 1)
	Axle load (kg)	1610/2878
	Total mass(kg)	4495
	Curb weight(kg)	4365
	Fuel Tank	120L alloy
	Max Speed	80 km/h
	Cabin passenger	2
	Paint	Metallic paint
	Breaks system	Air cut-off brake
	Auxiliary braking	exhaust brake
	Front number of spring leaves	7
	Rear number of spring leaves	7+5
	Overall dimension (mm)	5990×1950×2750
Chassis basic configuration	front and rear drum basic speed ratio/no deflector/manual air conditioning/inner tube radial tire 700R16/ electric windows//power steering
