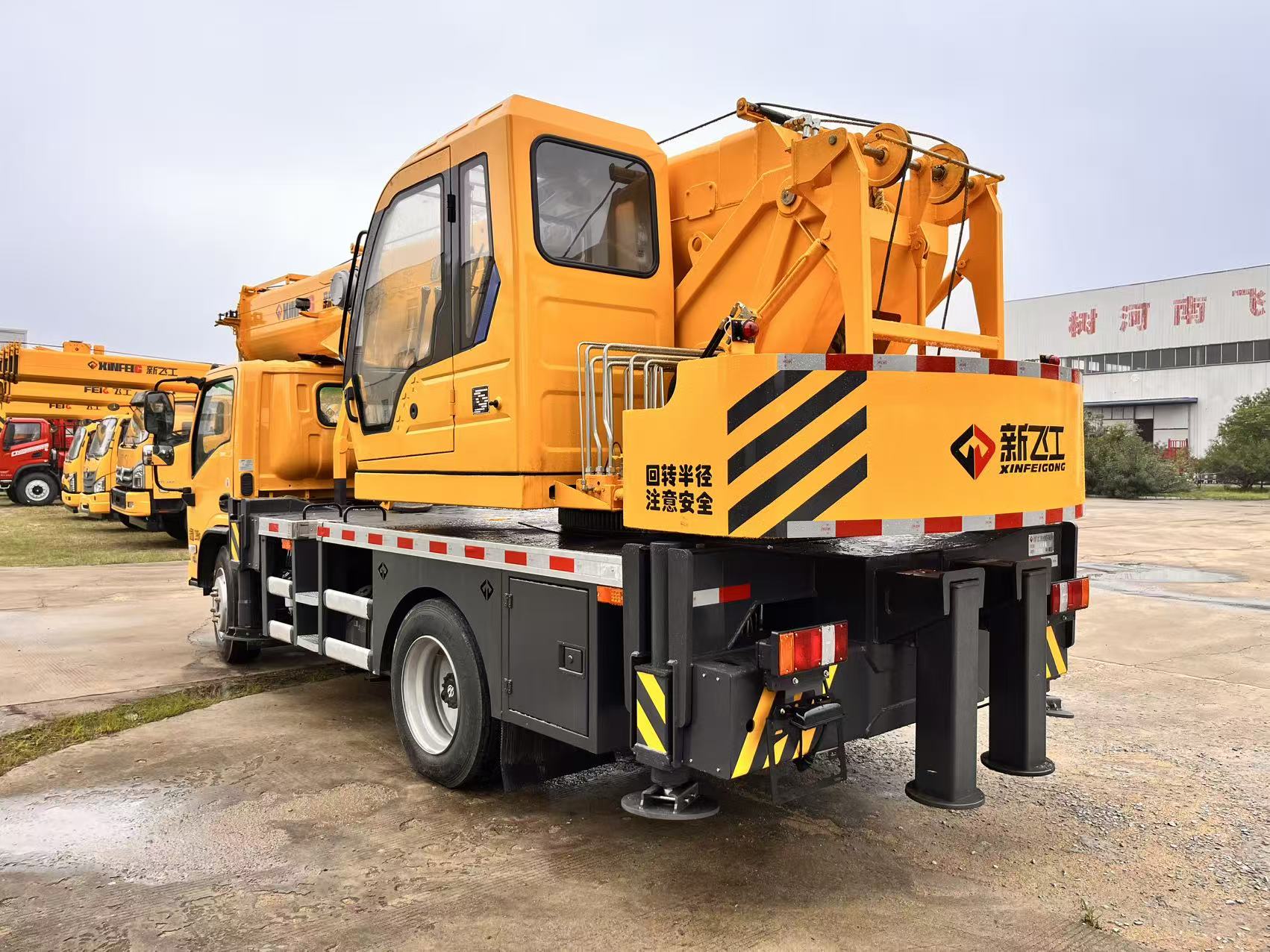

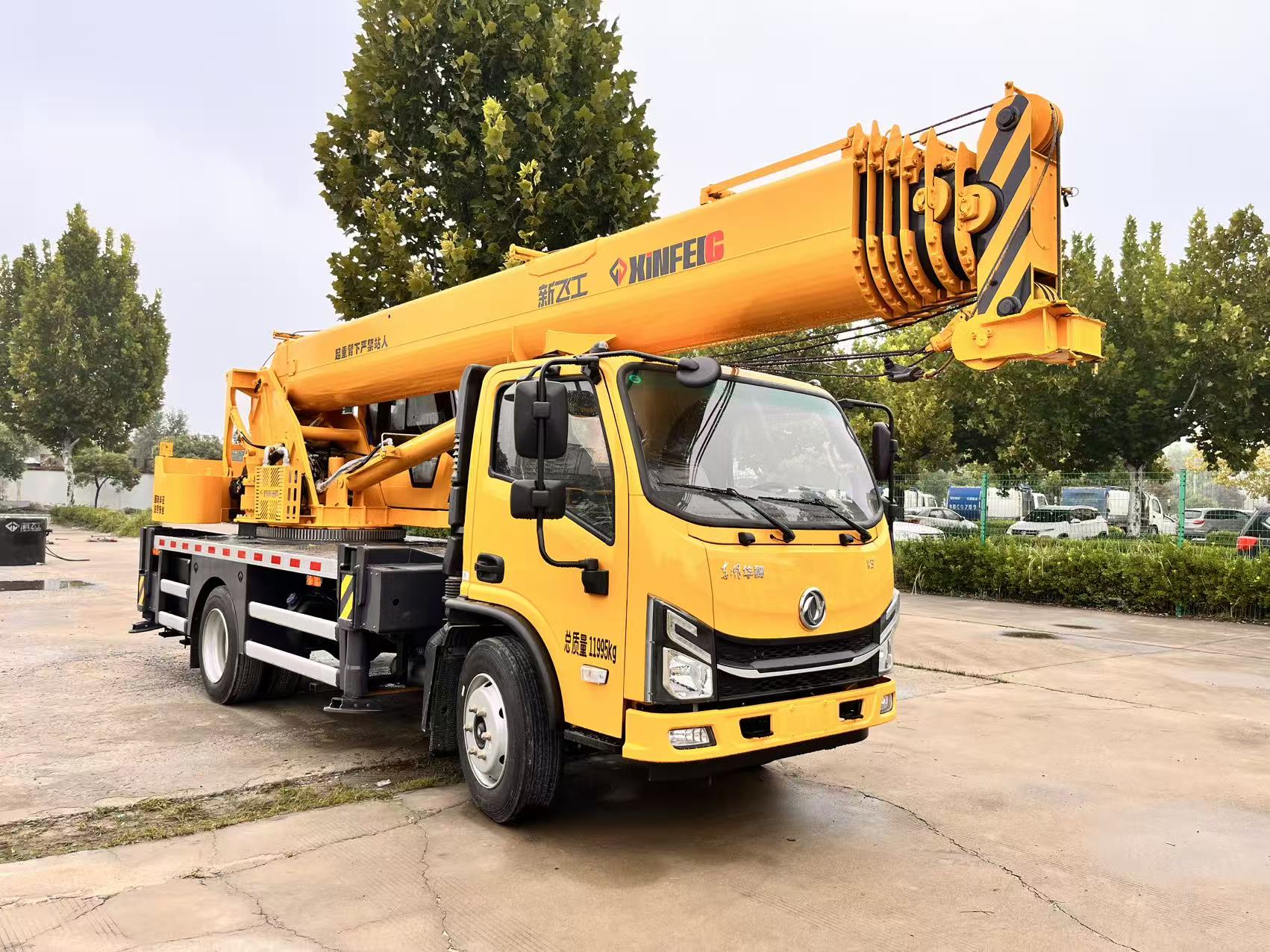

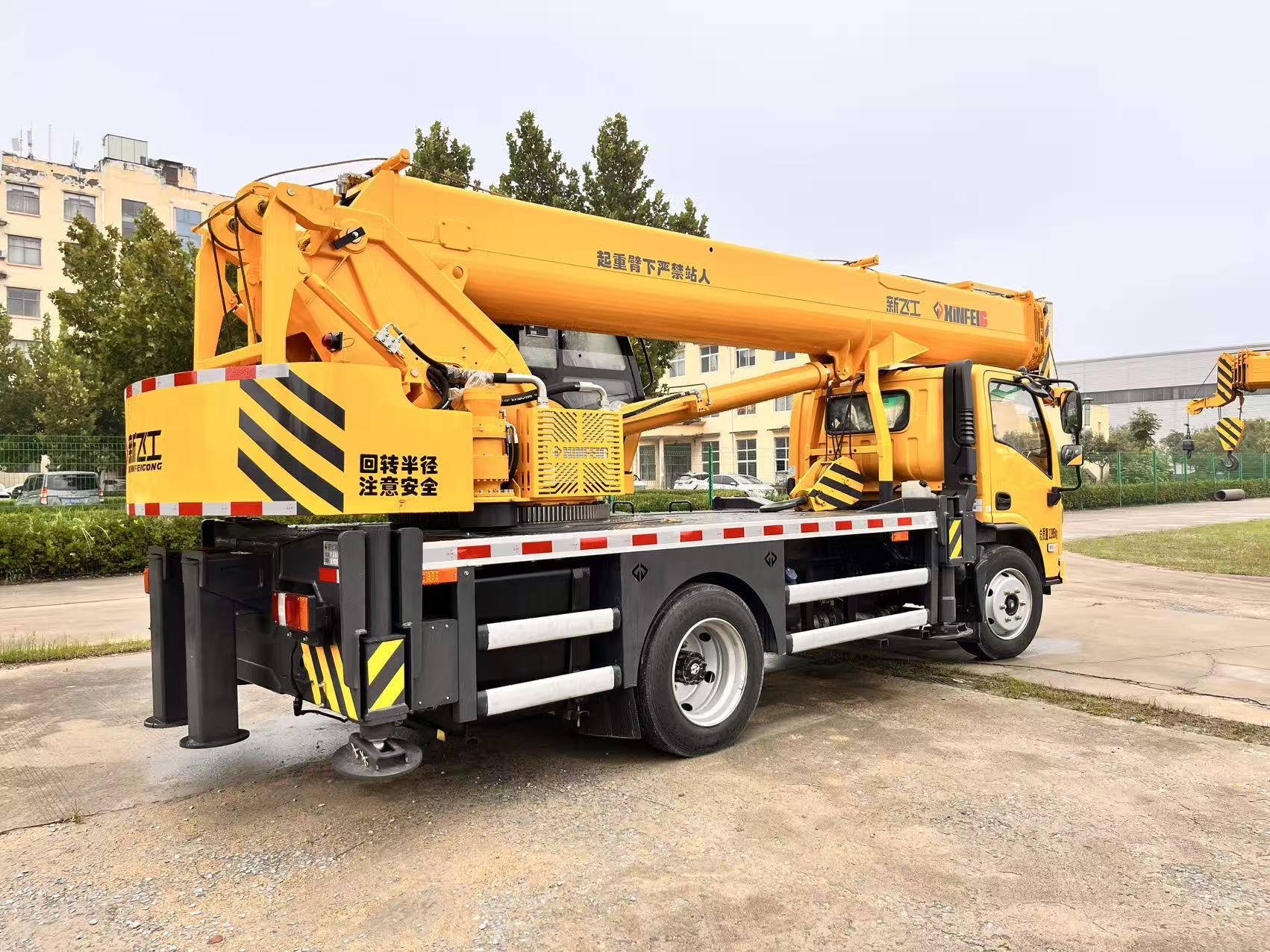

Truck Crane HFL5122JQZ XINFEIG Mobile crane lifting capacity 10000Kg, working height 32m-Henan Runli Automobile Service Co., Ltd.

Introduction
Parameter

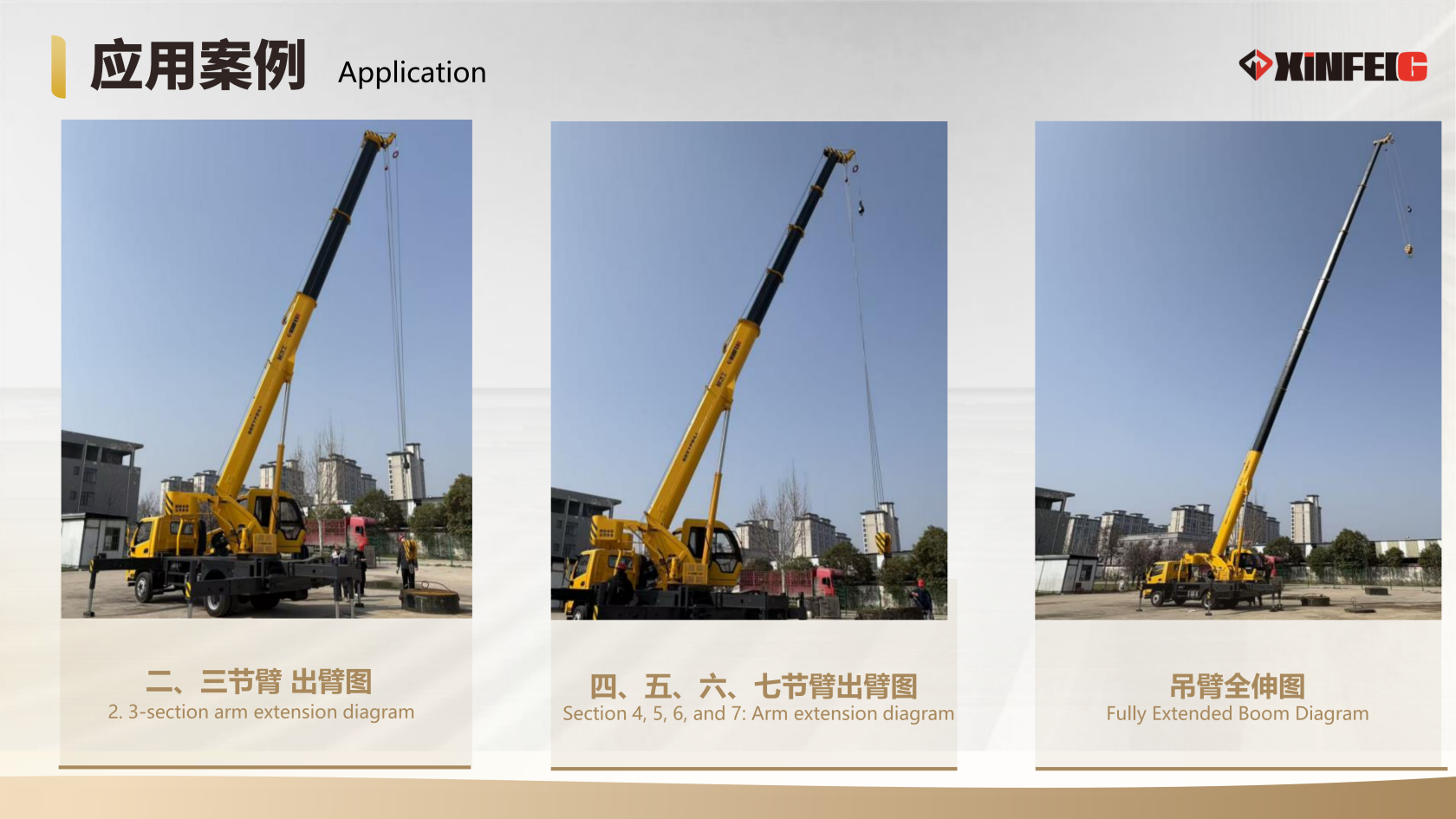

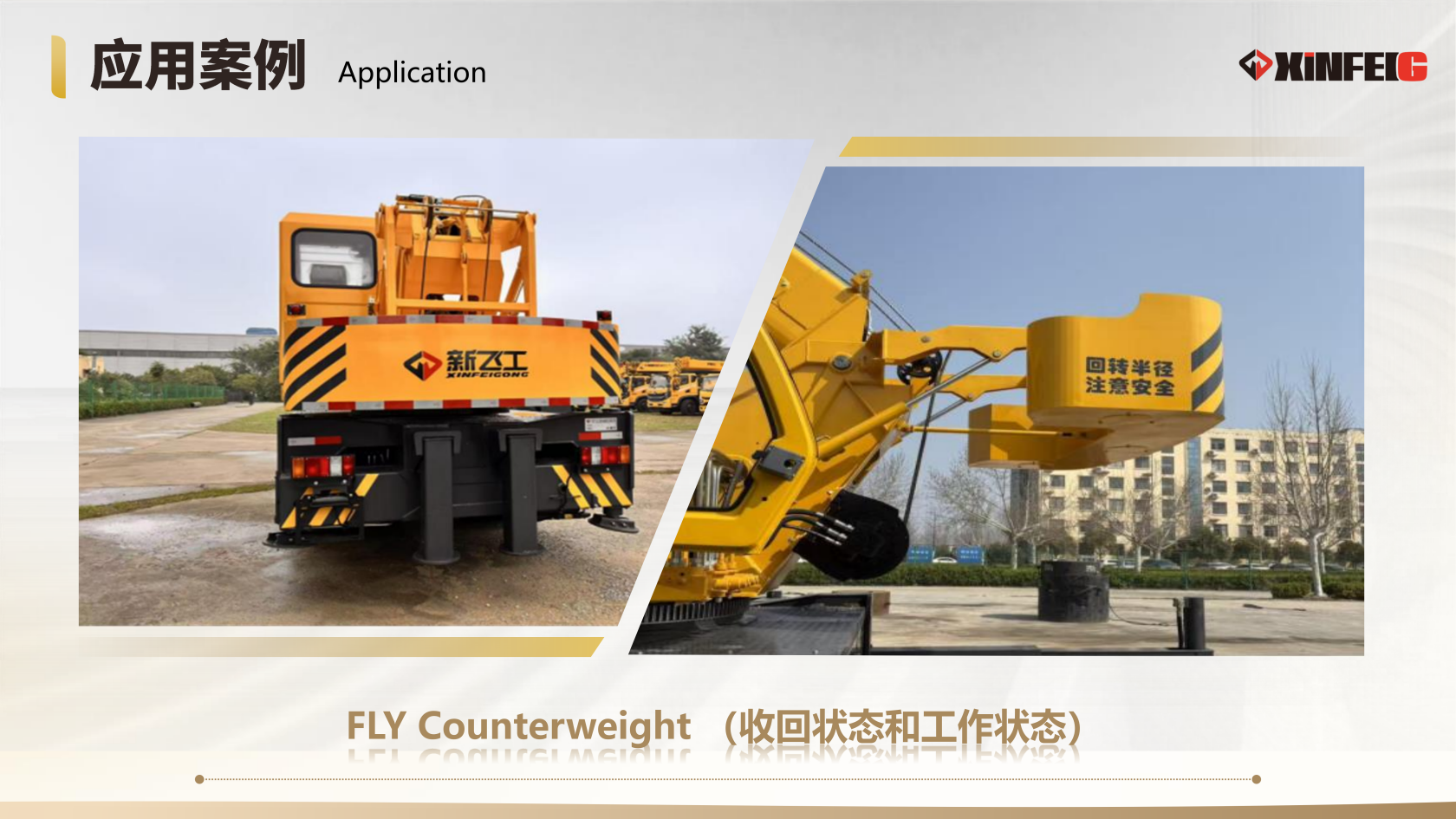

Project Case

Feature Introduction

A compact and agile "alleyway expert", vehicle dimension 7980*2200*3000mm, curb weight 11800Kg, turnning radius 5.6m. It can traveling on rural roads, being manvuerability and felxible

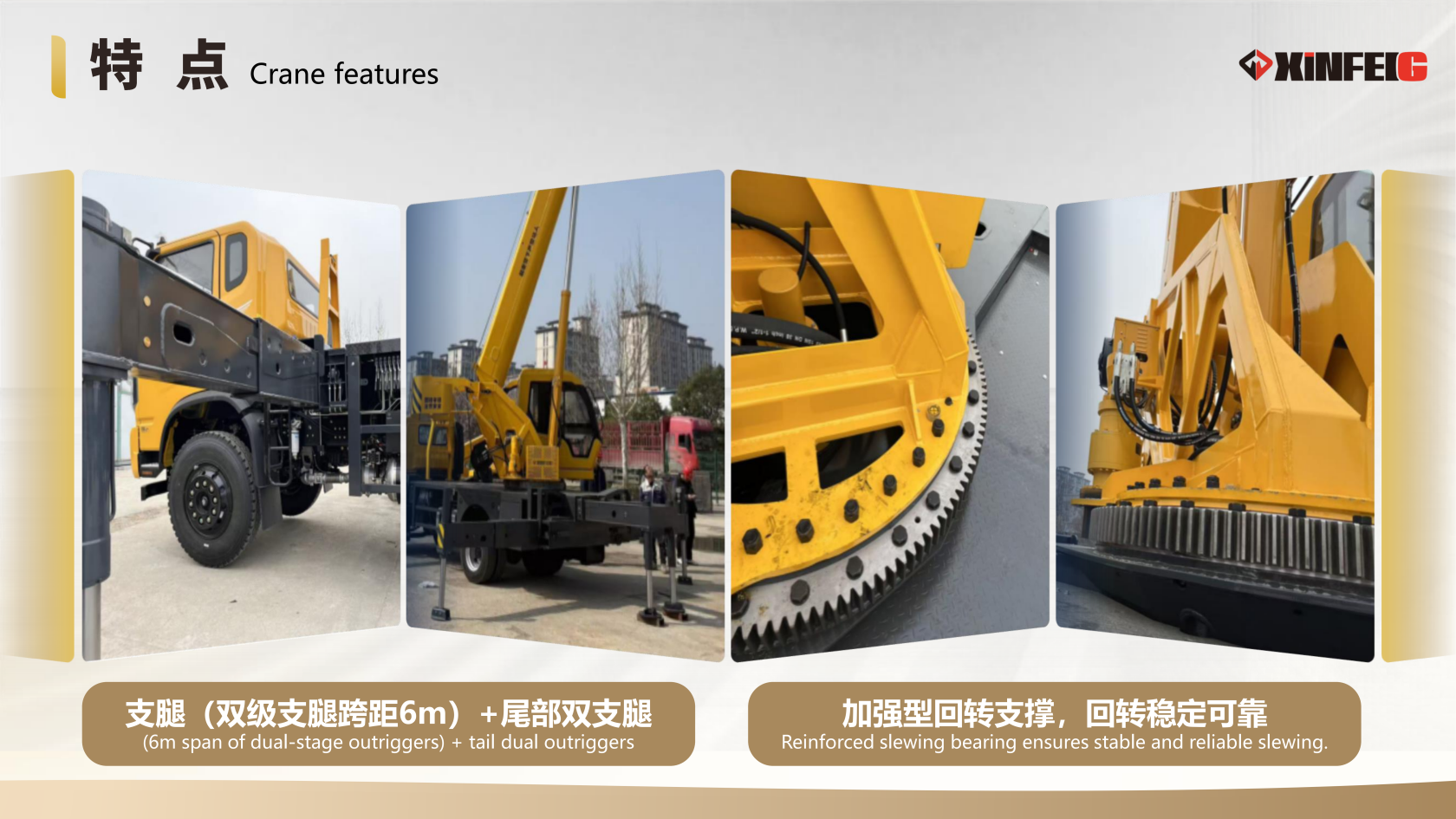

Crane with 7-section boom crane, the crane lifting capacity is 10000Kg , boom outreach is 30.8m, max crane working height is 32m, Double winches, double beam rear stabilizer.
Dongfeng brand Chassis, model DFD3123GL6DJ1, engine power 116kw, Yuchai 160Hp Diesel engine, 2488ml displacement, 3300mm wheelbase, tire size 245/70R19.5 16PR, Total mass 11995kg.
Boom material high tensile plate BS700MMKC, high tensile plate, ensure bearing capacity while reduce boom light.

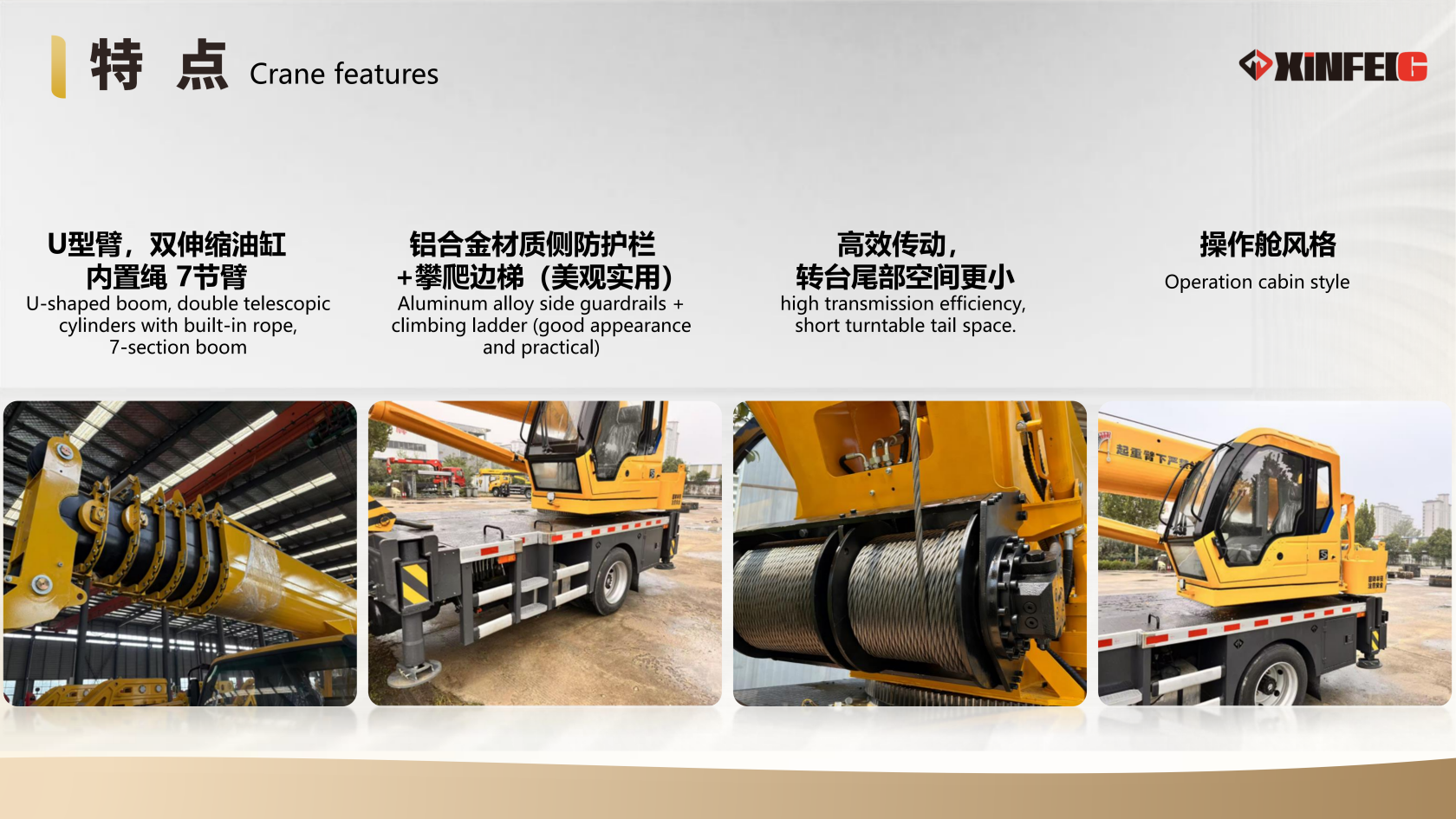

It employs a dual-cylinder internal rope system, allowing for synchronous extension and retraction of the second and third boom sections, and simultaneous extension and retraction of the fourth, fifth, sixth, and seventh boom sections. The boom extension sequence can also be freely switched, increasing work efficiency by 20%.
Famous hydraulic part, exceptional quality, ensure safe and reliable operation, long service life.
Famous hydraulic parts, such as hydraulic pump and cylinders adopt XCMG brand, ensures steablity and durable.

Crane part list

Crane girder we adopt box type, enhancement bearing capacity,and torsional strength.

Boom system: by it characteristic stable reliably and efficiently performance, ensure lifting safety and excellent working performance, we obtain national patent,and leading in the same class.

All crane structure manufacturing we treatment CNC processing,ensure technical requirements,and assembly standards.

Parameter

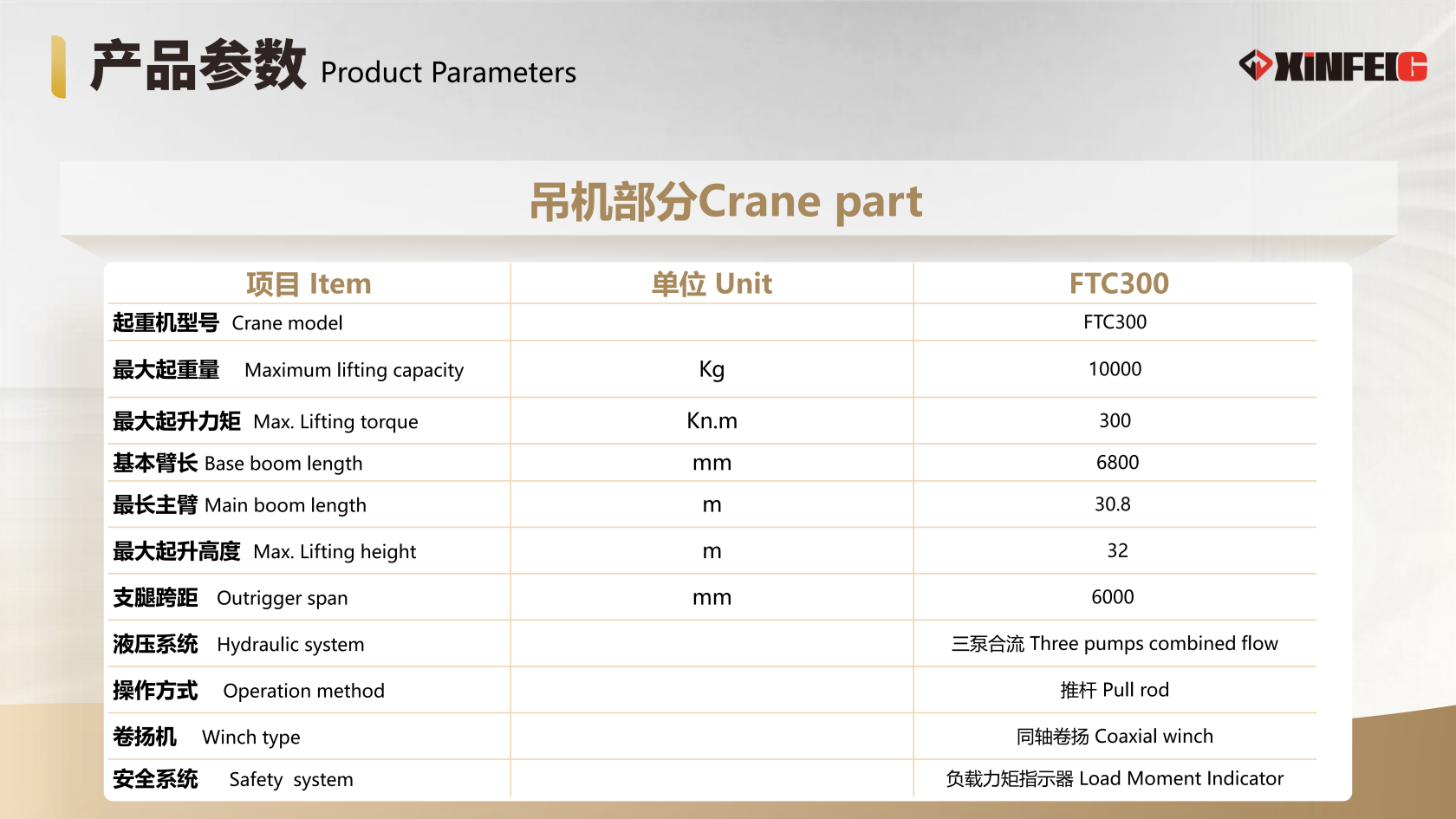

5122 brochure_06

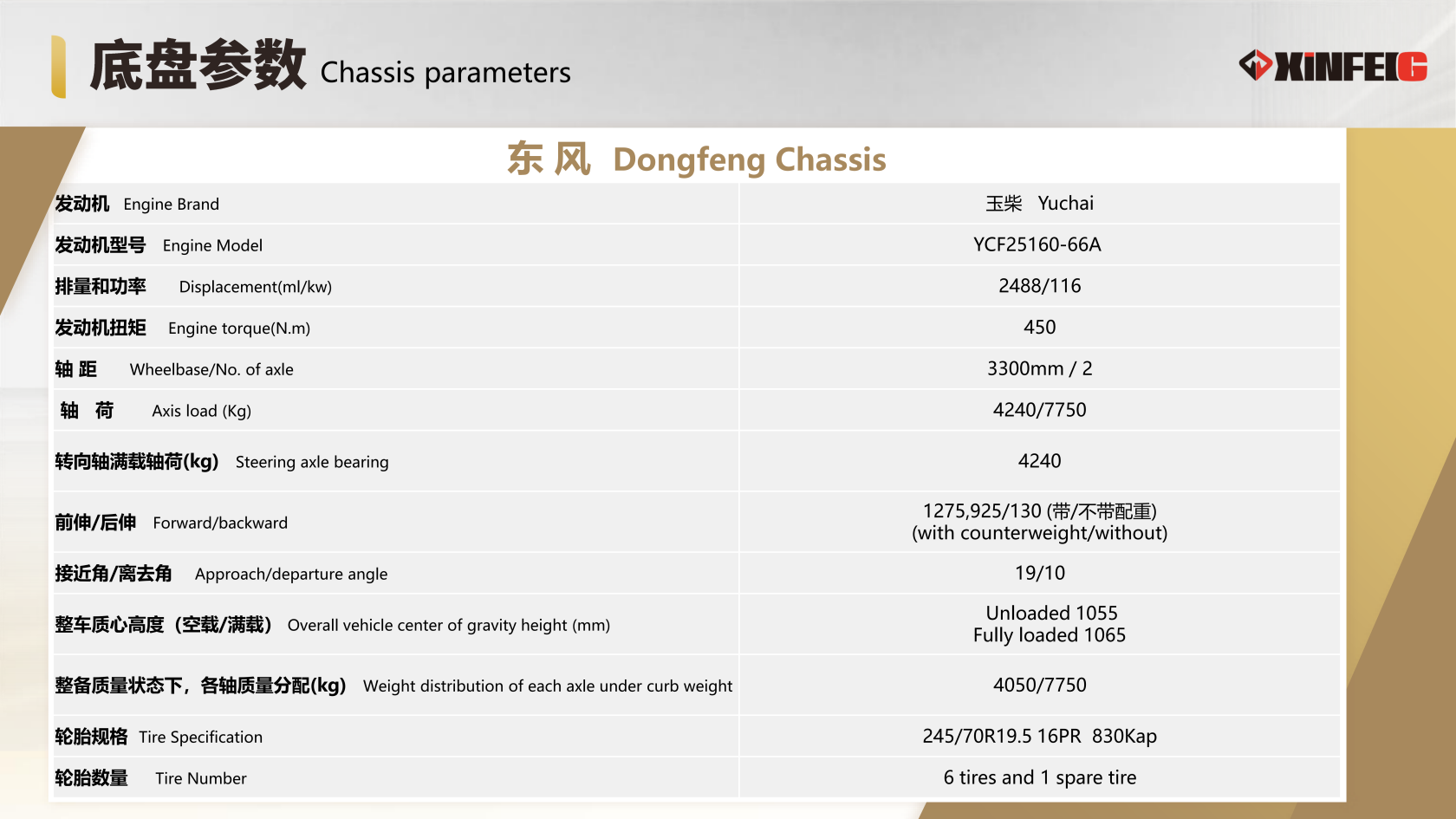

Chassis Parameters

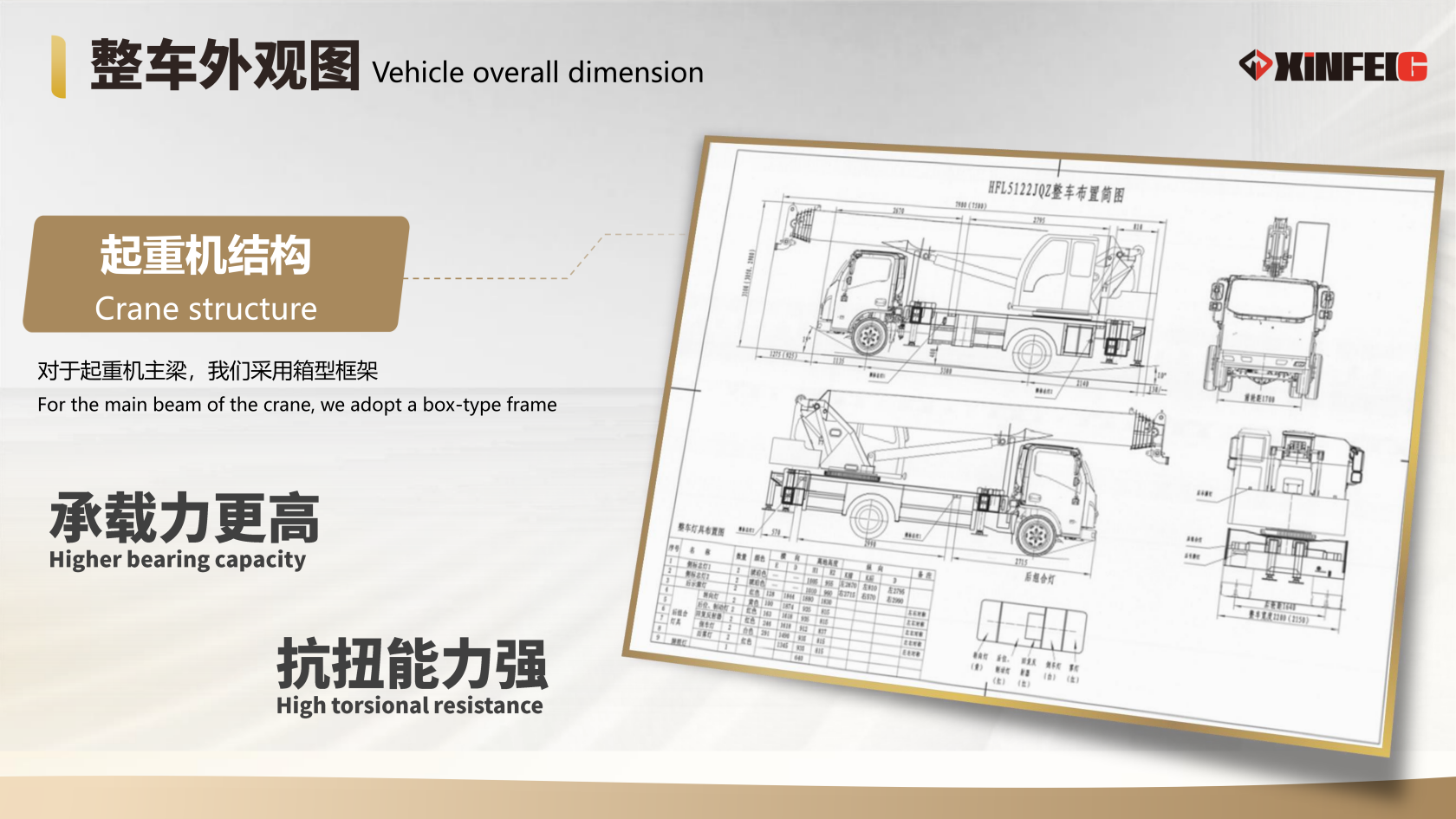

Vehicle dimension diagram

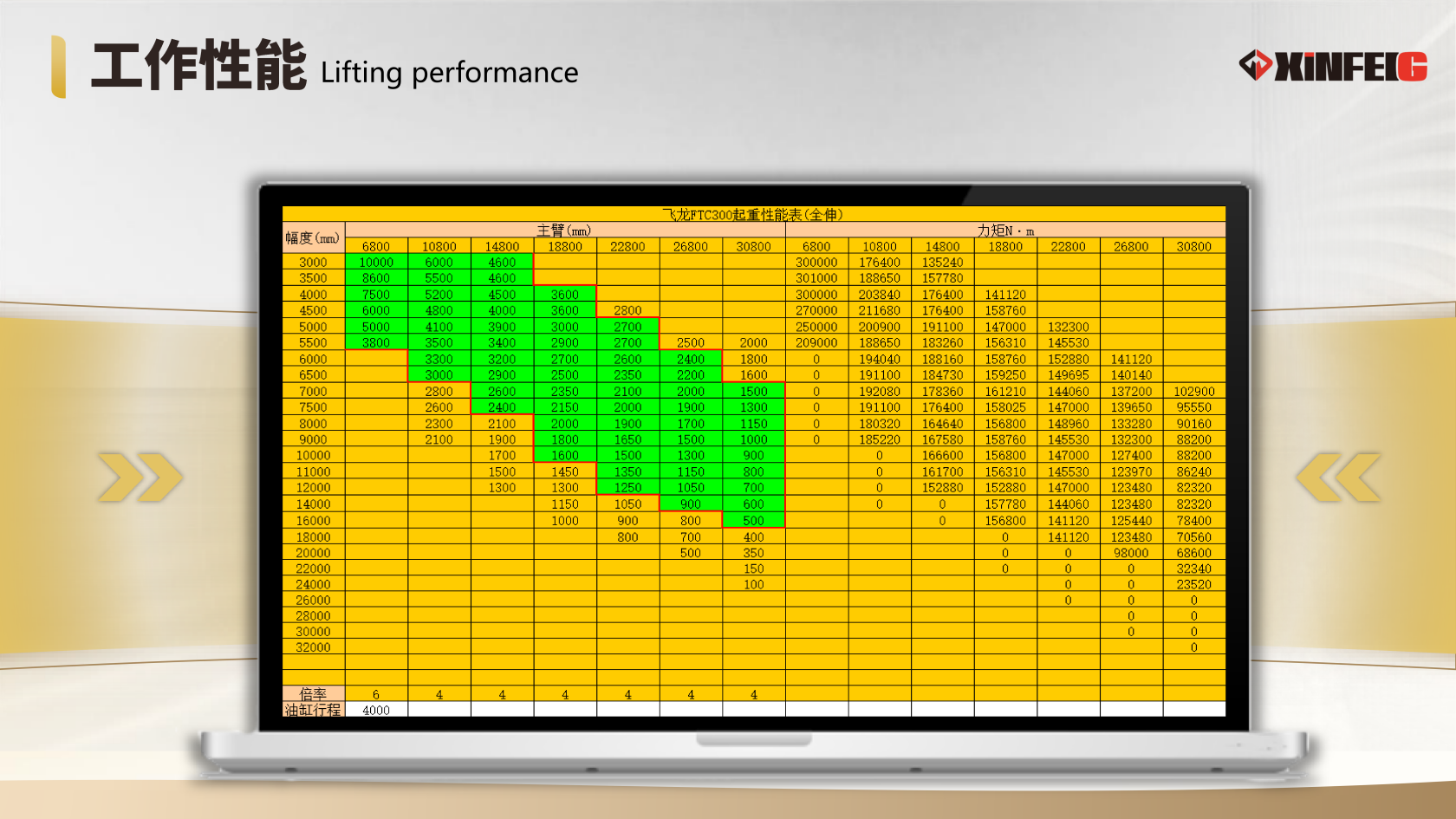

Lifting diagram
