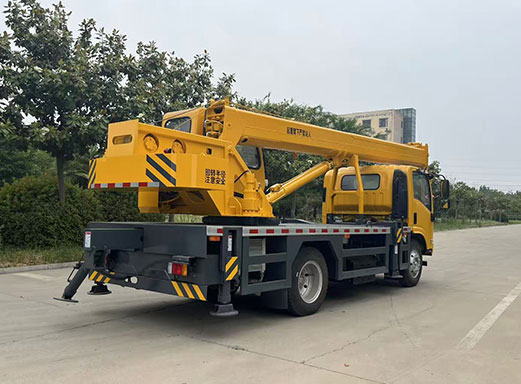

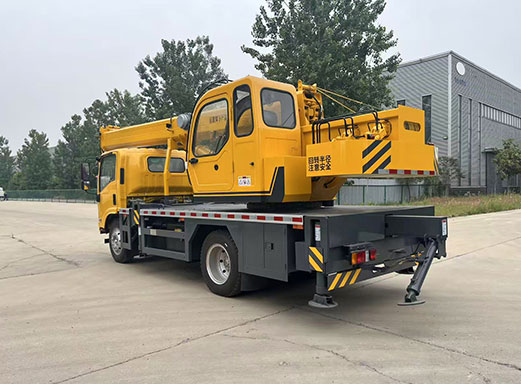

Truck Crane HFL5111JQZ-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

ISUZU Chassis 4X2 Drive type
Left hand drive,with 4JZ1-TCG62, 180Hp Diesel engine, 2999ml displacement, 3815mm wheelbase, tire type 825R20, Total mass 10550kg.
Equipped with the XINFEIG 8Ton 5-section straight boom crane,the crane lifting capacity is 8Ton ,max boom outreach is 28m, max crane working height is 30m, Double winches, rear stabilizer.
Boom material high tensile plate BS700MMKC, high tensile plate, ensure bearing capacity while reduce boom light, Five section boom 1 cylinder 3 rope reliable working performance and enhance working efficiency.
Famous hydraulic part, exceptional quality, ensure safe and reliable operation, long service life .
Ergonomic design cab for driver and operator are specious for flexible and convenient operations.

Crane specification

Crane	Brand	XINFEIG
	Crane model	HFL5111JQZ
	Rated lifting capacity	8000kg
	Max. Boom outreach	28m
	Max outreach lifting capacity	1000kg @13.5m
	Slewing angle( continuous)	360° continuous
	Boom raising angle	0~78°
	Max. lifting height (the measurement from the ground after the outriggers fully extended)	30m
	Length of the basic boom	7.98m
	Numbers of the boom	5 section
	Outrigger span (fully extended)	5.05m
	Front and rear leg	Double chamber hydraulic control
	Operating position	Hydraulic lifting cabin
	Recommend oil displacement	100 L/min

Chassis Parameters

ISUZU Chassis	Engine brand	ISUZU
	Engine model	4JZ1-TCG62
	Engine emission standard	V
	Displacement(ml/kw)	2999/133
	Transmission model	ISUZU MYY6
	Transmission	6 speed gear box,manual 6 forward and 1 reserve
	Wheelbase/ No. of axle	3815mm / 2
	Frame(mm)	Double
	Front axis	4T
	Rear axis	7T
	Tire Specification	Front 1000R20 Rear 1000R20
	Tire Number	6 tires and 1 spare tire
	Steel ring	All steel wheel mesh ( 6+ 1)
	Total mass(kg)	10550
	Fuel Tank	80 L alloy
	Max Speed	110 km/h
	Cabin passenger	2
	Paint	Metallic paint
	Breaks system	Air cut-off brake
	Overall dimension (mm)	9550×2250×3250

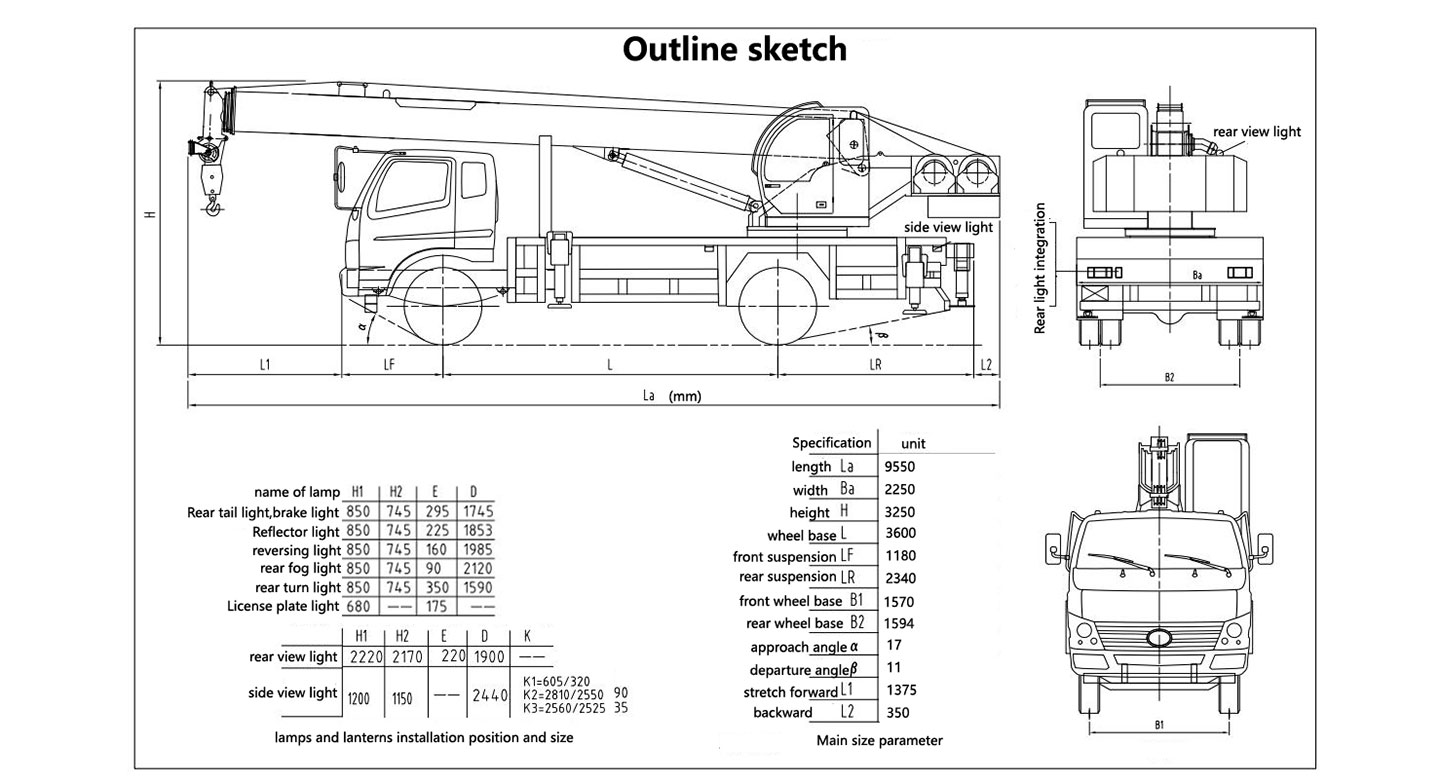

Crane dimension

Lifting chart
