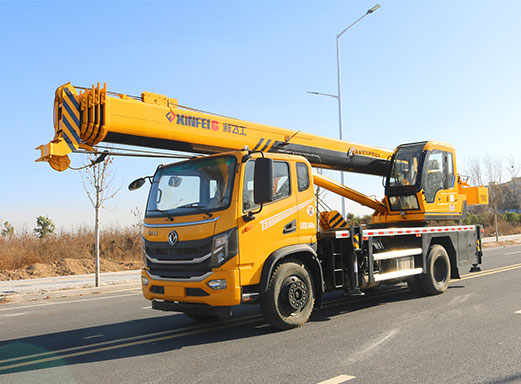

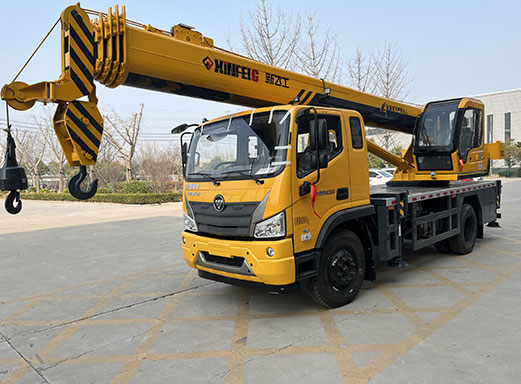

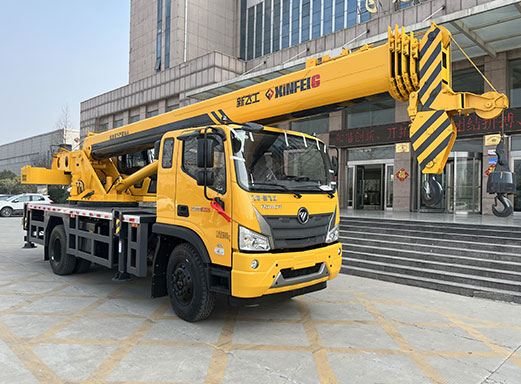

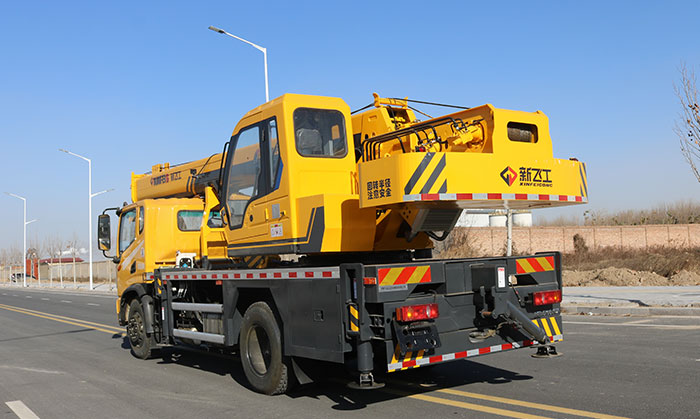

Truck Crane HFL5150JQZ-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

FOTON FOWOR ES5 Chassis 4X2 Chassis
Chassis model: BJ5164JQZHPDD-01 special chassis , Left hand drive,with WEICHAI engine WP3NQ160E61, 160Hp Diesel engine, 2970ml displacement, 4200mm wheelbase,front tire 900R20 and rear 900R20, The truck payload is 15Tons.
Equipped with the XINFEIG 12Ton 5-section straight boom crane,the crane lifting capacity is 12Ton ,max boom outreach is 30m, max crane working height is 32m,Double winches, load moment, rear stabilizer.
Boom material high tensile plate BS700MMKC, high tensile plate, ensure bearing capacity while reduce boom light, Five section boom 1 cylinder 3 rope reliable working performance and enhance working efficiency.
Famous hydraulic part, Cylinder adopt XCMG the high quality products safe and reliable make sure long service life .
Ergonomic design cab for driver and operator are specious for flexible and convenient operations.

Crane specification

Crane	Brand	XINFEIG
	Crane model	HFL5150JQZ
	Manufacture year	2026
	Rated lifting capacity	12000kg
	Max. Boom outreach	30.2m
	Max outreach lifting capacity	1000kg @15m
	Slewing angle( continuous)	360° continuous
	Boom raising angle	0~78°
	Max. lifting height (the measurement from the ground after the outriggers fully extended)	32m
	Length of the basic boom	7.78m
	Numbers of the boom	5 section
	Outrigger span (fully extended)	5.4m
	Front and rear leg	Double chamber hydraulic control
	Operating position	Hydraulic lifting cabin
	Recommend oil displacement	100 L/min

Chassis Parameters

FOWOR Chassis	Engine brand	FOWOR
	Engine model	WP3NQ160E61
	Displacement(ml/kw)	2970/118
	Transmission	Fast 8 speed gear box,manual 8 forward and 2 reserve
	Wheelbase/ No. of axle	4200mm / 2
	Frame(mm)	280×280 (8+4)
	Front axis	4.8T
	Rear axis / Speed ratio	10.2T / 4.58
	Tire Specification	Front 900R20 Rear 900R20
	Tire Number	6 tires and 1 spare tire
	Steel ring	All steel wheel mesh ( 6+ 1)
	Axle load (kg)	4800/10200
	Total mass(kg)	15000
	Tool box	1 SET
	Fuel Tank	280 L alloy
	Max Speed	88 km/h
	Paint	Metallic paint
	Breaks system	Air breaks with ABS
Dimension	(LengthWidthheight)	10.122.353.28
	Max grade ability	35%
	Steering radius	10m
	Electric motor	Add auxiliary oil circuit with 15kw electric motor
	Winch camera	Assist observe the work of the hoist
Hook	Front stabilizer	Install under the chassis cabin
Hook	Main hook	Heavy duty, 2 pcs front /rear

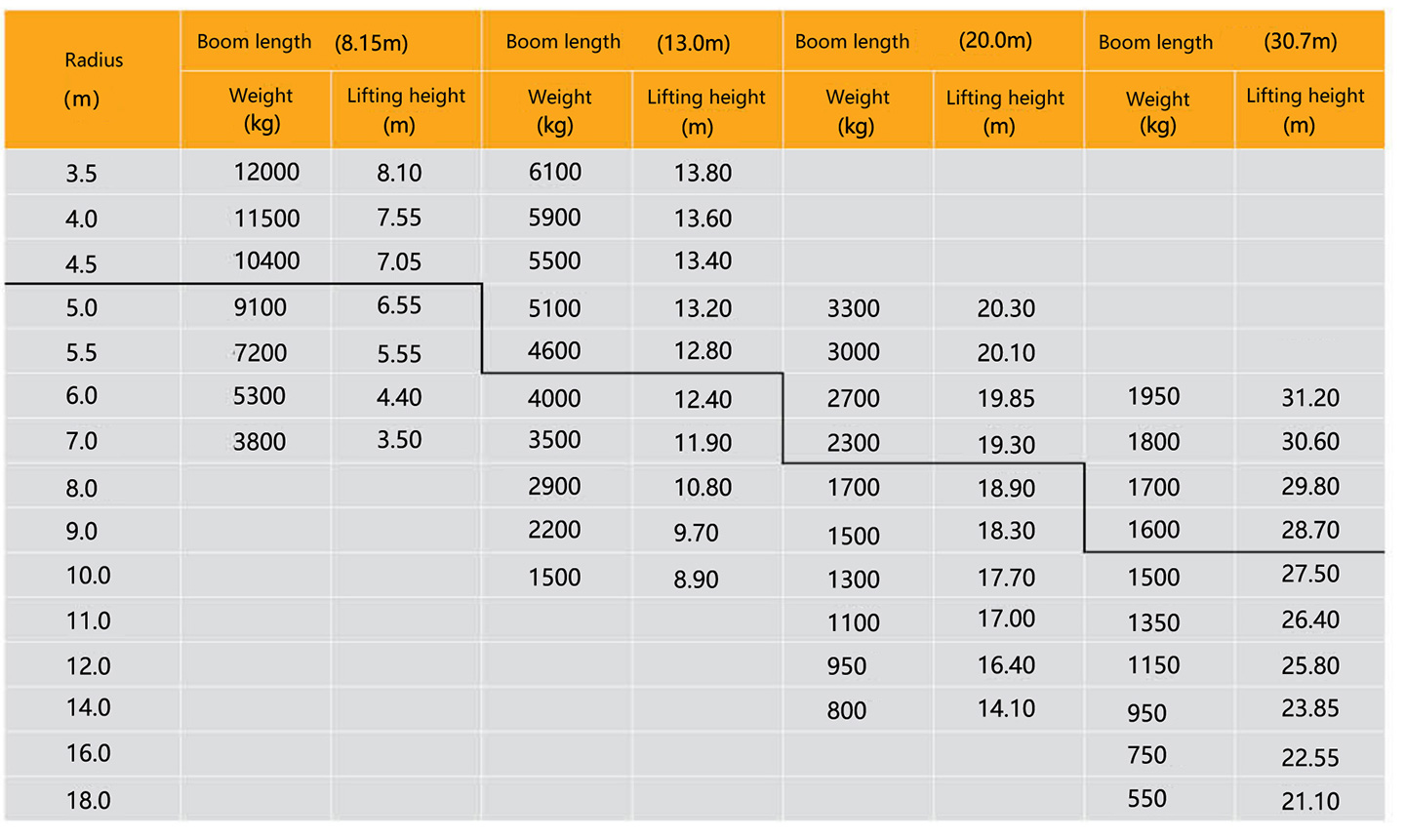

Lifting chart
