HFL5165JQZ
10000kg
30m
HFL5165JQZ
10000kg
30m

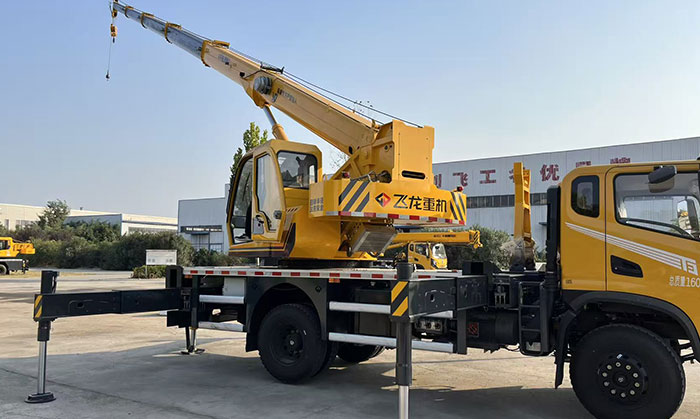

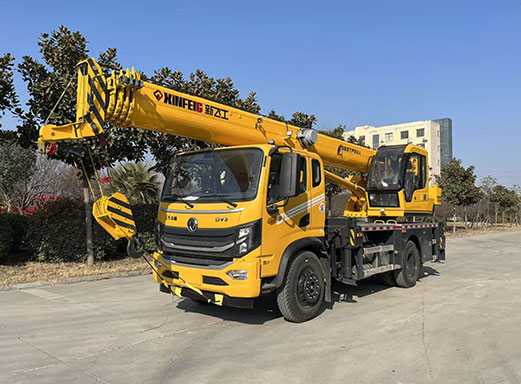

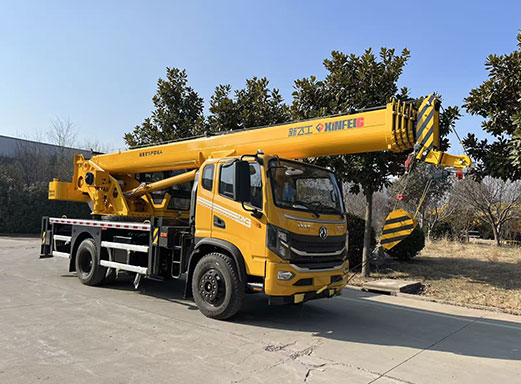

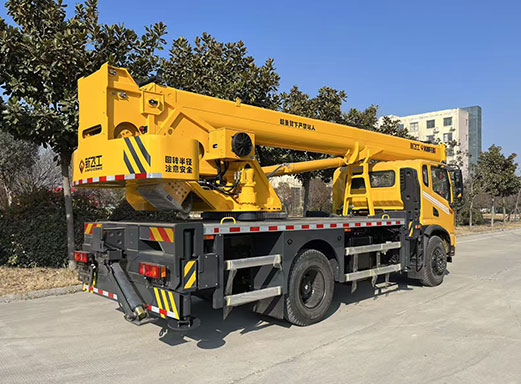

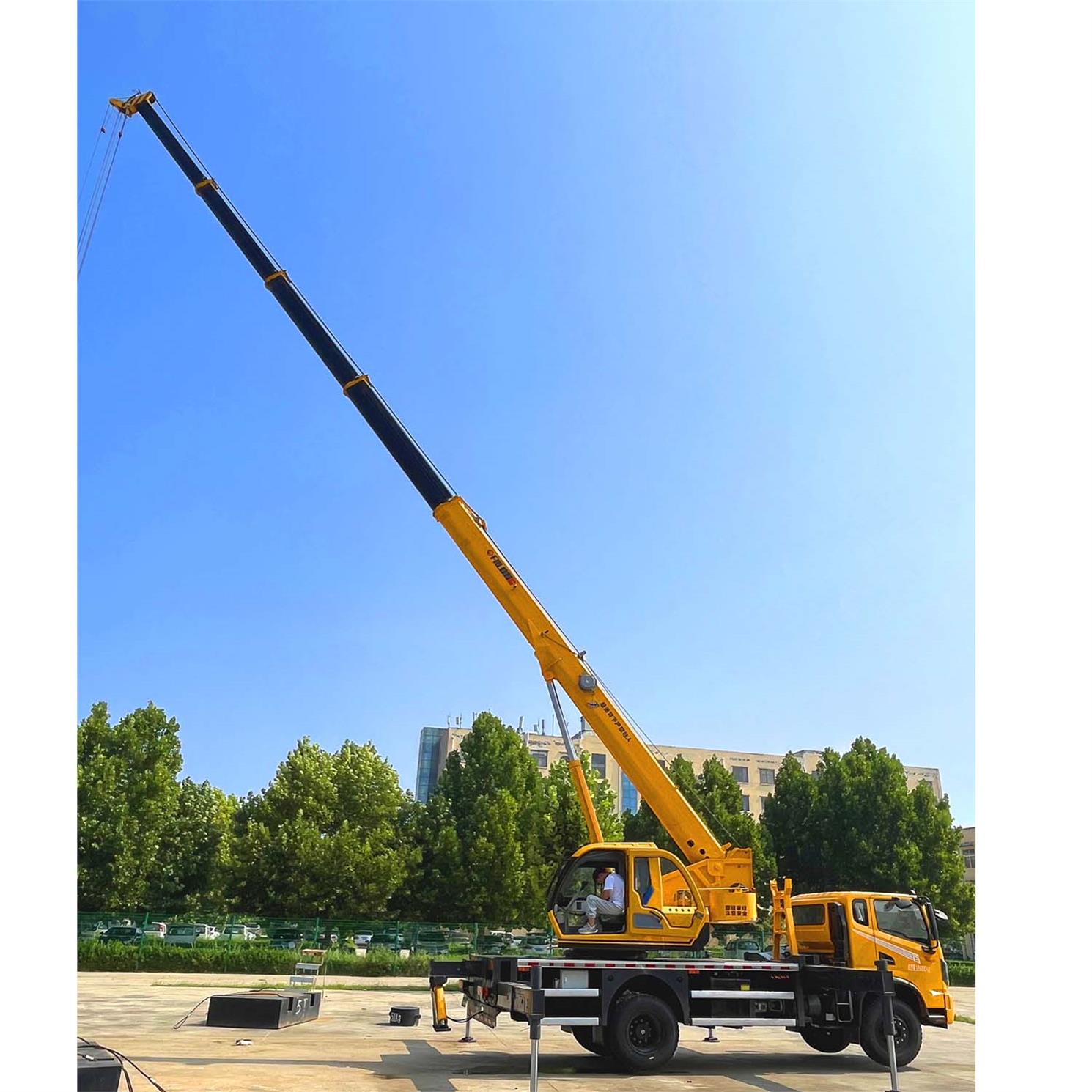

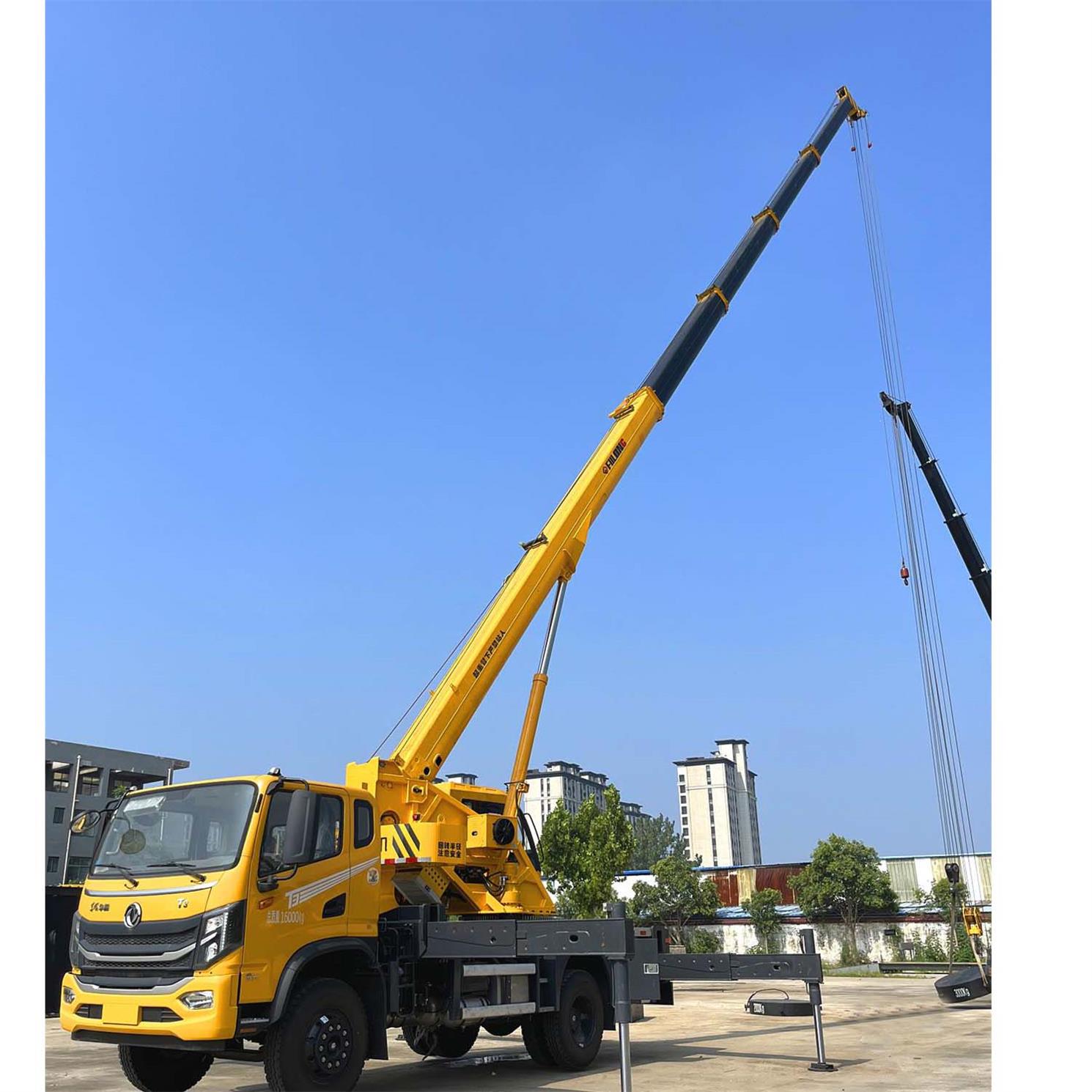

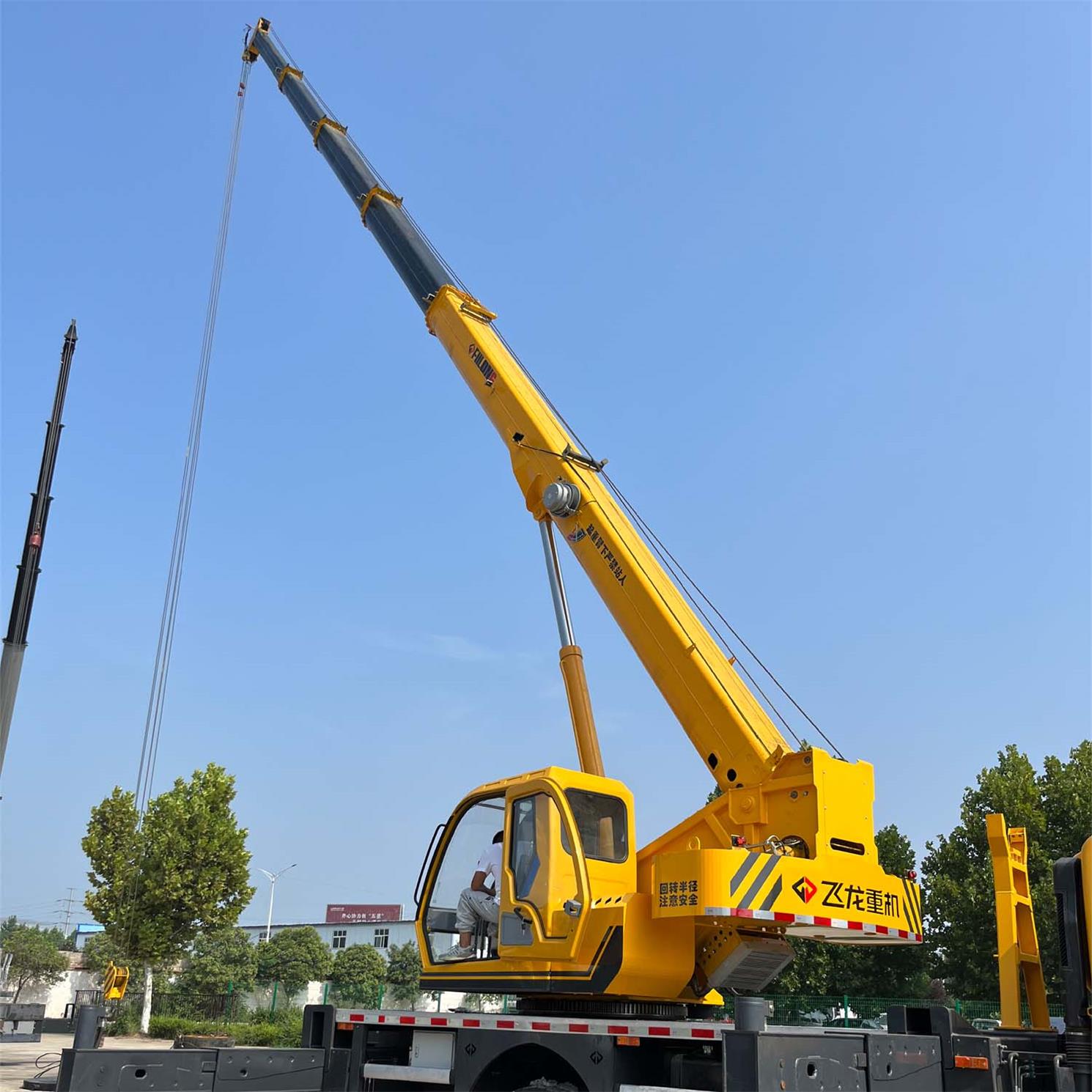

Truck Crane 10Ton 5-section straight boom crane,the crane lifting capacity is 10Ton , max boom outreach is 30m, max crane working height is 32m, Double winches, rear stabilizer.
Boom material high tensile plate BS700MMKC, high tensile plate, ensure bearing capacity while reduce boom light, 5 section boom 1 cylinder 3 rope reliable working performance and enhance working efficiency.
Famous hydraulic part, exceptional quality, ensure safe and reliable operation, long service life.
Ergonomic design cab for driver and operator are specious for flexible and convenient operations.
| Crane | Brand | XINFEIG |
| Crane model | HFL5165JQZ | |
| Manufacture year | 2025 | |
| Rated lifting capacity | 10000kg | |
| Max. Boom outreach | 30m | |

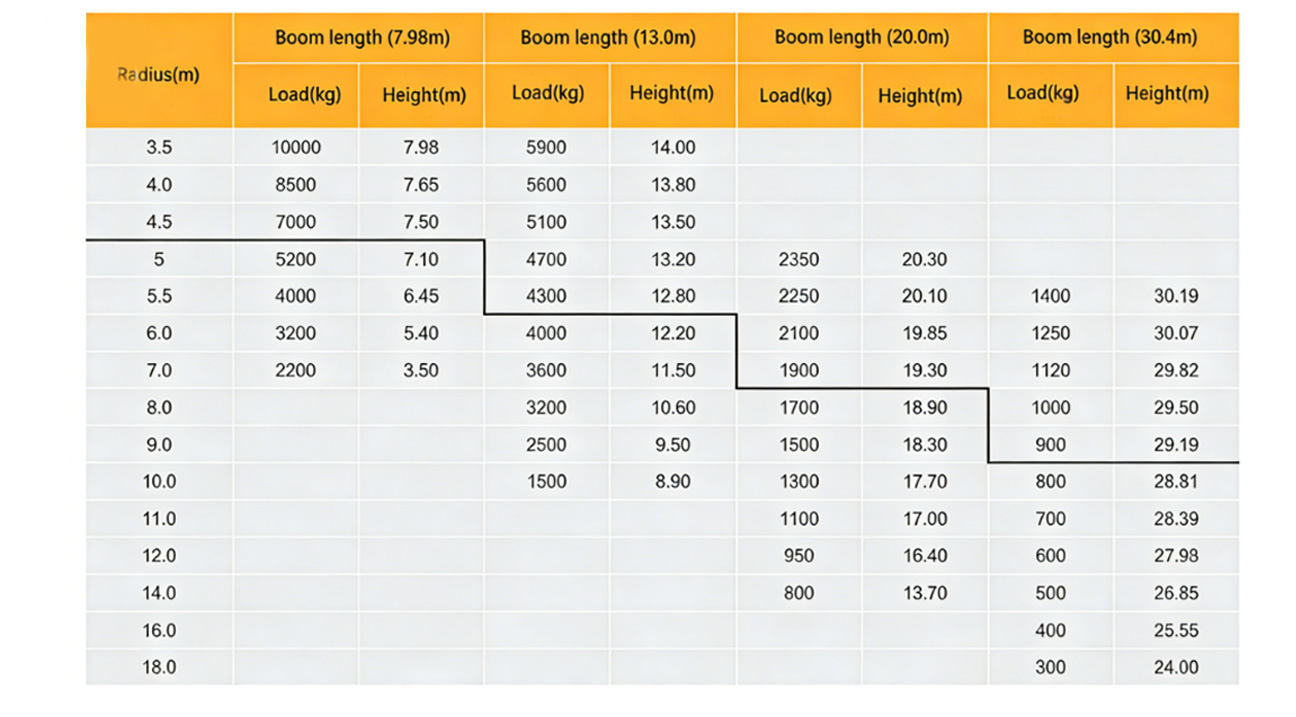

| Max outreach lifting capacity | 1000kg @15m | |
| Slewing angle( continuous) | 360° continuous | |
| Boom raising angle | 0~78° | |
| Max. lifting height (the measurement from the ground after the outriggers fully extended) | 32m | |
| Length of the basic boom | 7.3m | |
| Numbers of the boom | 5 section | |
| Outrigger span (fully extended) | 5.9m(double beam) | |
| Recommend oil displacement | 100 L/min | |
| Working speed | Main/auxiliary hook max lifting speed (single rope) | 120 m/min |
| Full telescopic boom time | 85s | |
| Maximum rotation speed | 0-2.5 r/min | |
| Full lifting/lowering time of boom | 45/40s | |
| Main hoisting rope capacity | 140m | |
| Auxiliary hoisting rope capacity | 115m | |
| Option device | Load limiter | |
| Aerial working basket | ||
| Jib | ||
| we can customize for special need Based on the general data of crane Boom Section: an option 2 to 6 section, length form 14 meters to 32 meters Outrigger span: an option single beam and double beam, from 5.3 meters to 5.9 meters |
||
DONGFENG 4X2 drive type, left hand drive, an option right hand drive
Chassis model: EQ1160GL6DJ1 special chassis , Left hand drive,with YUCHAI engine YCS04160-68, 160Hp Diesel engine, 4165ml displacement, 3950mm wheelbase,front tire 900R20 and rear 900R20, total mass 16000kg.
Inner cabin: electric lifting window, air conditioner, two seat, sing sleeper.
| Dongfeng Chassis | Engine Brand | Yuchai |
| Engine Model | EQ1160GL6DJ1 | |
| Displacement(ml/kw) | 4156/118 | |
| Transmission | Fast 8 speed gear box,manual 8 forward and 2 reserve | |
| Wheelbase/ No. of axle | 3950mm / 2 | |
| Frame (mm) | 280×280 (8+4) | |
| Front axis | 5.6T | |
| Rear axis / Speed ratio | 10.40T / 4.58 | |
| Tire Specification | Front 900 R20 Rear 900 R20 | |
| Tire Number | 6 tires and 1 spare tire | |
| Steel ring | All steel wheel mesh ( 6+ 1) | |
| Axle load (kg) | 5600/10400 | |
| Total mass(kg) | 16000 | |
| Tool box | 1 SET | |
| Fuel Tank | 280 L alloy | |
| Max Speed | 88 km/h | |
| Paint | Metallic paint | |
| Breaks system | Air breaks with ABS | |

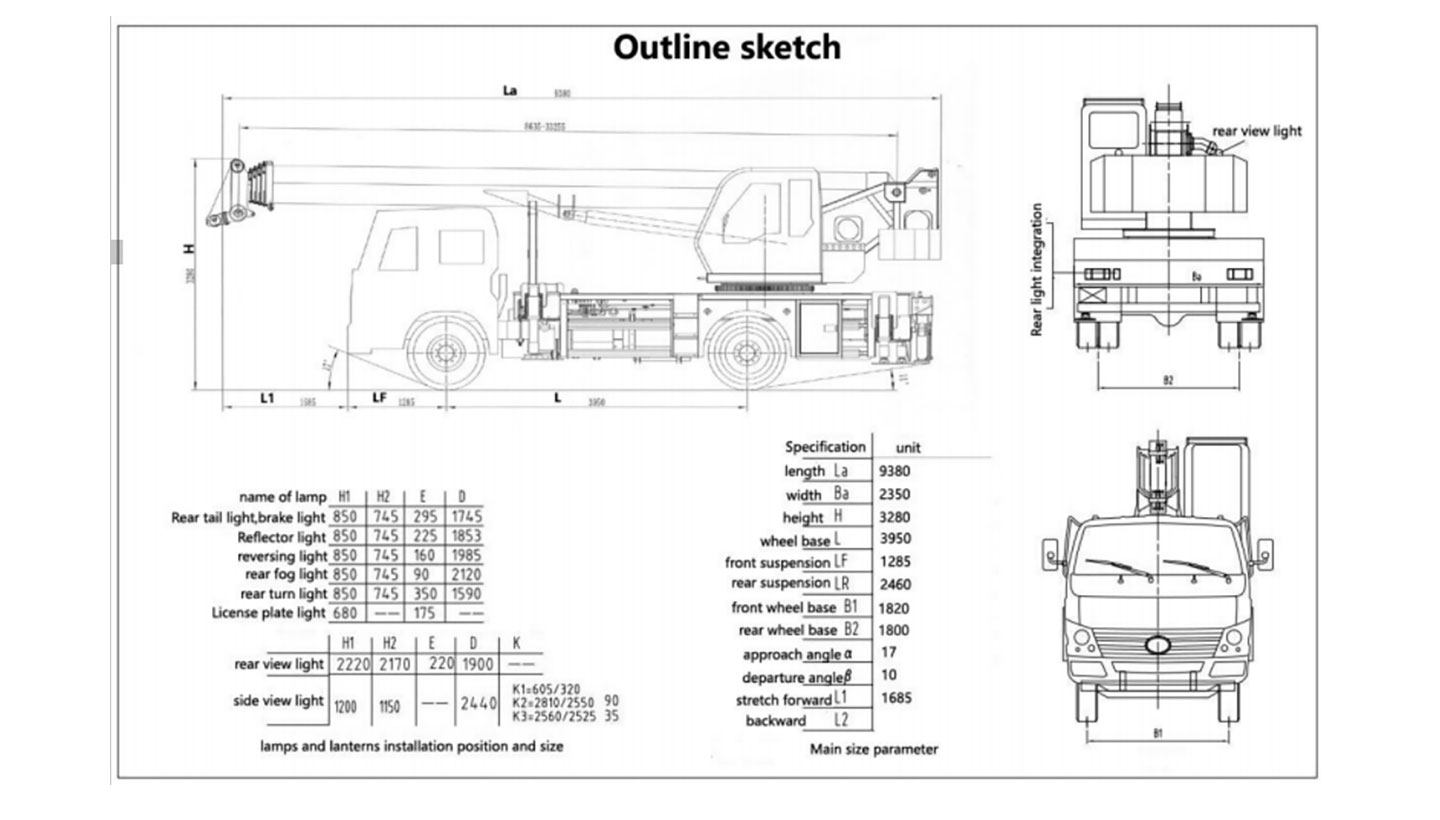

| Dimension | (Length*Width*height) | 9380*2350*3280mm |
| Dimension | Max grade ability | 28% |
| Dimension | Steering radius | 10m |
| Hook | Main hook | Heavy duty, 2 pcs front /rear |
| Chassis brand can option according to you prefer, | ||
| Engine emission standard can option III,IV,V,VI according to you local regulation | ||
