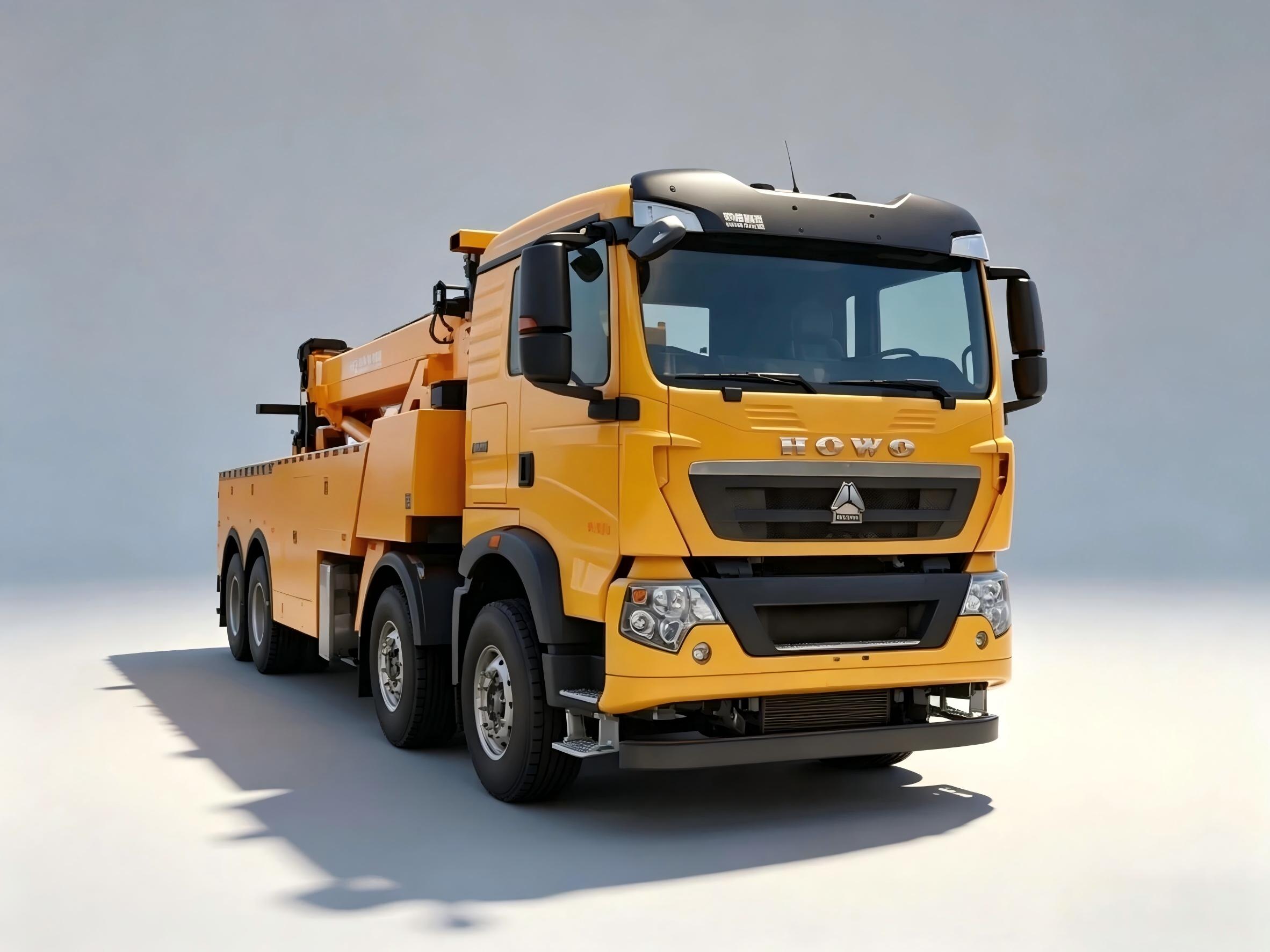

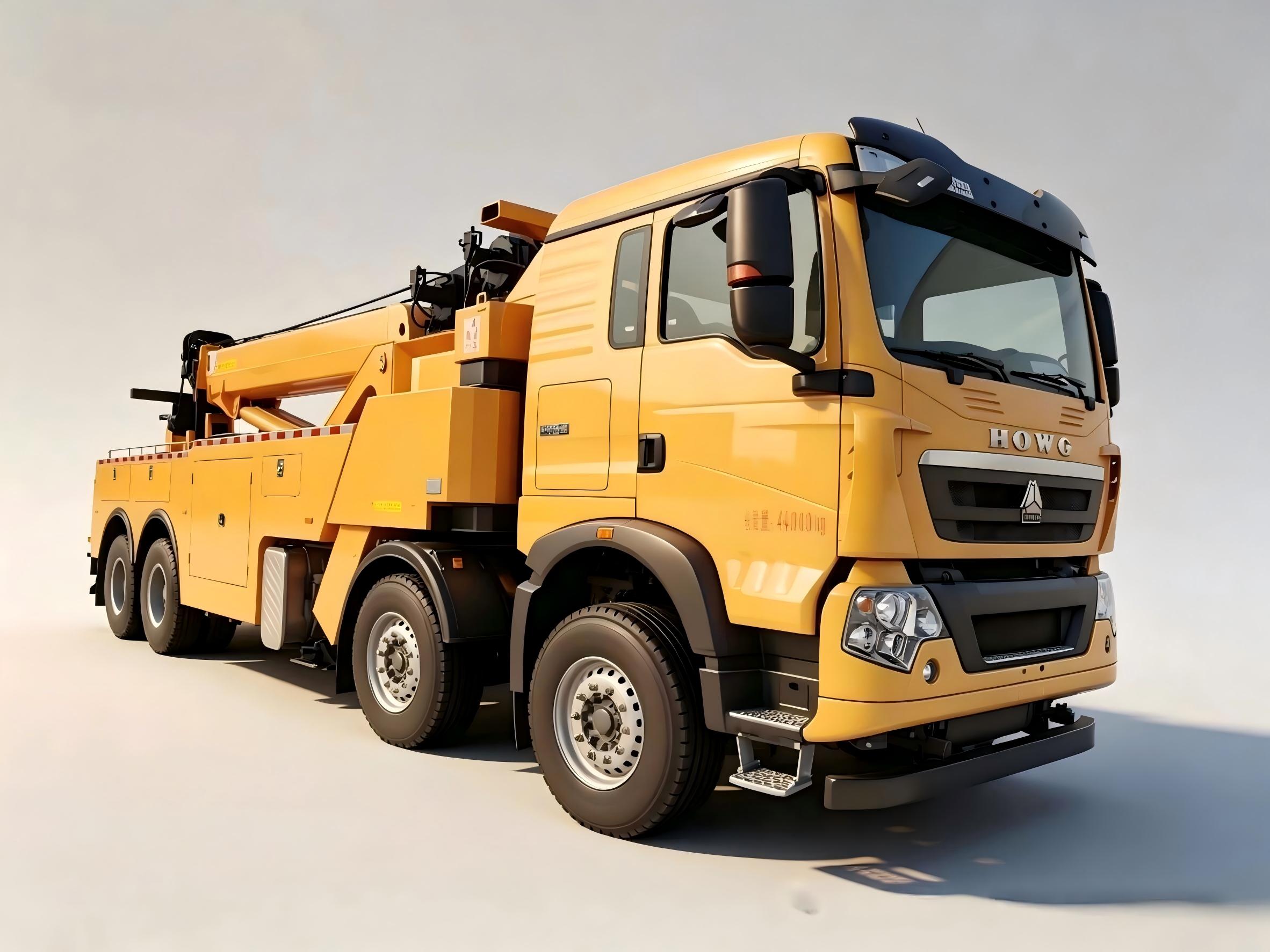

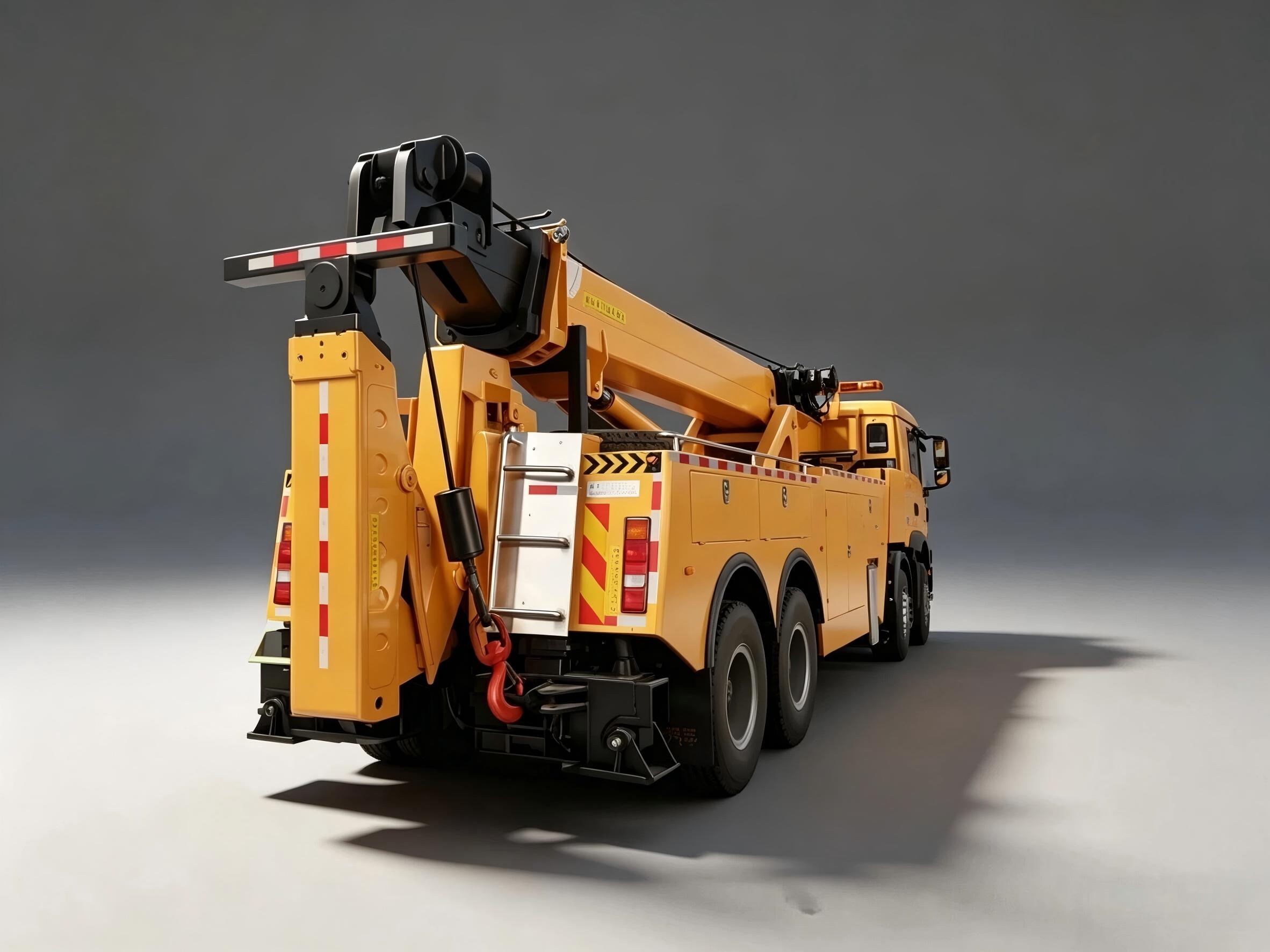

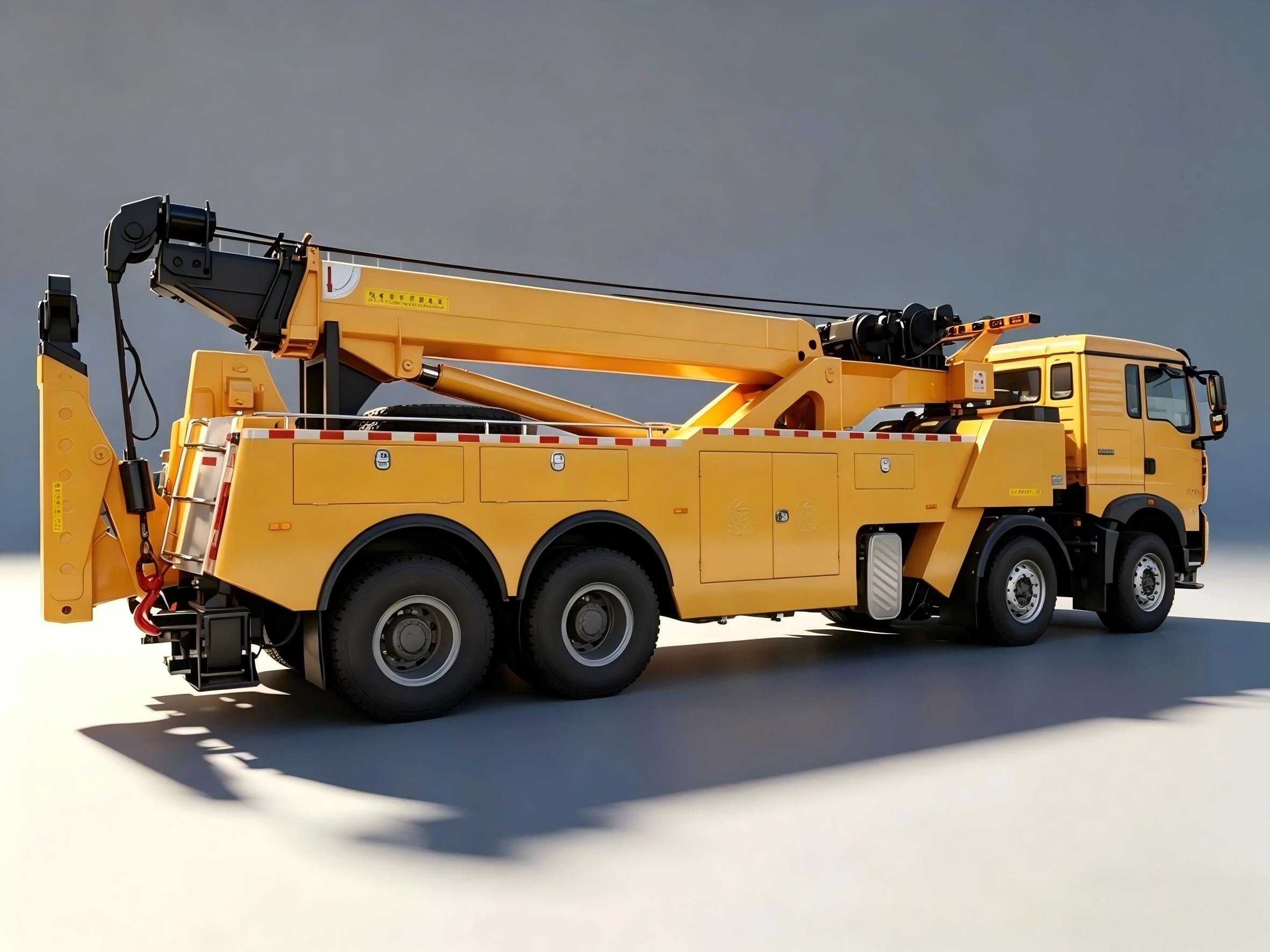

Wrecker truck

Onboard device

• HOWO brand chassis with Wrecker 30 Ton, crane all-around rotation, Max lifting capacity 30Ton, working radius 8.5meters.
• Rear tow bar capacity 20 Tons, frame extension 3meters.

Wrecket configuration: The entire upper structure undergoes electrophoretic rust prevention treatment, includes a 30-ton rotary crane, a split-type cargo box module, a cab with front counterweight, reinforced plates on both sides of the towing arms, two 150KN winches (with 45-meter steel wire ropes), one pair of U-shaped tire holders, five pairs of towing forks, one pair of towing fork seats, two chain hooks, one set of auxiliary brake air pipes, and a wireless remote control device. The renowned hydraulic pump and Italian hydraulic valves ensure stable, durable operation.

Wrecker core functions

1. The 30-ton tow truck’s power stems primarily from these core technologies:

2. Lifting Function: A telescopic, lifting boom lifts the front axle, rear axle, or frame of a disabled vehicle, raising one end off the ground for easy towing.

3. Hoisting Function: Equipped with a variable-amplitude hydraulic boom, it can lift, right, and place vehicles overturned on the roadside or in ditches onto the road surface.

4. Towing and Pulling: Typically equipped with two high-powered winches, working in conjunction with the boom and ground anchors, it can powerfully tow vehicles stuck in distress. Additionally, it can directly tow vehicles with intact axles using a tow bar.

Chassis

• Chassis configuration: Howo TX7 Series; TX-M cab; Engine VI emission standard 400hp (MC11.40-60 engine model); 10-speed gearbox (HW19710 transmission model)
  Wheelbase 1950+4625+1350mm; Double-layer frame (8+8/300); Tires: Front 385/65R22.5, Rear 12.00R20; equipped with ABS(4S/4M); A/C; Driving recorder, both manual and electric rise cabin; 400L fuel tank; cable-operated PTO; mechanical shock absorbers for the seat.
• Trailer Dimension 11600×2550×3650mm.
• GVW 44000Kg.

Application

The 30-ton professional tow truck is a heavy-duty roadside assistance device that integrates multiple functions such as lifting, hoisting, towing, and pulling. Its core function is to quickly remove accident- or breakdown-prone heavy vehicles (such as large trucks and buses) from the scene, ensuring smooth traffic flow. It serves a wide range of sectors, including transportation, disaster relief, and industrial transport.
