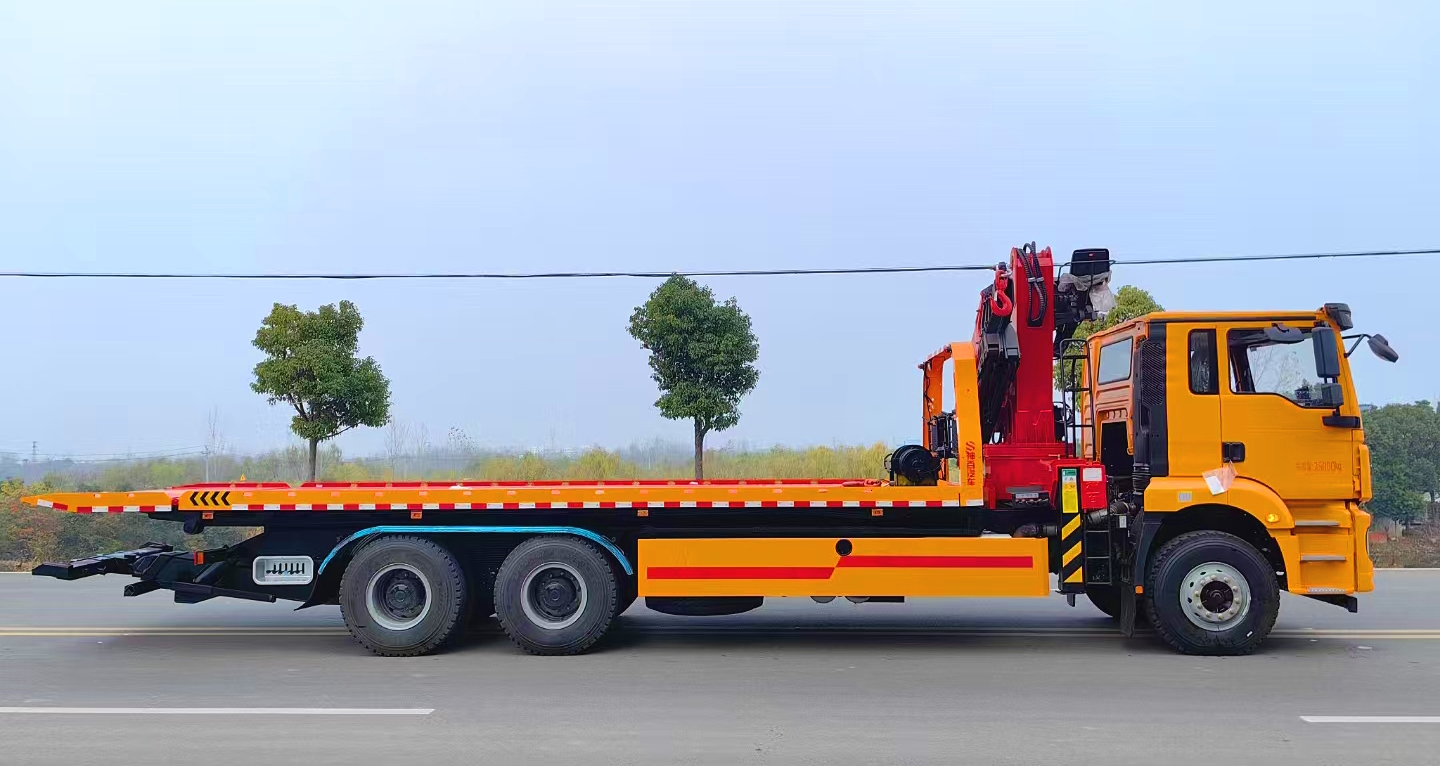

Tow truck with crane

• Knuckle boom crane, lifting capacity 8000Kg, boom length 12.2m, lifting height 15.3m

• The 4-section boom hydraulic system adopts a piston pump to provide strong power, ensuring stable movement and efficiency.
• excellent workmanship, good appearance, and durable long-term service life.
• full technical support, and customized service for special project support.

Crane brand can be option XCMG, SANY, XINFEIG

Crane lifting capacity of 8 tons to 16 tons is an option

Knuckle boom crane, folding arm crane with flatbed truck

Flatebed

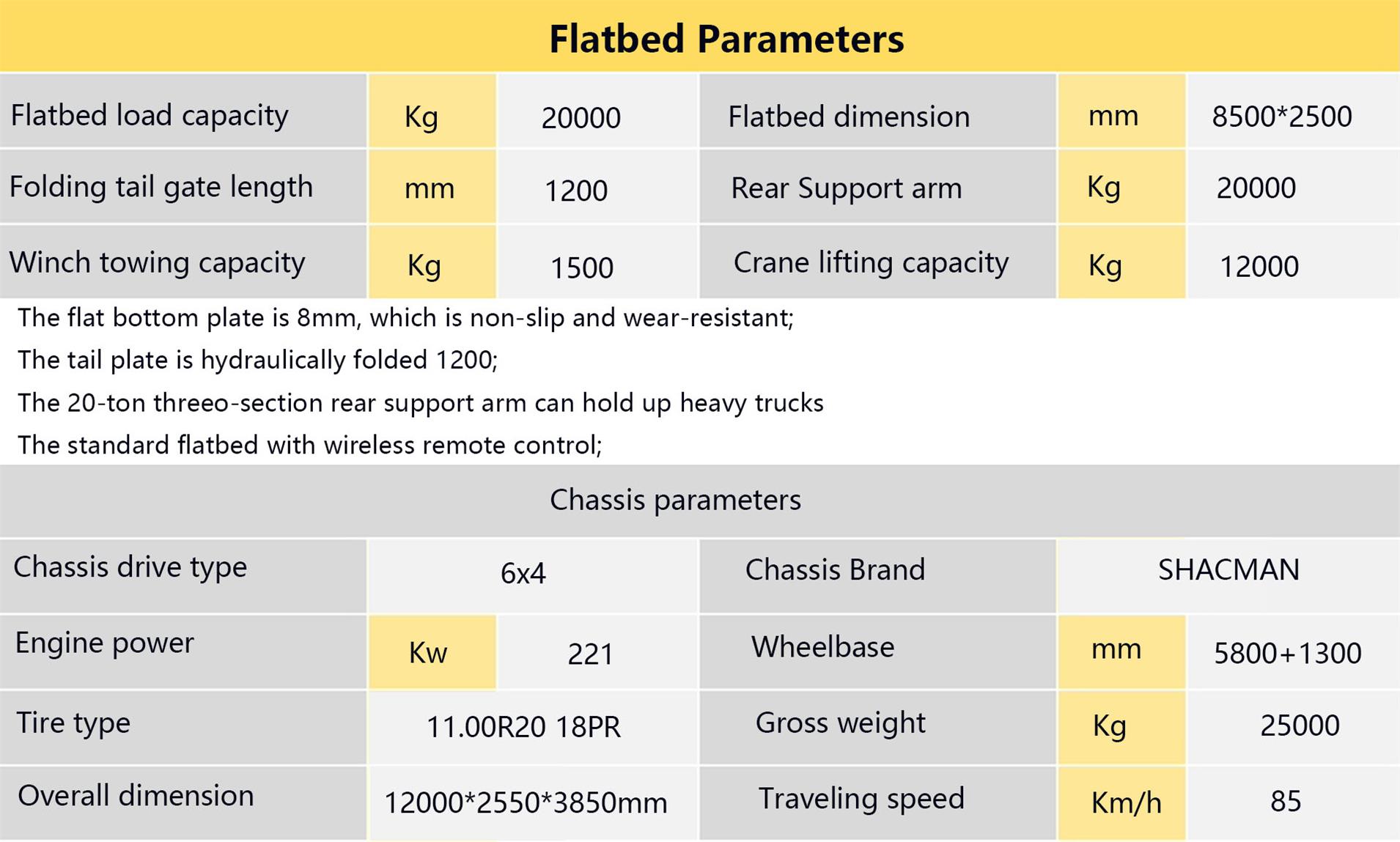

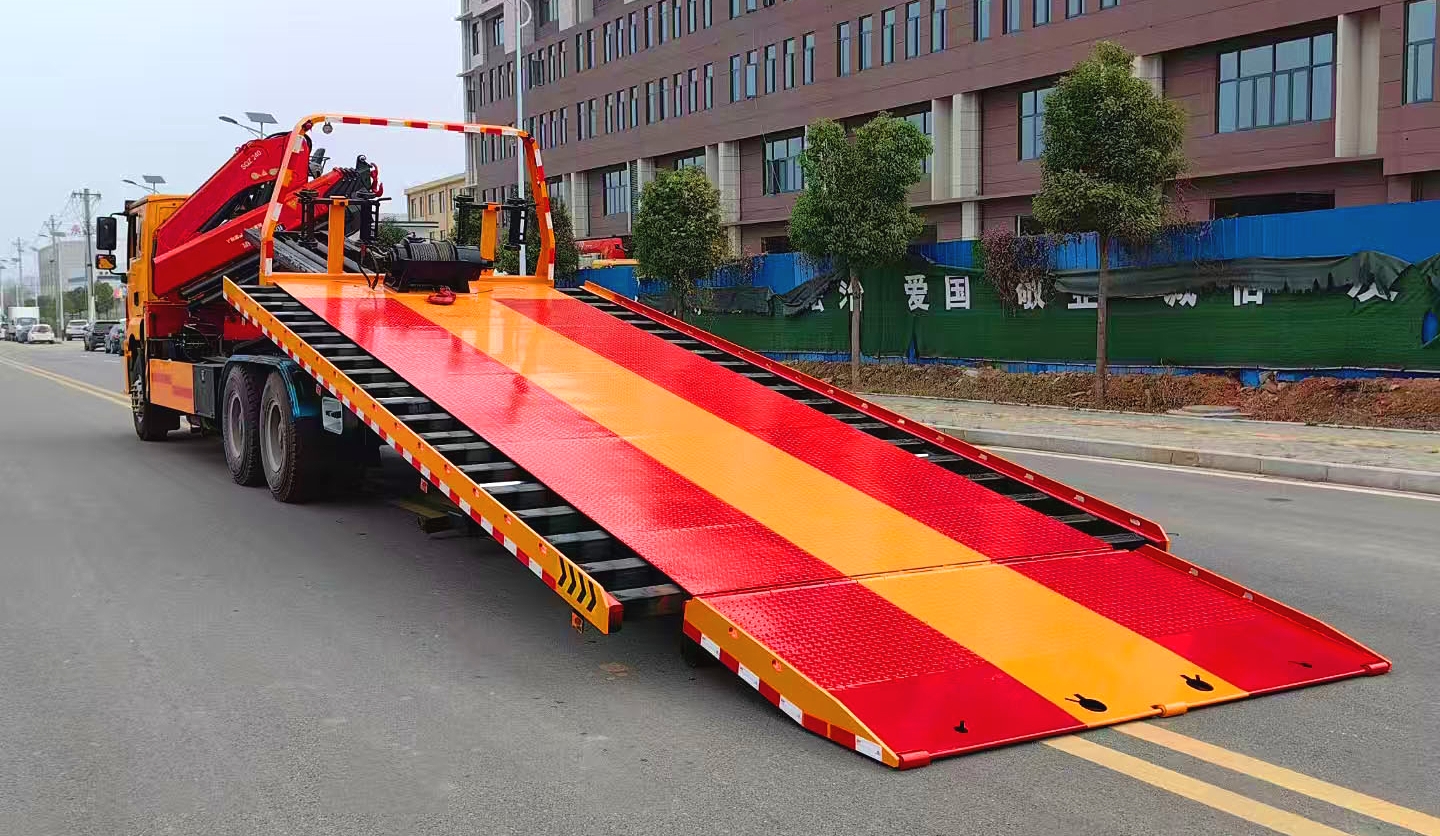

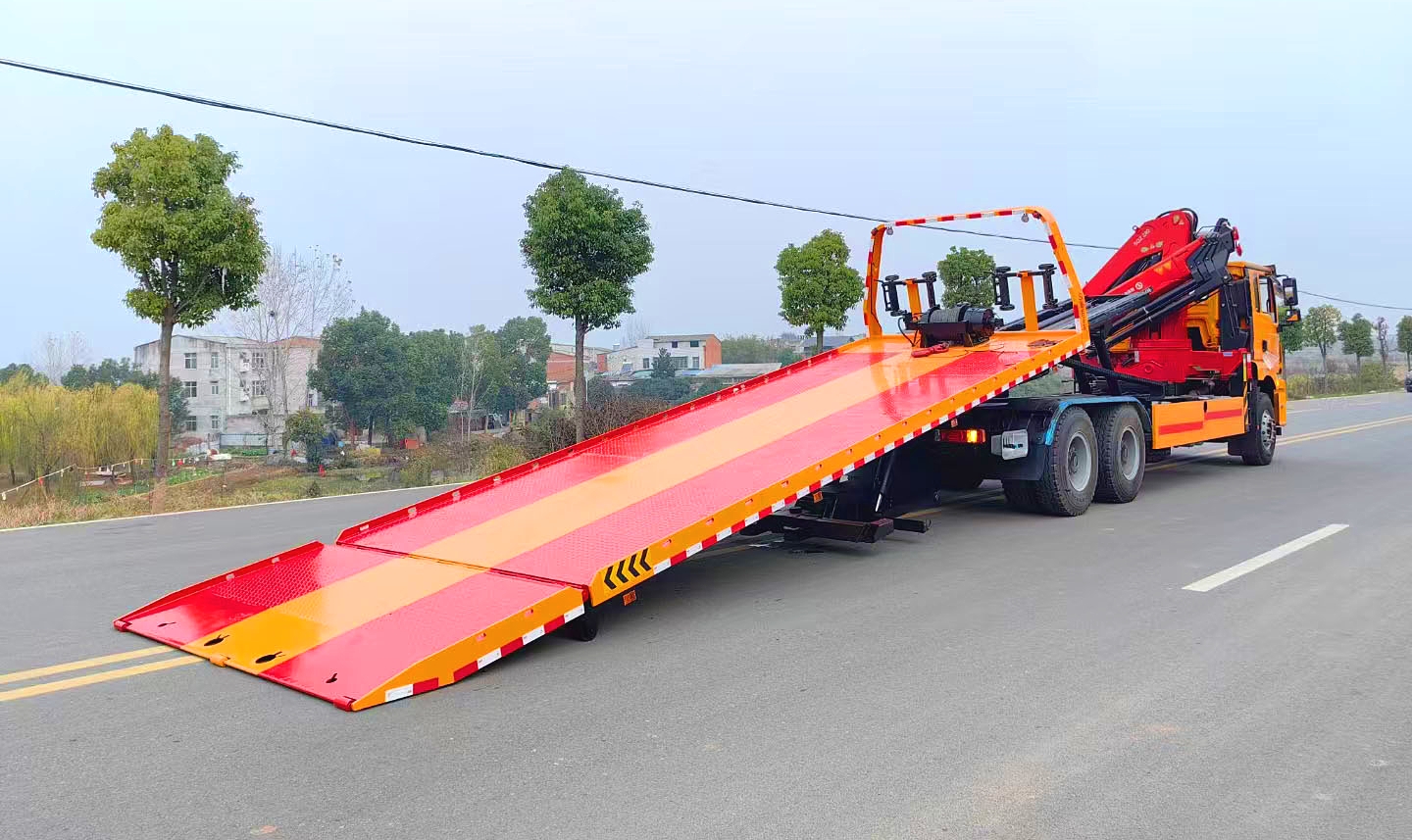

• Flatbed configuration: 8mm checkered plate, flatbed length 8500mm, width 2500mm, 1200mm tail plate with hydraulic tilting at the rear of the flatbed; 20-ton two-section rear tow arm, 15-ton planetary gear winch, 30-meter steel wire rope.

Chassis

• Chassis brand SHACMAN, 10 wheels, engine power 270hp, 9 gearbox transmission, tire type 11.00R20,  GVW 25000Kg.
