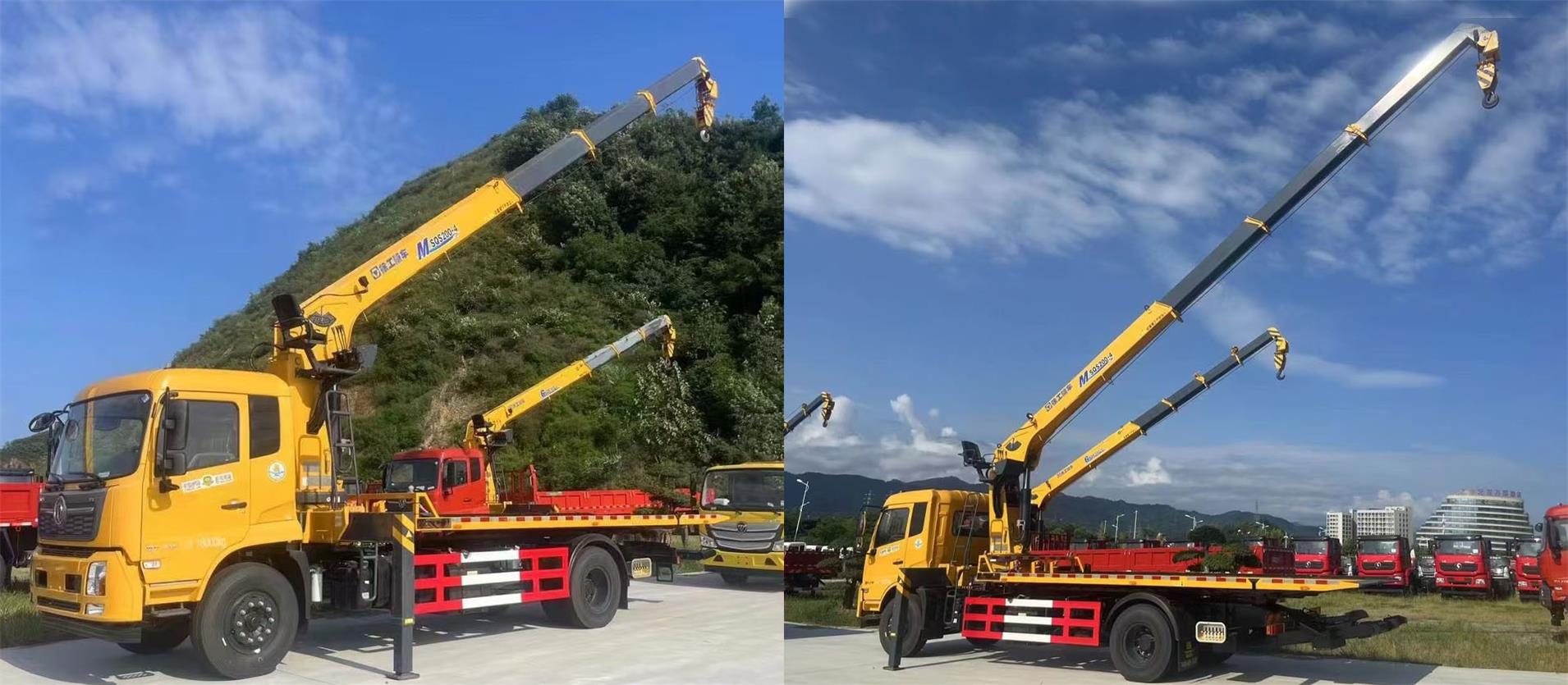

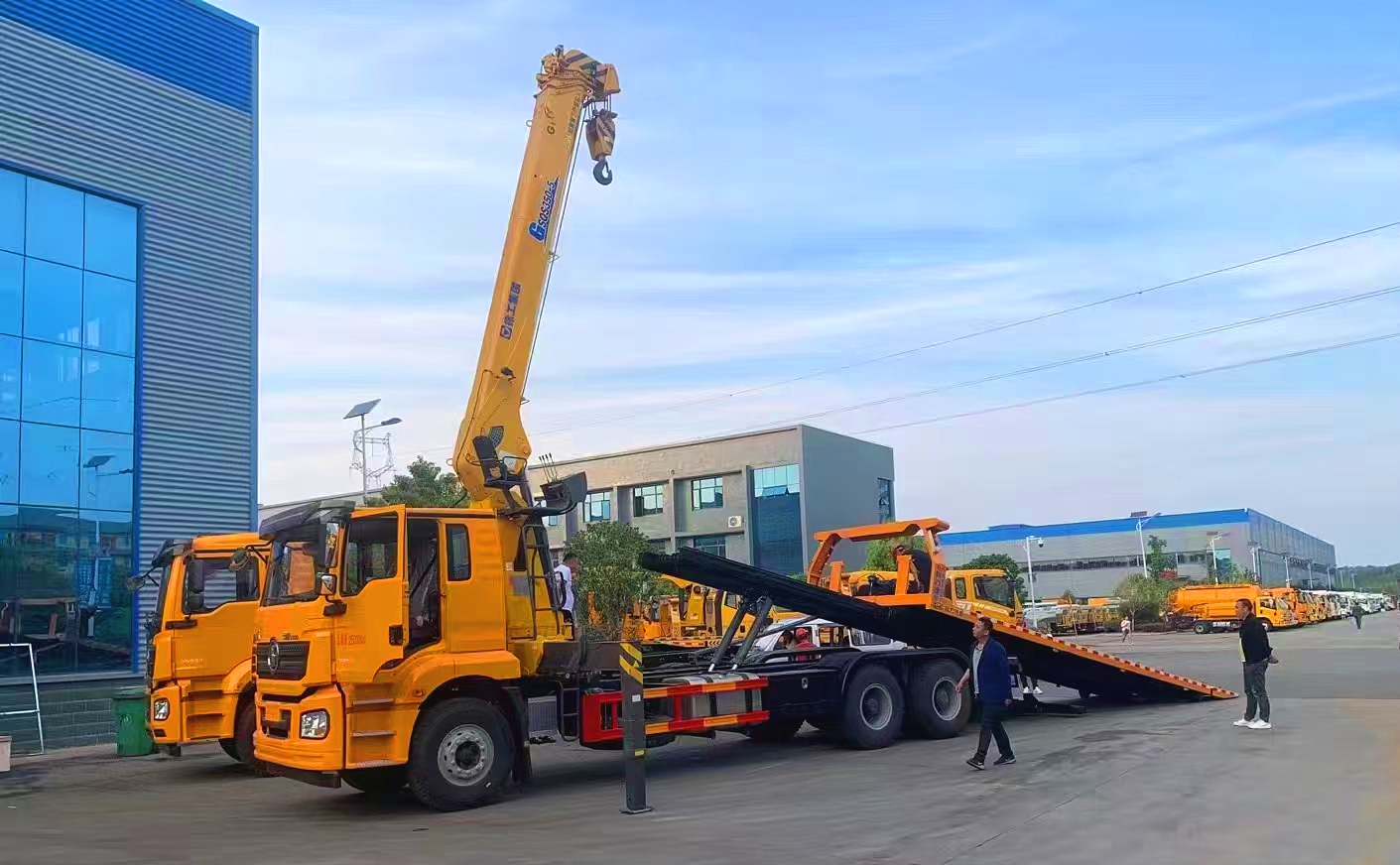

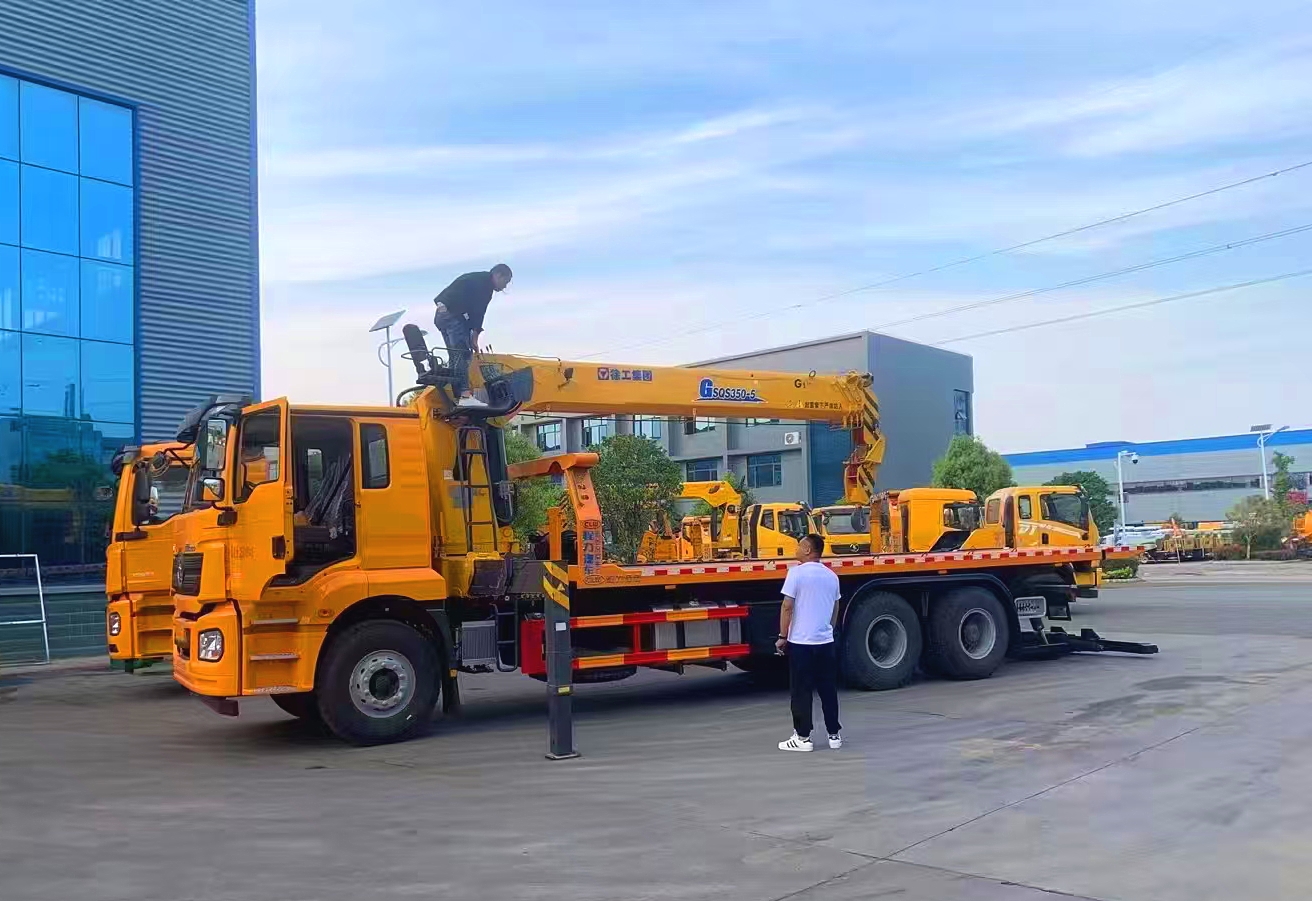

Tow truck with crane

• Lifting capacity 12000Kg, boom length 15.5m, lifting height 16.5m

• The 4-section boom hydraulic system adopts a dual-pump confluence, ensuring stable movement and efficiency.
• excellent workmanship, good appearance, and durable long-term service life.
• full technical support, and customized service for special project support.

Crane brand can be option XCMG, SANY, XINFEIG

Crane lifting capacity of 8 tons to 14 tons is an option

Flatebed

• Flatbed configuration: 8mm checkered plate, flatbed length 8500mm, width 2500mm, 1200mm tail plate with hydraulic tilting at the rear of the flatbed; 20-ton two-section rear tow arm, 15-ton planetary gear winch, 30-meter steel wire rope.

Chassis

• Chassis brand SHACMAN, 10 wheels, engine power 270hp, 9 gearbox transmission, tire type 11.00R20,  GVW 25000Kg.
