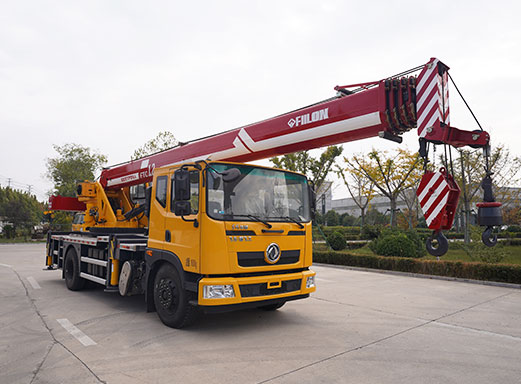

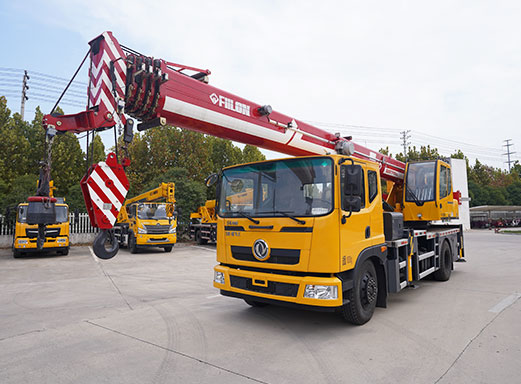

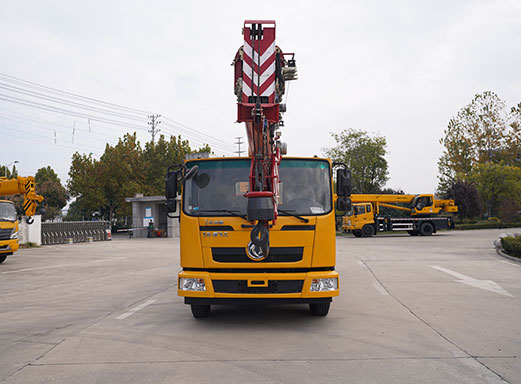

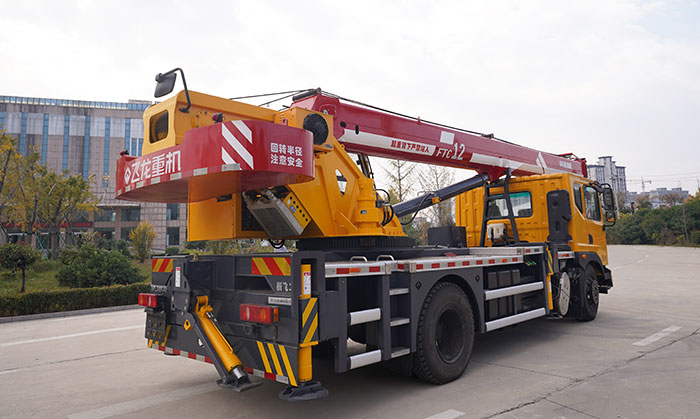

Truck Crane HFL5188JQZ, 5-section straight boom crane,the crane lifting capacity is 12Ton ,max boom outreach is 36m, max crane working height is 38m,Double winches, hydraulic automatic rear stabilizer.
Boom material high tensile plate BS700MMKC, high tensile plate, ensure bearing capacity while reduce boom light, Five section boom 2 cylinder 2 rope reliable working performance and enhance working efficiency.
Famous hydraulic part, exceptional quality, ensure safe and reliable operation, long service life.
Ergonomic design cab for driver and operator are specious for flexible and convenient operations.
| ITEM | ||
| Crane | Brand | XINFEIG |
| Crane model | HFL5188JQZ | |
| Manufacture year | 2025 | |
| Rated lifting capacity | 12000kg | |
| Max. Boom outreach | 36m | |
| Max outreach lifting capacity | 1000kg @22m | |
| Slewing angle(continuous) | 360° continuous | |
| Boom raising angle | 0~78° | |
| Max.lifting height (the measurement from the ground after the outriggers fully extended) |
38m | |
| Length of the basic boom | 8.5m | |
| Numbers of the boom | 5 section | |
| Outrigger span (fully extended) | 6.4m(double beam) | |
| Recommend oil displacement | 100 L/min | |
| Working speed | Main/auxiliary hook max lifting speed (single rope) | 120 m/min |
| Full telescopic boom time | 105s | |
| Maximum rotation speed | 0-2.5 r/min | |
| Full lifting/lowering time of boom | 55/50s | |
| Main hoisting rope capacity | 140m | |
| Auxiliary hoisting rope capacity | 115m | |
| Option device | Load limiter | |
| Aerial working basket | ||
| Jib | ||
| we can customize for special need Based on the general data of crane Boom Section: an option 2 to 6 section, length form 14 meters to 38 meters Outrigger span: an option single beam and double beam |
|
Dongfeng Chassis |
Engine Brand | Yuchai |
| Engine Model | EQ1160GL6DJ1 | |
| Displacement(ml/kw) | 4156/147 | |
| Transmission | Fast 8 speed gear box,manual 8 forward and 2 reserve | |
| Wheelbase/No. of axle | 4700mm / 2 | |
| Frame (mm) | 280×280 ( 8+4) | |
| Front axis | 6.5T | |
| Rear axis / Speed ratio | 11.5T / 4.58 | |
| Tire Specification | Front1000R20Rear1000R20 | |
| Tire Number | 6 tires and 1 spare tire | |
| Steel ring | All steel wheelmesh ( 6+ 1) | |
| Axle load (kg) | 6500/11500 | |
| Total mass(kg) | 18000 | |
| Tool box | 1 SET | |
| Fuel Tank | 280L alloy | |
| Max Speed | 88 km/h | |
| Paint | Metallic paint | |
| Breaks system | Air breaks with ABS |
| Dimension | (Length*Width*height) | 11380*2500*3480mm |
| Max grade ability | 28% | |
| Hook | Main hook | Heavy duty, 2pcs front /rear |
| Chassis brand can option according to you prefer, Engine emission standard can option III,IV,V,VI according to you local regulation |
||
