  • Model:

    HFL5189JQZ

  • Rated lifting capacity:

    12000kg

  • Max. Boom outreach:

    38.6m

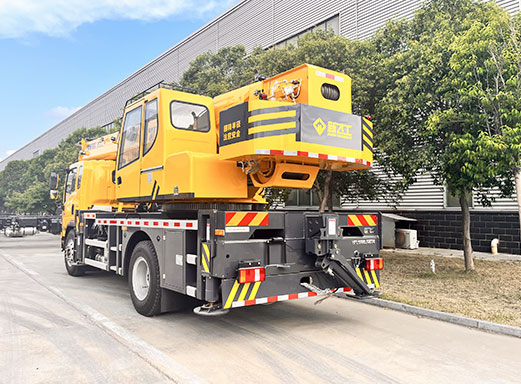

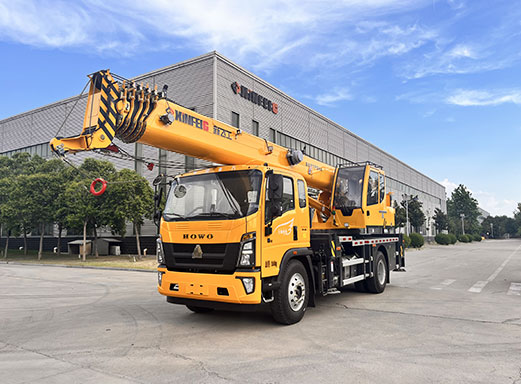

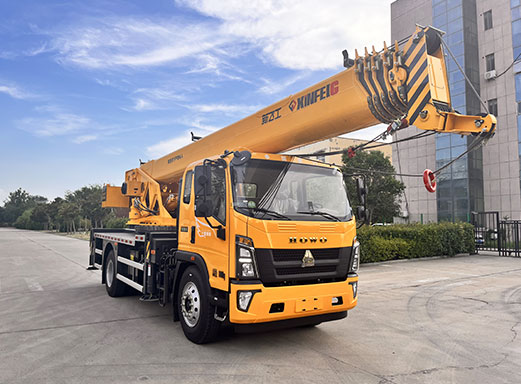

Truck Crane HFL5189JQZ

Model:

HFL5189JQZ

Rated lifting capacity:

12000kg

Max. Boom outreach:

38.6m

Send Email Inquiry Now

Feature Introduction

  • Truck crane HFL5189JQZ 12Ton 6-section straight boom crane,the crane lifting capacity is 12Ton ,max boom outreach is 38.6m, max crane working height is 42m,Double winches, load moment, air-conditioner,rear stabilizer.

  • Boom material high tensile plate BS700MMKC, six section boom 2 cylinders 3 rope The lifting performance of middle & long boom is 30% higher among, Double outrigger max span 6.4m,Improve operational and safety performance.

  • Famous hydraulic part, Cylinder adopt XCMG the high quality products safe and reliable make sure long service life .

  • Ergonomic design cabin, slidingdoor, Camera, A/Cconditioner for driver and operator are specious for flexible and convenient

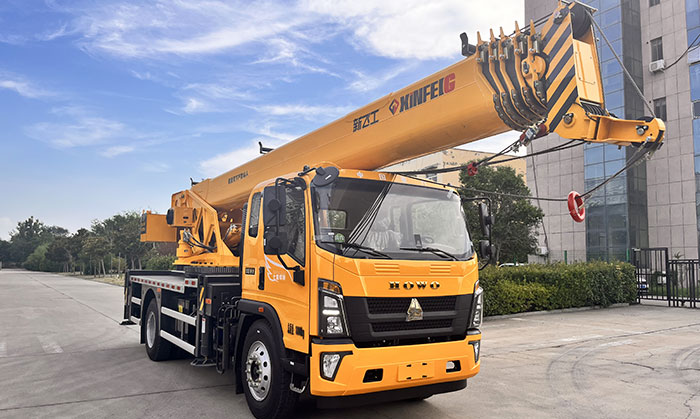

12Ton-HFL5189JQZ-10

Crane specification

Crane Brand XINFEIG
Crane model HFL5189JQZ
Manufacture year 2024
Rated lifting capacity 12000kg
Max. Boom outreach 38.6m
Max outreach lifting capacity 1000kg @26m
Slewing angle(continuous) 360° continuous
Boom raising angle 0~82°
Max.lifting height 42m
Length of the basic boom 8.685m
Numbers of the boom 6 section
Outrigger span (fully extended) 6.4m
Front and rear leg Double chamber hydraulic control
Operating position Hydraulic  lifting cabin
Recommend oil displacement 100 L/min
