HFL5210JQZ
16000kg
38m
HFL5210JQZ
16000kg
38m

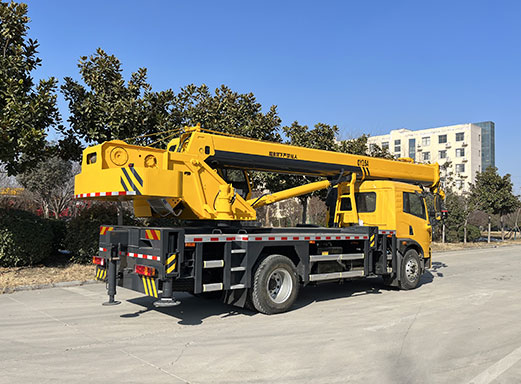

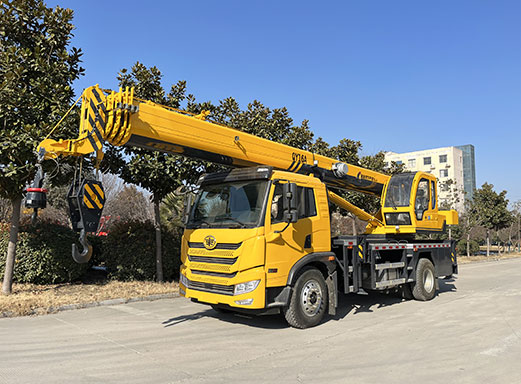

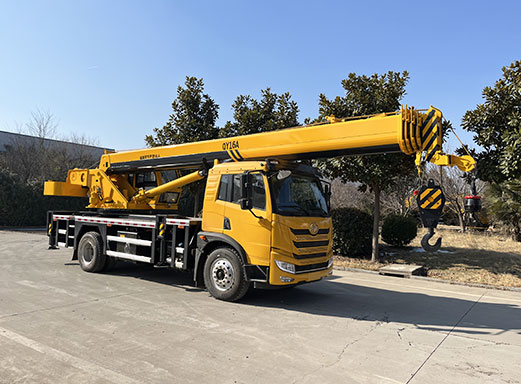

Truck Crane HFL5210JQZ, rated lifting capacity 16Ton, 5-section boom, max boom outreach is 35m, Max crane working height is 38m, Double winches.
Boom material high tensile plate BS700MMKC, high tensile plate, ensure bearing capacity while reduce boom light, Five section boom 1 cylinder 3 rope reliable working performance and enhance working efficiency.
Famous hydraulic part, Cylinder adopt XCMG the high quality products safe and reliable make sure long service life .
| Crane | Brand | XINFEIG |
| Crane model | HFL5210JQZ | |
| Manufacture year | 2025 | |
| Rated lifting capacity | 16000kg | |
| Max. Boom outreach | 38m | |
| Max outreach lifting capacity | 1 0 00 kg @ 22 m | |
| Slewing angle( continuous) | 3 6 0 ° continuous | |
| Boom raising angle | 0~78° | |
| Max. lifting height ( the measurement from the ground after the outriggers fully extended) |
35m | |
| Length of the basic boom | 8.5m | |
| Numbers of the boom | 5 section | |
| Outrigger span ( fully extended) | 6.1m | |
| Recommend oil displacement | 100 L/min | |
| Main/auxiliary hook max lifting speed (single rope) | 110 m/min | |
| Full telescopic boom time | 105s | |
| Maximum rotation speed | 0-2 r/min | |
| Full lifting/lowering time of boom | 56/45s | |
| Main hoisting rope capacity | 140m | |
| Auxiliary hoisting rope capacity | 115m | |
| Numbers of the boom | 5 section | |
