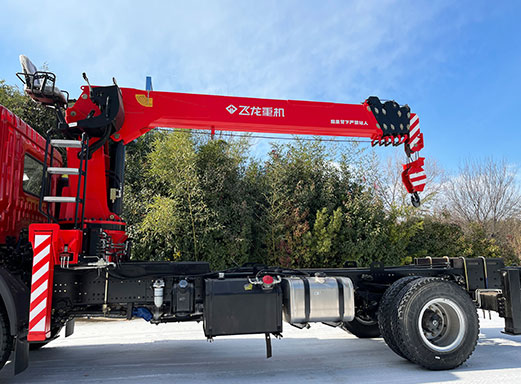

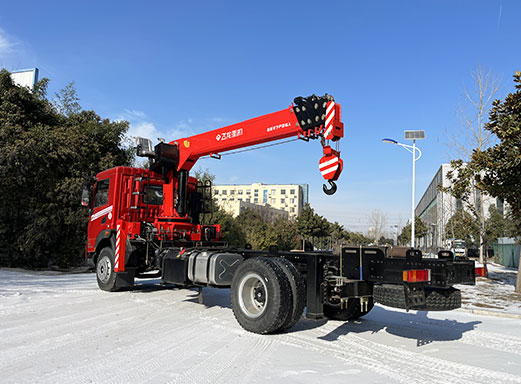

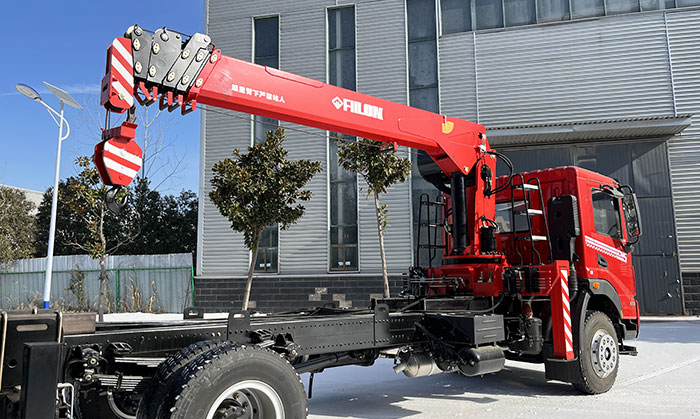

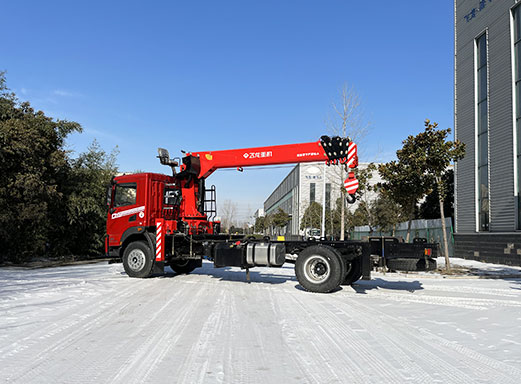

Truck Mounted Crane FSC200-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

Crane rated lifting capacity 8000kg, working radius 19.78m max lifting height 22m.
Boom material adopt BS700 high strength plate, ensure the bearing Capacity and reduce the boom weight.
Plunger hydraulic motor, displacement 64ml/r, provide strong power Make hydraulic system operation stable and efficient.
Equipped famous hydraulic brand, boom 3 cylinder 2ropes, enhance lifting performance
Larger outrigger span, rich configuration, excellent workmanship Safety protection advice, ensure operation efficient and worry free

Chassis configuration

Chassis configuration
Drive model	4*2
Cabin type	J6L Semi-suspended single-row cab
Engine model	CA6DH1-24E6
Wheelbase（ mm）	5000
Transmission	Fast 8 gear
Front/rear suspension	1420/2580
Rear axle ratios	5.143
Tire type	10.00R20 18PR
Net weight	11500KG
Total mass	18000KG
Cargo box size (mm)	61002450600,550
Overall size (mm)	900025503850/3750
Chassis model	CA1180P62K1L2E6Z
Crane model	FSC 200

Upper body configuration

Crane configuration
Crane Model	FSC200

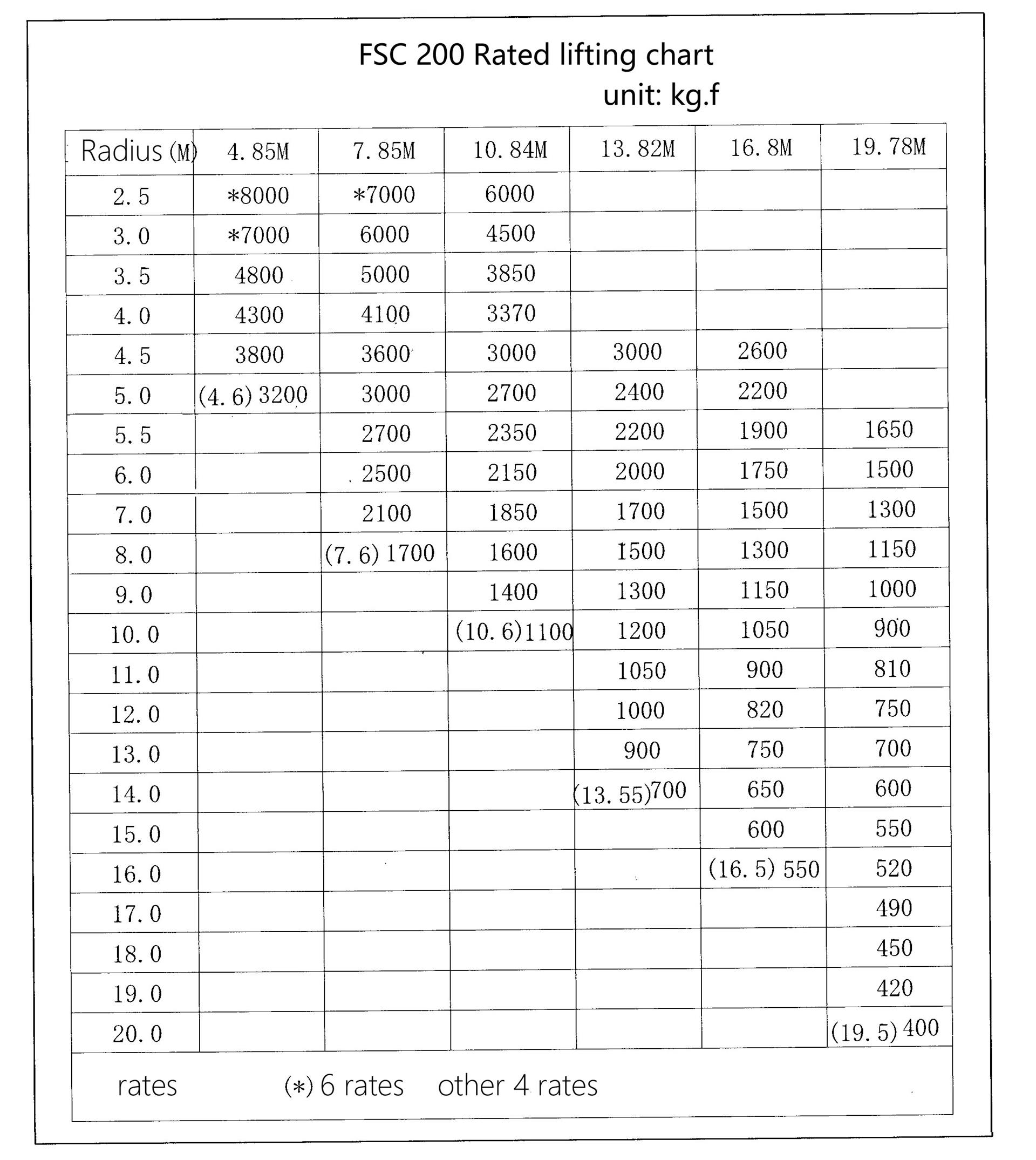

Rated lifting capacity (Kg)	8000
Max, working radius (m)	19.78
Base boom length (m)	4.85
Boom section	6
Slewing angle (°)	Continuous 360
Hydraulic pump	Plunge motor
Max, hydraulic flow（ L/min）	96
Max. Lifting height (m)	21
Boom length (m)	19.78
Base boom cross section	Hexagonal
Outrigger span (m)	2.5/5.94
Rated hydraulic pressure (Mpa)	21
Outrigger	2+2
Crane dead weight (Kg)	4068

Dimension
