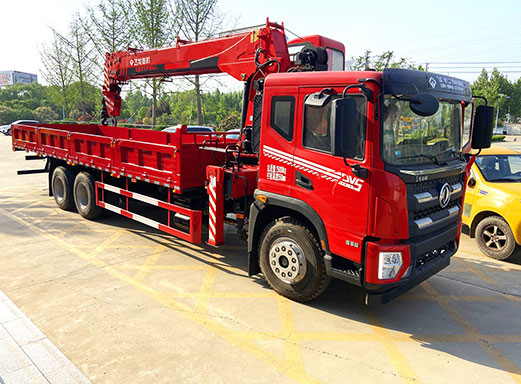

Truck Mounted Crane FSC350-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

High strength plated use laser cutting machine, automatic clipper, advance CNC machine, ensure the quality and standard of each component.
Optimize hydraulic system, make operation smooth and efficient
Famous hydraulic parts make ever movement smoothly and precision,
Excellent workmanship good appearance, high density painted, prevent corrosion for seawater.
National hydraulic crane research center.hydraulic crane high-tech research and development;

Crane Features

1. XINFEIG FSC350Six section boom length 21 meters, 2 cylinder 3 cables, the cross section of the boom is hexagonal,more stable and durable for lifting, base boom loading capacity 15000kg.

2. Equipped double-pump confluence compound action is smooth.

3. First-line brand hydraulic components, longer service life, more efficient and convenient operation.

4. Auxiliary winch, enhance lifting efficient (can meet 1ton to 3ton lifting needs)

5. The large torque hydraulic motor the lifting speed is fast, and the lifting capacity is strong.

Crane specification

ITEM	FSC350
Brand	XINFEIG
Manufacture year	2026
Rated lifting capacity	kg	14000
Max.load moment	KN.m	350
Max. Boom outreach	m	21.3
Slewing angle	/	360°
Boom raising angle	/	0~78°
Max.lifting height (the measurement from the ground after the outriggers fully extended)	m	23
Numbers of the boom	6 section
Outrigger span (fully extended)	mm	7800
Operating position	/	On The boarding
Hydraulic system flow	L/m	63-100
Operation pressure	Mpa	28
Crane dead weight	kg	6100
Recommend installation size	1400mm

Crane dimension

12ton mobile crane FTC121

Truck crane 12ton lifting capacity, six section boom, boom length 38m, lifting height 41m, outrigger span 6.4m, compact vehicle boday design, excellent workmanship advance production line, famous hydraulic brand, ensure cranes quality,

Ergonomic degign for crane structure

Ensuring product quality is crucial for maintaining customer satisfaction and building a reputable brand. Here are some steps you can take to ensure product quality:Set clear quality standards: Establish specific quality criteria that your products must meet. These standards should be measurable and based on customer expectations and industry benchmarks.

Understanding Truck Mounted Knuckle Boom Cranes: Versatility and Applications

Truck mounted knuckle boom cranes are specialized lifting devices mounted on trucks, providing exceptional versatility and efficiency in various industrial applications. These cranes are characterized by their articulated arm, which allows for greater maneuverability and the ability to reach over obstacles.

Truck Mounted Crane FSC350
