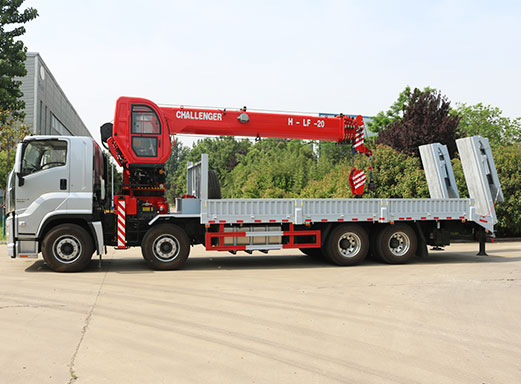

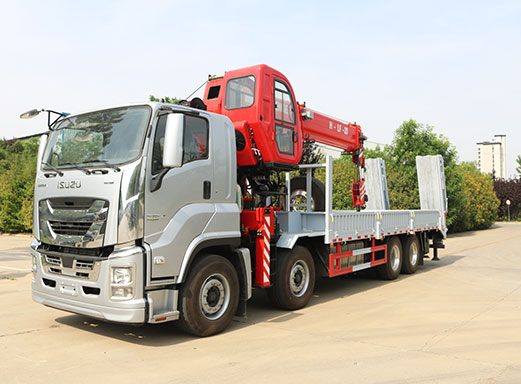

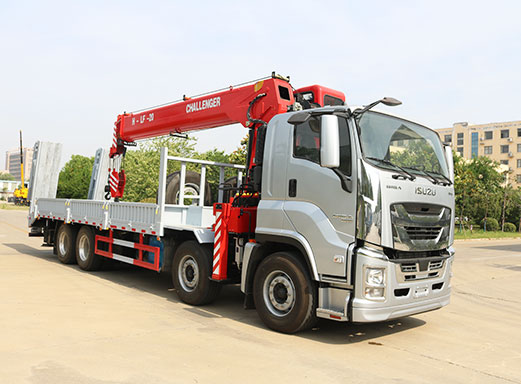

Truck Mounted Crane FSC501-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

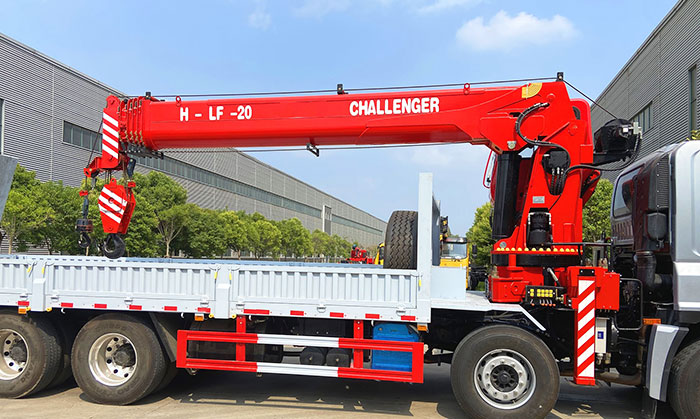

XINFEIG 20Ton 6-section straight boom crane,Crane lifting capacity 20Ton ,max boom outreach 23m, max crane working height 25m,install with 2ton auxiliary winch, upper operation cabin.
Rear outrigger, Dual chamber hydraulic rear outriggers.
Accessory include pump, hydraulic cooler,oil tank, and installation belts and nuts.
Recommend chassis type 8x4 drive type, installation size 1300mm.
An option Fly jib 3m length, store along beside the main boom, use manual swivel connection, fly jib angle adopt manual adjustment

Crane specification

Crane	Brand	XINFEIG
	Crane model	FSC501
	Manufacture year	2026
	Rated lifting capacity	20000kg
	Max. Boom outreach	23m
	Max outreach lifting capacity	1200kg @23m
	Slewing angle(continuous)	360° continuous
	Boom raising angle	0~78°
	Max. lifting height (the measurement from the ground after the outriggers fully extended)	25m
	Length of the basic boom	6 m
	Numbers of the boom	6 section
	Outrigger span (fully extended)	7.8m
	Front and rear leg	Double chamber hydraulic control
	Operating position	Hydraulic lifting cabin
	Recommend oil displacement	126 L/min

Crane dimension

Installation size
