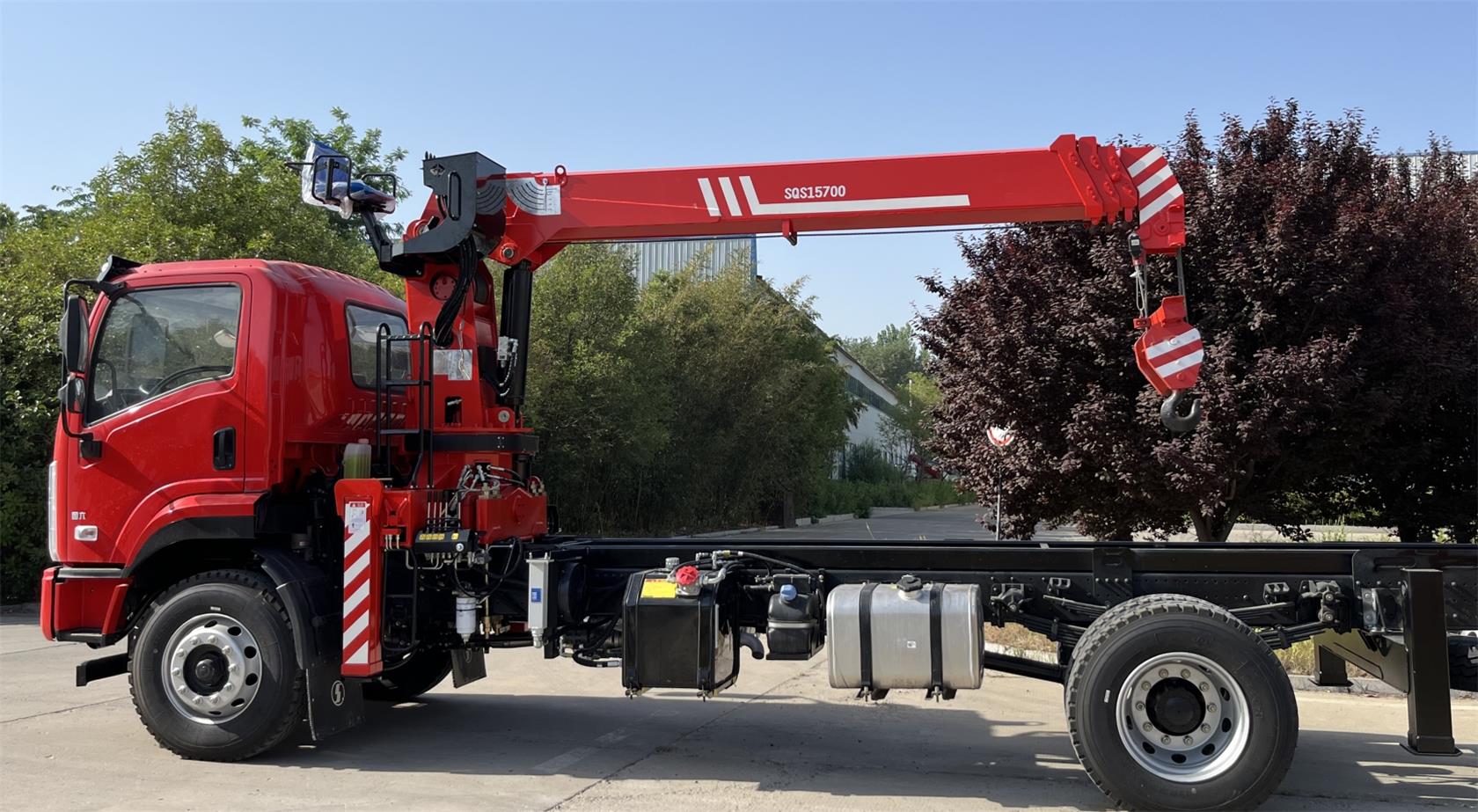

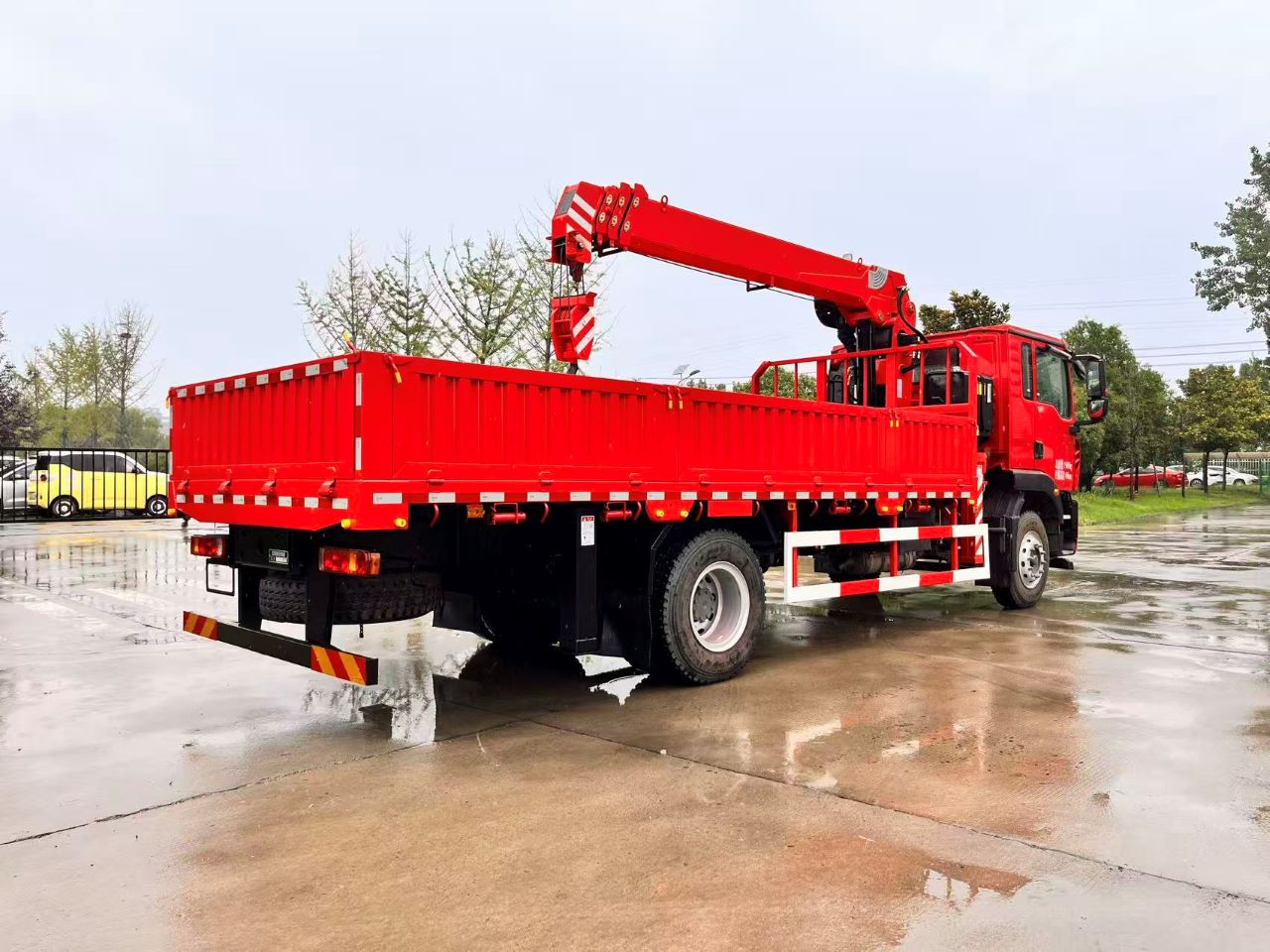

Boom truck crane Model SQS175, Crane lifting capacity 7Ton, Selfloading crane with HOWO, Crane manufacturer Henan Runli automobile XINFEIG-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

Boom truck crane, crane model SQS175, selfloading crane, boom truck crane lifting capacity 7Ton, 4-section straight boom crane, boom outreach is 13.1 meters, max crane working height is 15.7 meters.
crane boom shape hexagonal, boom material adopted high tensile steel, ensure durability and loading performance.
Boom crane adopted planet slewing reducer, large torque, ensure slewing smoothly and strong working ability, double hydraulic gear pump, provide strong powerful resource.
First-line brand hydraulic components, longer service life, more efficient and convenient operation.
The large torque hydraulic motor the lifting speed is fast, and the lifting capacity is strong.
truck mounted crane 7Ton, an opttion crane with high jack outrigger, remote control.

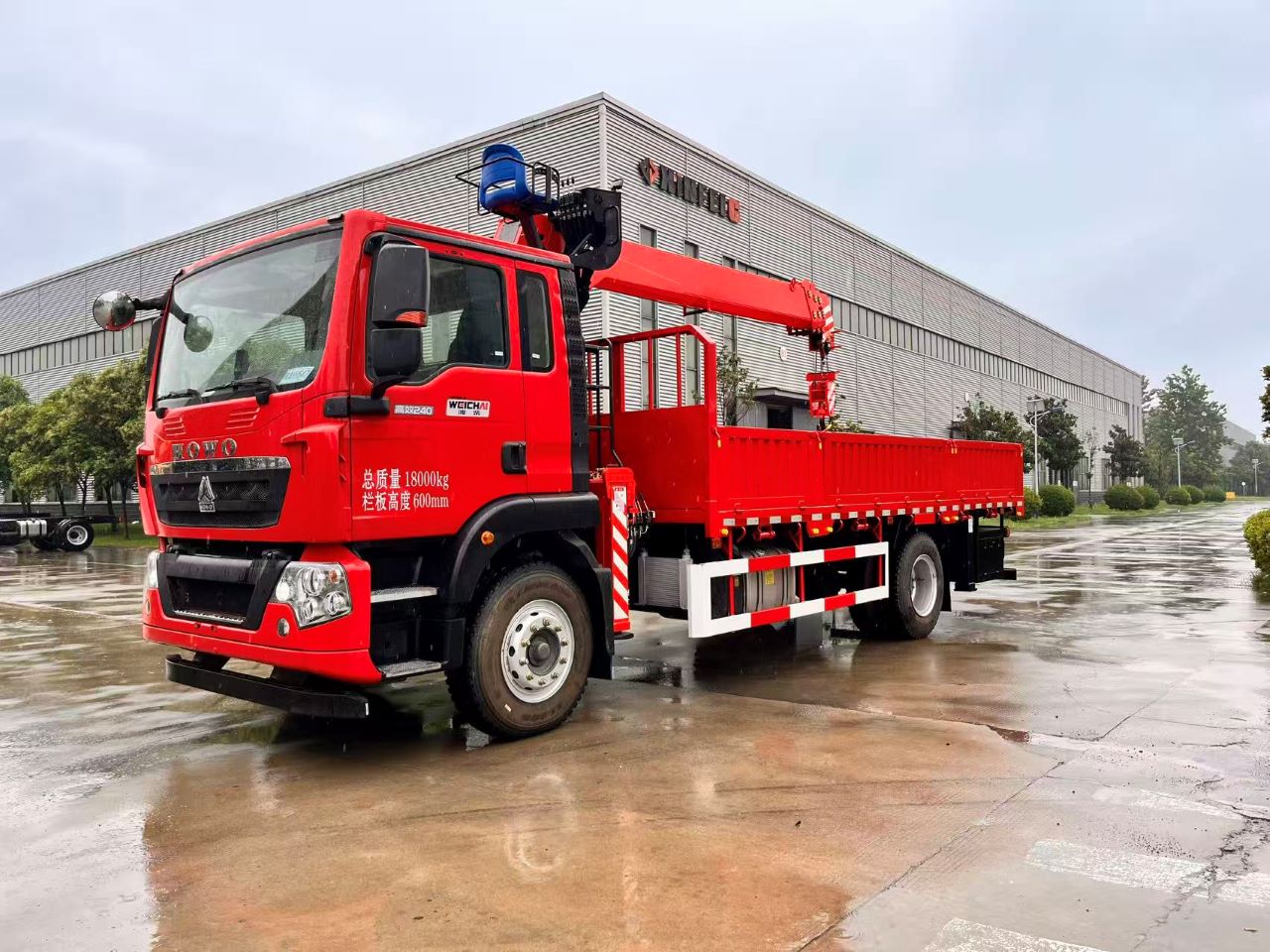

Selfloading crane mounted on Howo chassis, long jack outrigger crane, HOWO truck equipped Weichai engine power 240hp, 8 gear transmission, tire size 1000R20, total mass 18000Kg, dimension 9000*2550*3790mm.

Application

Production features

Item	Unit	Value
Crane model		SQS175
Crane rated lifting moment	Kn.m	175
working radius	mm	13100
Rated lifting capacity	Kg	7000
Slewing angle	degree	360
Outrigger span	mm	4845
Hydraulic system flud	L/min	40
Crane dead weight	Kg	2830

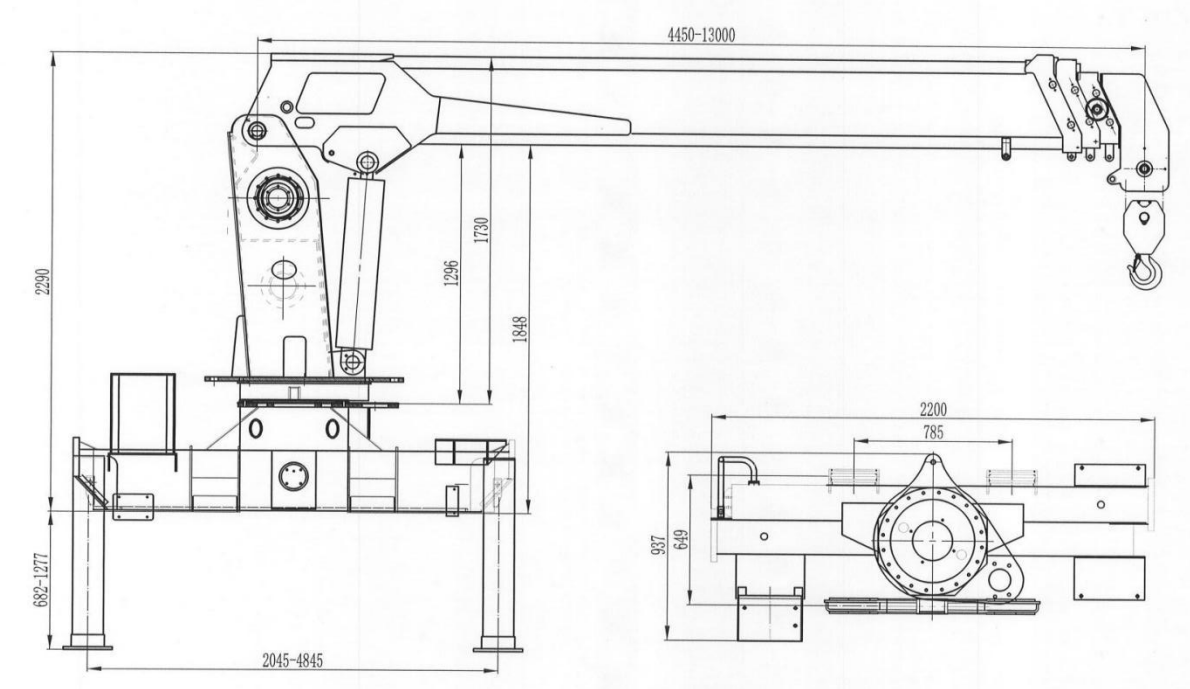

Dimension &Installation

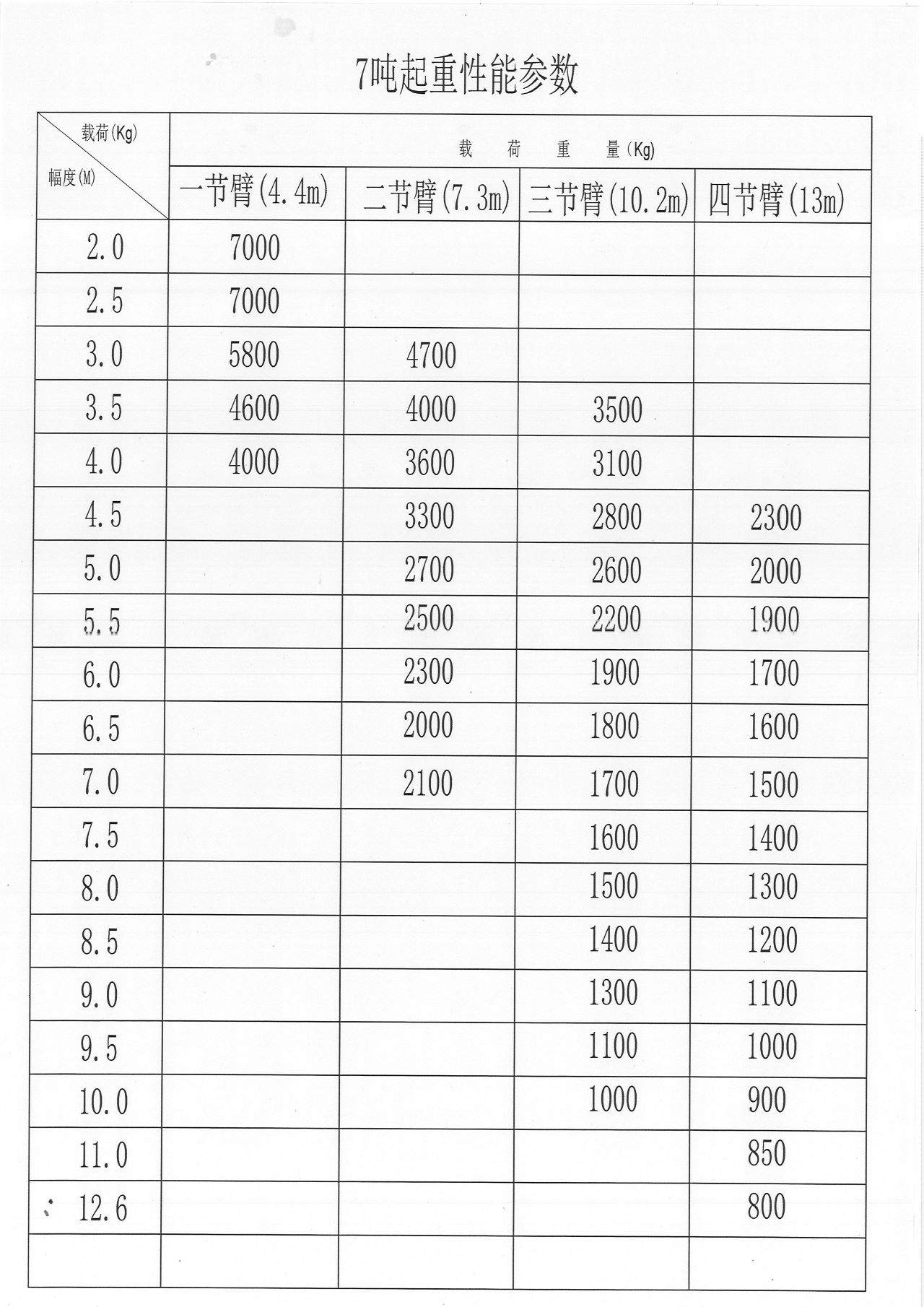

crane lifting chart

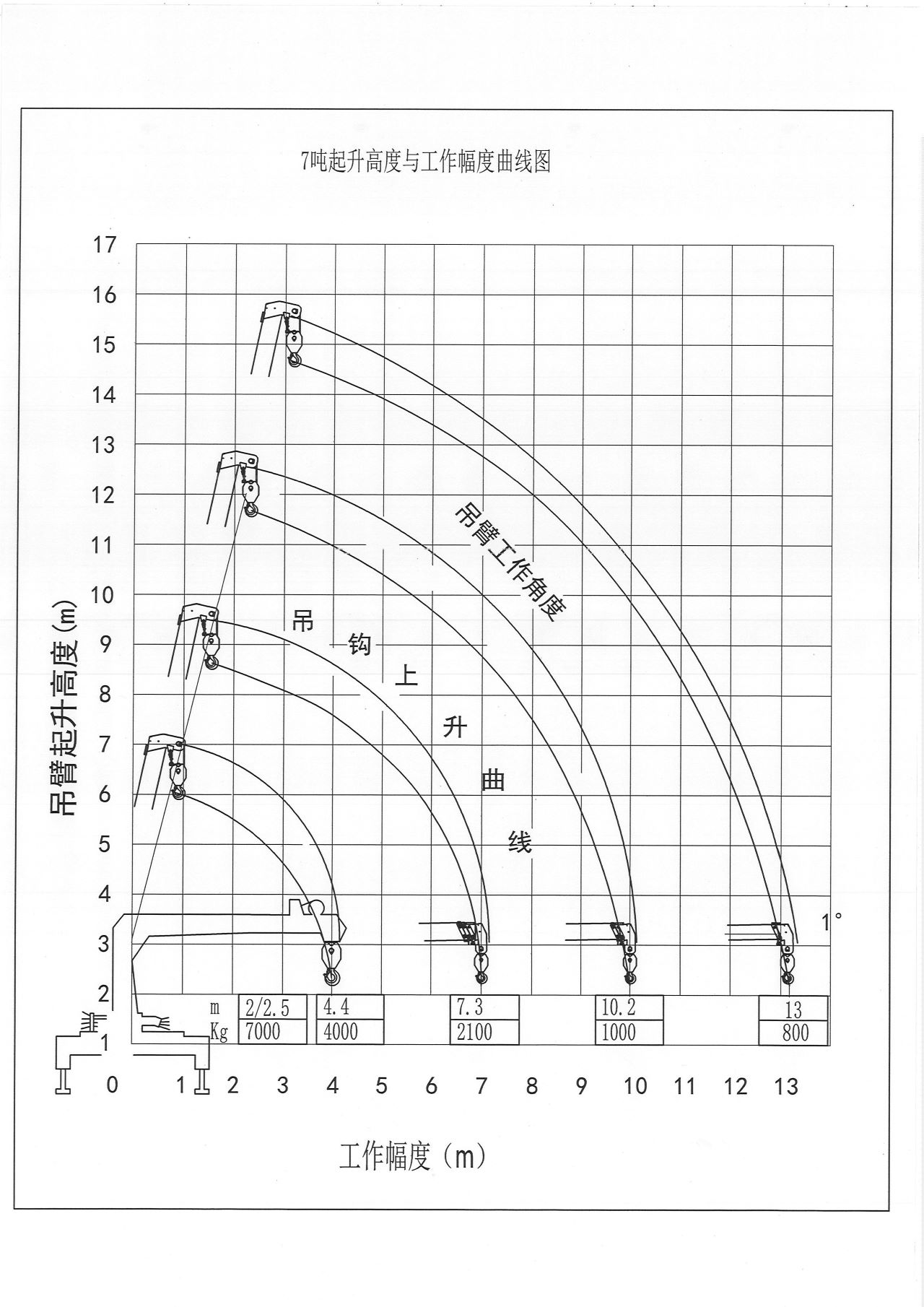

crane lifting curve diagram

Ergonomic degign for crane structure
