Feature Introduction

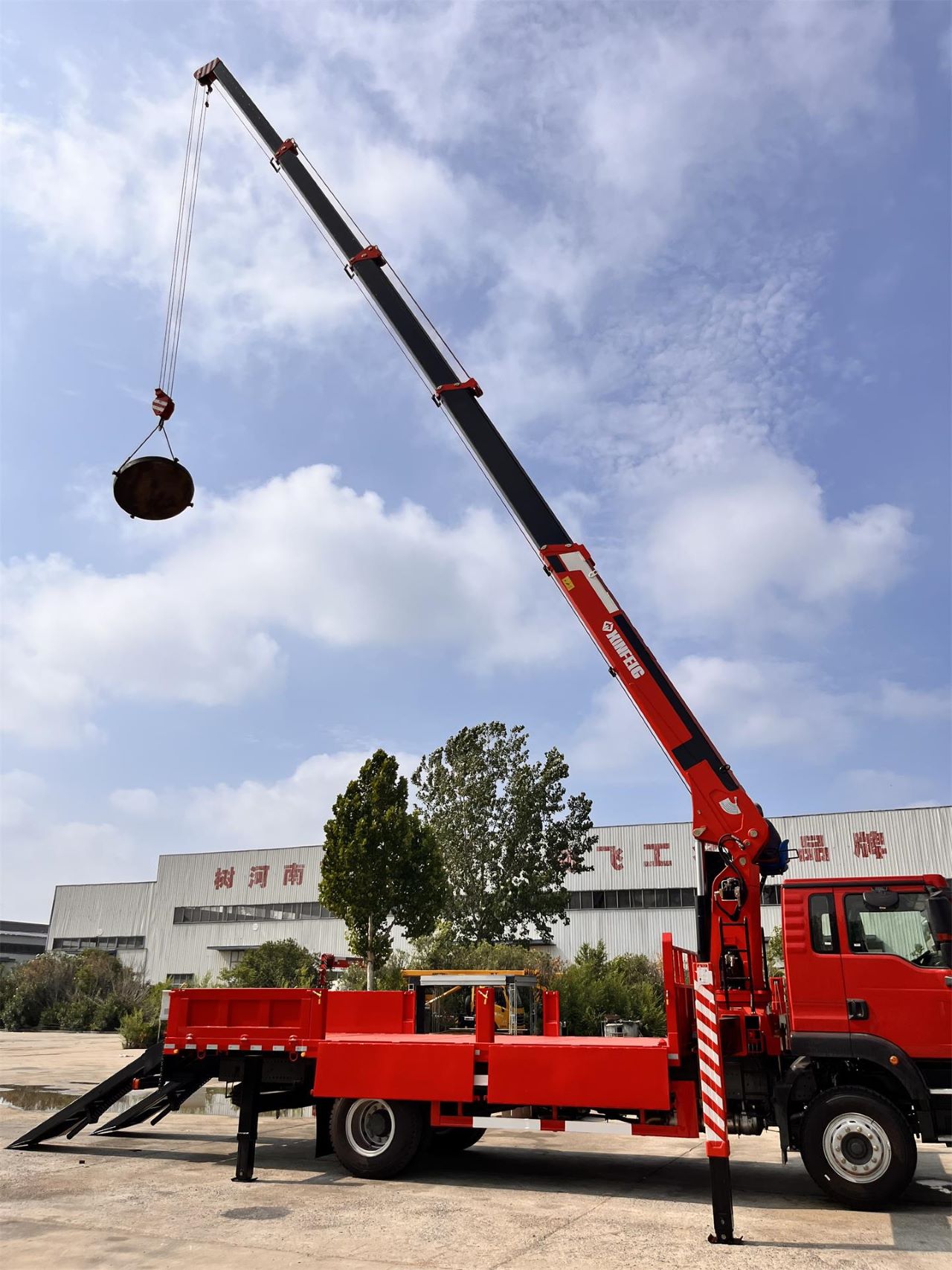

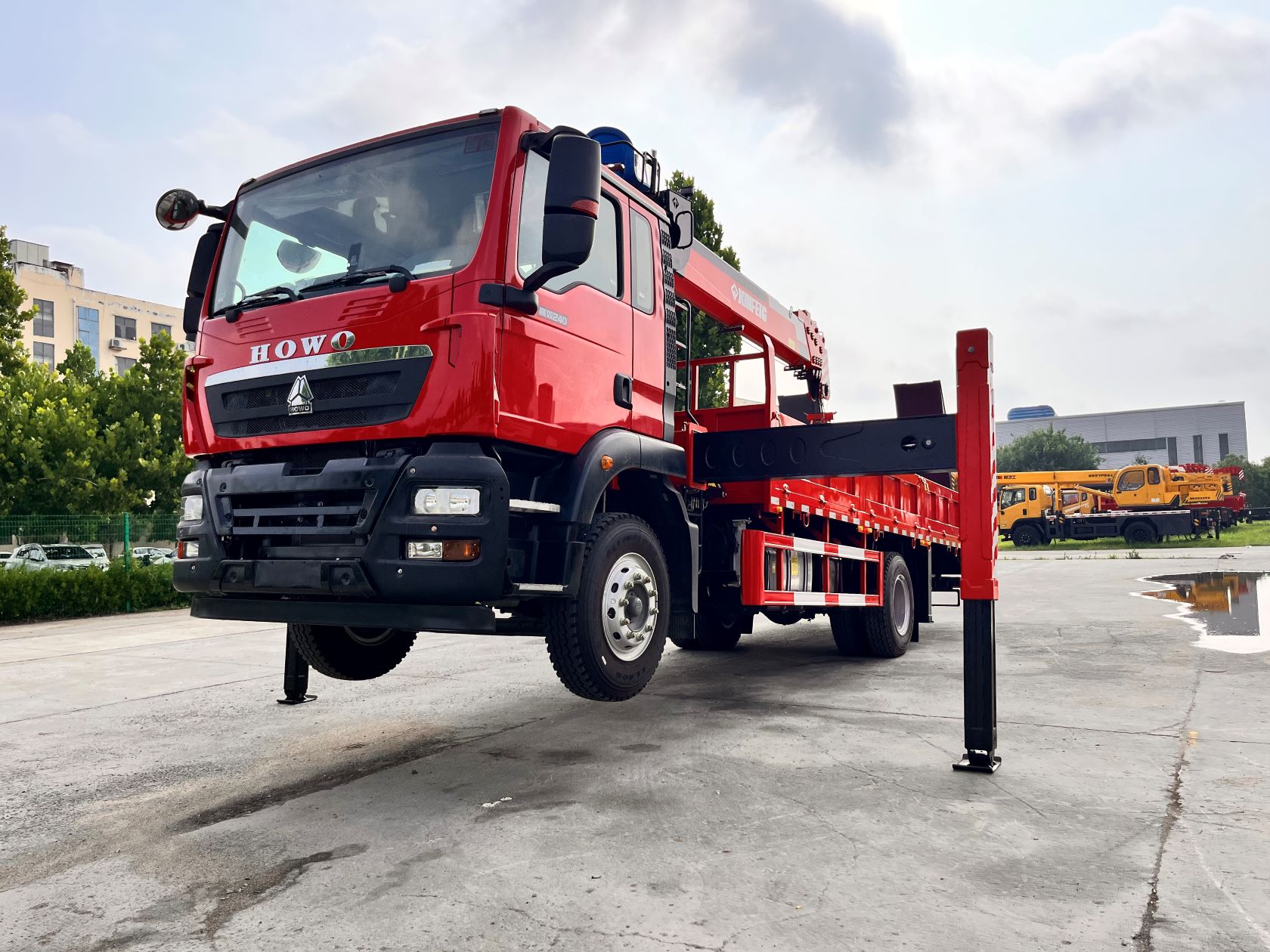

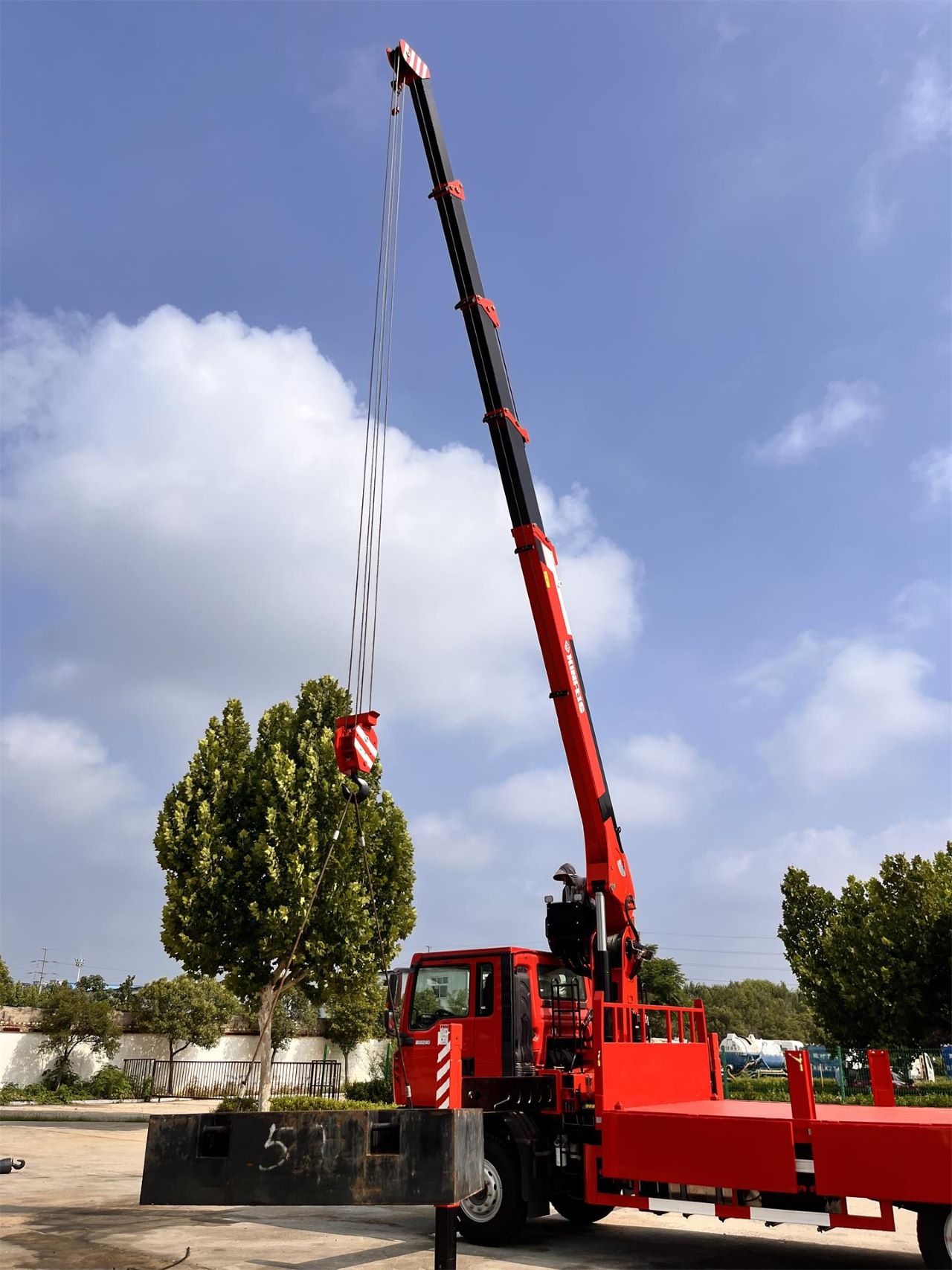

Boom truck crane with high jack outrigger, crane model SQS200, customized longjack outrigger for selfload crane, boom truck crane lifting capacity 8Ton, 5-section straight boom crane, boom outreach is 18.7meters, max crane working height is 21meters.
crane boom shape hexagonal, boom material adopted high tensile steel, ensure durability and loading performance.
Boom crane adopted planet slewing reducer, large torque, ensure slewing smoothly and strong working ability, double hydraulic gear pump, provide strong powerful resource.
First-line brand hydraulic components, longer service life, more efficient and convenient operation.
The large torque hydraulic motor the lifting speed is fast, and the lifting capacity is strong.
truck mounted crane 8Ton, an opttion ground control, and remote control, we have customized service for hydraulic cranes.

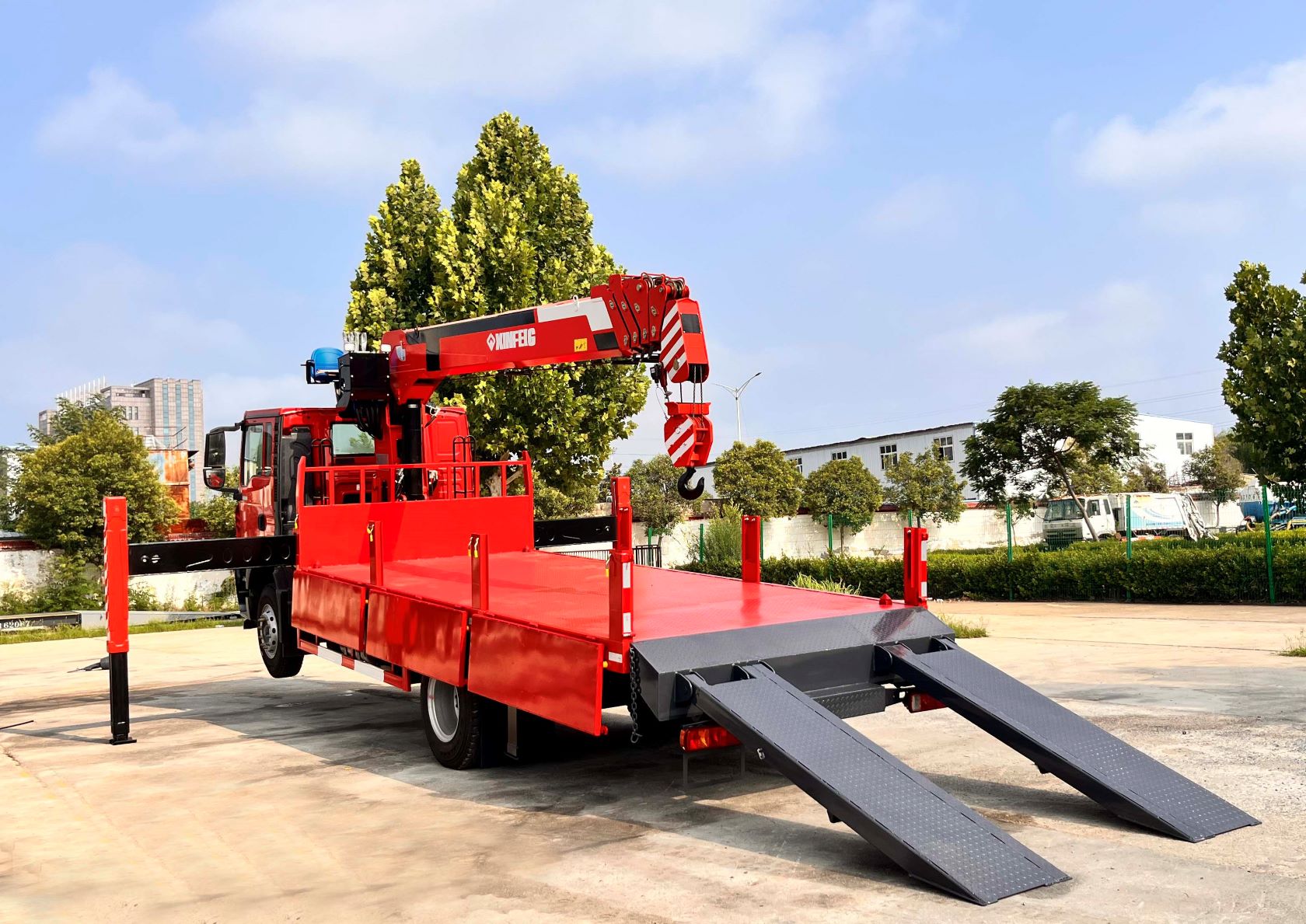

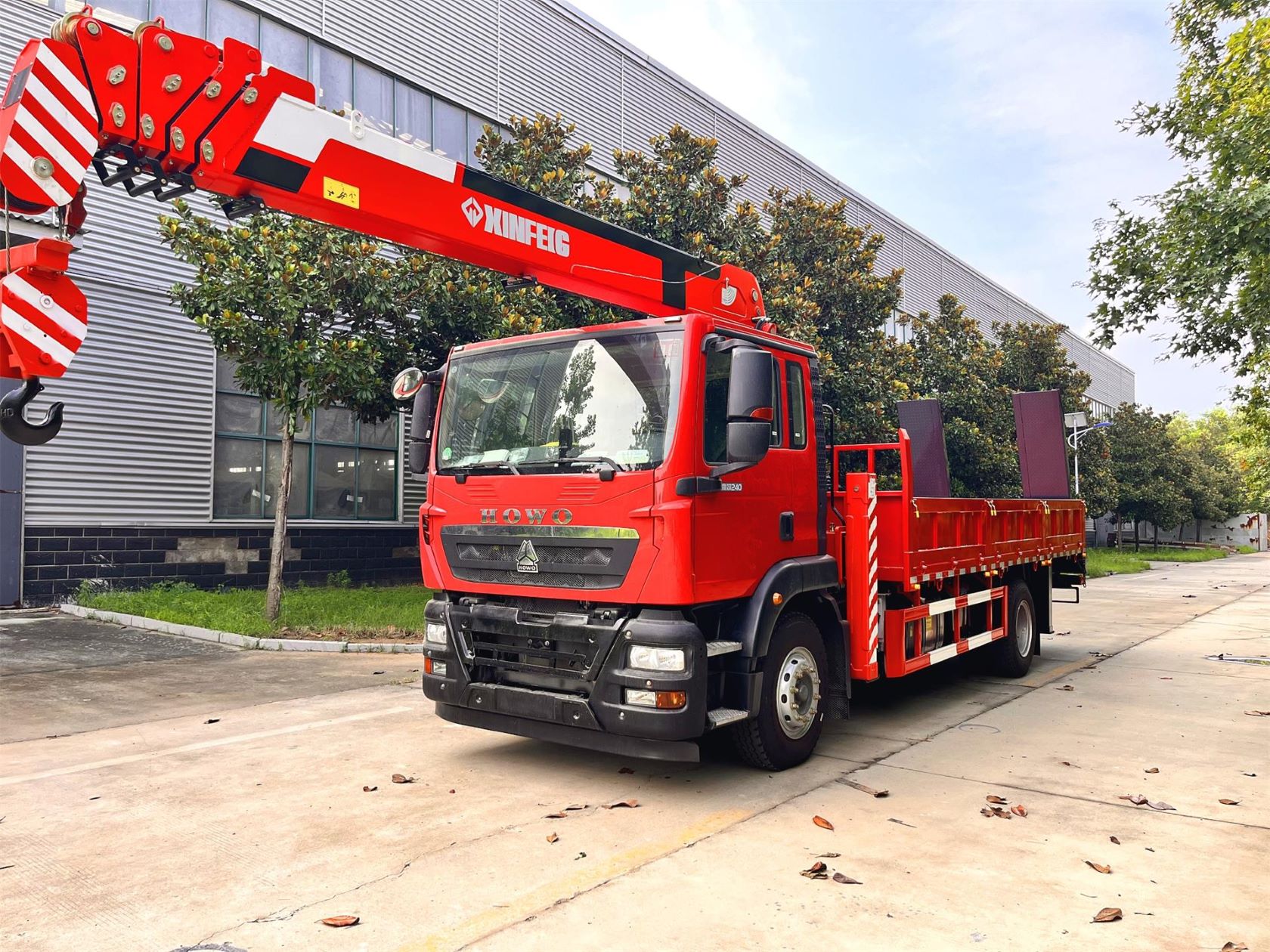

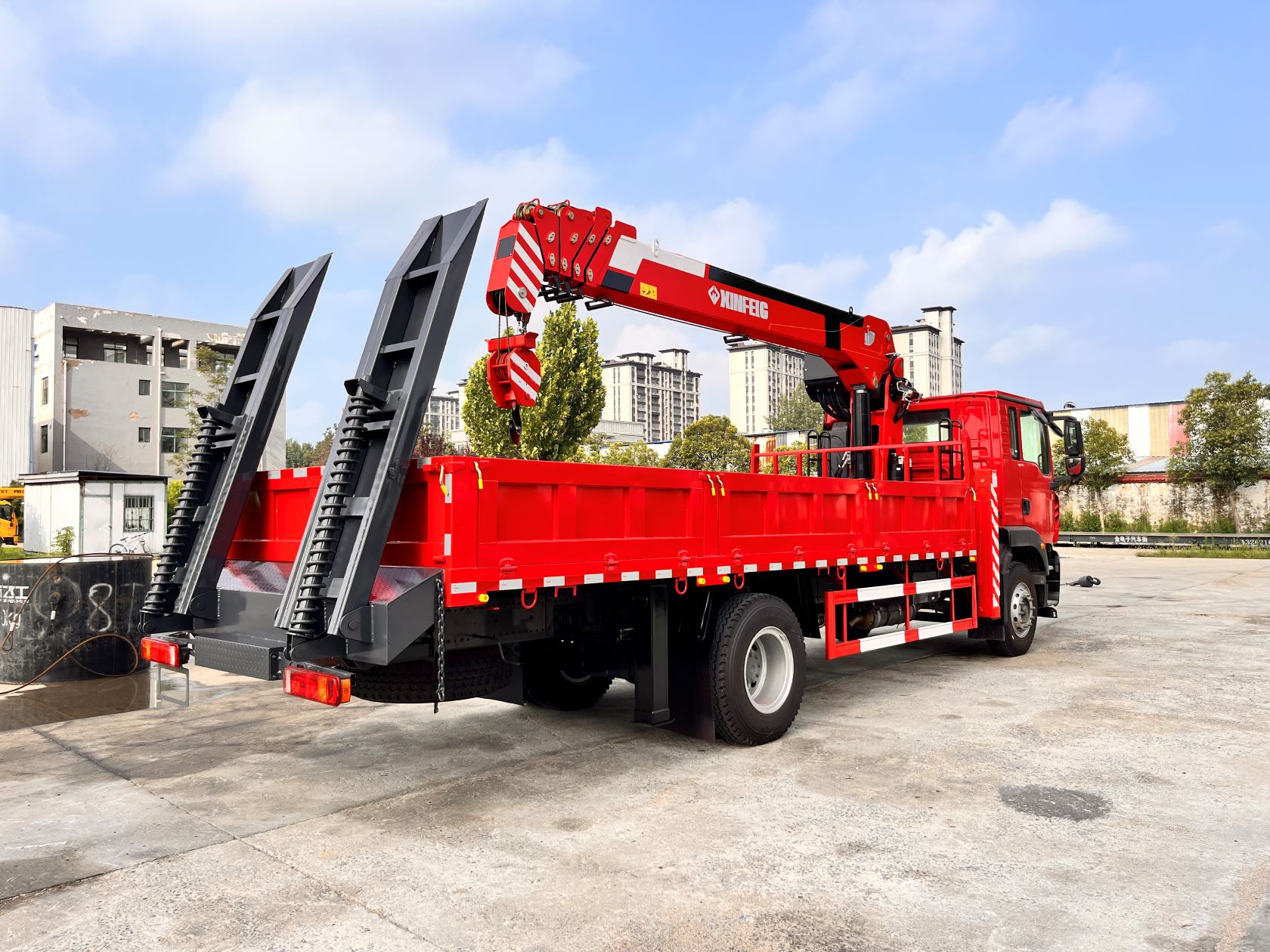

Selfloading crane mounted on Howo chassis, long jack outrigger crane, HOWO truck equipped Weichai engine power 240hp, 8 gear transmission, tire size 1000R20, total mass 18000Kg, dimension 9680*2550*3790mm.

Application

Production features

Item	Unit	Value
Crane model		SQS200
Crane rated lifting moment	Kn.m	200
working radius	mm	18600
Rated lifting capacity	Kg	8000
Slewing angle	degree	360
Outrigger span	mm	5995
Hydraulic system flud	L/min	63
Crane dead weight	Kg	4500

Dimension &Installation

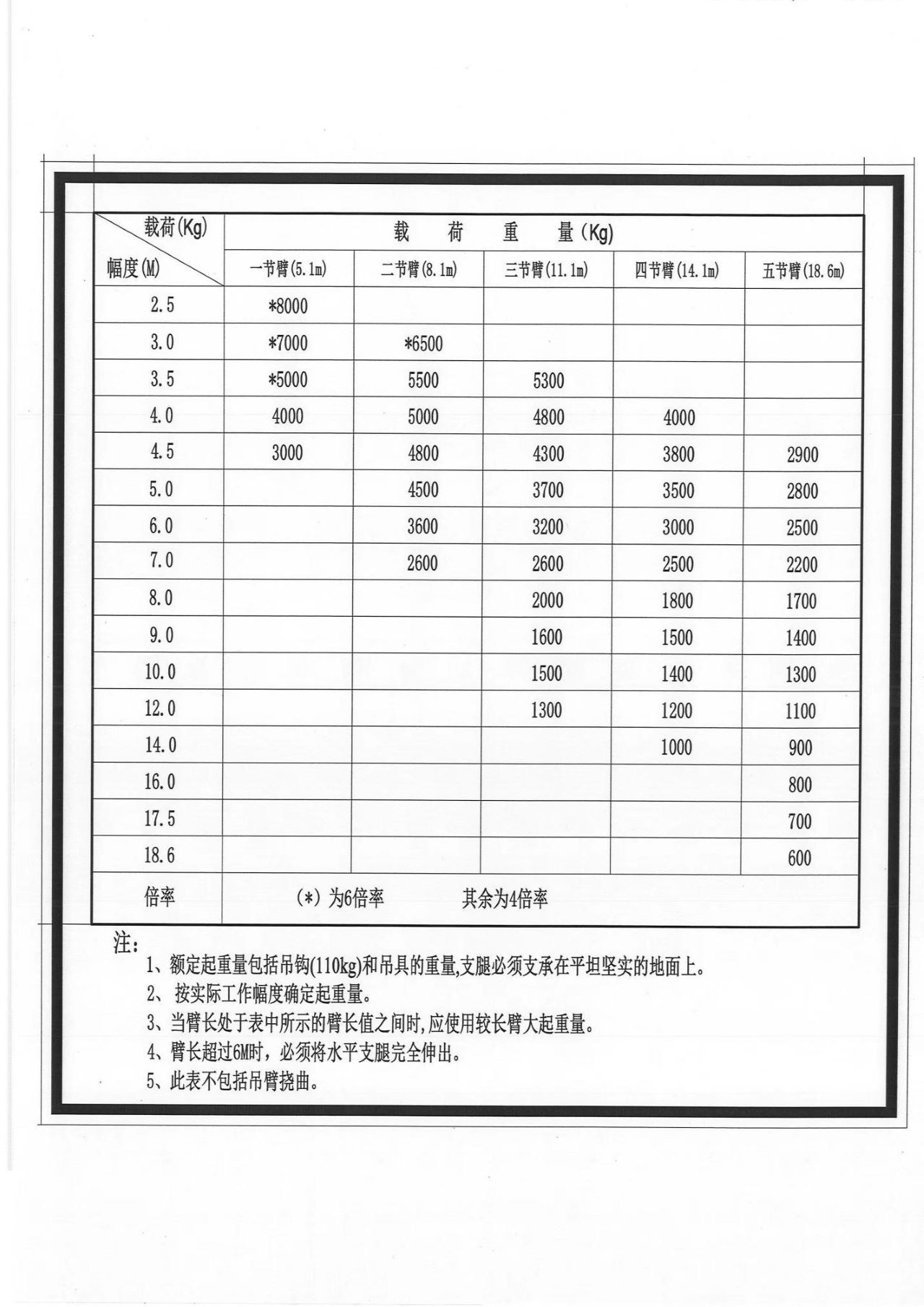

crane lifting chart

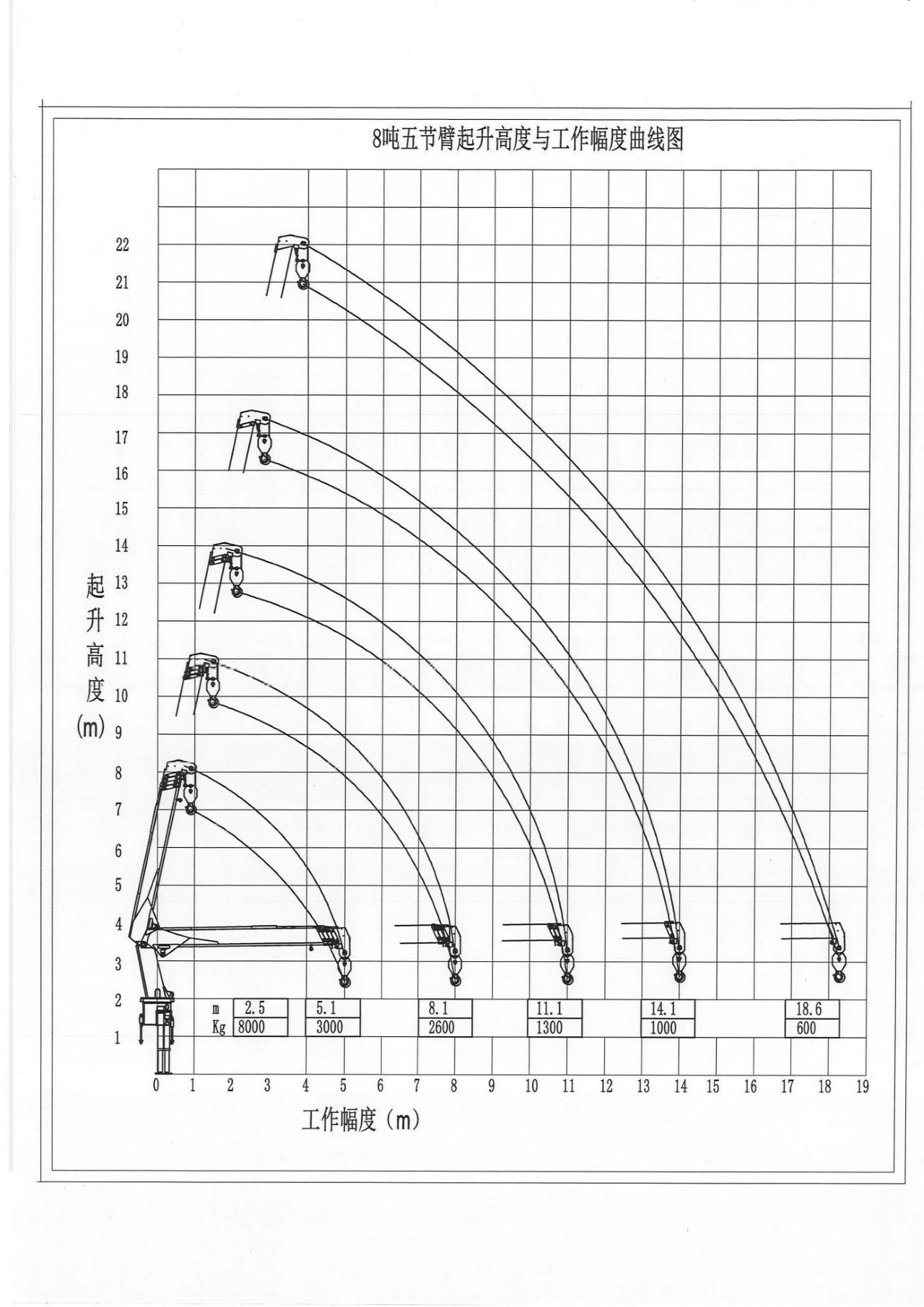

crane lifting curve diagram

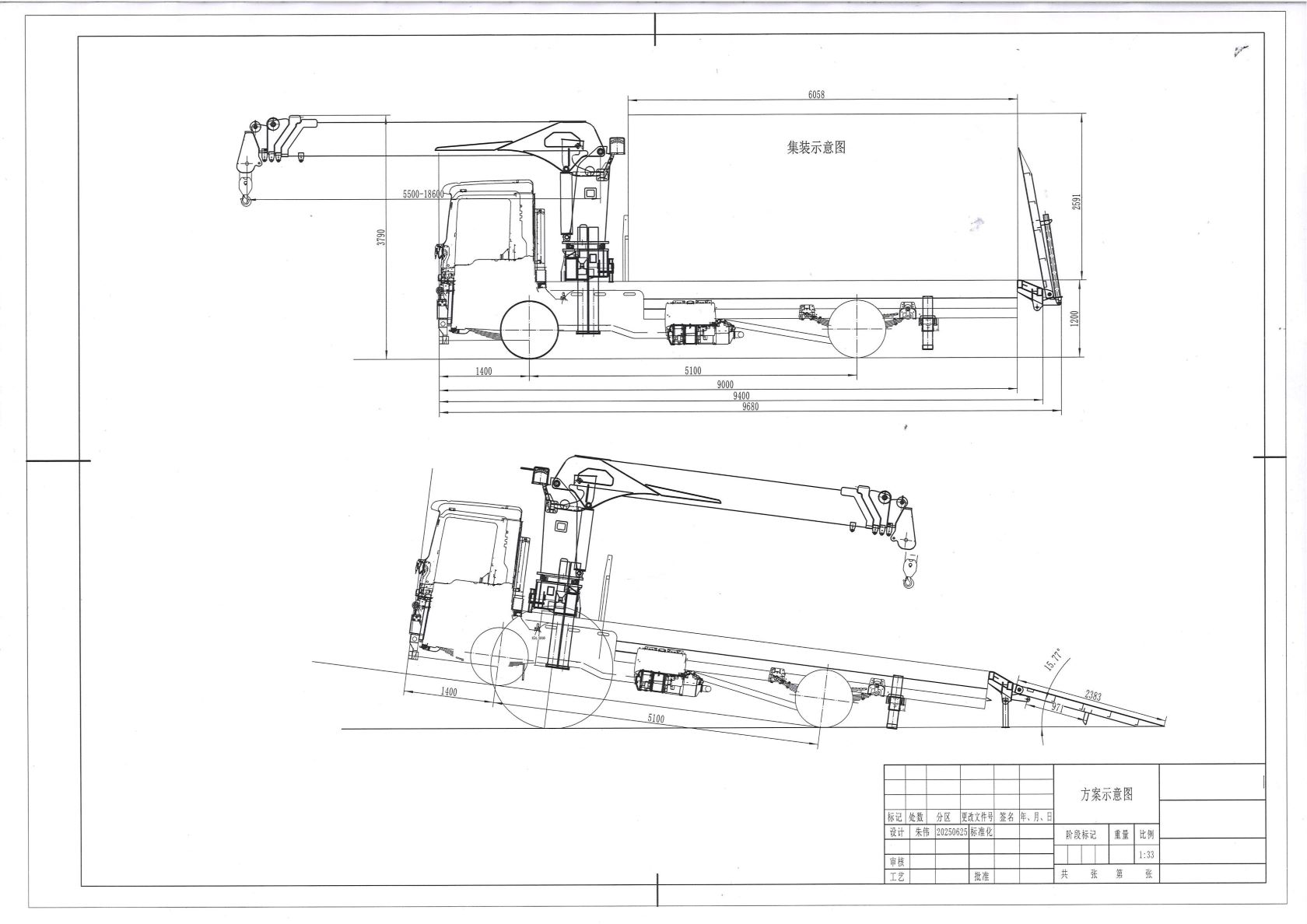

Vehicle dimension
