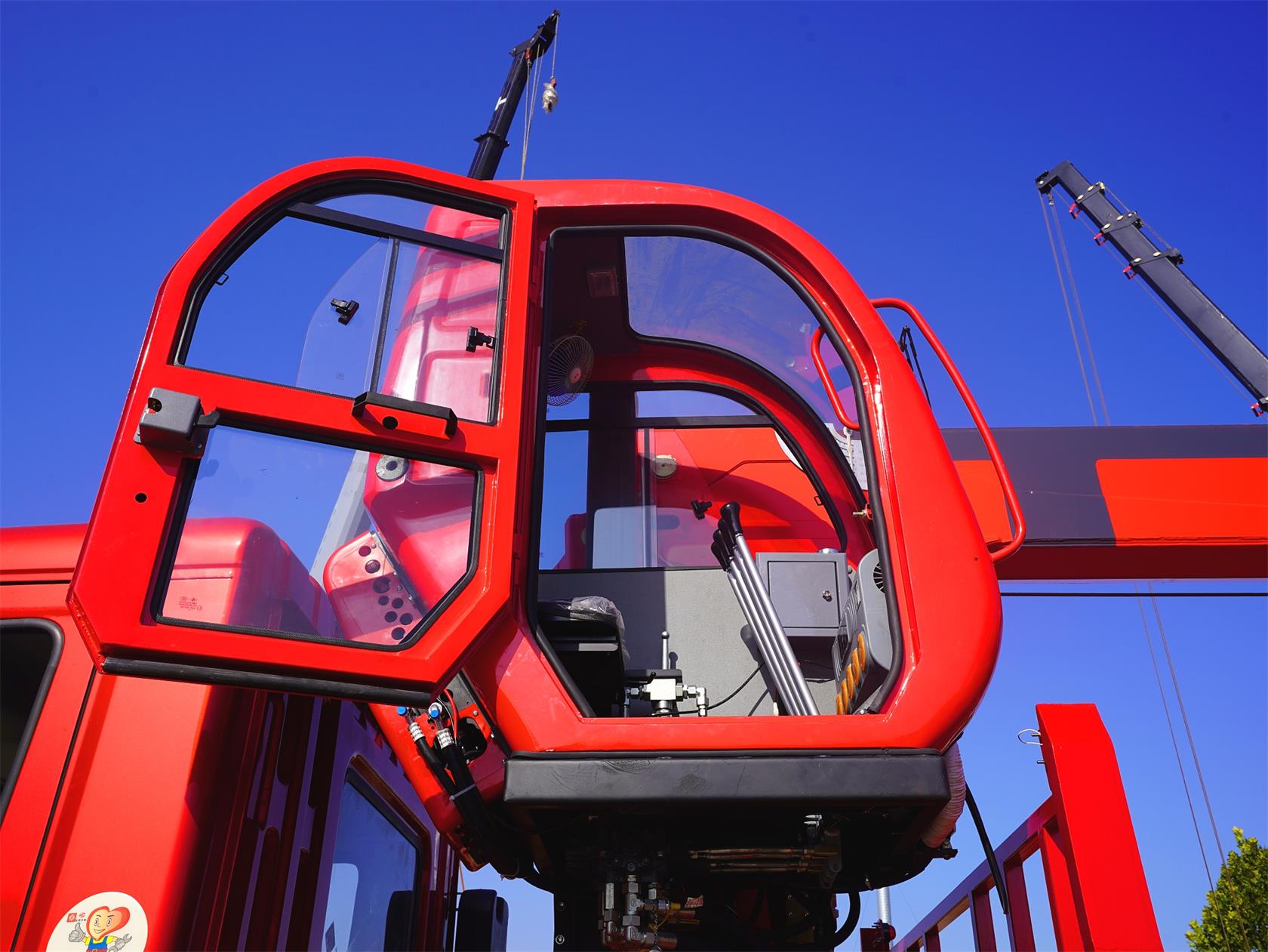

Truck mounted crane 8Ton lifting capacity, crane equipped cabin more safety and comfortable for operator Runli automobile XINFEIG brand-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

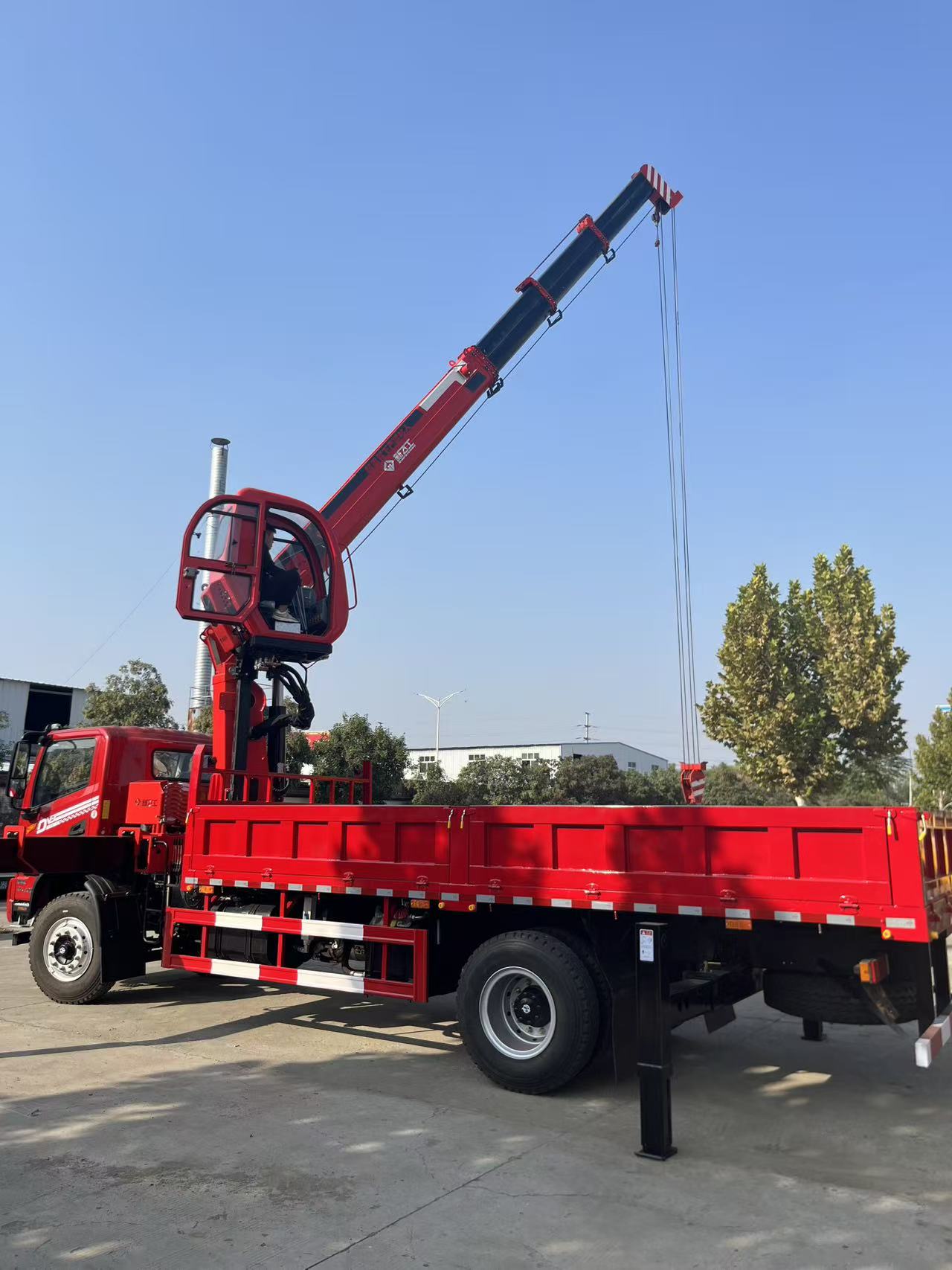

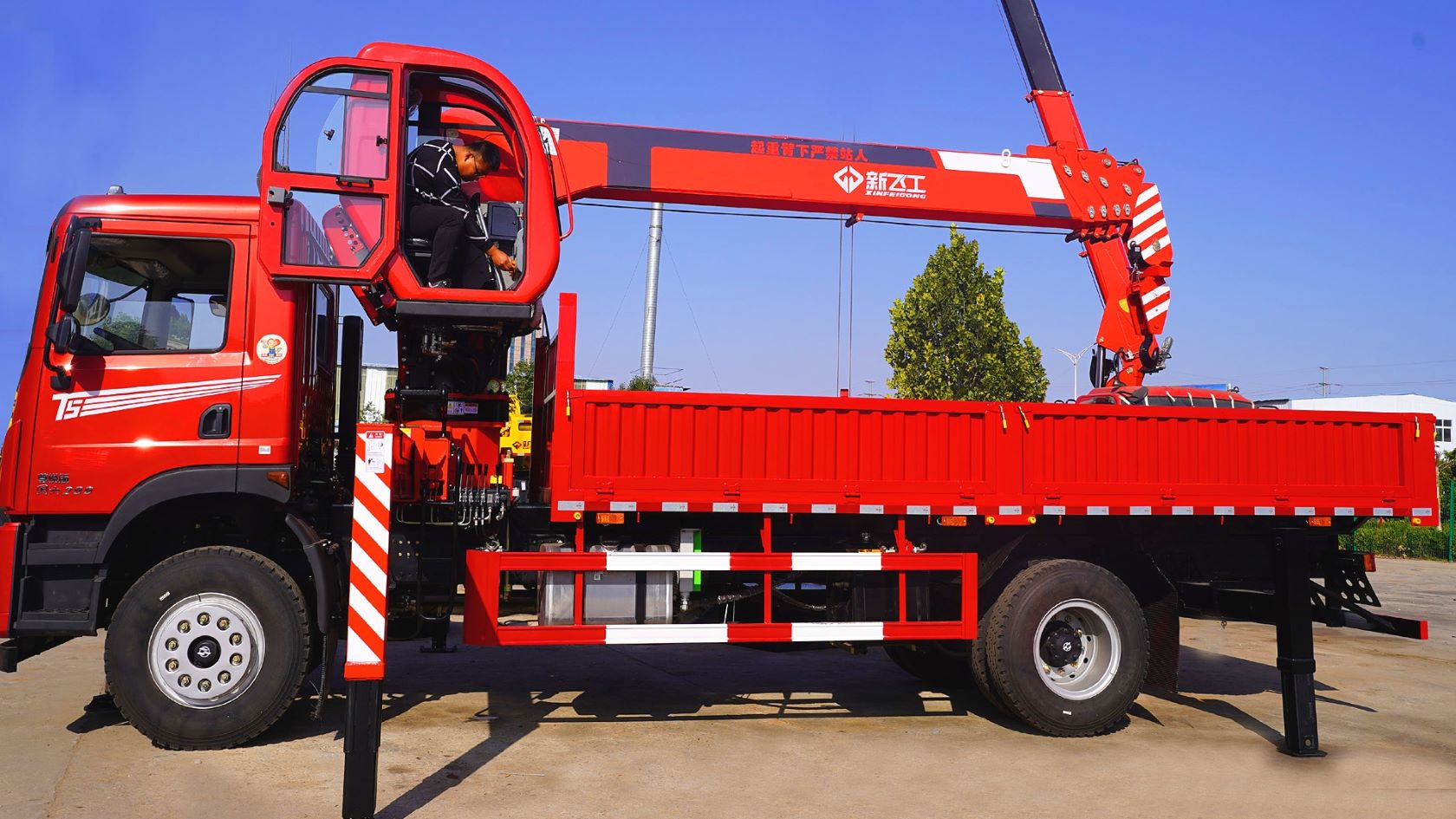

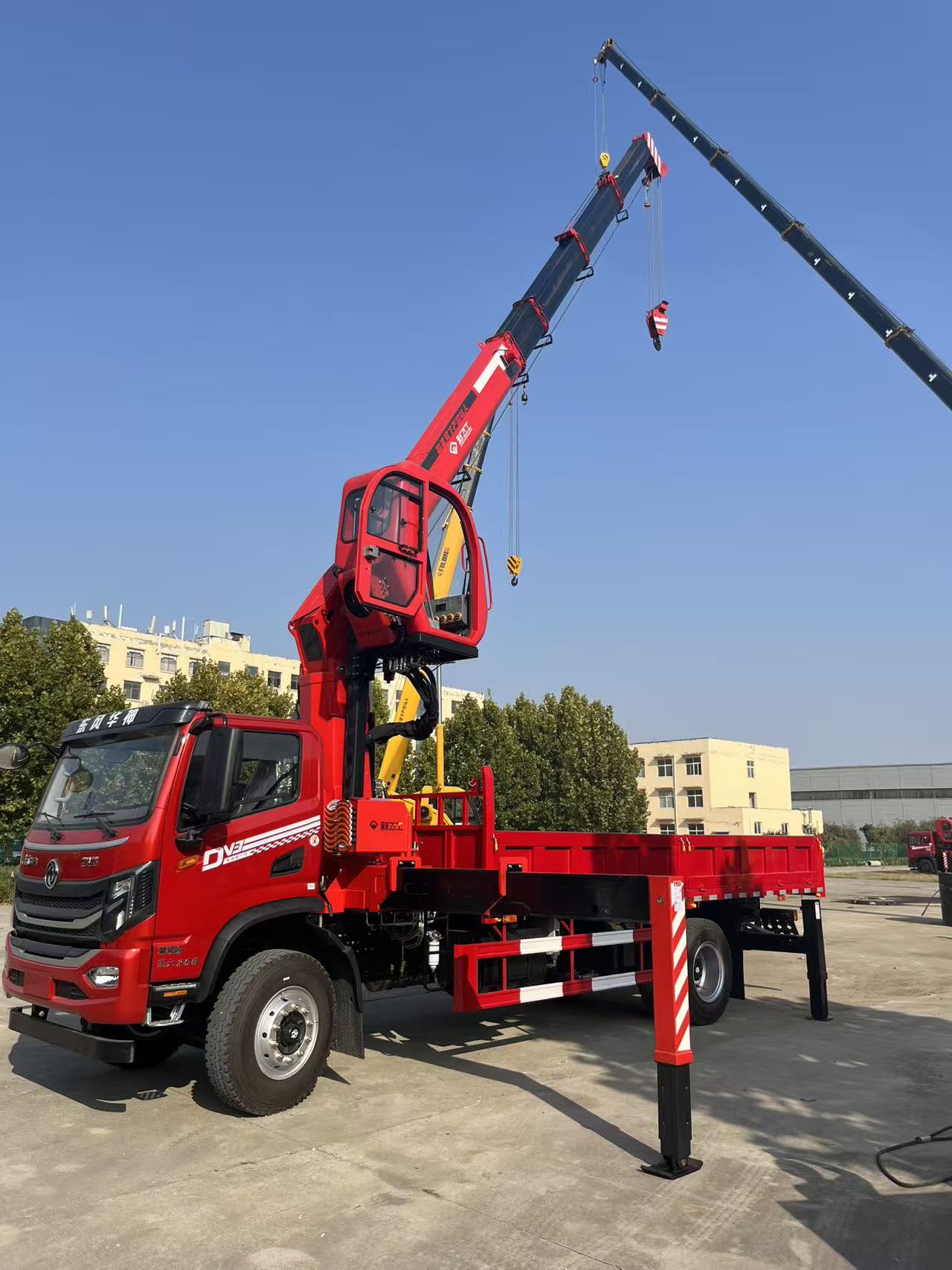

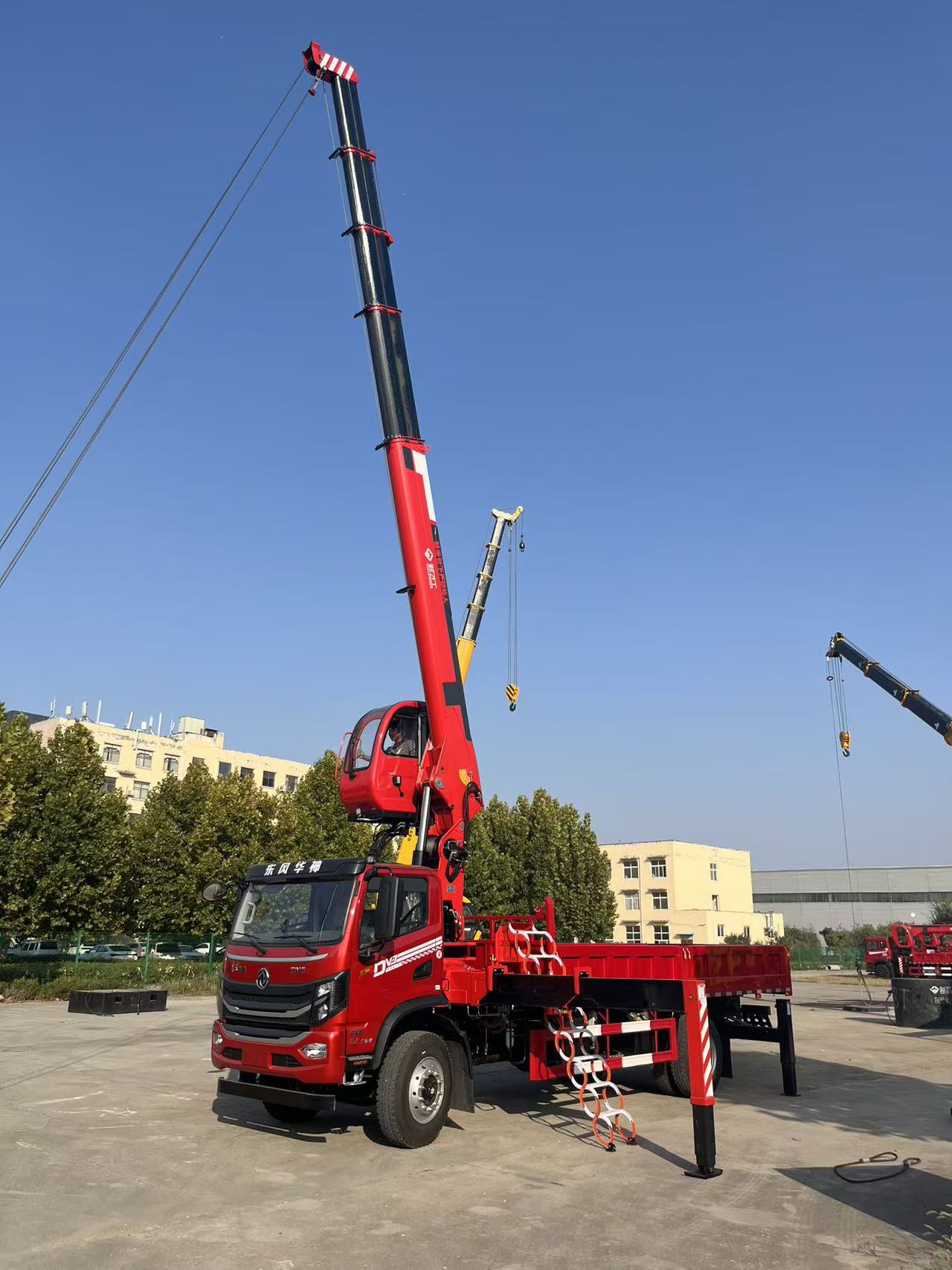

XINFEIG Crane model SQS200, Crane with cabin, crane lifting capacity 8Ton, 5-section straight boom crane, boom outreach is 18.7meters, max crane working height is 21meters.
crane boom shape hexagonal, boom material adopted high tensile steel, ensure durability and loading performance.
Boom crane adopted planet slewing reducer, large torque, ensure slewing smoothly and strong working ability, double hydraulic gear pump, provide strong powerful resource.
First-line brand hydraulic components, longer service life, more efficient and convenient operation.
The large torque hydraulic motor the lifting speed is fast, and the lifting capacity is strong.
truck mounted crane 8Ton, an opttion ground control, and remote control, we have customized service for hydraulic cranes.

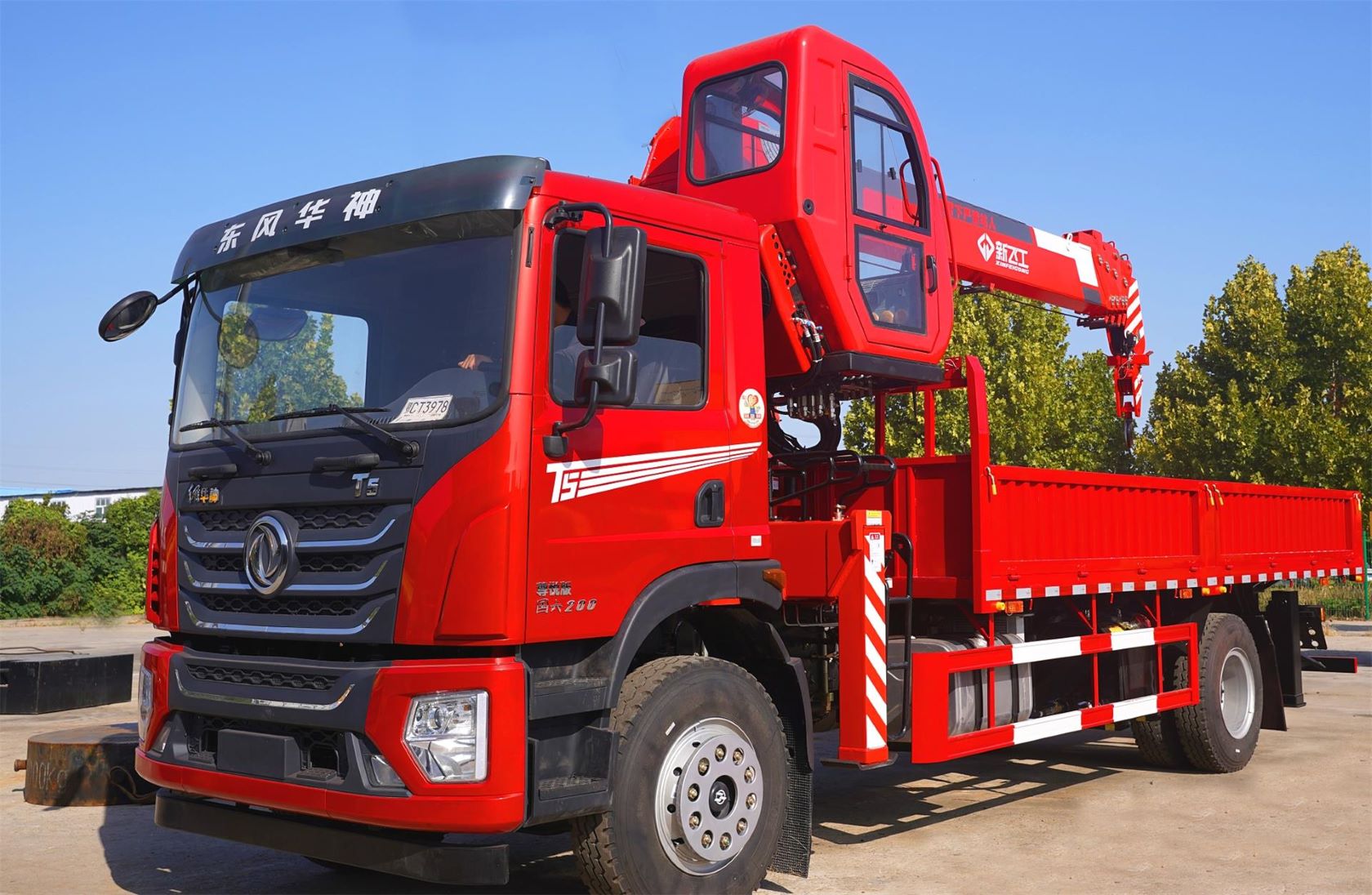

Straight boom crane mounted on Dongfeng chassis, Left hand drive, with Yuchai engine YCS06200-60 Diesel, 8 gear transmission, tire size 1000R20, total mass 18000Kg, dimension 9000*2550*3850mm.

Application

Production features

Item	Unit	Value
Crane model		SQS200
Crane rated lifting moment	Kn.m	200
working radius	mm	18600
Rated lifting capacity	Kg	8000
Slewing angle	degree	360
Outrigger span	mm	5995
Hydraulic system flud	L/min	63
Crane dead weight	Kg	4500

Dimension &Installation

crane lifting chart

crane lifting curve diagram
