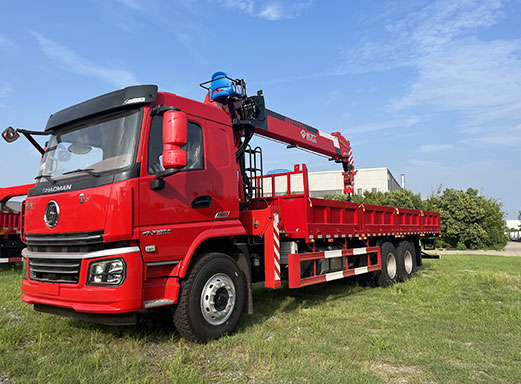

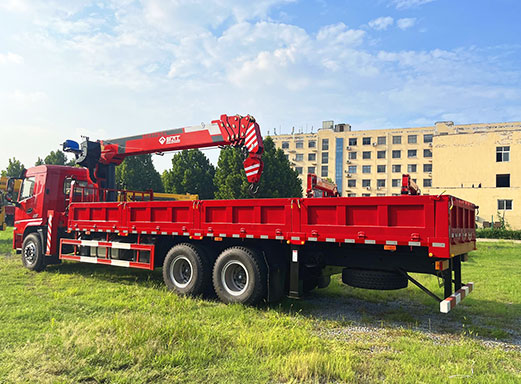

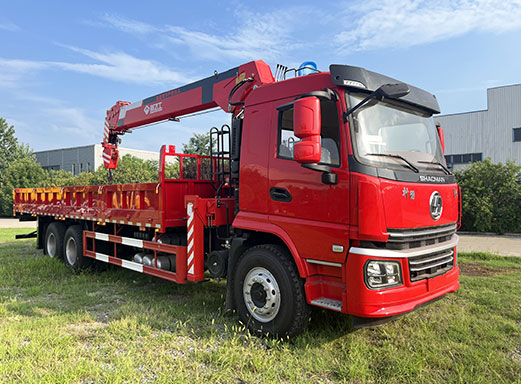

Truck Mounted Crane SQS300-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

High strength plated use laser cutting machine, automatic clipper, advance CNC machine, ensure the quality and standard of each component
Optimize hydraulic system, ensure operation smooth and efficient
Famous hydraulic parts make ever movement smoothly and precision
Excellent workmanship good appearance, high density painted, prevent corrosion for seawater
National hydraulic crane research center.hydraulic crane high-tech research and development
Inside boom double oil cylinder, second boom can work independently, improve lifting capacity and working efficient

Crane Features

1. XINFEIG SQS300 Five section boom length 18.6 meters, 2 cylinders 2 cable, the cross section of the boom is hexagonal,more stable and durable for lifting, base boom loading capacity 12000kg.

2. Equipped double-pump confluence compound action is smooth.

3. First-line brand hydraulic components, longer service life, more efficient and convenient operation.

4. An option Auxiliary winch, enhance lifting efficient (can meet 1ton to 3ton lifting needs)

5. Adopt plunger hydraulic motor high speed, and the lifting capacity is strong.leading in the same class

Crane specification

ITEM	SQS300
Brand	XINFEIG
Manufacture year	2025
Rated lifting capacity	kg	12000
Max.load moment	KN.m	300
Max. Boom outreach	m	18.6
Slewing angle	/	360°
Boom raising angle	/	0~78°
Max.lifting height (the measurement from the ground after the outriggers fully extended)	m	21
Numbers of the boom	5 section
Outrigger span (fully extended)	mm	5900
Operating position	/	On The boarding
Hydraulic system flow	L/m	40-50
Operation pressure	Mpa	28
Crane dead weight	kg	4250
Recommend installation size	1200mm

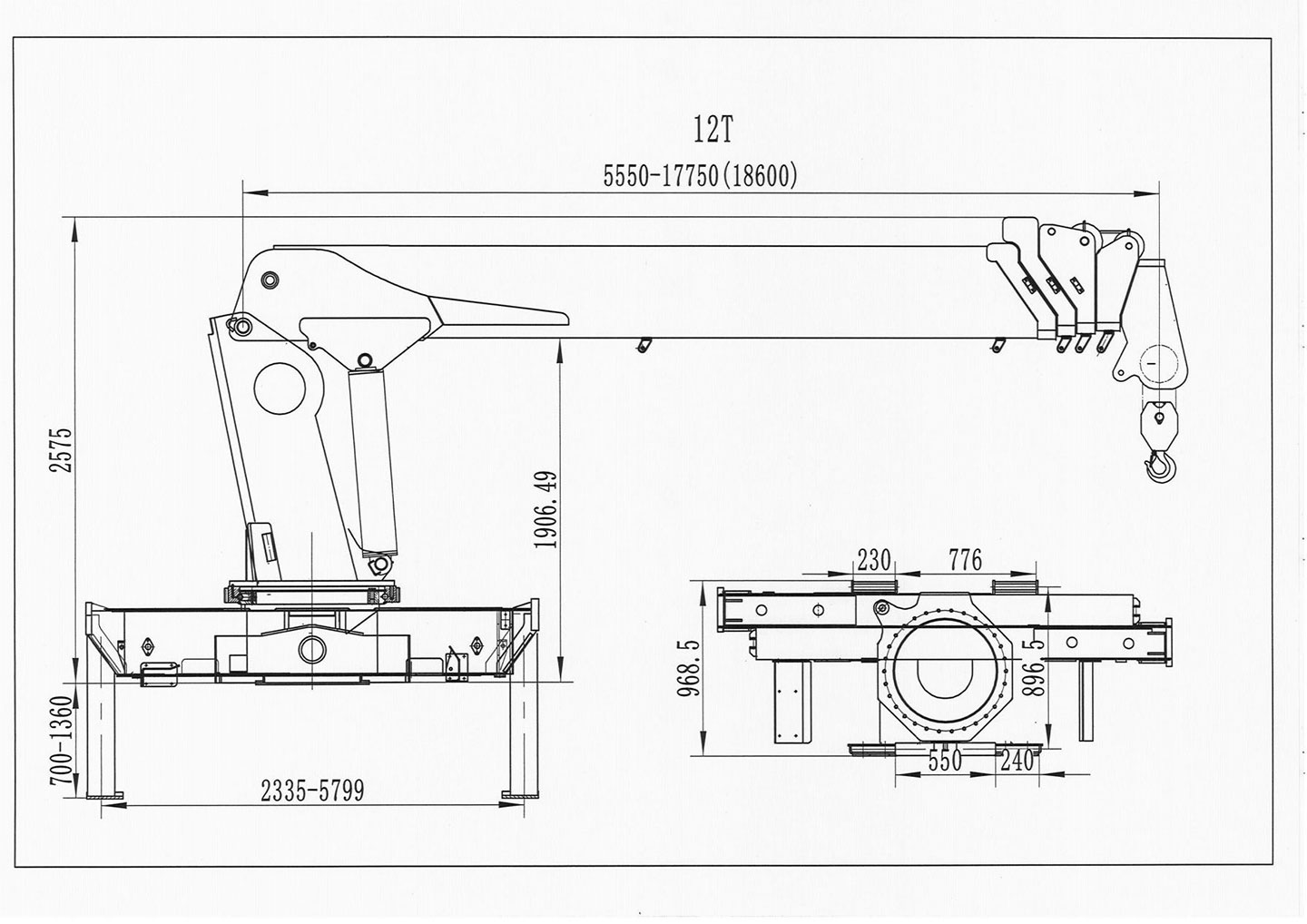

Crane dimension

Lifting chart

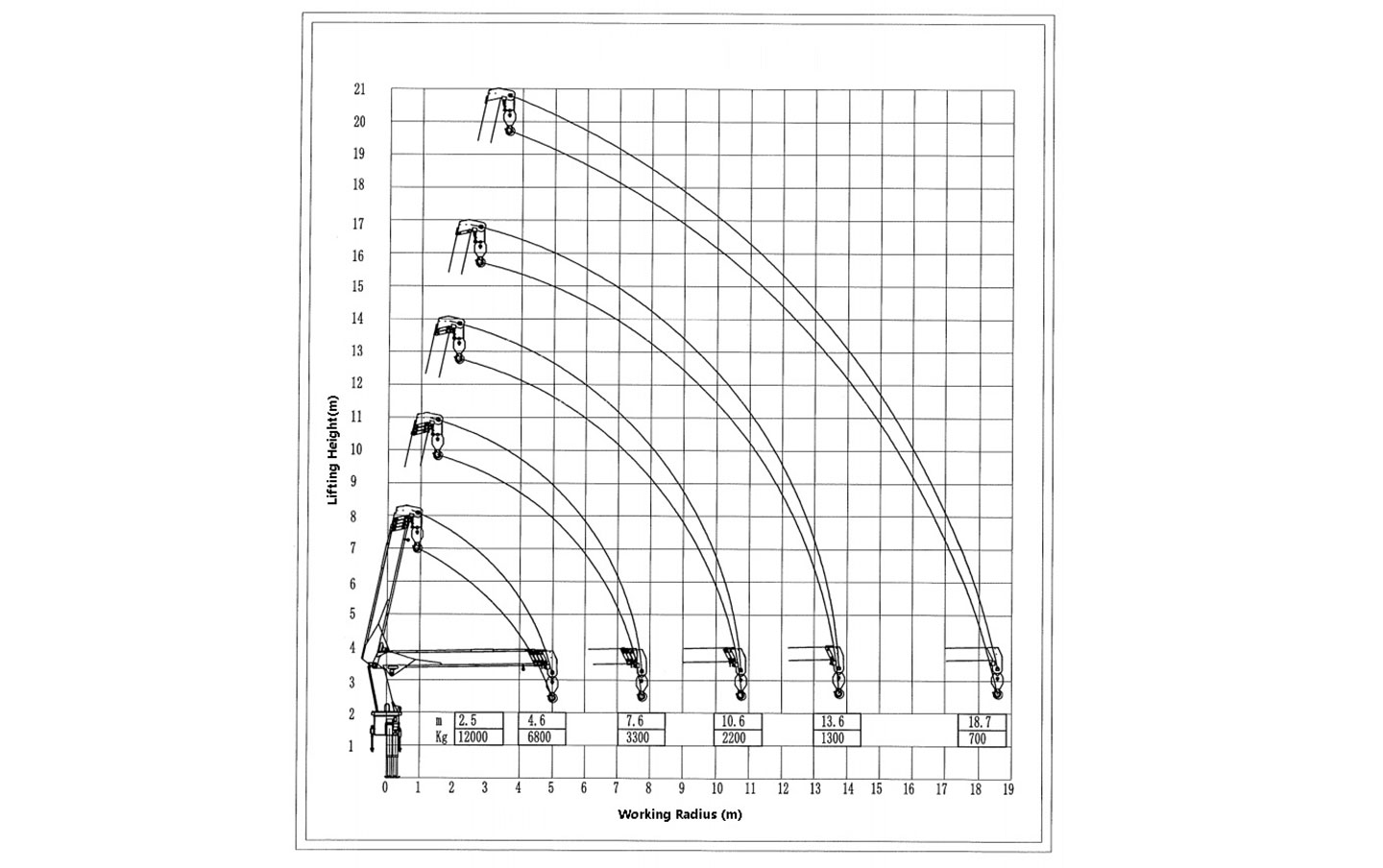

Lifting curve diagram
