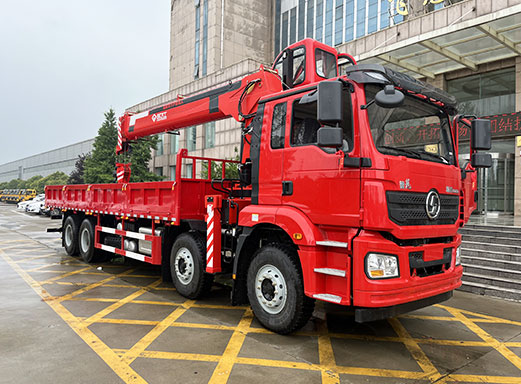

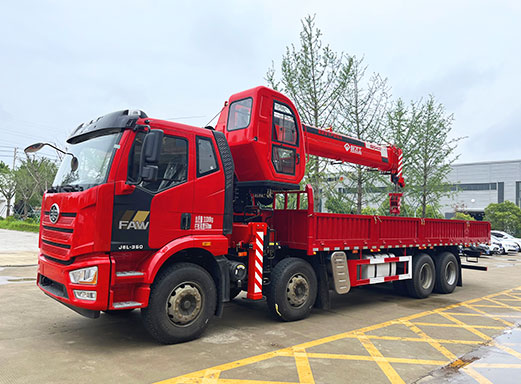

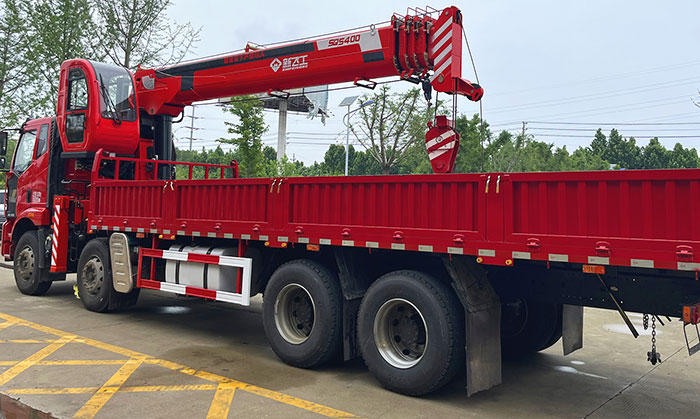

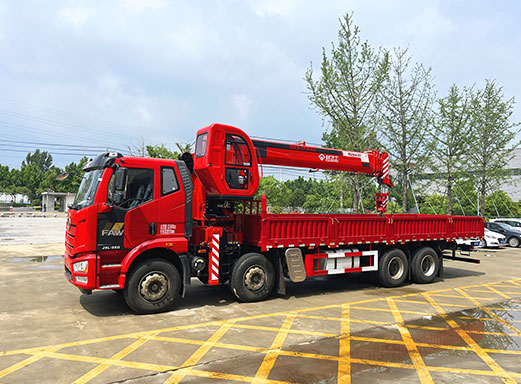

Truck Mounted Crane SQS400-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

5- section boom with U shape, High speed boom extension and retraction,
Boom material use BS700 high tensile steel, reduce the weight while ensuring the strength of the boom,
Famous hydraulic parts make ever movement smoothly and precision,
Excellent workmanship good appearance, high density painted, prevent corrosion for seawater
One hook lifting capacity 16000kg
Double beam outrigger span 7110mm, Wider hoisting coverage and better safety performance

Crane specification

Crane	Brand	XINFEIG
	Crane model	SQS400
	Manufacture year	2026
	Rated lifting capacity	kg	16000
	Max.load moment	KN.m	400
	Max. Boom outreach	m	21.26m
	Slewing angle	°	360
	Boom raising angle	°	0~78°
	Max.lifting height(the measurement from the ground after the outriggers fully extended)	23.5
	Numbers of the boom	5 section
	Outrigger span (fully extended)	mm	7110
	Operating position		Upper of the crane
	Recommend oil displacement	L/min	100
	Operation pressure	mpa	21mpa
	Crane dead weight	kg	6800
	Recommend outrigger type	Hydraulic double chamber outrigger
	Recommend installation size	1300mm

Crane dimension
