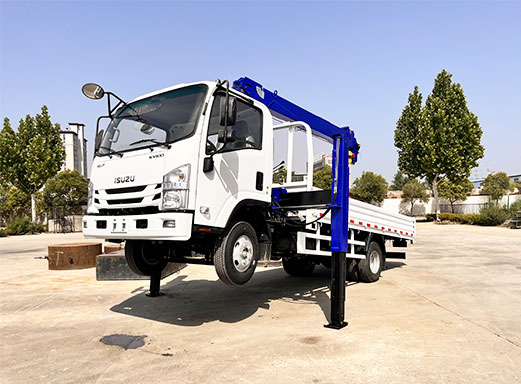

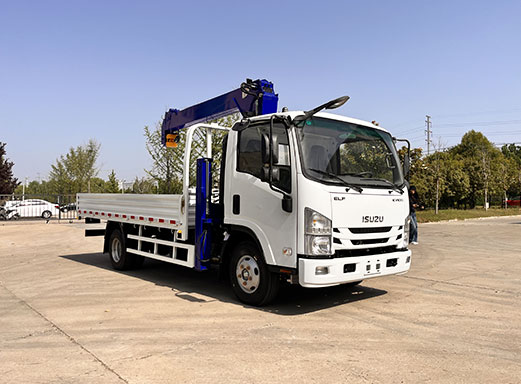

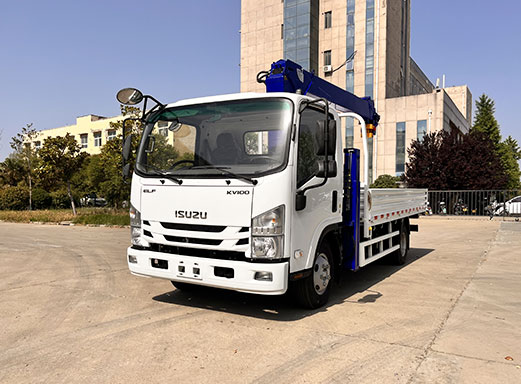

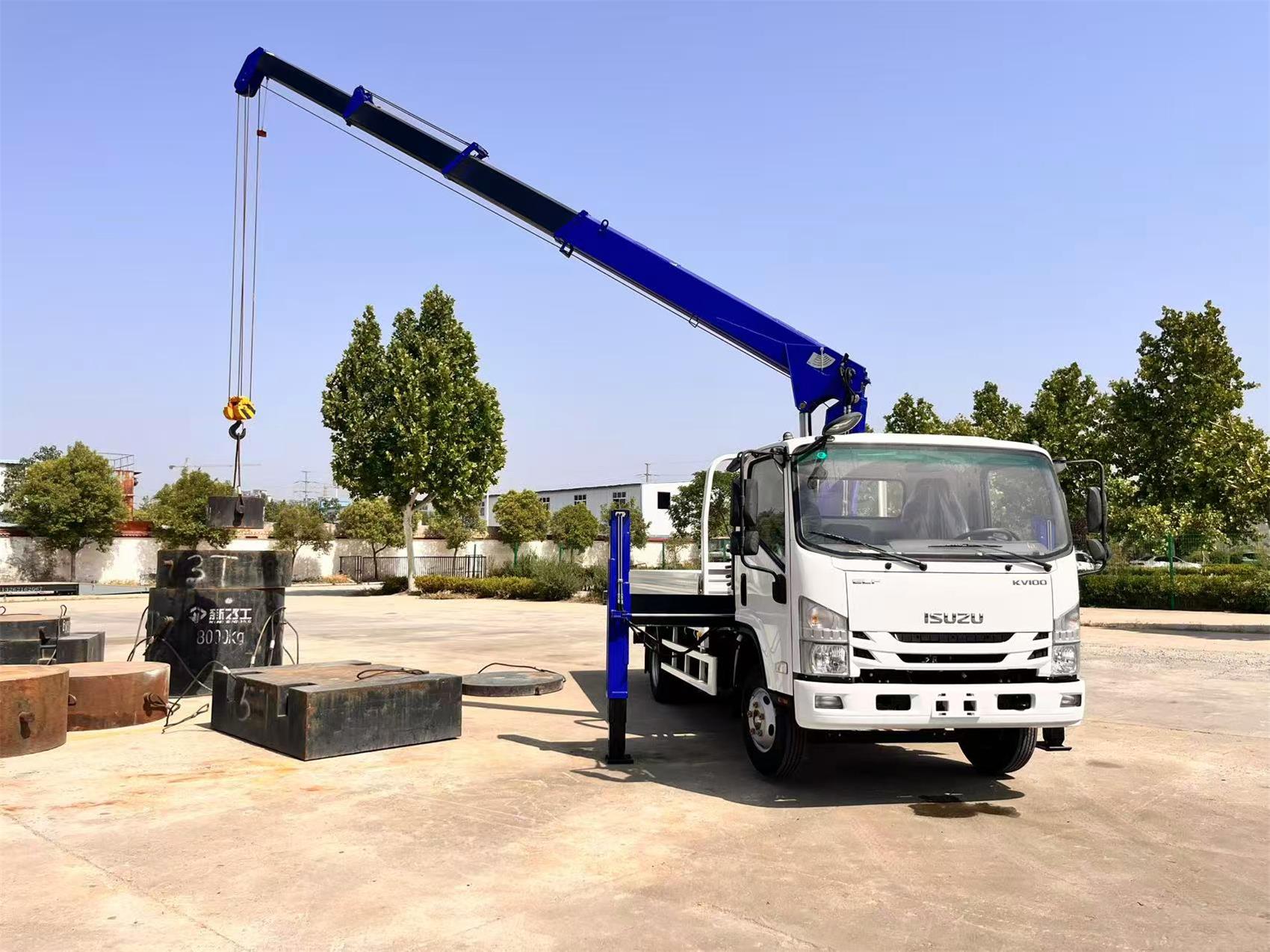

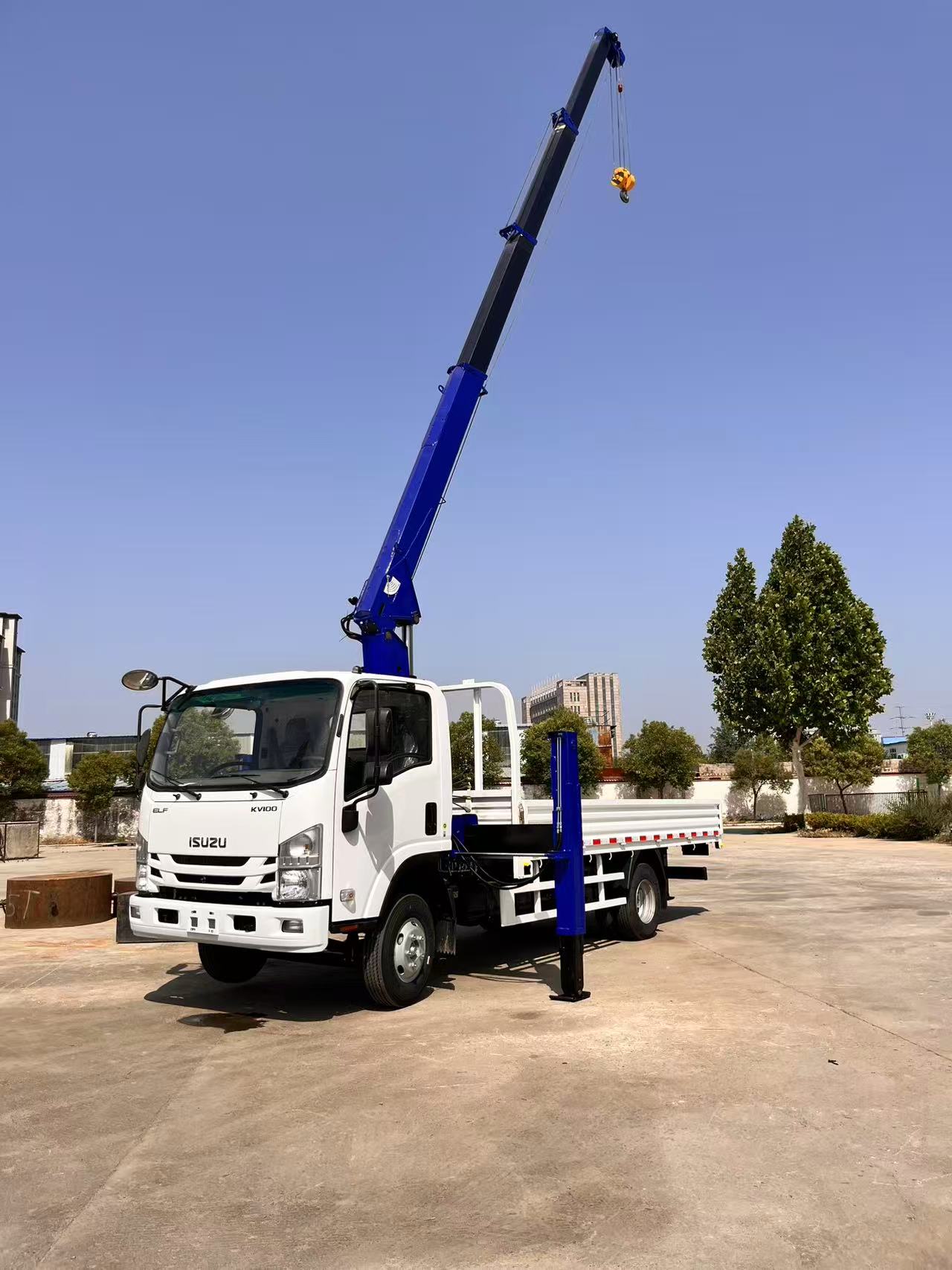

Truck Mounted Crane SQS68 XINFEIG Straight boom crane 3.2Ton, boom truck crane with high jack outrigger-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

crane model SQS68-4, boom length 9.9 meters, lifting height 11.3 meters, base boom lifting capacity 3200Kg, 360degree rotation.

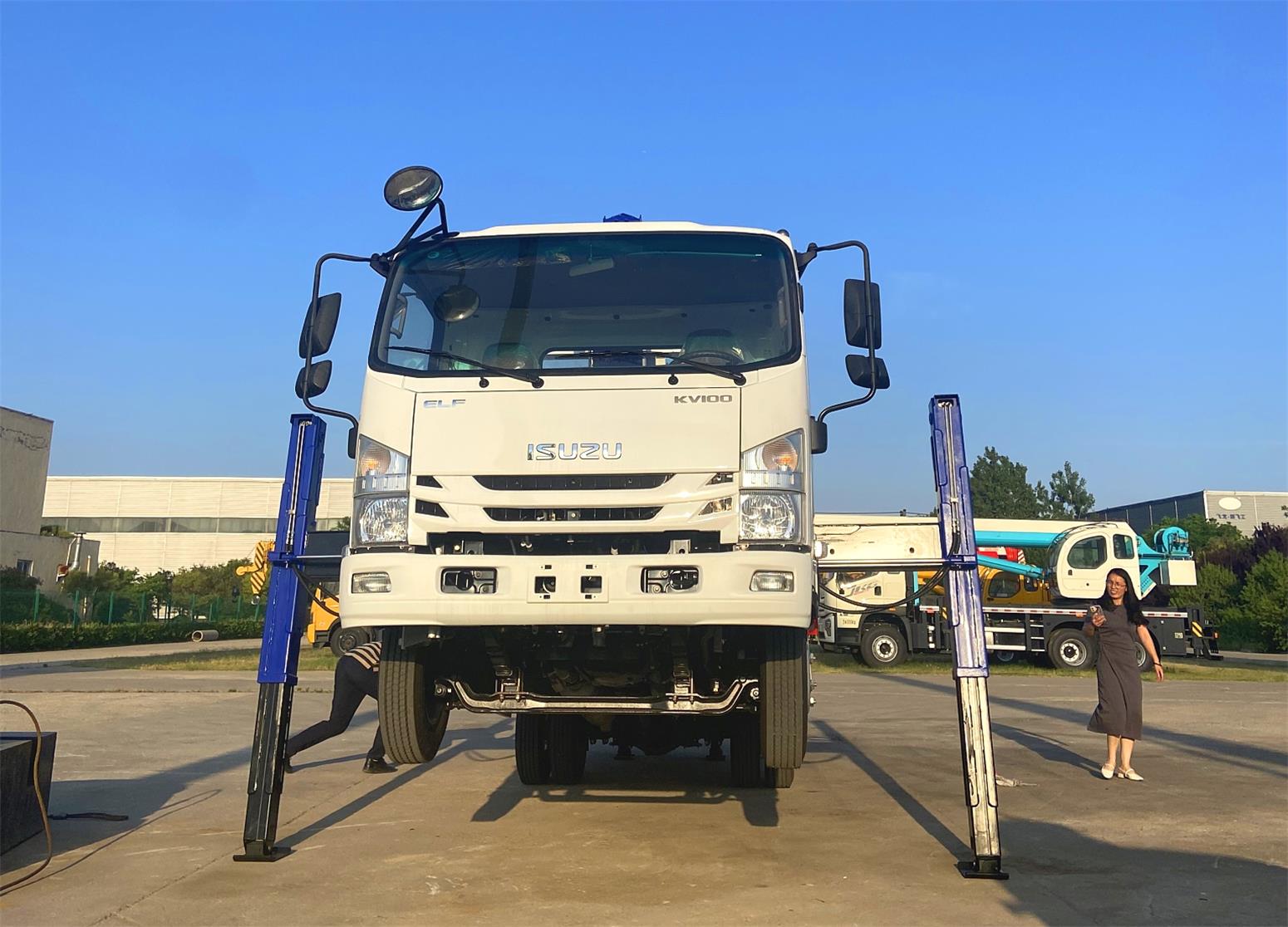

crane with 4 section arm, outrigger an option high jack outrigger, equipped with high pressure filter, hydraulic pump 32L/min.
Advance production process ensure meet technical standard, and adopted high quality materials, high strength plated, use laser cutting machine, automatic clipper, advance CNC machine, ensure the quality and standard of each component.
Optimize hydraulic system, make operation smooth and efficient
Famous hydraulic parts make ever movement smoothly and precision,
Excellent workmanship good appearance, high density painted, prevent corrosion for seawater.
National hydraulic crane research center.hydraulic crane high-tech research and development;

Crane Features

1. XINFEIG crane, 4- section boom length 9.9 meters, the cross section of the boom is hexagonal, more stable and durable for lifting, base boom loading capacity 3200kg.

2. Large displacement pump to provide sufficient power ensures action is stable and smooth.

3. First-line brand hydraulic components, longer service life, more efficient and convenient operation.

4. Robust crane structure design, enhanced bearing capacity,assist crane has performance when working

5. The large torque hydraulic motor the lifting speed is fast, and the lifting capacity is strong.

Application

Crane specification

Item	Unit	SQS68
Rated lifting capacity	Kg	3200
Max. lifting moment	KN.m	67
Boom outreach	m	9.9
Slewing angle	°	360 （continuous）
Outrigger span	mm	3000
Hydraulic system pressure	Mpa	20
Recommend pump capacity	L/min	32
Crane dead weight	Kg	1250
Installation size	mm	600

Crane dimension

12ton mobile crane FTC121

Truck crane 12ton lifting capacity, six section boom, boom length 38m, lifting height 41m, outrigger span 6.4m, compact vehicle boday design, excellent workmanship advance production line, famous hydraulic brand, ensure cranes quality,

Ergonomic degign for crane structure

Ensuring product quality is crucial for maintaining customer satisfaction and building a reputable brand. Here are some steps you can take to ensure product quality:Set clear quality standards: Establish specific quality criteria that your products must meet. These standards should be measurable and based on customer expectations and industry benchmarks.

Understanding Truck Mounted Knuckle Boom Cranes: Versatility and Applications

Truck mounted knuckle boom cranes are specialized lifting devices mounted on trucks, providing exceptional versatility and efficiency in various industrial applications. These cranes are characterized by their articulated arm, which allows for greater maneuverability and the ability to reach over obstacles.

Truck Mounted Crane SQS68
