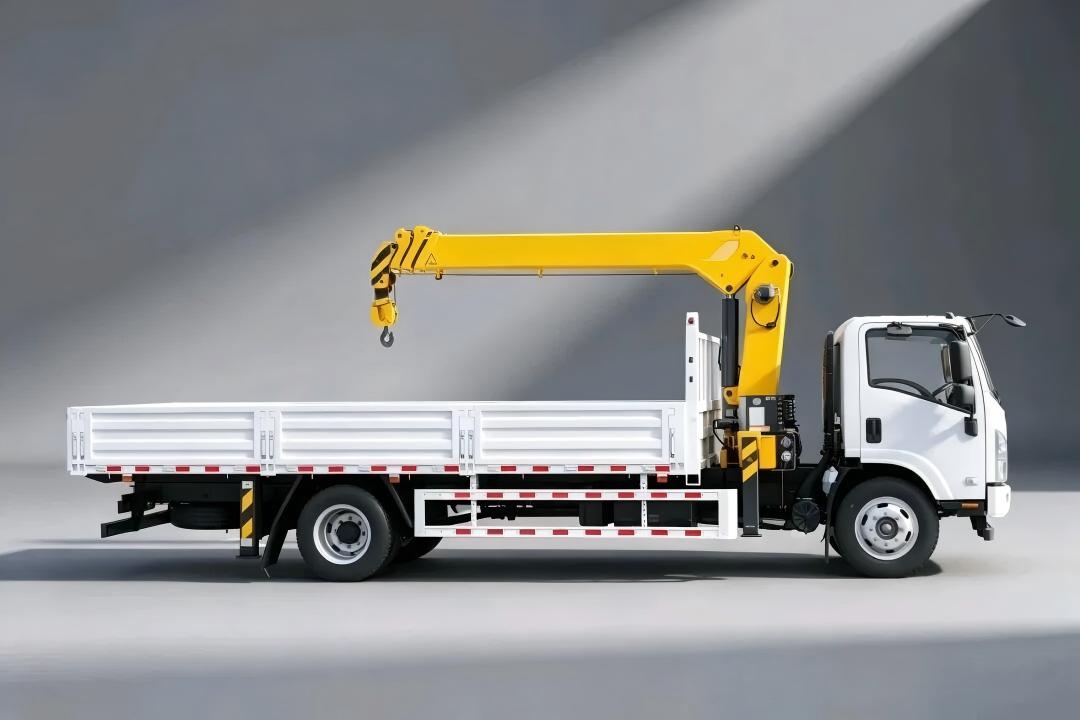

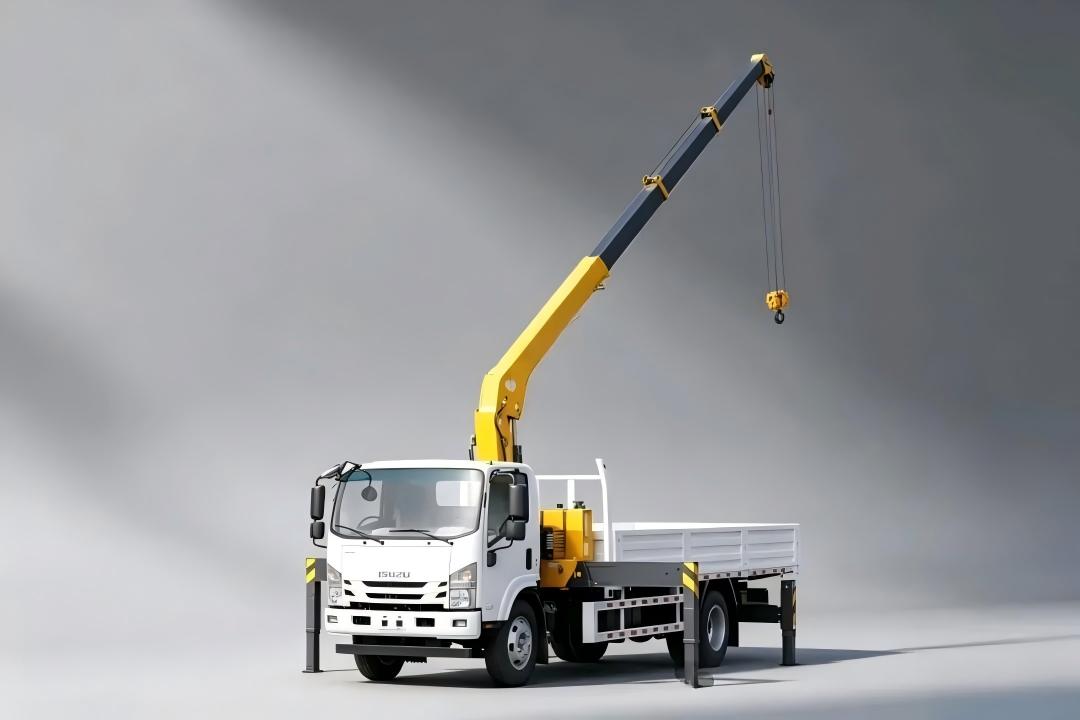

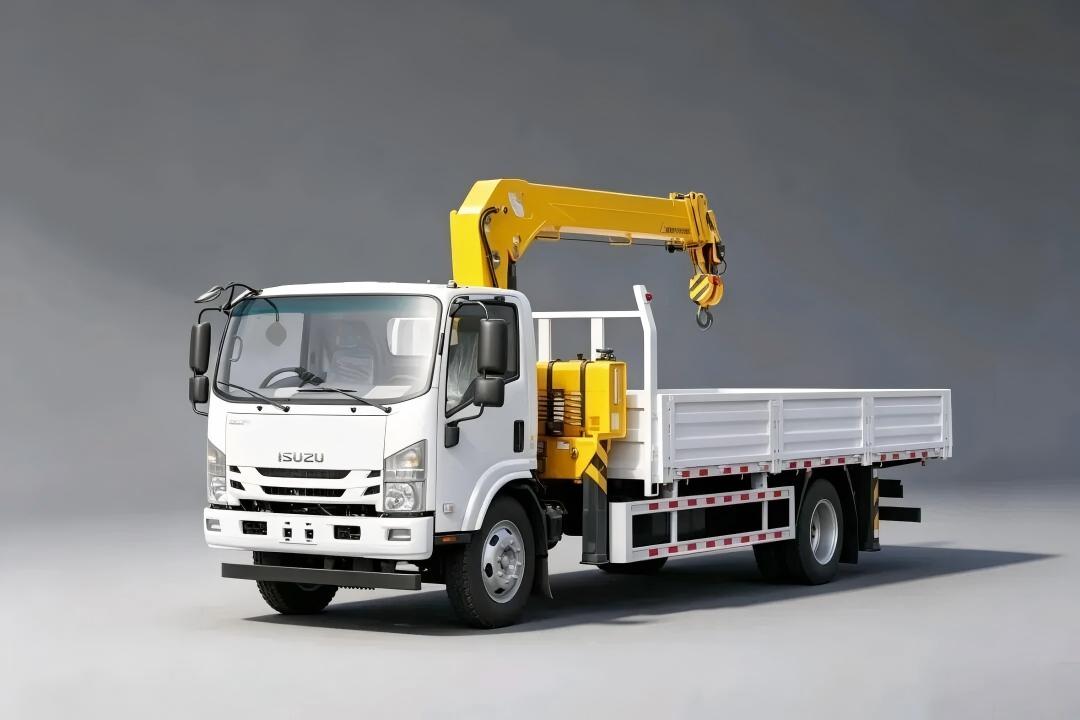

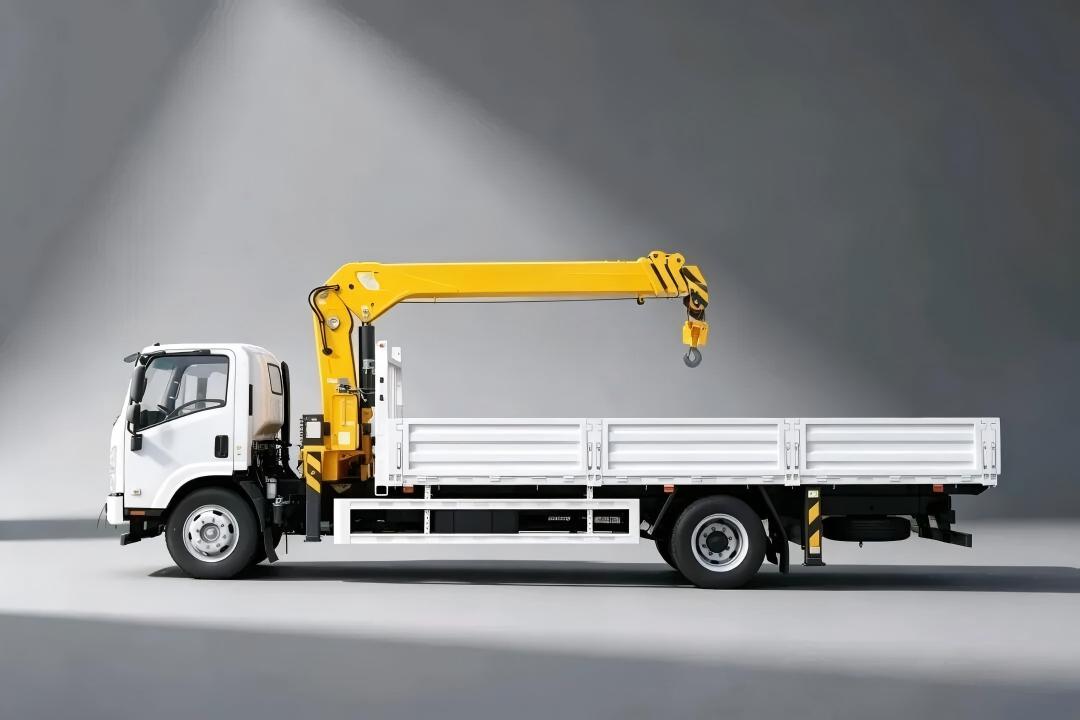

Truck mounted crane, straight boom crane lifting capacity 5000Kg, boom length 12.4meters mounted ISUZU ELF 700P model. The Isuzu truck chassis, with a single-row cab and a 4×2 dual rear tire layout, allowing it to travel freely in urban and rural roads without traffic restrictions. The chassis is mature, durable, and fuel-efficient, making it suitable for short-distance transport and lifting operations.
Chassis configuration: Isuzu 700P, single-row cab, 5150mm wheelbase, engine: 190hp, transmission: 6-speed gearbox, factory air conditioning, central locking, power windows and doors, remote key, 8.25R20 16PR tires.
Crane
Model: SQS125-4，brand: XCMG, 4-section straight boom crane, rated lifting capacity 5 tons, 4-section telescopic hydraulic boom, large working radius in fully extended boom condition, on ground control, easy and percision control, stable working performance, long service life.
II. Core Applications of the Product
1. Municipal Engineering: Transplanting of landscaping trees, hoisting of streetlight poles, and short-distance transport of municipal building materials (pipes/cement components);
2. Construction Sites: Hoisting and transporting small-scale infrastructure steel bars and precast components;
3. Agricultural and Forestry Freight Transport: Hoisting of seedlings, agricultural machinery, and agricultural supplies;
4. Disaster Relief and Rescue: Hoisting and transporting small, faulty equipment, and loading and unloading of emergency supplies.
III. Vehicle Advantages
1. Dual-Purpose Design: Combining a regular truck for cargo transport and a crane for hoisting, eliminating the cost of renting a separate hoisting vehicle;
2. Reliability of the Isuzu Chassis: Low failure rate, easy maintenance, suitable for high-frequency, scattered field operations;
3. Four-Section Boom: Larger operating range, more adaptable to narrow spaces and high-altitude material handling.
truck mounted crane, straight boom crane, an option high jack outrigger, ISUZU Self loading crane
