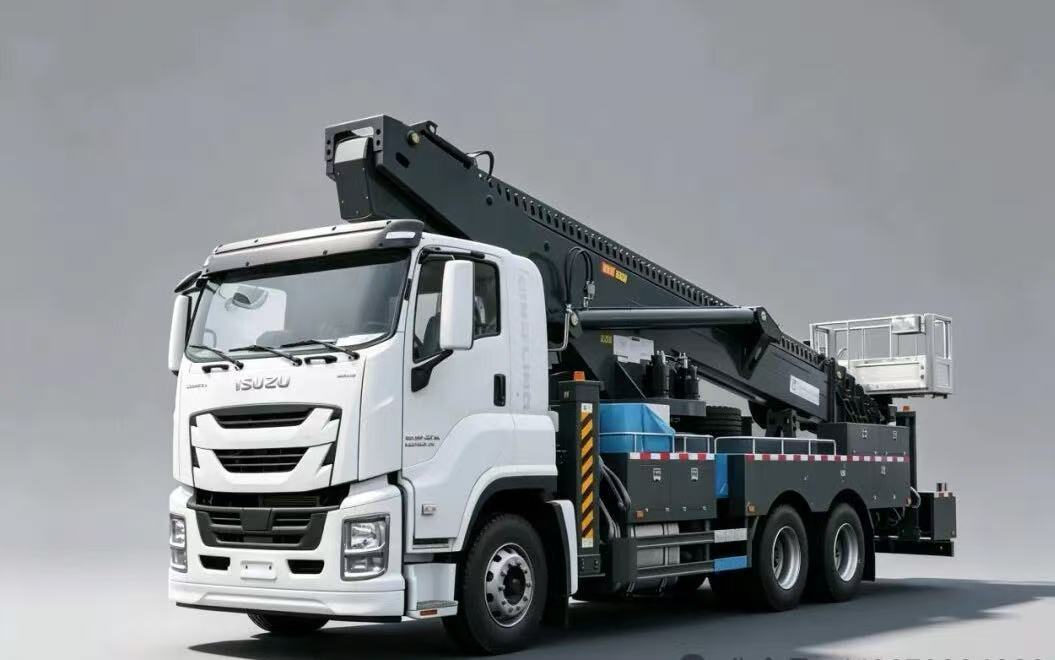

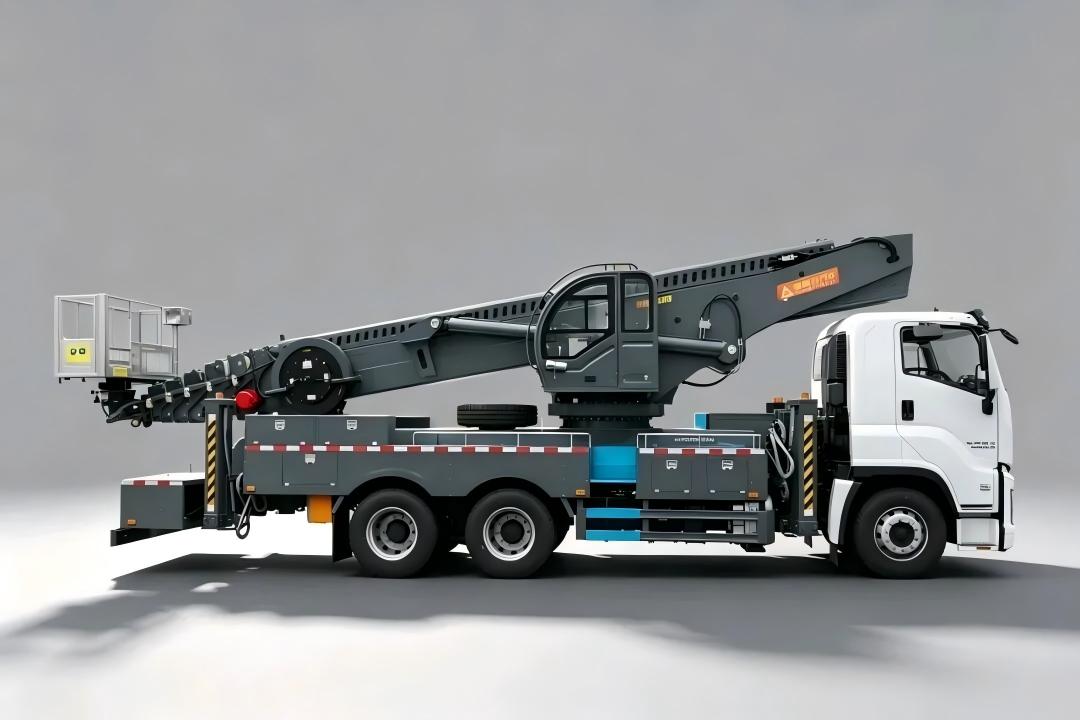

ISUZU truck mounted aerial working platform 65meters working height
I. Chassis Parameters (Isuzu VC61 Heavy duty Truck Chassis)

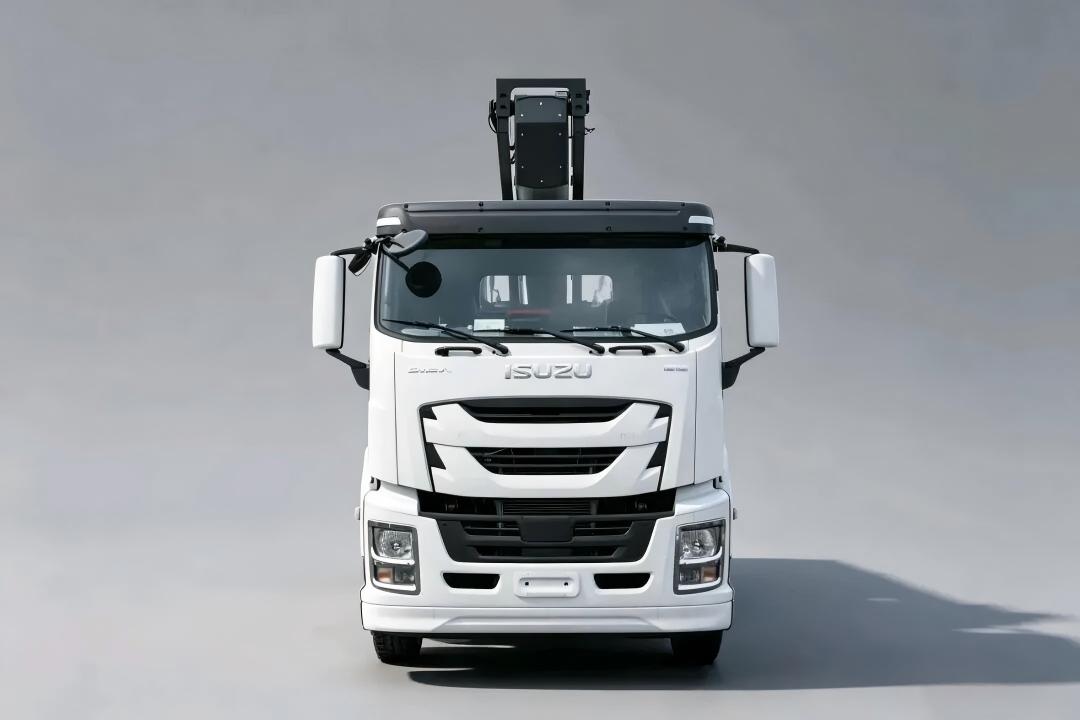

1. Cab and Body: New Isuzu GX-level VC61 wide-body cab, offering spacious driving and passenger space. Standard features include factory-installed air conditioning (heating and cooling), power windows, central locking, multi-function integrated steering wheel, and LCD smart instrument panel for intelligent operation.
2. Powertrain: 300hp diesel engine, providing ample power suitable for heavy-duty aerial work conditions; braking system equipped with ABS anti-lock braking system + vehicle-wide air brakes, ensuring high safety during heavy-duty parking and driving braking.
3. Wheelbase Layout: 4350+1370mm wheelbase, 6×4 rear dual-axle chassis structure, strong load-bearing capacity, and excellent overall vehicle stability during operation with extra-large span outriggers.
II. Core Configuration of Aerial Work Platform
1. Telescopic Boom Structure

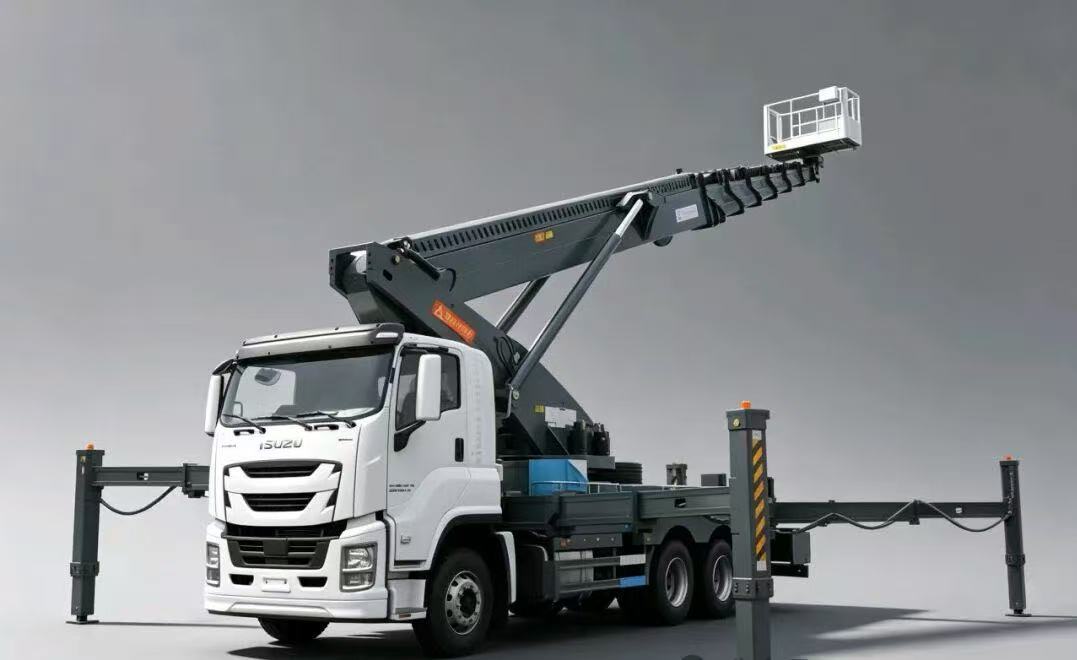

– Boom Specifications: 7-section fourteen-sided synchronous telescopic boom. The polygonal boom cross-section offers superior bending and torsional resistance compared to conventional round/rectangular booms. The fully extended working height reaches 65 meters, making it the primary high-altitude work vehicle for municipal engineering, wind power maintenance, and curtain wall installation. The fully synchronous telescopic hydraulic system ensures smooth extension and retraction.
– The boom features an independent hydraulic slewing mechanism, enabling full slewing operation and a stable working performance.
2. Support System: Front V-Type Rear V-Type Three-Section Outriggers
Both the front and rear outriggers are V-shaped three-section telescopic outriggers with a large span and ample ground contact area. When fully extended, there is sufficient safety margin for vehicle rollover during operation. They can also be leveled on uneven surfaces, making them highly adaptable to harsh terrain. The outriggers are equipped with hydraulic locking mechanisms to prevent retraction during operation.
3. Working Platform

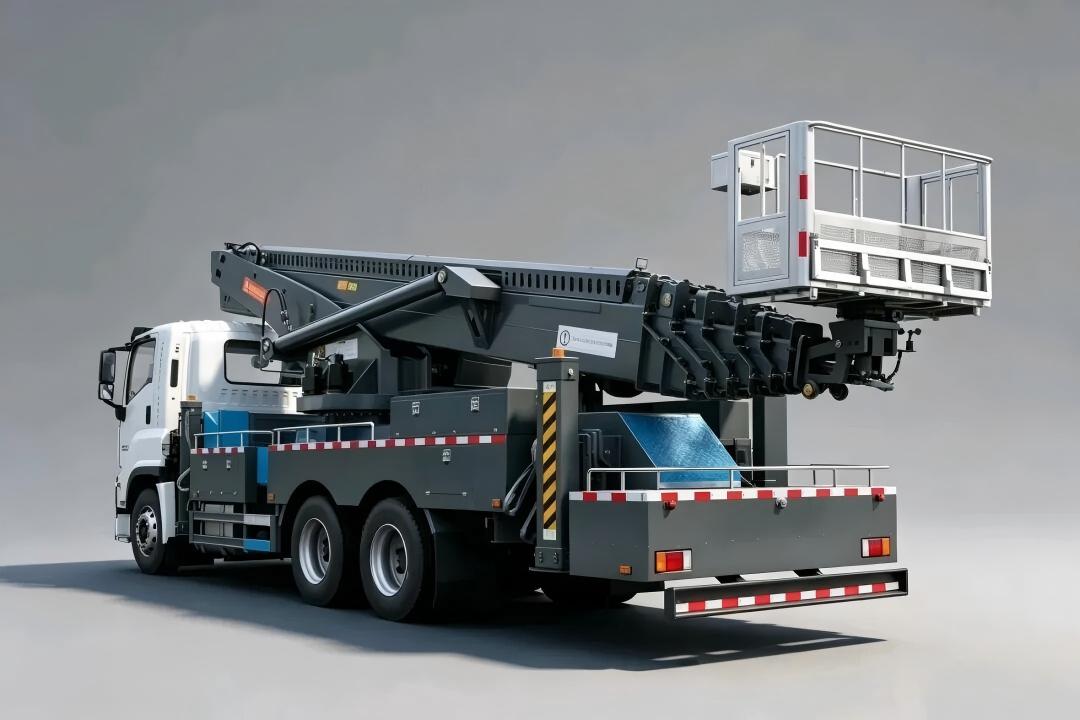

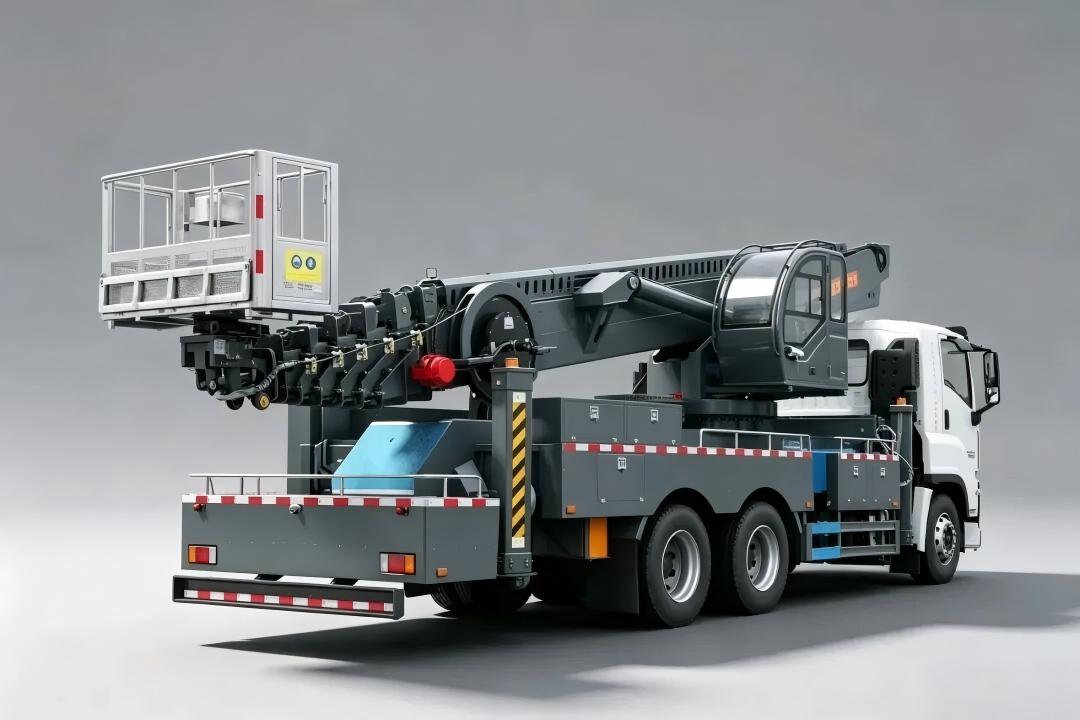

The aluminum alloy hollow-out manned work platform is lightweight and high-strength. It features hydraulic automatic leveling, supports small-angle rotation, and offers flexible carrying of personnel and tools. Standard equipment includes safety railings and operating handles, allowing direct control of the boom’s lifting and rotation from the platform.
III. Applicable Work Scenarios
1. Municipal Engineering: Maintenance of high-rise streetlights, bridge repair, elevated bridge painting, and installation/removal of high-altitude billboards;
2. Building Curtain Walls: Installation of exterior glass for high-rise office buildings, and exterior wall insulation/coating application;
3. Industrial Maintenance: High-altitude inspection and maintenance of large factories, wind turbine towers, chimneys, and large storage tanks;
4. Emergency Response: High-rise fire rescue, high-altitude accident rescue, and power line maintenance.
